Cisco ASR 1002 как брас с pppoe и NAT

Phantom Lord
 Share

Recommended Posts

Phantom Lord

Phantom Lord

Posted
Posted

Всем привет.

Форумчане, помогите пожалуйста с настройкой NAT для pppoe сессий.

Для теста сделал некоторые настройки, но трансляция не работает:

Вот кусок конфига:

Spoiler

ip dhcp pool Smart_ST_NAT
 network 15.16.44.0 255.255.255.0
 dns-server xx.xx.xx.xx

.

.

.

interface TenGigabitEthernet0/1/0.844  //по этому влану приходят pppoe запросы
 description test router bras
 encapsulation dot1Q 844
 ip nat inside
 pppoe enable group smart-test
 pppoe max-sessions 1000

.

.

.

.

 interface Virtual-Template1
 mtu 1492
 ip unnumbered Loopback0
 ip access-group 191 in
 ip nat outside
 peer default ip address dhcp-pool Smart_ST
 ppp authentication chap ms-chap ms-chap-v2
 ppp ipcp dns xx.xx.xx.xx

.

.

ip nat pool Smart_ST_NAT_OUT yy.yy.yy.0  yy.yy.yy.255 (диапазон белых ip )prefix-length 24
ip nat inside source list 100 pool Smart_ST_NAT_OUT overload
ip forward-protocol nd

.

.

access-list 100 permit ip 15.16.44.0 0.0.0.255 any





  • Replies 74
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

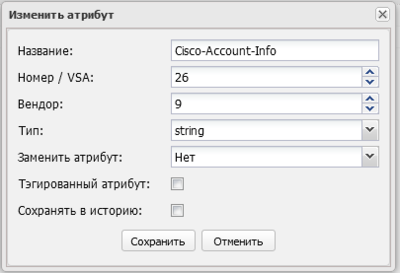

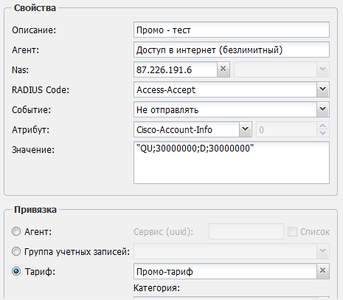

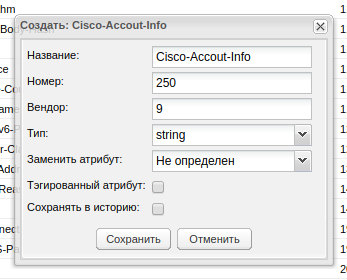

Posted Images

StSphinx

StSphinx

Posted
Posted

interface TenGigabitEthernet0/1/0.844 - тут nat inside не нужен....

interface Virtual-Template1 - тут нужен nat inside, а не outside

StSphinx

StSphinx

Posted
Posted
Только что, Phantom Lord сказал:

Спасибо.

А куда вешать outside?

На туда, где у вас public IP в который вы будете транслировать private IP.

Phantom Lord

Phantom Lord

Posted
  • Author
Posted
1 minute ago, StSphinx said:

На туда, где у вас public IP в который вы будете транслировать private IP.

У меня 2 шт cisco asr 1002

на первой BGP, вторая (на которой делаем тест nat ) имеет дефолт рут на первую



StSphinx

StSphinx

Posted
Posted
1 минуту назад, Phantom Lord сказал:

У меня 2 шт cisco asr 1002

на первой BGP, вторая (на которой делаем тест nat ) имеет дефолт рут на первую



Какое отношение все это имеет к настройкам NAT трансляций?

StSphinx

StSphinx

Posted
Posted
1 минуту назад, Phantom Lord сказал:

К вопросу о outside

На коробке, где вы настраиваете NAT трансляции, должен быть интерфейс с public IP.

Если у вас NAT будет на другой коробке, вот там и настраивайте. Вообще, каша у вас какая-то в голове, простите.

Phantom Lord

Phantom Lord

Posted
  • Author
Posted
1 hour ago, StSphinx said:

На коробке, где вы настраиваете NAT трансляции, должен быть интерфейс с public IP.

Если у вас NAT будет на другой коробке, вот там и настраивайте. Вообще, каша у вас какая-то в голове, простите.

Благодарю. Все заработало.

myst

myst

Posted
Posted
19 часов назад, StSphinx сказал:

На коробке, где вы настраиваете NAT трансляции, должен быть интерфейс с public IP.

Если у вас NAT будет на другой коробке, вот там и настраивайте. Вообще, каша у вас какая-то в голове, простите.

Не должен но в принципе верно, должен быть интерфейс откуда пакетики улетают после трансляции.... посмотреть sh ip ro 0.0.0.0.0 например, и туда вешать аутсайд



StSphinx

StSphinx

Posted
Posted
3 часа назад, myst сказал:

Не должен но в принципе верно, должен быть интерфейс откуда пакетики улетают после трансляции.... посмотреть sh ip ro 0.0.0.0.0 например, и туда вешать аутсайд



Согласен, ошибся. Давно дело с NAT на Cisco дел не имел.

  • 2 weeks later...
  • 1 year later...
Andrei

Andrei

Posted
Posted

soft: asr1000rp1-advipservicesk9.02.06.01.122-33.XNF1.bin



И вот такая печалька при настройке темплейта для pppoe:

ASR1002_core(config-route-map)#interface Virtual-Template1
ASR1002_core(config-if)# ip policy route-map nat_to_sovintel
                              ^
% Invalid input detected at '^' marker.

Суть клиентам после авторизации выдаются ip из разных пулов, которые натятся в разных магистралов (из конфига старой циски 7204):

interface Virtual-Template1
 description PPTP VPN template interface
 ip unnumbered Loopback0
 no ip redirects
 ip nat inside
 ip flow ingress
 ip flow egress
 ip policy route-map nat_to_sovintel
 no logging event link-status
 no peer default ip address
 keepalive 30 7
 ppp authentication pap chap callin via_lb
 ppp authorization via_lb
 ppp accounting via_lb
 ppp ipcp dns xxx.xxx.xxx.xxx
...
access-list 100 permit ip 172.21.40.0 0.0.0.255 any
access-list 100 permit ip 172.21.41.0 0.0.0.255 any
access-list 102 permit ip 172.21.43.0 0.0.0.255 any
access-list 102 permit ip 172.21.42.0 0.0.0.255 any
...
ip nat inside source list 100 interface GigabitEthernet0/3.502 overload
ip nat inside source list 102 interface GigabitEthernet0/3.151 overload

Хотел воспроизвести это и на ASR 1002, а тут такой облом.
IOS менять? На какой? Или как-то иначе выкрутиться?

Andrei

Andrei

Posted
Posted

Какой-нибудь bootprom не надо менять под эту ios?


ASR1002_core#sh platform
Chassis type: ASR1002

Slot      Type                State                 Insert time (ago)
--------- ------------------- --------------------- -----------------
0         ASR1002-SIP10       ok                    23:34:55
 0/0      4XGE-BUILT-IN       ok                    23:33:17
 0/1      SPA-5X1GE-V2        ok                    23:33:16
R0        ASR1002-RP1         ok, active            23:34:55
F0        ASR1000-ESP5        ok, active            23:34:55
P0        ASR1002-PWR-AC      ps, fail              23:34:04
P1        ASR1002-PWR-AC      ok                    23:34:03

Slot      CPLD Version        Firmware Version
--------- ------------------- ---------------------------------------
0         07120202            12.2(33r)XNC
R0        08011017            12.2(33r)XNC
F0        07091401            12.2(33r)XNB

alexmern

alexmern

Posted
Posted
1 minute ago, Andrei said:

А полное имя image?

asr1000-rommon-155-3r.S1.pkg



Кстати, требуемый rommon есть в имени самой прошивки:
asr1000rp1-adventerprisek9.03.16.10.S.155-3.S10-ext
asr1000rp1-advipservicesk9.02.06.01.122-33.XNF1

Andrei

Andrei

Posted
Posted
17 минут назад, alexmern сказал:

asr1000-rommon-155-3r.S1.pkg

Учетка на cisco.com есть, но не дает скачать - нет сервисного контракта :(

И старого на флэше тоже не видно


ASR1002_core#dir /recursive *.pkg
Directory of bootflash:/*.pkg

No such file

7860539392 bytes total (1310380032 bytes free)
ASR1002_core#dir /recursive *.bin
Directory of bootflash:/*.bin

Directory of bootflash:/

   13  -rw-   255947064  Jul 27 2010 06:30:45 +05:00  asr1000rp1-advipservicesk9.02.06.01.122-33.XNF1.bin
   12  -rw-   395094652  Feb 19 2020 20:24:57 +05:00  asr1000rp1-adventerprisek9.03.16.10.S.155-3.S10-ext.bin
7860539392 bytes total (1310375936 bytes free)

Andrei

Andrei

Posted
Posted
15 часов назад, alexmern сказал:

asr1000-rommon-155-3r.S1.pkg

На сколько я понял теперь:

ASR1002_core# sh platf
Chassis type: ASR1002

Slot      Type                State                 Insert time (ago)
--------- ------------------- --------------------- -----------------
0         ASR1002-SIP10       ok                    1d01h
 0/0      4XGE-BUILT-IN       ok                    1d01h
 0/1      SPA-5X1GE-V2        ok                    1d01h
R0        ASR1002-RP1         ok, active            1d01h
F0        ASR1000-ESP5        ok, active            1d01h
P0        ASR1002-PWR-AC      ps, fail              1d01h
P1        ASR1002-PWR-AC      ok                    1d01h

Slot      CPLD Version        Firmware Version
--------- ------------------- ---------------------------------------
0         07120202            12.2(33r)XNC
R0        08011017            12.2(33r)XNC
F0        07091401            12.2(33r)XNB


upgrade rom-monitor filename bootflash:asr1000-rommon-155-3r.S1.pkg all

boot-start-marker
boot system bootflash:asr1000rp1-adventerprisek9.03.16.10.S.155-3.S10-ext.bin
boot-end-marker



Andrei

Andrei

Posted
Posted
В 19.02.2020 в 21:49, alexmern сказал:

asr1000rp1-adventerprisek9.03.16.10.S.155-3.S10-ext

На этом IOS терминация pppoe/pptp нормально работает? Никак не могу добиться рабочей версии конфига

Авторизация через радиус проходит

Feb 21 21:57:59: ppp26 PPP: Using AAA Unique Id = 35
Feb 21 21:57:59: ppp26 PPP: Authorization required
Feb 21 21:57:59: ppp26 PPP: Using vpn set call direction
Feb 21 21:57:59: ppp26 PPP: Treating connection as a callin
Feb 21 21:57:59: ppp26 PPP: Session handle[D900001A] Session id[26]
Feb 21 21:57:59: ppp26 PPP LCP: negotiation authorized = 1, tacacs author = 0
Feb 21 21:57:59: ppp26 PPP LCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: ppp26 PPP LCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: ppp26 PPP LCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: ppp26 PPP LCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: ppp26 CHAP: O CHALLENGE id 1 len 33 from "ASR1002_core"
Feb 21 21:57:59: ppp26 CHAP: I RESPONSE id 1 len 28 from "var_bee"
Feb 21 21:57:59: ppp26 PPP: Sent CHAP LOGIN Request
Feb 21 21:57:59: ppp26 PPP: Received LOGIN Response PASS
Feb 21 21:57:59: ppp26 PPP AUTHOR: Author Data Available
Feb 21 21:57:59: ppp26 PPP: Receive Attrs from[authen] Keep[LCP] MERGE
Feb 21 21:57:59: ppp26 PPP: Keep Attr: timeout              0   386405 (0x5E565)
Feb 21 21:57:59: ppp26 PPP: Updated the attr timeout in datalist
Feb 21 21:57:59: ppp26 PPP: Keep Attr: service-type         0   2 [Framed]
Feb 21 21:57:59: ppp26 PPP: Updated the attr service-type in datalist
Feb 21 21:57:59: ppp26 PPP: Keep Attr: Framed-Protocol      0   1 [PPP]
Feb 21 21:57:59: ppp26 PPP: Updated the attr Framed-Protocol in datalist
Feb 21 21:57:59: ppp26 PPP: Skip Attr: addr                 0   172.21.44.235
Feb 21 21:57:59: ppp26 PPP: Skip Attr: netmask              0   255.255.255.255
Feb 21 21:57:59: ppp26 PPP: Keep Attr: acct-interval        0   60 (0x3C)
Feb 21 21:57:59: ppp26 PPP: Updated the attr acct-interval in datalist
Feb 21 21:57:59: ppp26 PPP: Keep Attr: Message-Authenticato 0   <hidden>
Feb 21 21:57:59: ppp26 PPP: Updated the attr Message-Authenticator in datalist
Feb 21 21:57:59: ppp26 PPP: Receive Attrs from[SSS] Keep[NCPs] MERGE
Feb 21 21:57:59: ppp26 PPP: Skip Attr: timeout              0   386405 (0x5E565)
Feb 21 21:57:59: ppp26 PPP: Skip Attr: service-type         0   2 [Framed]
Feb 21 21:57:59: ppp26 PPP: Skip Attr: Framed-Protocol      0   1 [PPP]
Feb 21 21:57:59: ppp26 PPP: Keep Attr: addr                 0   172.21.44.235
Feb 21 21:57:59: ppp26 PPP: Updated the attr addr in datalist
Feb 21 21:57:59: ppp26 PPP: Keep Attr: netmask              0   255.255.255.255
Feb 21 21:57:59: ppp26 PPP: Updated the attr netmask in datalist
Feb 21 21:57:59: ppp26 PPP: Skip Attr: Message-Authenticato 0   <hidden>
Feb 21 21:57:59: is_up: Virtual-Access3.1 0 state: 4 sub state: 0 line: 0
Feb 21 21:57:59: RT: interface Virtual-Access3.1 removed from routing table
Feb 21 21:57:59: is_up: Virtual-Access3.1 0 state: 4 sub state: 0 line: 0
Feb 21 21:57:59: RT: interface Virtual-Access3.1 removed from routing table
Feb 21 21:57:59: is_up: Virtual-Access3.1 0 state: 4 sub state: 0 line: 0
Feb 21 21:57:59: RT: interface Virtual-Access3.1 removed from routing table
Feb 21 21:57:59: is_up: Virtual-Access3.1 0 state: 4 sub state: 1 line: 0
Feb 21 21:57:59: RT: interface Virtual-Access3.1 removed from routing table
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Process LCP Author Data
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Process Attr: timeout
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Process Attr: service-type
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Process Attr: Framed-Protocol
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Process Attr: acct-interval
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Process Attr: Message-Authenticator
Feb 21 21:57:59: Vi3.1 LCP AUTHOR: Authorization succeeded
Feb 21 21:57:59: Vi3.1 CHAP: O SUCCESS id 1 len 4
Feb 21 21:57:59: Vi3.1 PPP: Store Author Attr: addr
Feb 21 21:57:59: Vi3.1 PPP: Store Author Attr: netmask
Feb 21 21:57:59: Vi3.1 PPP IPCP: negotiation authorized = 1, tacacs author = 0
Feb 21 21:57:59: Vi3.1 PPP IPCP: neg is authorized, processing CP UP event
Feb 21 21:57:59: is_up: Virtual-Access3.1 0 state: 4 sub state: 1 line: 0
Feb 21 21:57:59: RT: interface Virtual-Access3.1 removed from routing table
Feb 21 21:57:59: Vi3.1 PPP IPCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: Start.  Her address 0.0.0.0, we want 0.0.0.0
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: Authorization succeeded
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: Done.  Her address 0.0.0.0, we want 172.21.44.235
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for primary dns
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for primary wins
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for seconday dns
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for seconday wins
Feb 21 21:57:59: Vi3.1 PPP IPCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for primary dns
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for seconday dns
Feb 21 21:57:59: Vi3.1 PPP IPCP: neg is authorized, processing incoming CONFREQ
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for primary dns
Feb 21 21:57:59: Vi3.1 IPCP AUTHOR: no author-info for seconday dns
Feb 21 21:57:59: RT: updating connected 172.21.44.235/32 (0x0)  :
    via 0.0.0.0 Vi3.1  0 1048578

Feb 21 21:57:59: RT: add 172.21.44.235/32 via 0.0.0.0, connected metric [0/0]
Feb 21 21:57:59: is_up: Virtual-Access3.1 1 state: 4 sub state: 1 line: 0

интерфейс создается

ASR1002_core#sh user | i var
  Vi3.1        var_bee            PPPoVPDN     -        172.21.44.235

ASR1002_core#sh int Vi3.1
Virtual-Access3.1 is up, line protocol is up
  Hardware is Virtual Access interface
  Description: PPTP VPN template interface
  Interface is unnumbered. Using address of Loopback0 (10.2.1.1)
  MTU 1472 bytes, BW 100000 Kbit/sec, DLY 100000 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation PPP, LCP Open
  Open: IPCP
  PPPoVPDN vaccess, cloned from Virtual-Template1
  Vaccess status 0x0
  Protocol pptp, tunnel id 512, session id 33157
  Keepalive set (30 sec)
     100 packets input, 17129 bytes
     24 packets output, 171 bytes
  Time to interface disconnect:  absolute 4d11h
  Last clearing of "show interface" counters never
ASR1002_core#sh int Vi3.1 conf
Virtual-Access3.1 is an VPDN link (sub)interface

Derived configuration : 442 bytes
!
interface Virtual-Access3.1
 description PPTP VPN template interface
 mtu 1472
 ip unnumbered Loopback0
 no ip redirects
 ip nat inside
 ip tcp adjust-mss 1432
 timeout absolute 6440 5
 no peer default ip address
 keepalive 30 7
 ppp authentication pap chap callin via_lb
 ppp authorization via_lb
 ppp accounting via_lb
 ppp ipcp dns xxx.xxx.171.1 8.8.8.8
 ppp ipcp address required
 ppp ipcp address unique
 no ip virtual-reassembly
end

И в таблице трансляций, и в роутах видно

ASR1002_core#sh ip nat tr
Pro  Inside global         Inside local          Outside local         Outside global
udp  xxx.xxx.171.9:4520    172.21.44.235:61918   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4519    172.21.44.235:58425   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4531    172.21.44.235:50935   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4513    172.21.44.235:53740   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4514    172.21.44.235:50379   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4525    172.21.44.235:51688   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4512    172.21.44.235:58788   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4518    172.21.44.235:58567   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4522    172.21.44.235:62820   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4515    172.21.44.235:57079   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4523    172.21.44.235:55937   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4516    172.21.44.235:60166   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4529    172.21.44.235:60868   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4524    172.21.44.235:53768   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4530    172.21.44.235:51053   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4517    172.21.44.235:51161   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4526    172.21.44.235:57590   xxx.xxx.171.1:53      xxx.xxx.171.1:53
udp  xxx.xxx.171.9:4521    172.21.44.235:64213   xxx.xxx.171.1:53      xxx.xxx.171.1:53
Total number of translations: 18

ASR1002_core#sh ip route | i 172.21.44.235
C        172.21.44.235/32 is directly connected, Virtual-Access3.1



Конфиг вроде стандартный, на старой циске такой же. Но после установления успешного pptp-соединения тупо инет не доступен. Даже loopback0 10.2.1.1 не пингуется.

vpdn enable
vpdn session-limit 400
!
vpdn-group 1
 ! Default L2TP VPDN group
 ! Default PPTP VPDN group
 accept-dialin
  protocol any
  virtual-template 1
 session-limit 300
 local name vpn
 ip pmtu
 ip mtu adjust
...
bba-group pppoe global
 virtual-template 1
 sessions max limit 8000
 sessions per-mac limit 1
 sessions per-vlan limit 1000
 sessions per-mac throttle 1 30 31

ip route 0.0.0.0 0.0.0.0 xxx.xxx.171.17

!
interface Loopback0
 ip address 10.2.1.1 255.255.255.255

interface GigabitEthernet0/0/0.5
 descr For PPTP
 encapsulation dot1Q 5
 ip address 172.21.36.235 255.255.255.0 secondary
 ip address xxx.xxx.171.29 255.255.255.240
 no ip redirects
 no ip unreachables
 no ip proxy-arp

interface GigabitEthernet0/0/1.4
 descr For NAT
 encapsulation dot1Q 4
 ip address ххх.ххх.171.9 255.255.255.240
 no ip redirects
 no ip unreachables
 no ip proxy-arp
 ip nat outside
...
interface Virtual-Template1
 description PPTP VPN template interface
 mtu 1472
 ip unnumbered Loopback0
 no ip redirects
 ip nat inside
 ip policy route-map nat_to_sovintel
 ip tcp adjust-mss 1432
 no logging event link-status
 no peer default ip address
 keepalive 30 7
 ppp authentication pap chap callin via_lb
 ppp authorization via_lb
 ppp accounting via_lb
 ppp ipcp dns ххх.ххх.171.1 8.8.8.8
 ppp ipcp address required
 ppp ipcp address unique
 no ip virtual-reassembly
...
ip nat inside source list 103 interface GigabitEthernet0/0/1.4 overload

access-list 103 permit ip 172.21.44.0 0.0.0.255 any

route-map nat_to_sovintel permit 10
 match ip address 103
 set ip next-hop ххх.ххх.171.1



Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
 Share
Go to topic listing
×
×
  • Create New...
