linksys spa3102 registration failed

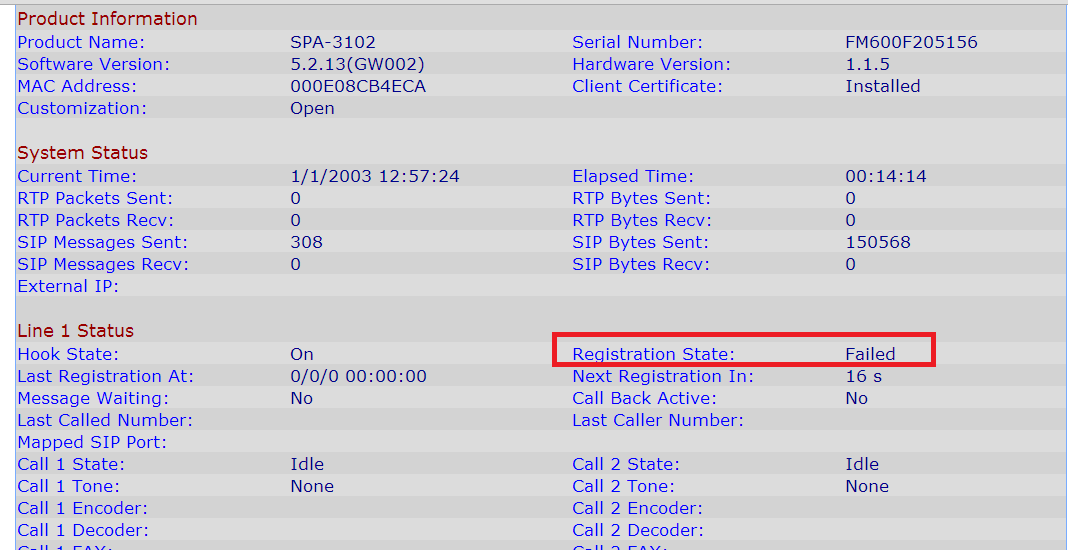

Доброе время суток. Установил астериск. Настроил его. Через софтфоны все работает. Пытаюсь подключить сий девайс, но говорит Registration State:Failed



pstn]
exten => 123,1,NoOP(${CALLERID}) ; show the caller ID info in the console
exten => 123,n,Ringing()
exten => 123,n,Answer()
exten => 123,n,Playback(silence/1)
exten => 123,n,Playback(pls-wait-connect-call)
exten => 123,n,Wait(3)
exten => 123,n,Dial(SIP/line1,60)
exten => 123,n,Congestion



; Line1 on SPA3102
;
[line1]
type=friend
host=dynamic
context=internal
username=line1
secret=password
nat=yes
canreinvite=no
dtmfmode=rfc2833
qualify=yes
disallow=all
allow=ulaw

; PSTN on SPA3102
;
[pstn]
type=friend
host=dynamic
context=pstn
username=pstn
secret=password
nat=yes
canreinvite=no
dtmfmode=rfc2833
qualify=yes
insecure=port,invite
disallow=all
allow=ulaw

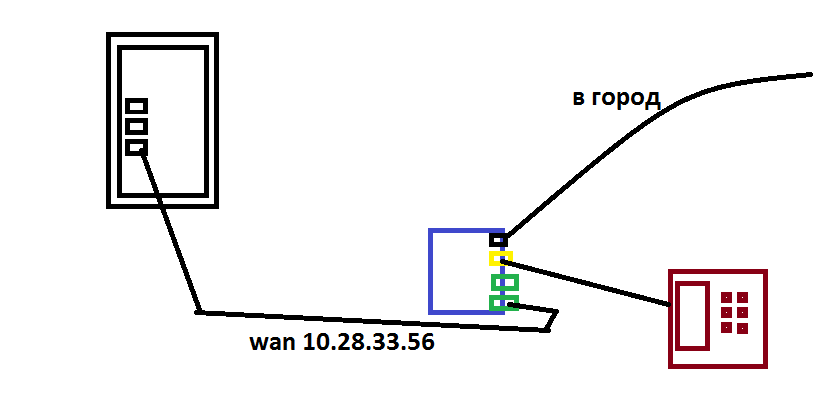

post-119411-092503300 1399291973_thumb.png

post-119411-048576300 1399291987_thumb.png

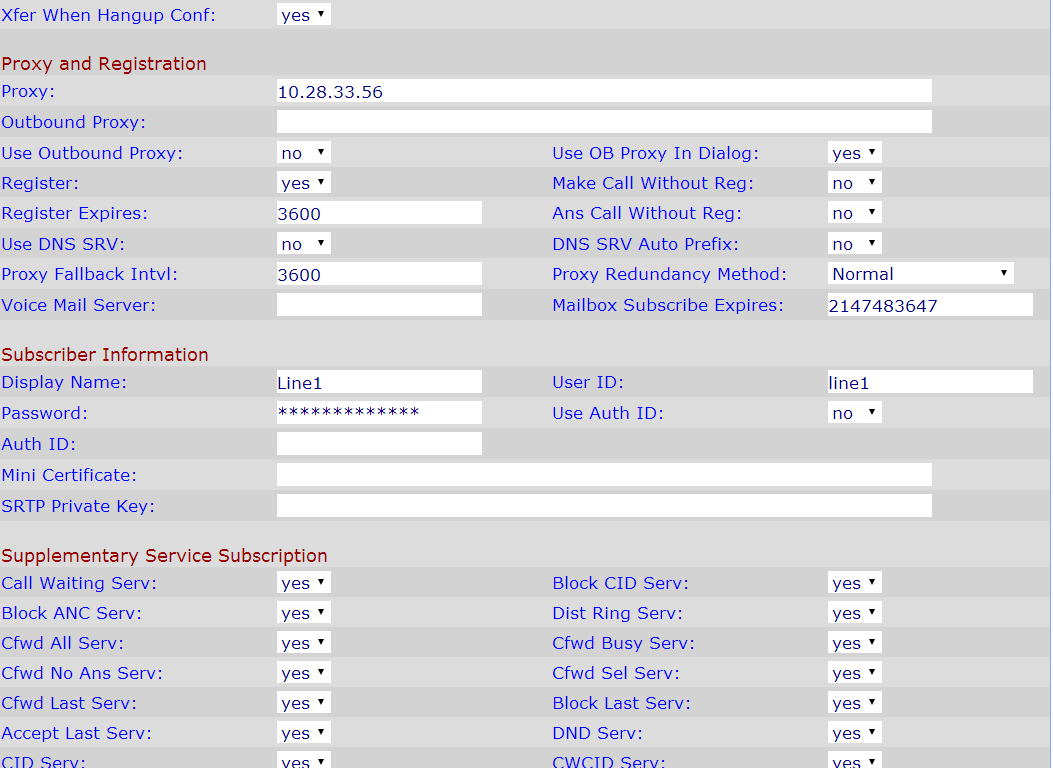

post-119411-092235100 1399291994_thumb.png

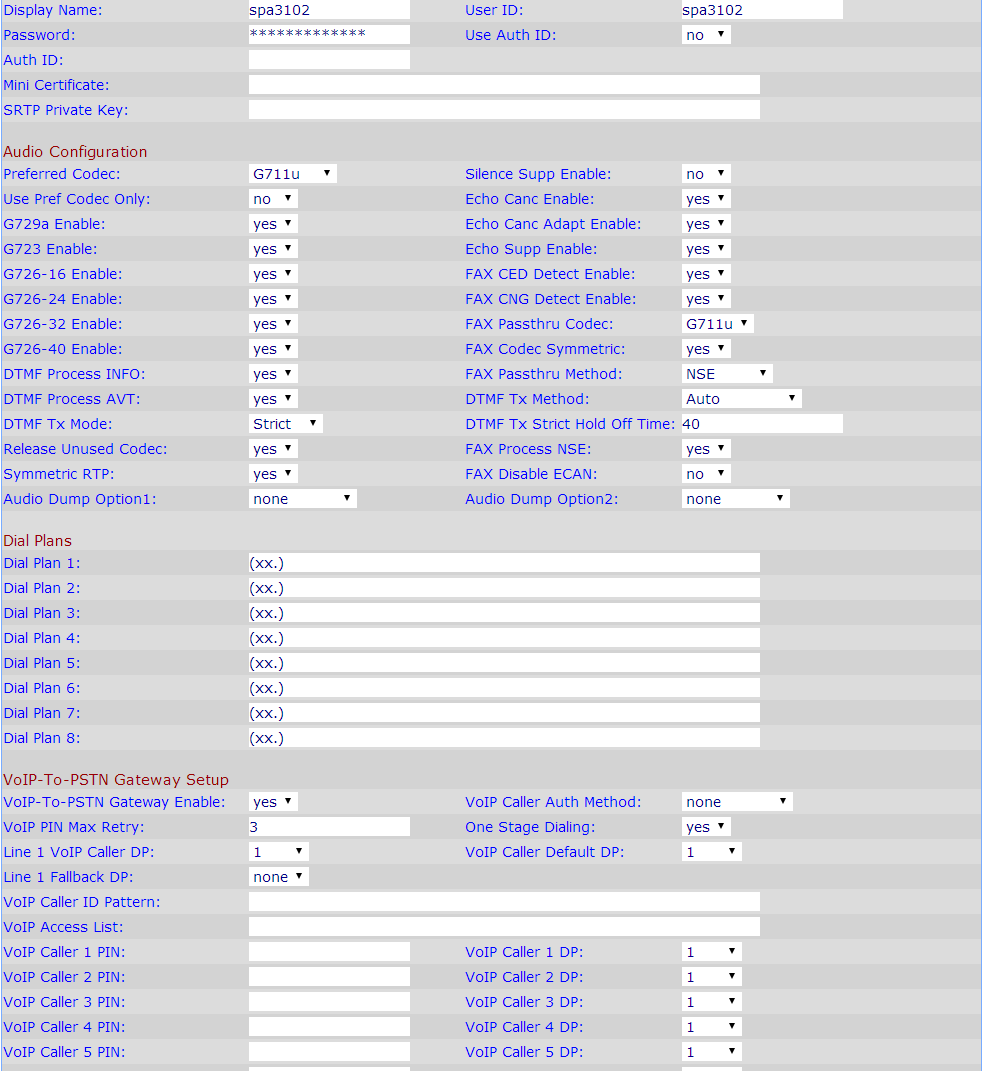

post-119411-018032000 1399292009_thumb.png
