Настройка 3CX

Установил 3CX

Добавил 2 внутренних абонента, между собой звонки проходят (правда голос не проверял)

Добавил своего оператора. Статус оператора - зарегистрирован. Звонки на внешние номера не проходят.

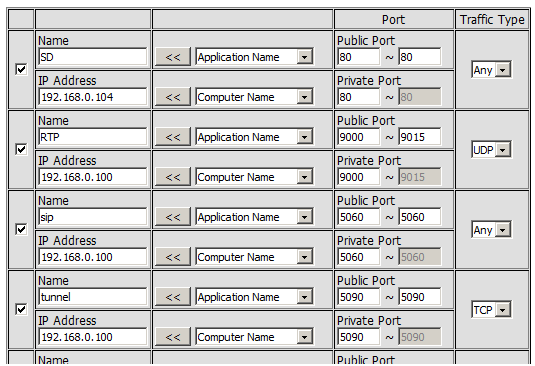

В настройках firewall сделал проброс портов. Поставил галочку там где отключить STUN, т.к. имею статический внешний IP (91.203.236.ХХХ)

Однако, когда запускаю тест файрволл, выдает следующий лог:



<11:56:57>: Phase 1, checking servers connection, please wait...

<11:56:57>: Stun Checker service is reachable. Phase 1 check passed.

<11:56:57>: Phase 2a, Check Port Forwarding to UDP SIP port, please wait...

<11:57:02>: UDP SIP Port is set to 5060. Response received WITH TRANSLATION 1025::5060. Phase 2a check passed with WARNINGS. Some functionality will be LIMITED. For more information, please visit http://www.3cx.com/blog/docs/firewall-checker/



<11:57:02>: Phase 2b. Check Port Forwarding to TCP SIP port, please wait...

<11:57:07>: TCP SIP Port is set to 5060. Response received WITH TRANSLATION 1025::5060. Phase 2b check passed with WARNINGS. Some functionality will be LIMITED. For more information, please visit http://www.3cx.com/blog/docs/firewall-checker/



<11:57:07>: Phase 3. Check Port Forwarding to TCP Tunnel port, please wait...

<11:57:11>: TCP TUNNEL Port is set to 5090. Response received correctly with no translation. Phase 3 check passed.



<11:57:11>: Phase 4. Check Port Forwarding to RTP external port range, please wait...

<11:57:19>: UDP RTP Port 9000. Response received correctly with no translation. Phase 4-01 check passed.

<11:57:23>: UDP RTP Port 9001. Response received correctly with no translation. Phase 4-02 check passed.

<11:57:28>: UDP RTP Port 9002. Response received correctly with no translation. Phase 4-03 check passed.

<11:57:32>: UDP RTP Port 9003. Response received correctly with no translation. Phase 4-04 check passed.

<11:57:37>: UDP RTP Port 9004. Response received correctly with no translation. Phase 4-05 check passed.

<11:57:41>: UDP RTP Port 9005. Response received correctly with no translation. Phase 4-06 check passed.

<11:57:46>: UDP RTP Port 9006. Response received correctly with no translation. Phase 4-07 check passed.

<11:57:50>: UDP RTP Port 9007. Response received correctly with no translation. Phase 4-08 check passed.

<11:57:55>: UDP RTP Port 9008. Response received correctly with no translation. Phase 4-09 check passed.

<11:57:59>: UDP RTP Port 9009. Response received correctly with no translation. Phase 4-10 check passed.

<11:58:04>: UDP RTP Port 9010. Response received correctly with no translation. Phase 4-11 check passed.

<11:58:08>: UDP RTP Port 9011. Response received correctly with no translation. Phase 4-12 check passed.

<11:58:13>: UDP RTP Port 9012. Response received correctly with no translation. Phase 4-13 check passed.

<11:58:17>: UDP RTP Port 9013. Response received correctly with no translation. Phase 4-14 check passed.

<11:58:22>: UDP RTP Port 9014. Response received correctly with no translation. Phase 4-15 check passed.

<11:58:26>: UDP RTP Port 9015. Response received correctly with no translation. Phase 4-16 check passed.


Share this post


Link to post
Share on other sites

Пологаю, что вопрос к происхождению сообщений типа



"UDP SIP Port is set to 5060. Response received WITH TRANSLATION 1025::5060".



"Страдаю" тем-же вопросом, прошу подсказать...
