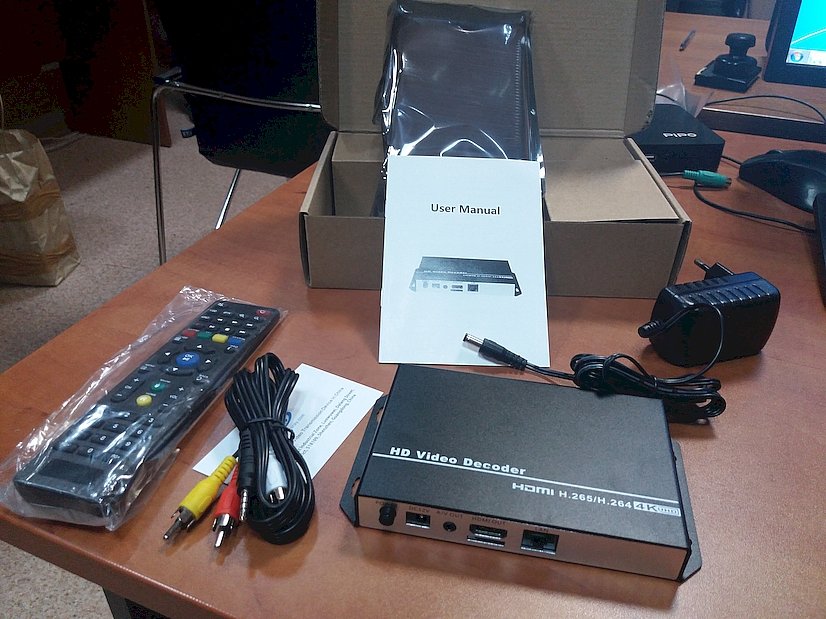

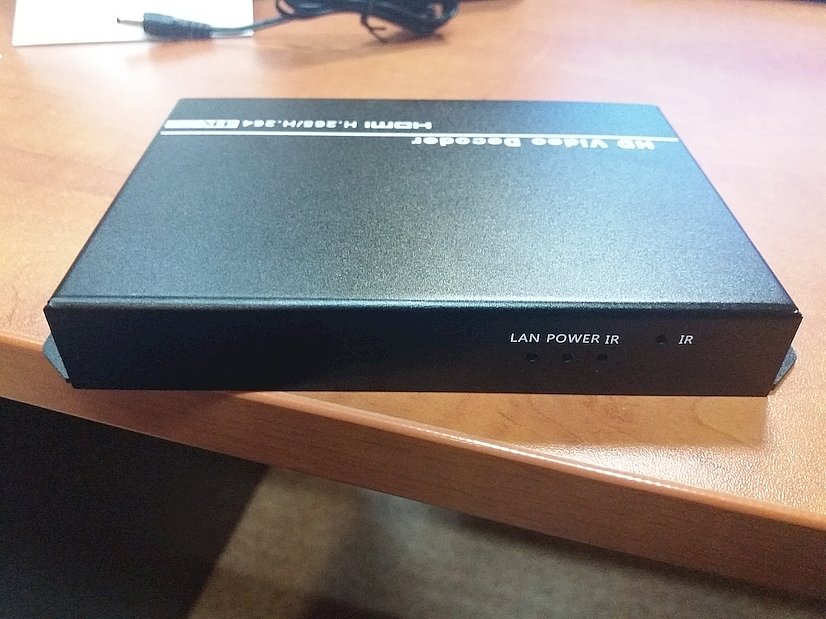

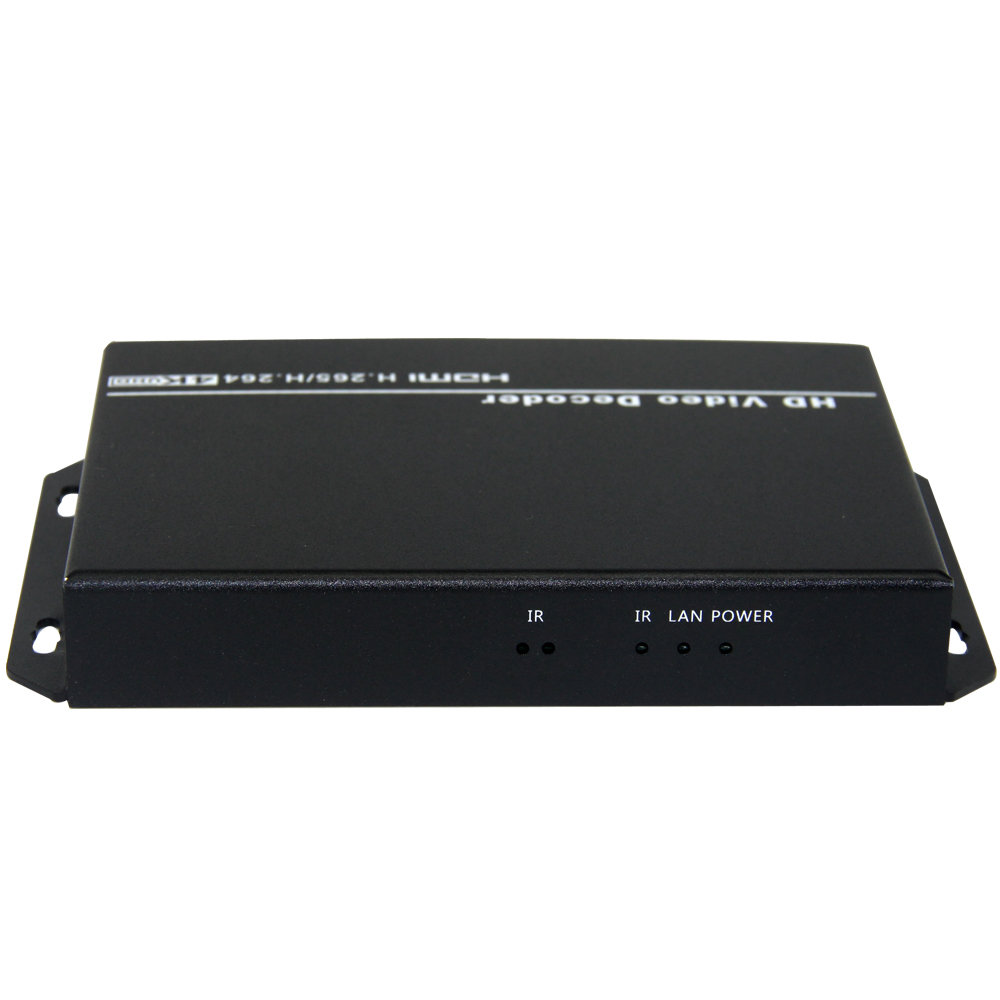

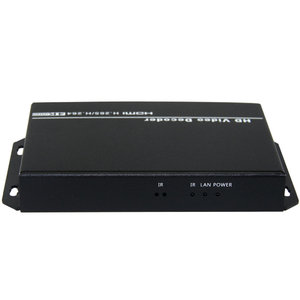

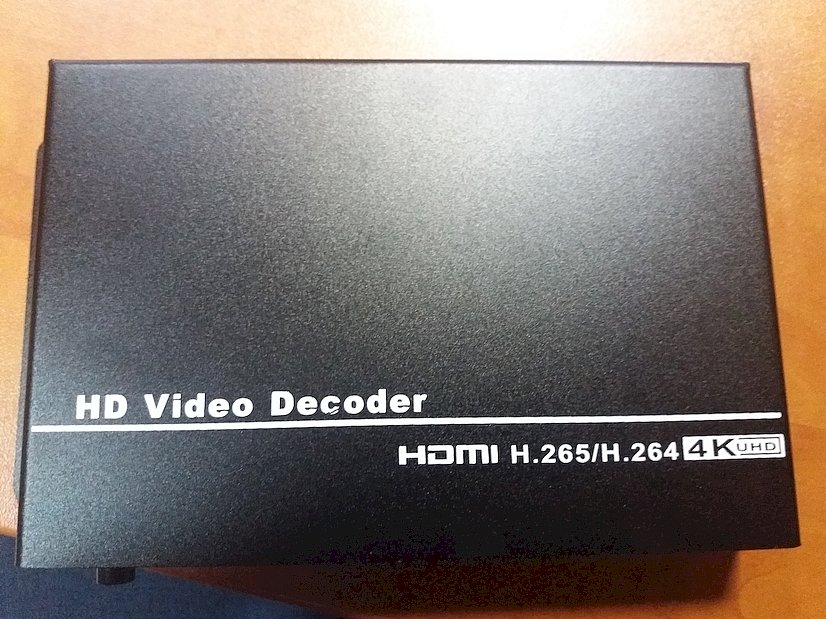

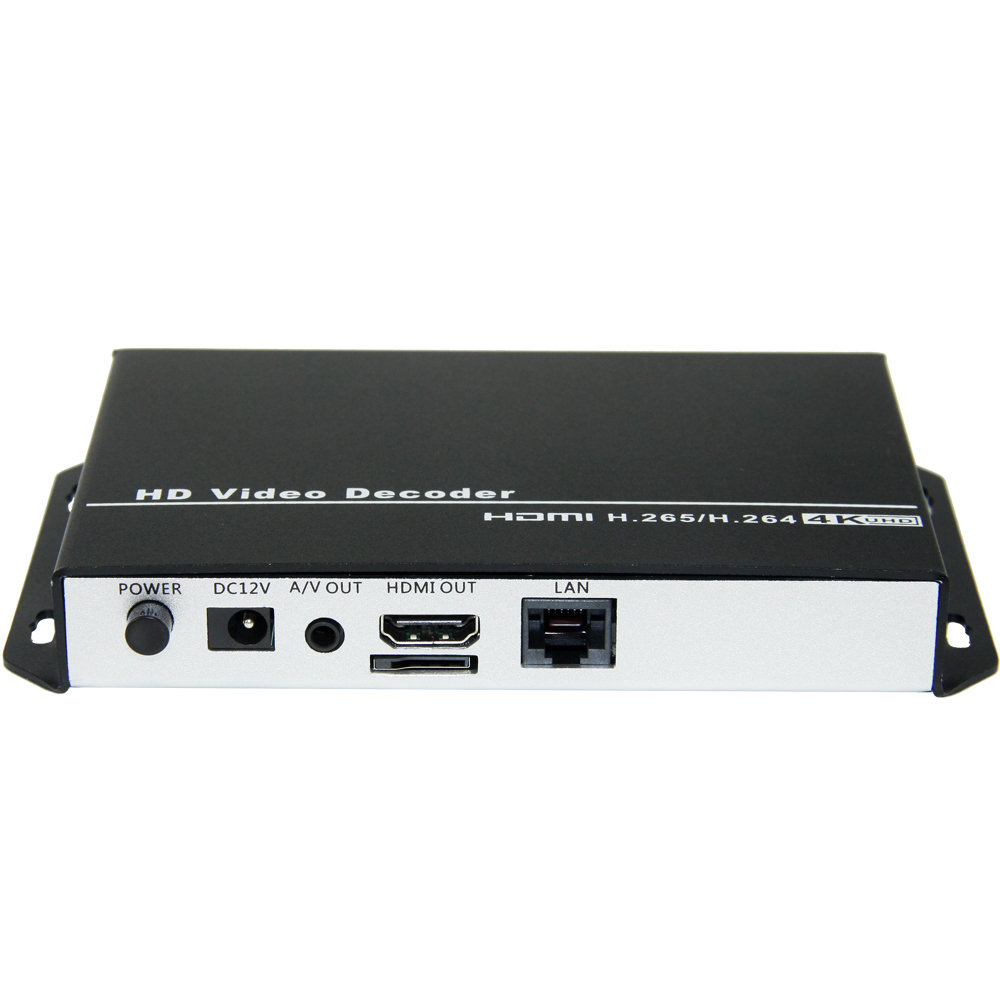

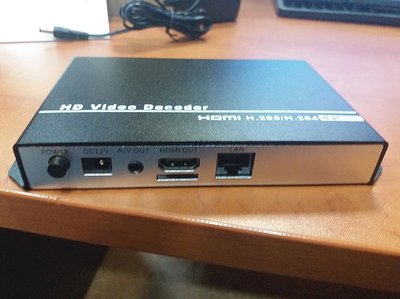

Цифровой ресивер H.265 H.264 4K IP Video Audio Streaming Decoder

Абсолютно новые. Не использовались. В наличии 6 шт.
Цена 15000 руб за штуку.

Хорошо запакую и отправлю транспортными компаниями в любой регион.

Контакты:
телеграмм: @JoolsPapageorgio
телефон: +7(9IО)-2OO-77-52


Характеристики
  • Embedded HiLinux system, stable and effective
  • Support HEVC /H265 and H.264 /AVC video decoding
  • Support AAC, AAC+, AAC++, AC3, MP3, MP2 audio decoding
  • Support HDMI and AV /CVBS /RCA output simultaneously
  • Support multiple-brand set top box and IP camera decoding

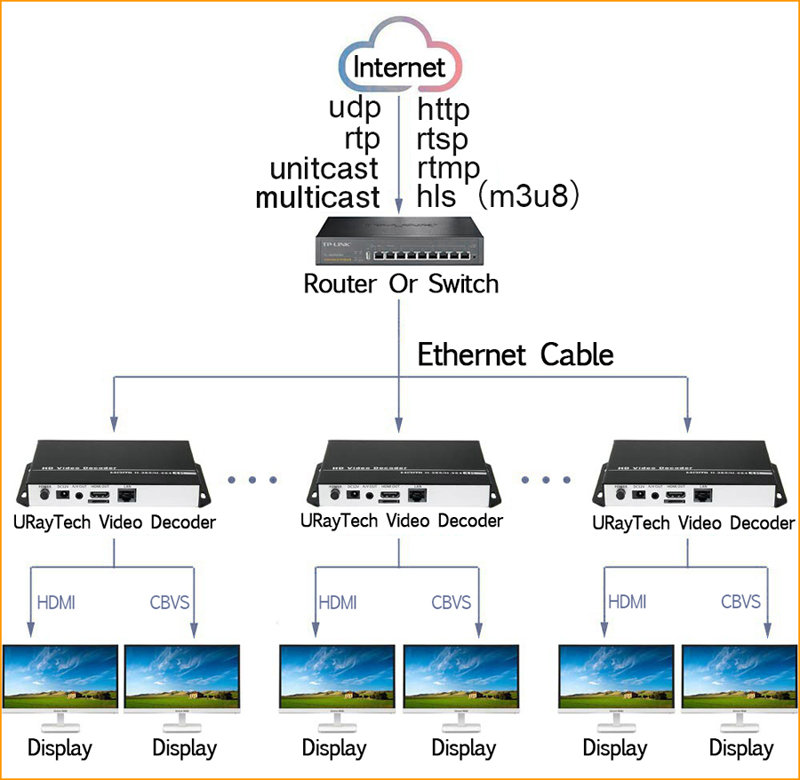

  • Support HTTP, RTSP, UDP, RTP, RTMP, HLS(M3U8), FLV, Unitcast, Multicast streaming protocol
  • Support up to 3840x2160P /30fps UHD video resolution decoding and output (If 1080P or less than 1080P input, support max 60fps frame rate input and output)

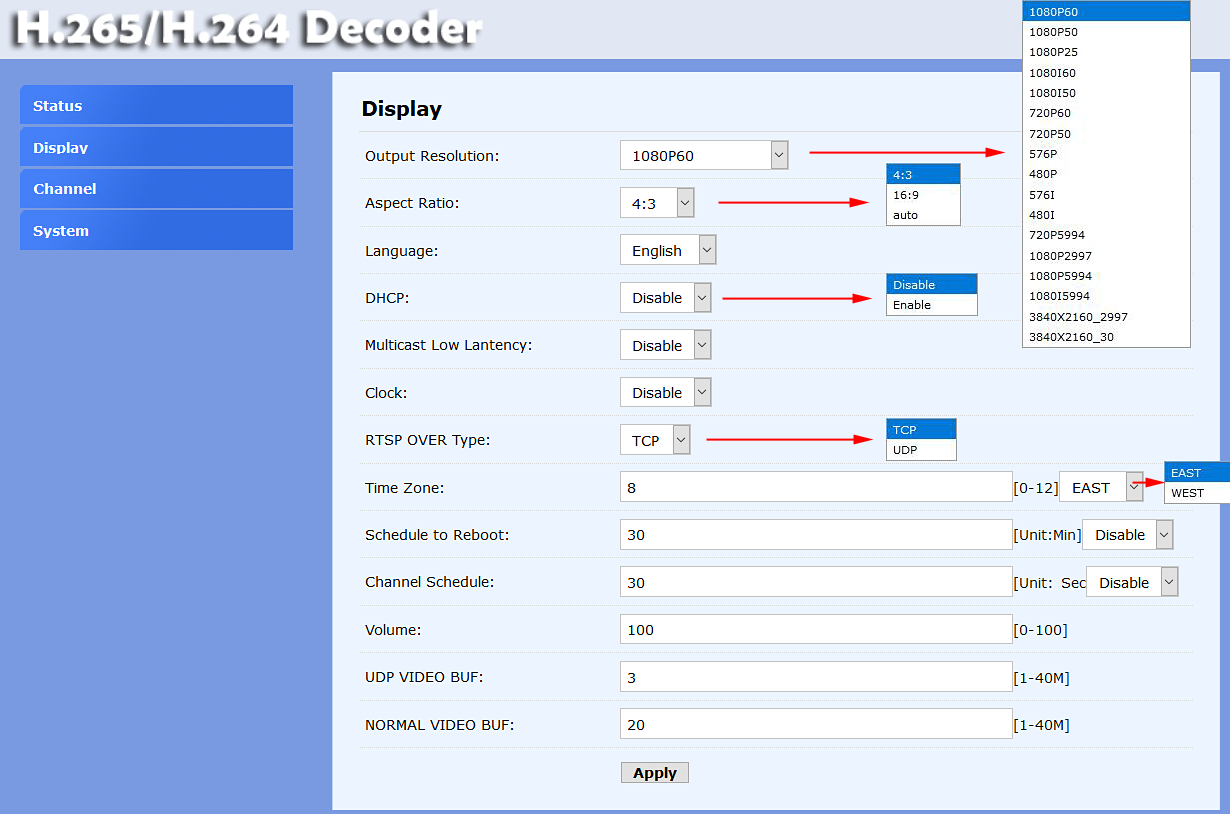

  • Support image parameter setting(Resolution, Aspect Ratio etc)
  • Support play the video file of USB flash disk when lost network connection

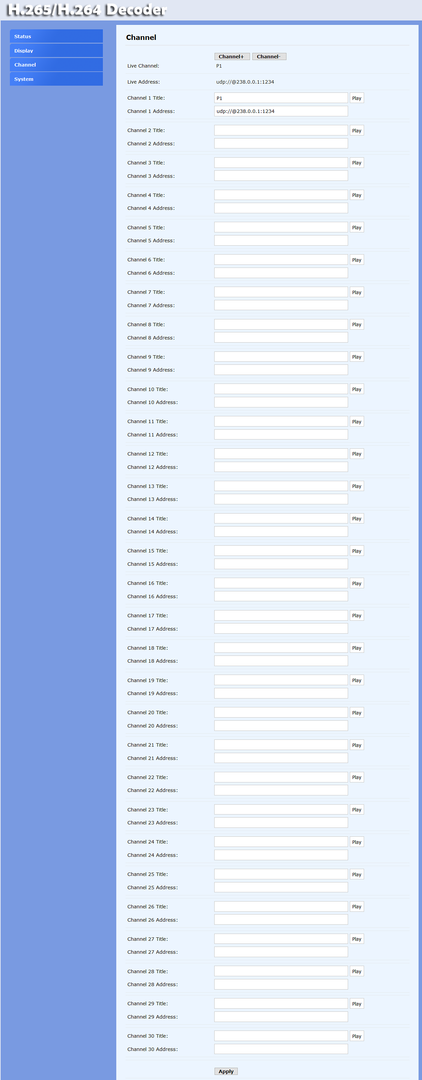

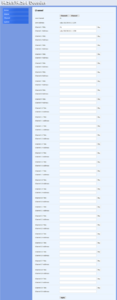

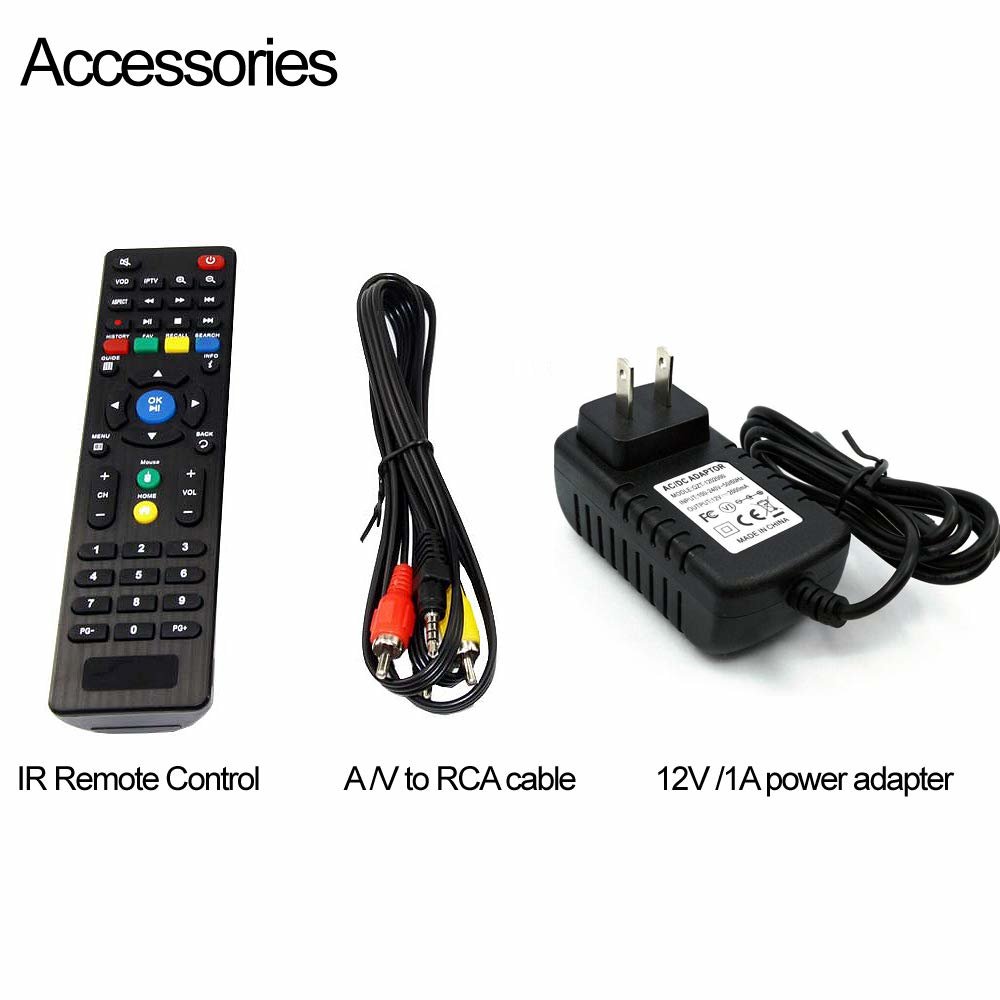

  • Support multi streaming url decoding and switch the channel by IR remote control(Max 30 channels)
  • Network interface full-duplex mode with 1000M speed
  • Firmware is upgradeable
  • A wide area network remote management(via port forwarding)
  • PAN /NTSC for selection for CVBS output

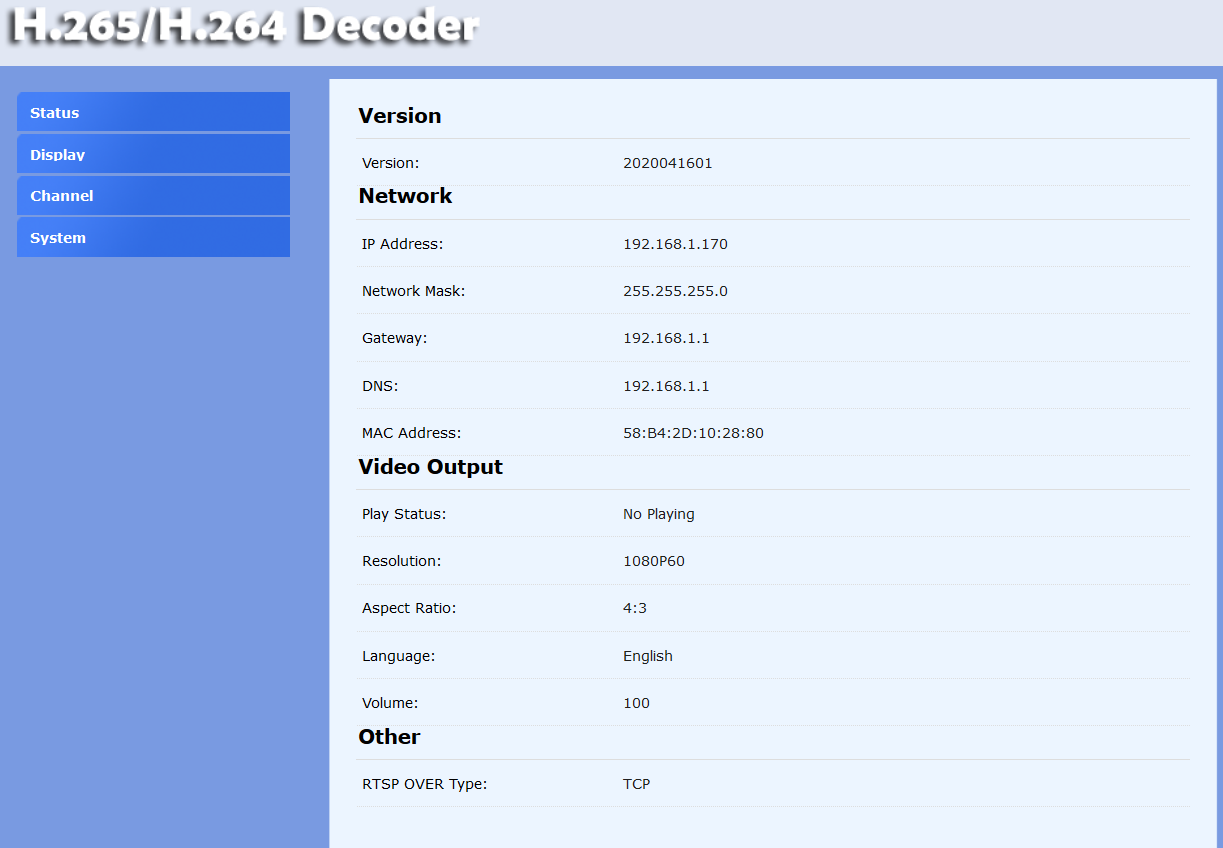

  • English webpage operating interface, language is customizable
  • A click to restore the default configuration
  • Stable and effective, support 7 x 24h working time
  • Support 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack
  • Provide many kinds of customization(logo print, language customization, firmware or function customization etc)

Спецификация
  • Model No. UHAD265-1-4K
  • Input Video Streaming URL
  • Video Resolution Max 3840x2160P /30fps decoding and output
  • Video Decoding H.264, H.265
  • Output Video HDMI + CVBS
  • Frame Rate Support up to 60fps decoding and display
  • Channel Support max 30 channels decoding and switch the channel
  • Output Audio HDMI embedded audio and R /L analog audio
  • Audio Decoding AAC, AAC+, AAC++, MP3, MP2, AC3
  • Interface 1000M Ethernet port(RJ45)
  • Streaming Protocol HTTP, UDP, RTSP, RTMP, HLS(M3U8), Multicast, RTP, Unitcast etc

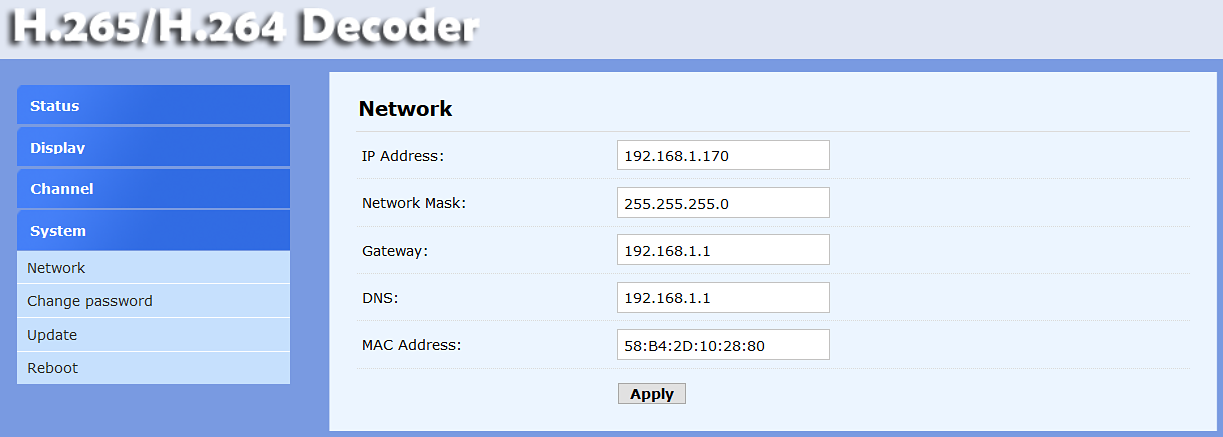

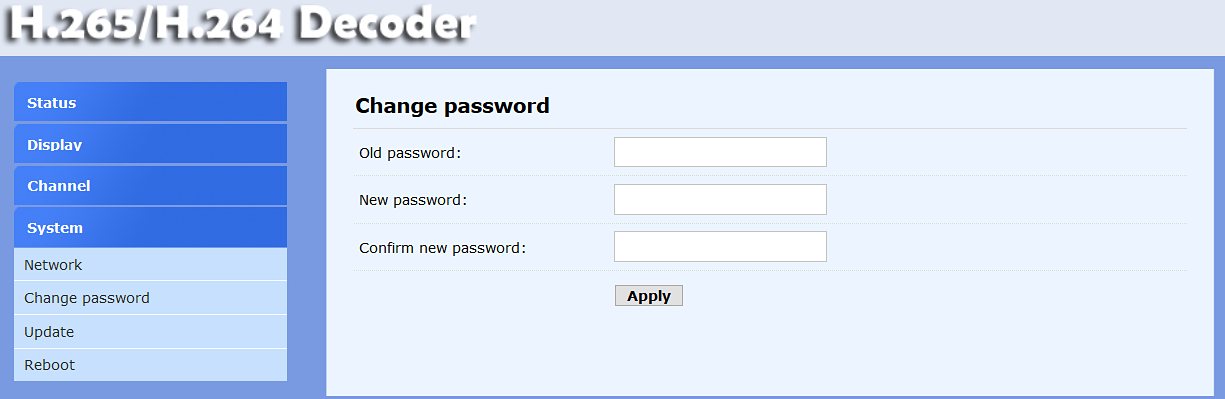

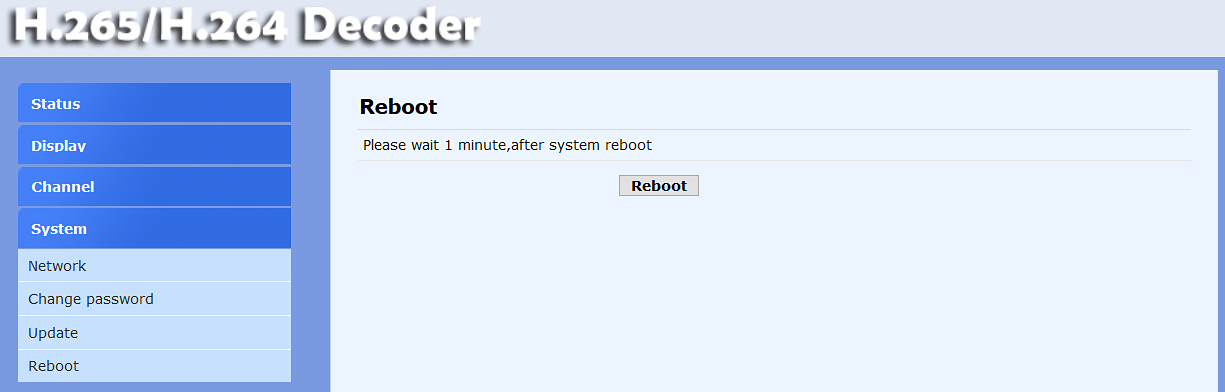

  • Webpage UI(language customizable)

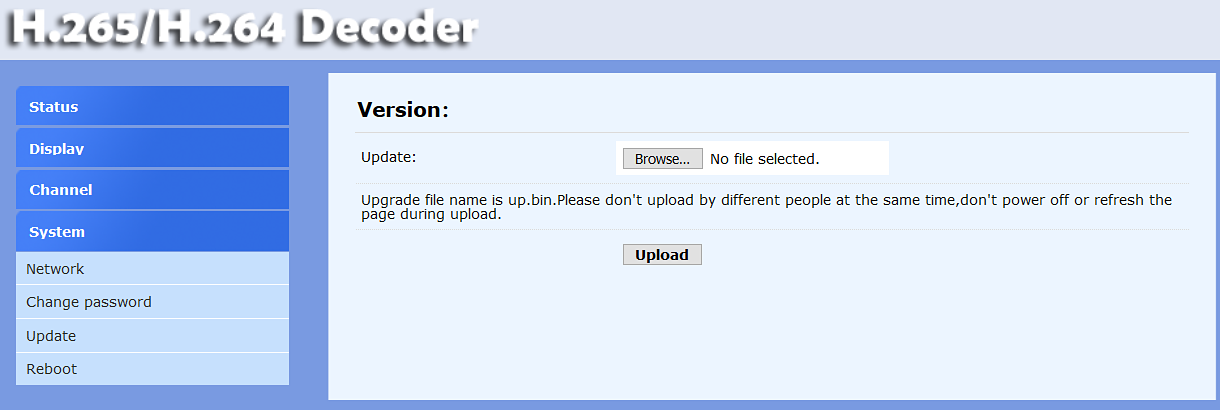

  • Firmware Update
  • Enable by uploading files to dashboard and upgrade
  • Dimension (W* L* H) 130 x 105 x 30 /mm
  • Net Weight 0.3kg
  • Temperature 0 to 45(For working), -20 to 80(For storing)
  • Input Voltage DC 12V /1A
  • Power Consumption 5w
