Cisco ASA и VPN

Всем привет. Пытаюсь настроить на asa 5506-X (ASA Version 9.8) VPN сервер, для подключения удаленных сотрудников.
Настраиваю по документации https://www.cisco.com/c/ru_ru/support/docs/ip/layer-two-tunnel-protocol-l2tp/200340-Configure-L2TP-Over-IPsec-Between-Window.html



Подключение устанавливается на ура, но трафик между asa и клиентом не ходит.

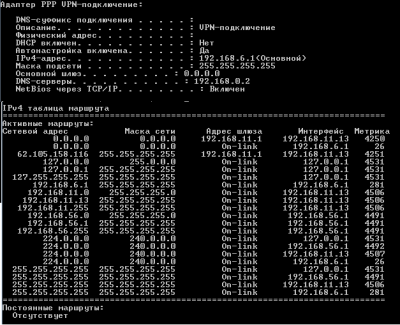

Как оказалось при vpn подключении не назначается шлюз по умолчанию (скрин 1)



Подскажите что нужно еще настроить для правильной работы VPN ?



Конфиг ASA:



Спойлер

ASA Version 9.8(2)
!
hostname ciscoasa
enable password $sha512$5000$lpNqB42Xr9fsUwk8BxqTSw==$BAd1uhRoTcsYfksFjXukuQ== pbkdf2
names
ip local pool VPN 192.168.6.1-192.168.6.254 mask 255.255.255.0

!
interface GigabitEthernet1/1
 nameif outside
 security-level 0
 ip address xx.xx.xx.xx 255.255.255.xx (Internet)
!
interface GigabitEthernet1/2
 nameif inside_1
 security-level 100
 ip address 10.1.2.2 255.255.255.248
!
interface GigabitEthernet1/3
 shutdown
 nameif inside_2
 security-level 100
 no ip address
!
interface GigabitEthernet1/4
 nameif inside_3
 security-level 100
 no ip address
!
interface GigabitEthernet1/5
 nameif inside_4
 security-level 100
 no ip address
!
interface GigabitEthernet1/6
 nameif inside_5
 security-level 100
 no ip address
!
interface GigabitEthernet1/7
 nameif inside_6
 security-level 100
 no ip address
!
interface GigabitEthernet1/8
 nameif inside_7
 security-level 100
 no ip address
!
interface Management1/1
 management-only
 no nameif
 no security-level
 no ip address
!
ftp mode passive
same-security-traffic permit inter-interface
object network obj_any1
 subnet 0.0.0.0 0.0.0.0
object network obj_any2
 subnet 0.0.0.0 0.0.0.0
object network obj_any3
 subnet 0.0.0.0 0.0.0.0
object network obj_any4
 subnet 0.0.0.0 0.0.0.0
object network obj_any5
 subnet 0.0.0.0 0.0.0.0
object network obj_any6
 subnet 0.0.0.0 0.0.0.0
object network obj_any7
 subnet 0.0.0.0 0.0.0.0
object network Dvoryanskaya27
 subnet 192.168.1.0 255.255.255.0
object network Tipografiya
 subnet 192.168.4.0 255.255.255.0
object network Servers
 subnet 192.168.0.0 255.255.255.0
object network Cisco-GW
 host 10.1.2.1
object network NETWORK_OBJ_192.168.6.0_24
 subnet 192.168.6.0 255.255.255.0
access-list outside_access_in extended permit ip any any log disable
pager lines 24
logging asdm informational
mtu outside 1500
mtu inside_1 1500
mtu inside_2 1500
mtu inside_3 1500
mtu inside_4 1500
mtu inside_5 1500
mtu inside_6 1500
mtu inside_7 1500
no failover
no monitor-interface service-module
icmp unreachable rate-limit 1 burst-size 1
no asdm history enable
arp timeout 14400
no arp permit-nonconnected
arp rate-limit 16384
nat (inside_1,outside) source static any any destination static NETWORK_OBJ_192.168.6.0_24 NETWORK_OBJ_192.168.6.0_24 no-proxy-arp route-lookup
!
nat (any,outside) after-auto source dynamic any interface description Default NAT
access-group outside_access_in in interface outside
route outside 0.0.0.0 0.0.0.0 xx.xx.xx.xx 1
route inside_1 192.168.0.0 255.255.255.0 10.1.2.1 1
route inside_1 192.168.1.0 255.255.255.0 10.1.2.1 1
route inside_1 192.168.4.0 255.255.255.0 10.1.2.1 1
timeout xlate 3:00:00
timeout pat-xlate 0:00:30
timeout conn 1:00:00 half-closed 0:10:00 udp 0:02:00 sctp 0:02:00 icmp 0:00:02
timeout sunrpc 0:10:00 h323 0:05:00 h225 1:00:00 mgcp 0:05:00 mgcp-pat 0:05:00
timeout sip 0:30:00 sip_media 0:02:00 sip-invite 0:03:00 sip-disconnect 0:02:00
timeout sip-provisional-media 0:02:00 uauth 0:05:00 absolute
timeout tcp-proxy-reassembly 0:01:00
timeout floating-conn 0:00:00
timeout conn-holddown 0:00:15
timeout igp stale-route 0:01:10
user-identity default-domain LOCAL
aaa authentication login-history
http server enable
http 0.0.0.0 0.0.0.0 inside_1
no snmp-server location
no snmp-server contact
service sw-reset-button
crypto ipsec ikev1 transform-set ESP-AES-128-SHA esp-aes esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-AES-128-MD5 esp-aes esp-md5-hmac
crypto ipsec ikev1 transform-set ESP-AES-192-SHA esp-aes-192 esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-AES-192-MD5 esp-aes-192 esp-md5-hmac
crypto ipsec ikev1 transform-set ESP-AES-256-SHA esp-aes-256 esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-AES-256-MD5 esp-aes-256 esp-md5-hmac
crypto ipsec ikev1 transform-set ESP-3DES-SHA esp-3des esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-3DES-MD5 esp-3des esp-md5-hmac
crypto ipsec ikev1 transform-set ESP-DES-SHA esp-des esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-DES-MD5 esp-des esp-md5-hmac
crypto ipsec ikev1 transform-set ESP-AES-128-SHA-TRANS esp-aes esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-AES-128-SHA-TRANS mode transport
crypto ipsec ikev1 transform-set ESP-AES-256-SHA-TRANS esp-aes-256 esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-AES-256-SHA-TRANS mode transport
crypto ipsec ikev1 transform-set ESP-3DES-SHA-TRANS esp-3des esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-3DES-SHA-TRANS mode transport
crypto ipsec ikev1 transform-set ESP-DES-SHA-TRANS esp-des esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-DES-SHA-TRANS mode transport
crypto ipsec ikev1 transform-set ESP-AES-192-SHA-TRANS esp-aes-192 esp-sha-hmac
crypto ipsec ikev1 transform-set ESP-AES-192-SHA-TRANS mode transport
crypto ipsec security-association pmtu-aging infinite
crypto dynamic-map SYSTEM_DEFAULT_CRYPTO_MAP 65535 set ikev1 transform-set ESP-AES-128-SHA ESP-AES-192-SHA ESP-AES-256-SHA ESP-3DES-SHA ESP-DES-SHA ESP-AES-128-SHA-TRANS ESP-AES-192-SHA-TRANS ESP-AES-256-SHA-TRANS ESP-3DES-SHA-TRANS ESP-DES-SHA-TRANS
crypto map outside_map 65535 ipsec-isakmp dynamic SYSTEM_DEFAULT_CRYPTO_MAP
crypto map outside_map interface outside
crypto ca trustpool policy
crypto ikev1 enable outside
crypto ikev1 policy 10
 authentication pre-share
 encryption aes-256
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 20
 authentication rsa-sig
 encryption aes-256
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 40
 authentication pre-share
 encryption aes-192
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 50
 authentication rsa-sig
 encryption aes-192
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 70
 authentication pre-share
 encryption aes
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 80
 authentication rsa-sig
 encryption aes
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 100
 authentication pre-share
 encryption 3des
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 110
 authentication rsa-sig
 encryption 3des
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 130
 authentication pre-share
 encryption des
 hash sha
 group 2
 lifetime 86400
crypto ikev1 policy 140
 authentication rsa-sig
 encryption des
 hash sha
 group 2
 lifetime 86400
telnet timeout 5
ssh stricthostkeycheck
ssh timeout 5
ssh key-exchange group dh-group1-sha1
console timeout 0

dhcpd auto_config outside
!
threat-detection basic-threat
threat-detection statistics access-list
no threat-detection statistics tcp-intercept
group-policy DefaultRAGroup internal
group-policy DefaultRAGroup attributes
 dns-server value 192.168.0.2
 vpn-tunnel-protocol l2tp-ipsec
dynamic-access-policy-record DfltAccessPolicy
username test password DLaUiAX3l78qgoB5c7iVNw== nt-encrypted privilege 0
username test attributes
 vpn-group-policy DefaultRAGroup
tunnel-group DefaultRAGroup general-attributes
 address-pool VPN
 default-group-policy DefaultRAGroup
tunnel-group DefaultRAGroup ipsec-attributes
 ikev1 pre-shared-key *****
tunnel-group DefaultRAGroup ppp-attributes
 no authentication chap
 authentication ms-chap-v2
!
!
prompt hostname context
no call-home reporting anonymous

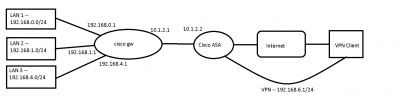

Схема VPN.png

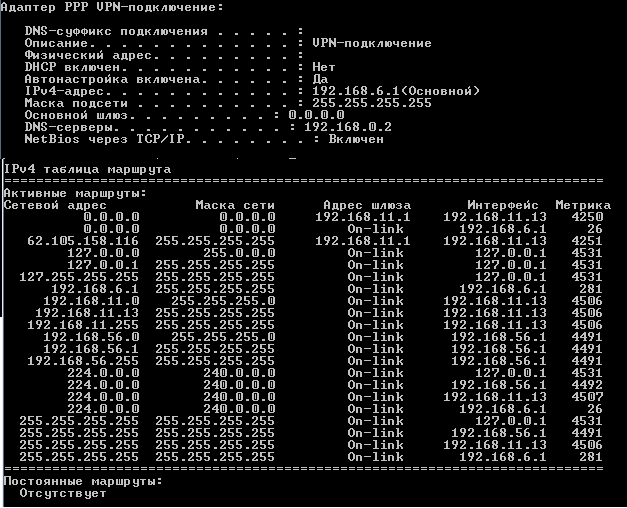

скрин 1.png
