Здравствуйте!

Настраиваю VPN (PPTP) сеть между двумя офисами на 2х Mikrotik 2011UAS.

Микротики друг друга пингуют, пингуют компьютеры в своей локальной сети, но не пингуют компьютеры в удалённой сети. Т.е. с роутера 192.168.1.1 я пингую 192.168.0.1, но не могу пропинговать 192.168.0.253.

Всю голову сломал, в гугле был, proxy-arp включал...



Заранее большое спасибо!

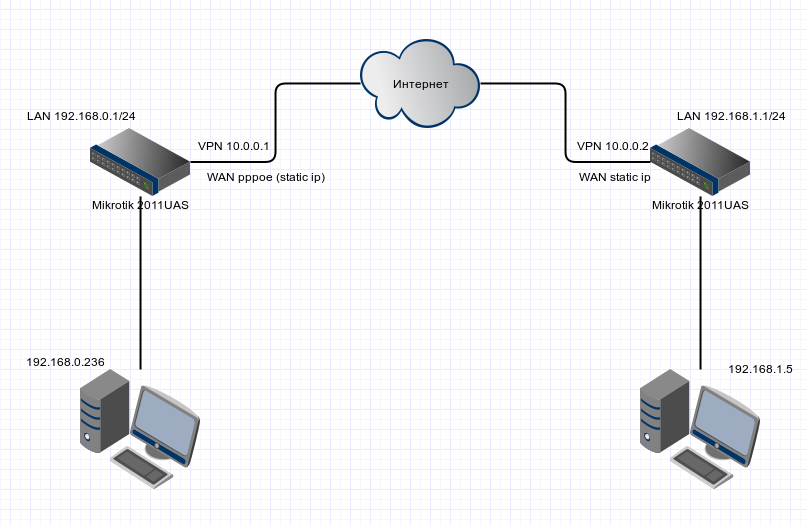

На первом роутере поднят PPTP сервер, 192.168.0.1/24 локальная сеть, 10.0.0.1 адрес vpn-интерфейса

На втором роутере PPTP-клиент, 192.168.1.1/24 локальная сеть, 10.0.0.2 адрес vpn-интерфейса



Конфигурация первого роутера





[admin@MikroTik] > export

# oct/17/2013 15:44:46 by RouterOS 6.4

# software id = T72J-ECIX

#

/interface bridge

add admin-mac=D5:CA:6B:ED:09:FC auto-mac=no l2mtu=1598 name=lan_bridge \

protocol-mode=rstp

/interface ethernet

set 0 name=inet_master_port01_gbeth

set 1 name=inet_slave_port02_gbeth

set 2 name=port03_gbeth

set 3 name=port04_gbeth

set 4 name=port05_gbeth

set 5 name=port06_fasteth

set 6 name=port07_fasteth

set 7 name=port08_fasteth

set 8 name=port09_fasteth

set 9 name=port10_fasteth

set 10 name=port_sfp

/interface pppoe-client

add add-default-route=yes disabled=no interface=inet_master_port01_gbeth \

name=inet_ertk_pppoe password=secret use-peer-dns=yes user=username

/interface pptp-server

add name=vpn_raduga user=vpn_raduga

/ip neighbor discovery

set inet_master_port01_gbeth discover=no

set port_sfp discover=no

/ip hotspot user profile

set [ find default=yes ] idle-timeout=none keepalive-timeout=2m \

mac-cookie-timeout=3d

/port

set 0 name=serial0

/ppp profile

add name=vpn_profile only-one=yes use-compression=yes use-encryption=yes \

use-vj-compression=yes

/interface bridge port

add bridge=lan_bridge interface=port03_gbeth

add bridge=lan_bridge interface=port04_gbeth

add bridge=lan_bridge interface=port05_gbeth

add bridge=lan_bridge interface=port06_fasteth

add bridge=lan_bridge interface=port10_fasteth

add bridge=lan_bridge interface=port09_fasteth

add bridge=lan_bridge interface=port08_fasteth

add bridge=lan_bridge interface=port07_fasteth

/interface pptp-server server

set enabled=yes

/ip address

add address=192.168.0.1/24 comment=LAN interface=lan_bridge network=\

192.168.0.0

/ip dhcp-client

add dhcp-options=hostname,clientid disabled=no interface=\

inet_master_port01_gbeth

/ip dns

set allow-remote-requests=yes servers=8.8.8.8

/ip firewall filter

add chain=input disabled=yes protocol=icmp

add chain=input connection-state=established disabled=yes

add chain=input connection-state=related disabled=yes

add chain=forward disabled=yes

/ip firewall nat

add chain=srcnat disabled=yes dst-address=192.168.1.0/24 src-address=\

192.168.0.0/24

add action=masquerade chain=srcnat out-interface=inet_ertk_pppoe \

to-addresses=0.0.0.0

/ip route

add distance=1 dst-address=192.168.1.0/24 gateway=10.0.0.2

/ip service

set telnet disabled=yes

set ftp disabled=yes

set www port=81

set ssh disabled=yes

/lcd interface

set port_sfp interface=port_sfp

set inet_master_port01_gbeth interface=inet_master_port01_gbeth

set inet_slave_port02_gbeth interface=inet_slave_port02_gbeth

set port03_gbeth interface=port03_gbeth

set port04_gbeth interface=port04_gbeth

set port05_gbeth interface=port05_gbeth

set port06_fasteth interface=port06_fasteth

set port07_fasteth interface=port07_fasteth

set port08_fasteth interface=port08_fasteth

set port09_fasteth interface=port09_fasteth

set port10_fasteth interface=port10_fasteth

/ppp secret

add local-address=10.0.0.1 name=vpn_raduga password=secret profile=\

vpn_profile remote-address=10.0.0.2 service=pptp

/system clock

set time-zone-name=Asia/Yekaterinburg

/system ntp client

set enabled=yes mode=unicast primary-ntp=89.221.207.113 secondary-ntp=\

93.180.7.2

/tool mac-server

set [ find default=yes ] disabled=yes

add interface=inet_slave_port02_gbeth

add interface=port03_gbeth

add interface=port04_gbeth

add interface=port05_gbeth

add interface=port06_fasteth

add interface=port07_fasteth

add interface=port08_fasteth

add interface=port09_fasteth

add interface=lan_bridge

/tool mac-server mac-winbox

set [ find default=yes ] disabled=yes

add interface=inet_slave_port02_gbeth

add interface=port03_gbeth

add interface=port04_gbeth

add interface=port05_gbeth

add interface=port06_fasteth

add interface=port07_fasteth

add interface=port08_fasteth

add interface=port09_fasteth

add interface=lan_bridge







Конфигурация второого роутера





[admin@MikroTik] > export

# oct/17/2013 13:23:36 by RouterOS 6.4

# software id = U6Z8-88AA

#

/interface bridge

add name=lan_bridge

/interface ethernet

set 0 name=inet_master_port01_gbeth

set 1 name=inet_slave_port02_gbeth

set 2 name=port03_gbeth

set 3 name=port04_gbeth

set 4 name=port05_gbeth

set 5 name=port06_fasteth

set 6 name=port07_fasteth

set 7 name=port08_fasteth

set 8 name=port09_fasteth

set 9 name=port10_fasteth

set 10 name=sfp_port

/interface pptp-client

add allow=mschap1,mschap2 connect-to=vpn.xxx.ru disabled=no name=vpn_office \

password=secret user=vpn_raduga

/ip hotspot user profile

set [ find default=yes ] idle-timeout=none keepalive-timeout=2m \

mac-cookie-timeout=3d

/port

set 0 name=serial0

/system logging action

set 0 memory-lines=100

set 1 disk-lines-per-file=100

/interface bridge port

add bridge=lan_bridge interface=port03_gbeth

add bridge=lan_bridge interface=port04_gbeth

add bridge=lan_bridge interface=port05_gbeth

add bridge=lan_bridge interface=port06_fasteth

add bridge=lan_bridge interface=port07_fasteth

add bridge=lan_bridge interface=port08_fasteth

add bridge=lan_bridge interface=port09_fasteth

add bridge=lan_bridge interface=port10_fasteth

/ip address

add address=192.168.1.1/24 interface=lan_bridge network=192.168.1.0

add address=178.47.xxx.xxx/30 interface=inet_master_port01_gbeth network=\

178.47.xxx.xxx

/ip dhcp-client

add default-route-distance=0 dhcp-options=hostname,clientid disabled=no \

interface=inet_master_port01_gbeth

/ip dns

set allow-remote-requests=yes servers=8.8.8.8

/ip firewall filter

add chain=input disabled=yes protocol=icmp

add chain=input connection-state=established disabled=yes

add chain=input connection-state=related disabled=yes

add chain=forward disabled=yes

/ip firewall nat

add chain=srcnat disabled=yes dst-address=192.168.0.0/24 src-address=\

192.168.1.0/24

add action=masquerade chain=srcnat out-interface=inet_master_port01_gbeth

/ip route

add distance=1 gateway=178.47.xxx.xxx

add distance=1 dst-address=192.168.0.0/24 gateway=10.0.0.1

/ip service

set telnet disabled=yes

set ftp disabled=yes

set ssh disabled=yes

/lcd interface

set sfp_port interface=sfp_port

set inet_master_port01_gbeth interface=inet_master_port01_gbeth

set inet_slave_port02_gbeth interface=inet_slave_port02_gbeth

set port03_gbeth interface=port03_gbeth

set port04_gbeth interface=port04_gbeth

set port05_gbeth interface=port05_gbeth

set port06_fasteth interface=port06_fasteth

set port07_fasteth interface=port07_fasteth

set port08_fasteth interface=port08_fasteth

set port09_fasteth interface=port09_fasteth

set port10_fasteth interface=port10_fasteth

/system clock

set time-zone-name=Asia/Yekaterinburg

/system ntp client

set enabled=yes mode=unicast primary-ntp=62.76.96.4 secondary-ntp=\

95.140.150.140





Edited by krechet
vop

vop

Posted
Posted

Скорее всего, где-то нет роутинга. Он должен быть корректным на всех 4-х компьютерах. 192.168.1.5 знает, где ему искать 192.168.0.236? А этот последний знает, куда ему надо отвечать?
