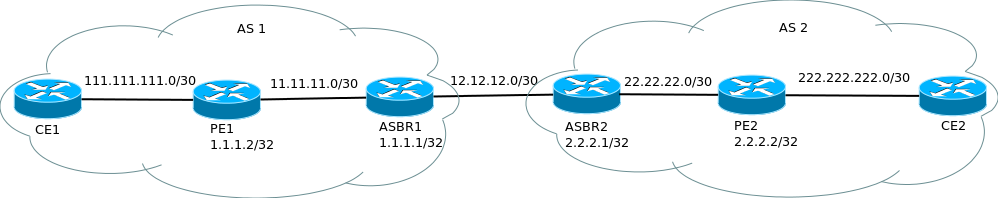

ilnur Posted June 3, 2013 Пытаюсь сделать Inter-AS L3 VPN option B на RouterOS. Подскажите, почему не работает следующая конфигурация? ASBR1 /interface bridge add name=loopback /interface vlan add interface=ether1 name=ASBR1-ASBR2 vlan-id=12 add interface=ether1 name=ASBR1-PE1 vlan-id=11 /ip address add address=1.1.1.1/32 interface=loopback network=1.1.1.1 add address=12.12.12.1/30 interface=ASBR1-ASBR2 add address=11.11.11.1/30 interface=ASBR1-PE1 /routing ospf instance set [ find default=yes ] metric-connected=0 metric-static=1 redistribute-connected=as-type-1 redistribute-static=as-type-1 router-id=1.1.1.1 /routing ospf interface add interface=ASBR1-PE1 network-type=point-to-point /routing ospf network add area=backbone network=11.11.11.0/30 /routing bgp instance set default as=1 router-id=1.1.1.1 /routing bgp peer add address-families=vpnv4 name=PE1 remote-address=1.1.1.2 remote-as=1 route-reflect=yes update-source=loopback add address-families=vpnv4 name=ASBR2 remote-address=12.12.12.2 remote-as=2 route-reflect=yes /mpls interface set [ find default=yes ] mpls-mtu=1500 /mpls ldp set enabled=yes lsr-id=1.1.1.1 transport-address=1.1.1.1 /mpls ldp interface add interface=ASBR1-PE1 /system identity set name=ASBR1 PE1 /interface bridge add name=loopback /interface vlan add interface=ether1 name=ASBR1-PE1 vlan-id=11 add interface=ether1 name=CE1 vlan-id=111 /ip address add address=1.1.1.2/32 interface=loopback network=1.1.1.2 add address=11.11.11.2/30 interface=ASBR1-PE1 add address=111.111.111.1/30 interface=CE1 /routing ospf instance set [ find default=yes ] metric-connected=0 metric-static=1 redistribute-connected=as-type-1 redistribute-static=as-type-1 router-id=1.1.1.2 /routing ospf interface add interface=ASBR1-PE1 network-type=point-to-point /routing ospf network add area=backbone network=11.11.11.0/30 /routing bgp instance set default as=1 router-id=1.1.1.2 /ip route vrf add export-route-targets=1:1,2:2 import-route-targets=1:1,2:2 interfaces=CE1 route-distinguisher=1:1 routing-mark=CE1 /routing bgp instance vrf add redistribute-connected=yes routing-mark=CE1 /routing bgp peer add address-families=vpnv4 name=ASBR1 remote-address=1.1.1.1 remote-as=1 route-reflect=yes update-source=loopback /mpls interface set [ find default=yes ] mpls-mtu=1500 /mpls ldp set enabled=yes lsr-id=1.1.1.2 transport-address=1.1.1.2 /mpls ldp interface add interface=ASBR1-PE1 /system identity set name=PE1 ASBR2 /interface bridge add name=loopback /interface vlan add interface=ether1 name=ASBR1-ASBR2 vlan-id=12 add interface=ether1 name=ASBR2-PE2 vlan-id=22 /ip address add address=2.2.2.1/32 interface=loopback network=2.2.2.1 add address=12.12.12.2/30 interface=ASBR1-ASBR2 add address=22.22.22.1/30 interface=ASBR2-PE2 /routing ospf instance set [ find default=yes ] metric-connected=0 metric-static=1 redistribute-connected=as-type-1 redistribute-static=as-type-1 router-id=2.2.2.1 /routing ospf interface add interface=ASBR2-PE2 network-type=point-to-point /routing ospf network add area=backbone network=22.22.22.0/30 /routing bgp instance set default as=2 router-id=2.2.2.1 /routing bgp peer add address-families=vpnv4 name=PE2 remote-address=2.2.2.2 remote-as=2 route-reflect=yes update-source=loopback add address-families=vpnv4 name=ASBR1 remote-address=12.12.12.1 remote-as=1 route-reflect=yes /mpls interface set [ find default=yes ] mpls-mtu=1500 /mpls ldp set enabled=yes lsr-id=2.2.2.1 transport-address=2.2.2.1 /mpls ldp interface add interface=ASBR2-PE2 /system identity set name=ASBR2 PE2 /interface bridge add name=loopback /interface vlan add interface=ether1 name=ASBR2-PE2 vlan-id=22 add interface=ether1 name=CE2 vlan-id=222 /ip address add address=2.2.2.2/32 interface=loopback network=2.2.2.2 add address=22.22.22.2/30 interface=ASBR2-PE2 add address=222.222.222.1/30 interface=CE2 /routing ospf instance set [ find default=yes ] metric-connected=0 metric-static=1 redistribute-connected=as-type-1 redistribute-static=as-type-1 router-id=2.2.2.2 /routing ospf interface add interface=ASBR2-PE2 network-type=point-to-point /routing ospf network add area=backbone network=22.22.22.0/30 /routing bgp instance set default as=2 router-id=2.2.2.2 /ip route vrf add export-route-targets=1:1,2:2 import-route-targets=1:1,2:2 interfaces=CE2 route-distinguisher=2:2 routing-mark=CE2 /routing bgp instance vrf add redistribute-connected=yes routing-mark=CE2 /routing bgp peer add address-families=vpnv4 name=ASBR2 remote-address=2.2.2.1 remote-as=2 route-reflect=yes update-source=loopback /mpls interface set [ find default=yes ] mpls-mtu=1500 /mpls ldp set enabled=yes lsr-id=2.2.2.2 transport-address=2.2.2.2 /mpls ldp interface add interface=ASBR2-PE2 /system identity set name=PE2 Маршруты PE1 [admin@PE1] > routing bgp vpnv4-route print Flags: L - label-present # ROUTE-DISTINGUISHER DST-ADDRESS GATEWAY INT IN-LABEL 0 L 2:2 222.222.222.0/30 12.12.12.2 ASB 16 1 L 1:1 111.111.111.0/30 CE1 16 [admin@PE1] > ip route print where routing-mark =CE1 Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit # DST-ADDRESS PREF-SRC GATEWAY DISTANCE 0 ADC 111.111.111.0/30 111.111.111.1 CE1 0 1 ADb 222.222.222.0/30 12.12.12.2 200 Маршруты PE2 [admin@PE2] > routing bgp vpnv4-route print Flags: L - label-present # ROUTE-DISTINGUISHER DST-ADDRESS GATEWAY IN.. IN-LABEL 0 L 1:1 111.111.111.0/30 12.12.12.1 AS.. 16 1 L 2:2 222.222.222.0/30 CE2 16 [admin@PE2] > ip route print where routing-mark =CE2 Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit # DST-ADDRESS PREF-SRC GATEWAY DISTANCE 0 ADb 111.111.111.0/30 12.12.12.1 200 1 ADC 222.222.222.0/30 222.222.222.1 CE2 0 Пинги с PE1 на PE2 [admin@PE1] > ping 222.222.222.1 src-address=111.111.111.1 routing-table=CE1 HOST SIZE TTL TIME STATUS 111.111.111.1 84 64 1ms net unreachable 111.111.111.1 84 64 2ms net unreachable 111.111.111.1 84 64 4ms net unreachable 111.111.111.1 84 64 4ms net unreachable Пинги с PE2 на PE1 [admin@PE2] > ping 111.111.111.1 src-address=222.222.222.1 routing-table=CE2 HOST SIZE TTL TIME STATUS 222.222.222.1 84 64 0ms net unreachable 222.222.222.1 84 64 1ms net unreachable 222.222.222.1 84 64 2ms net unreachable 222.222.222.1 84 64 2ms net unreachable Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
Asco Posted June 3, 2013 PE1 и PE2 ничего не знают о next-hop 12.12.12.1 и 12.12.12.2 соответственно. ASBR1 и ASBR2 должны менять next-hop на ip адреса своих loop при передачи маршрутов внутри своей AS. Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
ilnur Posted June 3, 2013 Asco попробовал изменить так: ASBR1 [admin@ASBR1] > routing bgp peer print detail Flags: X - disabled, E - established 0 E name="PE1" instance=default remote-address=1.1.1.2 remote-as=1 tcp-md5-key="" nexthop-choice=force-self multihop=no route-reflect=yes hold-time=3m ttl=255 in-filter="" out-filter="" address-families=vpnv4 update-source=loopback default-originate=never remove-private-as=no as-override=no passive=no use-bfd=no ASBR2 [admin@ASBR2] > routing bgp peer print detail Flags: X - disabled, E - established 0 E name="PE2" instance=default remote-address=2.2.2.2 remote-as=2 tcp-md5-key="" nexthop-choice=force-self multihop=no route-reflect=yes hold-time=3m ttl=255 in-filter="" out-filter="" address-families=vpnv4 update-source=loopback default-originate=never remove-private-as=no as-override=no passive=no use-bfd=no Маршруты на PE1 [admin@PE1] > routing bgp vpnv4-route print detail Flags: L - label-present 0 L route-distinguisher=2:2 dst-address=222.222.222.0/30 gateway=1.1.1.1 interface=ASBR1-PE1 in-label=16 out-label=16 bgp-as-path="2" bgp-local-pref=100 bgp-origin=incomplete bgp-ext-communities="RT:1:1,RT:2:2" 1 L route-distinguisher=1:1 dst-address=111.111.111.0/30 interface=CE1 in-label=16 bgp-ext-communities="RT:1:1,RT:2:2" [admin@PE1] > ip route print detail where routing-mark =CE1 Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit 0 ADC dst-address=111.111.111.0/30 pref-src=111.111.111.1 gateway=CE1 gateway-status=CE1 reachable distance=0 scope=10 routing-mark=CE1 1 ADb dst-address=222.222.222.0/30 gateway=1.1.1.1 gateway-status=1.1.1.1 recursive via 11.11.11.1 ASBR1-PE1 distance=200 scope=40 target-scope=30 routing-mark=CE1 bgp-as-path="2" bgp-local-pref=100 bgp-origin=incomplete bgp-ext-communities="RT:1:1,RT:2:2" Маршруты на PE2 [admin@PE2] > routing bgp vpnv4-route print detail Flags: L - label-present 0 L route-distinguisher=1:1 dst-address=111.111.111.0/30 gateway=2.2.2.1 interface=ASBR2-PE2 in-label=16 out-label=16 bgp-as-path="1" bgp-local-pref=100 bgp-origin=incomplete bgp-ext-communities="RT:1:1,RT:2:2" 1 L route-distinguisher=2:2 dst-address=222.222.222.0/30 interface=CE2 in-label=16 bgp-ext-communities="RT:1:1,RT:2:2" [admin@PE2] > ip route print detail where routing-mark =CE2 Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit 0 ADb dst-address=111.111.111.0/30 gateway=2.2.2.1 gateway-status=2.2.2.1 recursive via 22.22.22.1 ASBR2-PE2 distance=200 scope=40 target-scope=30 routing-mark=CE2 bgp-as-path="1" bgp-local-pref=100 bgp-origin=incomplete bgp-ext-communities="RT:1:1,RT:2:2" 1 ADC dst-address=222.222.222.0/30 pref-src=222.222.222.1 gateway=CE2 gateway-status=CE2 reachable distance=0 scope=10 routing-mark=CE2 Пинги: [admin@PE1] > ping 222.222.222.1 src-address=111.111.111.1 routing-table=CE1 HOST SIZE TTL TIME STATUS 111.111.111.1 84 64 1ms net unreachable 111.111.111.1 84 64 3ms net unreachable 111.111.111.1 84 64 3ms net unreachable 111.111.111.1 84 64 4ms net unreachable [admin@PE2] > ping 111.111.111.1 src-address=222.222.222.1 routing-table=CE2 HOST SIZE TTL TIME STATUS 222.222.222.1 84 64 0ms net unreachable 222.222.222.1 84 64 1ms net unreachable 222.222.222.1 84 64 1ms net unreachable 222.222.222.1 84 64 1ms net unreachable Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
Asco Posted June 3, 2013 А у вас mpls вообще работает в пределах одной as? Повесьте тестовый ip на asbr1 в vrf ce1 и ip на asbr2 в vrf ce2. ping ce1-asbr1 работает, если в качестве соурса взять се1? ping ce1-asbr2 работает, если в качестве соурса взять се1? Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
ilnur Posted June 3, 2013 Повесил тестовые сети в тот же vrf что и CE на ASBR1(10.10.10.1/30) и ASBR2(20.20.20.1/30) Пинги ASBR1-CE1 [admin@ASBR1] > ping 111.111.111.1 src-address=10.10.10.1 routing-table=CE1 HOST SIZE TTL TIME STATUS 111.111.111.1 56 64 2ms 111.111.111.1 56 64 2ms 111.111.111.1 56 64 4ms 111.111.111.1 56 64 4ms 111.111.111.1 56 64 0ms [admin@PE1] > ping 10.10.10.1 src-address=111.111.111.1 routing-table=CE1 HOST SIZE TTL TIME STATUS 10.10.10.1 56 64 1ms 10.10.10.1 56 64 1ms 10.10.10.1 56 64 2ms 10.10.10.1 56 64 2ms ASBR2-CE2 [admin@ASBR2] > ping 222.222.222.1 src-address=20.20.20.1 routing-table=CE2 HOST SIZE TTL TIME STATUS 222.222.222.1 56 64 0ms 222.222.222.1 56 64 1ms 222.222.222.1 56 64 1ms 222.222.222.1 56 64 1ms [admin@PE2] > ping 20.20.20.1 src-address=222.222.222.1 routing-table=CE2 HOST SIZE TTL TIME STATUS 20.20.20.1 56 64 1ms 20.20.20.1 56 64 1ms 20.20.20.1 56 64 1ms 20.20.20.1 56 64 2ms C mpls внутри каждой as вроде все ок [admin@ASBR1] > mpls ldp neighbor print Flags: X - disabled, D - dynamic, O - operational, T - sending-targeted-hello, V - vpls # TRANSPORT LOCAL-TRANSPORT PEER SEN 0 DO 1.1.1.2 1.1.1.1 1.1.1.2:0 no [admin@PE1] > mpls ldp neighbor print Flags: X - disabled, D - dynamic, O - operational, T - sending-targeted-hell V - vpls # TRANSPORT LOCAL-TRANSPORT PEER SEN 0 DO 1.1.1.1 1.1.1.2 1.1.1.1:0 no [admin@ASBR2] > mpls ldp neighbor print Flags: X - disabled, D - dynamic, O - operational, T - sending-targeted-hello, V - vpls # TRANSPORT LOCAL-TRANSPORT PEER SEN 0 DO 2.2.2.2 2.2.2.1 2.2.2.2:0 no [admin@PE2] > mpls ldp neighbor print Flags: X - disabled, D - dynamic, O - operational, T - sending-targeted-hello, V - vpls # TRANSPORT LOCAL-TRANSPORT PEER SEN 0 DO 2.2.2.1 2.2.2.2 2.2.2.1:0 no Но после включения в vrf тестовых сетей на ASBR-ах, появились пинги между CE1 и CE2 [admin@PE2] > ping 111.111.111.1 src-address=222.222.222.1 routing-table=CE2 HOST SIZE TTL TIME STATUS 111.111.111.1 56 62 3ms 111.111.111.1 56 62 3ms sent=1 received=64 packet-loss=-6300% min-rtt=3ms avg-rtt=7ms max-rtt=12ms [admin@PE1] > ping 222.222.222.1 src-address=111.111.111.1 routing-table=CE1 HOST SIZE TTL TIME STATUS 222.222.222.1 56 62 8ms 222.222.222.1 56 62 8ms 222.222.222.1 56 62 8ms sent=3 received=192 packet-loss=-6300% min-rtt=1ms avg-rtt=10ms max-rtt=18ms Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
Asco Posted June 4, 2013 На asbr нужно локально заводить требуемый vrf, или посмотрпеть есть ли аналог в МТ как в cisco - no bgp default route-target filter Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
ilnur Posted June 4, 2013 Asco спасибо Не нашел как делать no bgp default route-target filter в RouterOS. Может кто знает? Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
