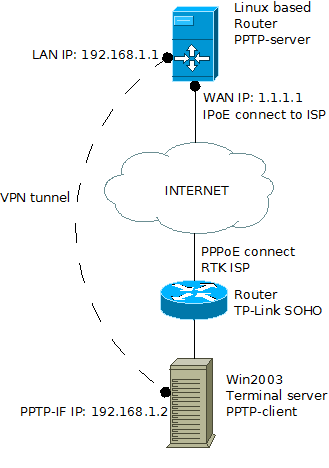

a-zazell Posted April 25, 2013 (edited) Здравствуйте, на Win srv2003 настроен DOD интерфейс в службе "Маршрутизация и удаленный доступ", подключается к PPTP серверу. После переезда с Beeline на Ростелеком, не устанавливается коннект (на Билайне работало 2 недели без проблем), иногда помогал перезапуск службы RemoteAccess, но сейчас и это не помогает. Самые интересные моменты: Конфигурация VPN и Ethernet интерфейсов не изменялась (на Ethernet DHCP) Созданный мастером новых подключений pptp-client интерфейс поднимается на ура через РТК Ошибка в логах системы: Тип события: Ошибка Источник события: RemoteAccess Категория события: Отсутствует Код события: 20111 Дата: 26.04.2013 Время: 0:09:58 Пользователь: Н/Д Компьютер: <hostname> Описание: Подключение по требованию к удаленному интерфейсу "hq" через порт "VPN4-0" успешно инициировано, но не закончено, из-за ошибки: Не удается подключиться к удаленному компьютеру. Возможно потребуется изменение сетевой настройки подключения. Нажмите кнопку "Дополнительно" или обратитесь в центр поддержки за помощью, указав номер ошибки. Дополнительные сведения можно найти в центре справки и поддержки, в "http://go.microsoft.com/fwlink/events.asp". Данные: 0000: d0 02 00 00 Ð... Во вложении схемы включения до (Beeline) и после (RTK), ниже логи и дампы на стороне сервера. Может кто встречался с проблемой? Tcpdump -v: :/# tcpdump -v -tpni wan host <CLIENT> tcpdump: listening on wan, link-type EN10MB (Ethernet), capture size 65535 bytes IP (tos 0x0, ttl 119, id 19370, offset 0, flags [DF], proto TCP (6), length 48) <CLIENT>.1065 > <SERVER>.1723: Flags [s], cksum 0x7fb0 (correct), seq 343444393, win 65535, options [mss 1440,nop,nop,sackOK], length 0 IP (tos 0x0, ttl 64, id 0, offset 0, flags [DF], proto TCP (6), length 48) <SERVER>.1723 > <CLIENT>.1065: Flags [s.], cksum 0x3fb3 (correct), seq 3605090854, ack 343444394, win 5840, options [mss 1460,nop,nop,sackOK], length 0 IP (tos 0x0, ttl 119, id 19404, offset 0, flags [DF], proto TCP (6), length 40) <CLIENT>.1065 > <SERVER>.1723: Flags [.], cksum 0x8347 (correct), ack 1, win 65535, length 0 IP (tos 0x0, ttl 119, id 19405, offset 0, flags [DF], proto TCP (6), length 196) <CLIENT>.1065 > <SERVER>.1723: Flags [P.], cksum 0x1807 (correct), seq 1:157, ack 1, win 65535, length 156: pptp Length=156 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=SCCRQ PROTO_VER(1.0) FRAME_CAP(A) BEARER_CAP(A) MAX_CHAN(0) FIRM_REV(3790) HOSTNAME() VENDOR(Microsoft) IP (tos 0x0, ttl 64, id 23053, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [.], cksum 0x698b (correct), ack 157, win 6432, length 0 IP (tos 0x0, ttl 64, id 23054, offset 0, flags [DF], proto TCP (6), length 196) <SERVER>.1723 > <CLIENT>.1065: Flags [P.], cksum 0x811d (correct), seq 1:157, ack 157, win 6432, length 156: pptp Length=156 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=SCCRP PROTO_VER(1.0) RESULT_CODE(1:Successful channel establishment) ERR_CODE(0:None) FRAME_CAP() BEARER_CAP() MAX_CHAN(1) FIRM_REV(1) HOSTNAME(local) VENDOR(linux) IP (tos 0x0, ttl 119, id 19445, offset 0, flags [DF], proto TCP (6), length 208) <CLIENT>.1065 > <SERVER>.1723: Flags [P.], cksum 0x3e3b (correct), seq 157:325, ack 157, win 65379, length 168: pptp Length=168 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=OCRQ CALL_ID(1065) CALL_SER_NUM(7) MIN_BPS(300) MAX_BPS(100000000) BEARER_TYPE(Any) FRAME_TYPE(E) RECV_WIN(64) PROC_DELAY(0) PHONE_NO_LEN(0) PHONE_NO() SUB_ADDR() IP (tos 0x0, ttl 64, id 23055, offset 0, flags [DF], proto TCP (6), length 72) <SERVER>.1723 > <CLIENT>.1065: Flags [P.], cksum 0xab6e (correct), seq 157:189, ack 325, win 7504, length 32: pptp Length=32 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=OCRP CALL_ID(30080) PEER_CALL_ID(1065) RESULT_CODE(1:Connected) ERR_CODE(0:None) CAUSE_CODE(0) CONN_SPEED(100000000) RECV_WIN(64) PROC_DELAY(0) PHY_CHAN_ID(0) IP (tos 0x0, ttl 64, id 2103, offset 0, flags [DF], proto GRE (47), length 61) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present], call 1065, seq 0, length 41 LCP, Conf-Request (0x01), id 1, length 27 encoded length 25 (=Option(s) length 21) ACCM Option (0x02), length 6: 0x00000000 Auth-Prot Option (0x03), length 5: CHAP, MS-CHAPv2 Magic-Num Option (0x05), length 6: 0x21ceebb0 PFC Option (0x07), length 2: ACFC Option (0x08), length 2: IP (tos 0x0, ttl 119, id 19466, offset 0, flags [DF], proto TCP (6), length 64) <CLIENT>.1065 > <SERVER>.1723: Flags [P.], cksum 0xb5c2 (correct), seq 325:349, ack 189, win 65347, length 24: pptp Length=24 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=SLI PEER_CALL_ID(30080) SEND_ACCM(0xffffffff) RECV_ACCM(0xffffffff) IP (tos 0x0, ttl 119, id 19467, offset 0, flags [none], proto GRE (47), length 57) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present], call 30080, seq 0, length 37 LCP, Conf-Request (0x01), id 0, length 23 encoded length 21 (=Option(s) length 17) MRU Option (0x01), length 4: 1400 Magic-Num Option (0x05), length 6: 0x35fb31ce PFC Option (0x07), length 2: ACFC Option (0x08), length 2: Call-Back Option (0x0d), length 3: Callback Operation CBCP (6) IP (tos 0x0, ttl 64, id 2104, offset 0, flags [DF], proto GRE (47), length 47) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present, ack present], call 1065, seq 1, ack 0, length 27 LCP, Conf-Reject (0x04), id 0, length 9 encoded length 7 (=Option(s) length 3) Call-Back Option (0x0d), length 3: Callback Operation CBCP (6) IP (tos 0x0, ttl 119, id 19468, offset 0, flags [none], proto GRE (47), length 65) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present, ack present], call 30080, seq 1, ack 0, length 45 LCP, Conf-Ack (0x02), id 1, length 27 encoded length 25 (=Option(s) length 21) ACCM Option (0x02), length 6: 0x00000000 Auth-Prot Option (0x03), length 5: CHAP, MS-CHAPv2 Magic-Num Option (0x05), length 6: 0x21ceebb0 PFC Option (0x07), length 2: ACFC Option (0x08), length 2: IP (tos 0x0, ttl 119, id 19473, offset 0, flags [none], proto GRE (47), length 58) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present, ack present], call 30080, seq 2, ack 1, length 38 LCP, Conf-Request (0x01), id 1, length 20 encoded length 18 (=Option(s) length 14) MRU Option (0x01), length 4: 1400 Magic-Num Option (0x05), length 6: 0x35fb31ce PFC Option (0x07), length 2: ACFC Option (0x08), length 2: IP (tos 0x0, ttl 64, id 2105, offset 0, flags [DF], proto GRE (47), length 58) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present, ack present], call 1065, seq 2, ack 2, length 38 LCP, Conf-Ack (0x02), id 1, length 20 encoded length 18 (=Option(s) length 14) MRU Option (0x01), length 4: 1400 Magic-Num Option (0x05), length 6: 0x35fb31ce PFC Option (0x07), length 2: ACFC Option (0x08), length 2: IP (tos 0x0, ttl 64, id 2106, offset 0, flags [DF], proto GRE (47), length 42) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present], call 1065, seq 3, length 22 LCP, Echo-Request (0x09), id 0, length 10 encoded length 8 (=Option(s) length 4) Magic-Num 0x21ceebb0 IP (tos 0x0, ttl 64, id 2107, offset 0, flags [DF], proto GRE (47), length 60) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present], call 1065, seq 4, length 40 CHAP, Challenge (0x01), id 124, Value 723b750cf16ccc33f604e61346abaa55, Name alpha IP (tos 0x0, ttl 64, id 23056, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [.], cksum 0x63df (correct), ack 349, win 7504, length 0 IP (tos 0x0, ttl 119, id 19480, offset 0, flags [none], proto GRE (47), length 56) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present, ack present], call 30080, seq 3, ack 4, length 36 LCP, Ident (0x0c), id 2, length 20 encoded length 18 (=Option(s) length 14) Magic-Num 0x35fb31ce Message MSRASV5.20 IP (tos 0x0, ttl 119, id 19481, offset 0, flags [none], proto GRE (47), length 65) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present], call 30080, seq 4, length 45 LCP, Ident (0x0c), id 3, length 33 encoded length 31 (=Option(s) length 27) Magic-Num 0x35fb31ce Message MSRAS-0-<CLIENT hostname> IP (tos 0x0, ttl 119, id 19482, offset 0, flags [DF], proto TCP (6), length 64) <CLIENT>.1065 > <SERVER>.1723: Flags [P.], cksum 0xb5aa (correct), seq 349:373, ack 189, win 65347, length 24: pptp Length=24 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=SLI PEER_CALL_ID(30080) SEND_ACCM(0x00000000) RECV_ACCM(0xffffffff) IP (tos 0x0, ttl 64, id 23057, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [.], cksum 0x63c7 (correct), ack 373, win 7504, length 0 IP (tos 0x0, ttl 119, id 19483, offset 0, flags [none], proto GRE (47), length 42) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present], call 30080, seq 5, length 22 LCP, Echo-Reply (0x0a), id 0, length 10 encoded length 8 (=Option(s) length 4) Magic-Num 0x35fb31ce IP (tos 0x0, ttl 119, id 19484, offset 0, flags [none], proto GRE (47), length 93) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present], call 30080, seq 6, length 73 CHAP, Response (0x02), id 124, Value d9768..., Name <CLIENT AUTHNAME> IP (tos 0x0, ttl 64, id 2108, offset 0, flags [DF], proto GRE (47), length 101) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present, ack present], call 1065, seq 5, ack 6, length 81 CHAP, Success (0x03), id 124, Msg S=DDFA... M=Access granted IP (tos 0x0, ttl 64, id 2109, offset 0, flags [DF], proto GRE (47), length 44) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present], call 1065, seq 6, length 24 unknown ctrl-proto (0x80fd), Conf-Request (0x01), id 1, length 12 encoded length 10 (=Option(s) length 6) MPPC Option (0x12), length 6: 0x0000: 0100 0040 IP (tos 0x0, ttl 119, id 19489, offset 0, flags [none], proto GRE (47), length 48) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present, ack present], call 30080, seq 7, ack 6, length 28 unknown ctrl-proto (0x80fd), Conf-Request (0x01), id 4, length 12 encoded length 10 (=Option(s) length 6) MPPC Option (0x12), length 6: 0x0000: 0100 00e1 IP (tos 0x0, ttl 64, id 2110, offset 0, flags [DF], proto GRE (47), length 48) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present, ack present], call 1065, seq 7, ack 7, length 28 unknown ctrl-proto (0x80fd), Conf-Nack (0x03), id 4, length 12 encoded length 10 (=Option(s) length 6) MPPC Option (0x12), length 6: 0x0000: 0100 0040 IP (tos 0x0, ttl 119, id 19490, offset 0, flags [none], proto GRE (47), length 44) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present], call 30080, seq 8, length 24 unknown ctrl-proto (0x80fd), Conf-Ack (0x02), id 1, length 12 encoded length 10 (=Option(s) length 6) MPPC Option (0x12), length 6: 0x0000: 0100 0040 IP (tos 0x0, ttl 119, id 19495, offset 0, flags [none], proto GRE (47), length 48) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present, ack present], call 30080, seq 9, ack 7, length 28 unknown ctrl-proto (0x80fd), Conf-Request (0x01), id 5, length 12 encoded length 10 (=Option(s) length 6) MPPC Option (0x12), length 6: 0x0000: 0100 0040 IP (tos 0x0, ttl 64, id 2111, offset 0, flags [DF], proto GRE (47), length 48) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present, ack present], call 1065, seq 8, ack 9, length 28 unknown ctrl-proto (0x80fd), Conf-Ack (0x02), id 5, length 12 encoded length 10 (=Option(s) length 6) MPPC Option (0x12), length 6: 0x0000: 0100 0040 IP (tos 0x0, ttl 64, id 2112, offset 0, flags [DF], proto GRE (47), length 50) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present], call 1065, seq 9, length 30 IPCP, Conf-Request (0x01), id 1, length 18 encoded length 16 (=Option(s) length 12) IP-Comp Option (0x02), length 6: VJ-Comp (0x2d): IP-Addr Option (0x03), length 6: 192.168.1.1 IP (tos 0x0, ttl 119, id 19497, offset 0, flags [none], proto GRE (47), length 60) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present, ack present], call 30080, seq 10, ack 9, length 40 LCP, Prot-Reject (0x08), id 6, length 24 encoded length 22 (=Option(s) length 18) Rejected IPCP Protocol (0x8021) Rejected Packet 0x0000: 0101 0010 0206 002d 0f01 0306 c0a8 0701 IP (tos 0x0, ttl 119, id 19507, offset 0, flags [DF], proto TCP (6), length 64) <CLIENT>.1065 > <SERVER>.1723: Flags [P.], cksum 0xb592 (correct), seq 373:397, ack 189, win 65347, length 24: pptp Length=24 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=SLI PEER_CALL_ID(30080) SEND_ACCM(0xffffffff) RECV_ACCM(0xffffffff) IP (tos 0x0, ttl 64, id 23058, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [.], cksum 0x63af (correct), ack 397, win 7504, length 0 IP (tos 0x0, ttl 119, id 19508, offset 0, flags [none], proto GRE (47), length 52) <CLIENT> > <SERVER>: GREv1, Flags [key present, sequence# present], call 30080, seq 11, length 32 LCP, Term-Request (0x05), id 7, length 18 encoded length 16 (=Option(s) length 12) IP (tos 0x0, ttl 64, id 2113, offset 0, flags [DF], proto GRE (47), length 44) <SERVER> > <CLIENT>: GREv1, Flags [key present, sequence# present, ack present], call 1065, seq 10, ack 11, length 24 LCP, Term-Ack (0x06), id 7, length 6 IP (tos 0x0, ttl 119, id 19519, offset 0, flags [DF], proto TCP (6), length 56) <CLIENT>.1065 > <SERVER>.1723: Flags [P.], cksum 0x26e5 (correct), seq 397:413, ack 189, win 65347, length 16: pptp Length=16 CTRL-MSG Magic-Cookie=1a2b3c4d CTRL_MSGTYPE=CCRQ CALL_ID(1065) IP (tos 0x0, ttl 64, id 23059, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [.], cksum 0x639f (correct), ack 413, win 7504, length 0 IP (tos 0x0, ttl 64, id 23060, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [F.], cksum 0x639e (correct), seq 189, ack 413, win 7504, length 0 IP (tos 0x0, ttl 119, id 19525, offset 0, flags [DF], proto TCP (6), length 40) <CLIENT>.1065 > <SERVER>.1723: Flags [F.], cksum 0x81a9 (correct), seq 413, ack 190, win 65347, length 0 IP (tos 0x0, ttl 64, id 23061, offset 0, flags [DF], proto TCP (6), length 40) <SERVER>.1723 > <CLIENT>.1065: Flags [.], cksum 0x639d (correct), ack 414, win 7504, length 0 ^C 42 packets captured 42 packets received by filter 0 packets dropped by kernel Tcpdump: :/# tcpdump -tpni wan host <CLIENT> tcpdump: listening on wan, link-type EN10MB (Ethernet), capture size 65535 bytes IP CLIENT.1066 > SERVER.1723: Flags [s], seq 852260401, win 65535, options [mss 1440,nop,nop,sackOK], length 0 IP SERVER.1723 > CLIENT.1066: Flags [s.], seq 3703765933, ack 852260402, win 5840, options [mss 1460,nop,nop,sackOK], length 0 IP CLIENT.1066 > SERVER.1723: Flags [.], ack 1, win 65535, length 0 IP CLIENT.1066 > SERVER.1723: Flags [P.], seq 1:157, ack 1, win 65535, length 156: pptp CTRL_MSGTYPE=SCCRQ PROTO_VER(1.0) FRAME_CAP(A) BEARER_CAP(A) MAX_CHAN(0) FIRM_REV(3790) HOSTNAME() VENDOR(Microsoft) IP SERVER.1723 > CLIENT.1066: Flags [.], ack 157, win 6432, length 0 IP SERVER.1723 > CLIENT.1066: Flags [P.], seq 1:157, ack 157, win 6432, length 156: pptp CTRL_MSGTYPE=SCCRP PROTO_VER(1.0) RESULT_CODE(1) ERR_CODE(0) FRAME_CAP() BEARER_CAP() MAX_CHAN(1) FIRM_REV(1) HOSTNAME(local) VENDOR(linux) IP CLIENT.1066 > SERVER.1723: Flags [P.], seq 157:325, ack 157, win 65379, length 168: pptp CTRL_MSGTYPE=OCRQ CALL_ID(1066) CALL_SER_NUM(8) MIN_BPS(300) MAX_BPS(100000000) BEARER_TYPE(Any) FRAME_TYPE(E) RECV_WIN(64) PROC_DELAY(0) PHONE_NO_LEN(0) PHONE_NO() SUB_ADDR() IP SERVER.1723 > CLIENT.1066: Flags [P.], seq 157:189, ack 325, win 7504, length 32: pptp CTRL_MSGTYPE=OCRP CALL_ID(30208) PEER_CALL_ID(1066) RESULT_CODE(1) ERR_CODE(0) CAUSE_CODE(0) CONN_SPEED(100000000) RECV_WIN(64) PROC_DELAY(0) PHY_CHAN_ID(0) IP SERVER > CLIENT: GREv1, call 1066, seq 0, length 41: LCP, Conf-Request (0x01), id 1, length 27 IP CLIENT.1066 > SERVER.1723: Flags [P.], seq 325:349, ack 189, win 65347, length 24: pptp CTRL_MSGTYPE=SLI PEER_CALL_ID(30208) SEND_ACCM(0xffffffff) RECV_ACCM(0xffffffff) IP CLIENT > SERVER: GREv1, call 30208, seq 0, length 37: LCP, Conf-Request (0x01), id 0, length 23 IP SERVER > CLIENT: GREv1, call 1066, seq 1, ack 0, length 27: LCP, Conf-Reject (0x04), id 0, length 9 IP CLIENT > SERVER: GREv1, call 30208, seq 1, ack 1, length 38: LCP, Conf-Request (0x01), id 1, length 20 IP SERVER > CLIENT: GREv1, call 1066, seq 2, ack 1, length 38: LCP, Conf-Ack (0x02), id 1, length 20 IP SERVER.1723 > CLIENT.1066: Flags [.], ack 349, win 7504, length 0 IP SERVER > CLIENT: GREv1, call 1066, seq 3, length 41: LCP, Conf-Request (0x01), id 1, length 27 IP CLIENT > SERVER: GREv1, call 30208, seq 2, ack 3, length 45: LCP, Conf-Ack (0x02), id 1, length 27 IP SERVER > CLIENT: GREv1, call 1066, seq 4, ack 2, length 26: LCP, Echo-Request (0x09), id 0, length 10 IP SERVER > CLIENT: GREv1, call 1066, seq 5, length 40: CHAP, Challenge (0x01), id 254, Value 30c..., Name pptpd IP CLIENT.1066 > SERVER.1723: Flags [P.], seq 349:373, ack 189, win 65347, length 24: pptp CTRL_MSGTYPE=SLI PEER_CALL_ID(30208) SEND_ACCM(0x00000000) RECV_ACCM(0xffffffff) IP SERVER.1723 > CLIENT.1066: Flags [.], ack 373, win 7504, length 0 IP CLIENT > SERVER: GREv1, call 30208, seq 3, length 32: LCP, Ident (0x0c), id 2, length 20 IP CLIENT > SERVER: GREv1, call 30208, seq 4, length 45: LCP, Ident (0x0c), id 3, length 33 IP CLIENT > SERVER: GREv1, call 30208, seq 5, ack 4, length 26: LCP, Echo-Reply (0x0a), id 0, length 10 IP CLIENT > SERVER: GREv1, call 30208, seq 6, ack 5, length 77: CHAP, Response (0x02), id 254, Value e76da38583..., Name CLIENT-AUTH-NAME IP SERVER > CLIENT: GREv1, call 1066, seq 6, ack 6, length 81: CHAP, Success (0x03), id 254, Msg S=960877... M=Access granted IP SERVER > CLIENT: GREv1, call 1066, seq 7, length 24: unknown ctrl-proto (0x80fd), Conf-Request (0x01), id 1, length 12 IP CLIENT > SERVER: GREv1, call 30208, seq 7, ack 7, length 28: unknown ctrl-proto (0x80fd), Conf-Request (0x01), id 4, length 12 IP SERVER > CLIENT: GREv1, call 1066, seq 8, ack 7, length 28: unknown ctrl-proto (0x80fd), Conf-Nack (0x03), id 4, length 12 IP CLIENT > SERVER: GREv1, call 30208, seq 8, length 24: unknown ctrl-proto (0x80fd), Conf-Ack (0x02), id 1, length 12 IP CLIENT > SERVER: GREv1, call 30208, seq 9, ack 8, length 28: unknown ctrl-proto (0x80fd), Conf-Request (0x01), id 5, length 12 IP SERVER > CLIENT: GREv1, call 1066, seq 9, ack 9, length 28: unknown ctrl-proto (0x80fd), Conf-Ack (0x02), id 5, length 12 IP SERVER > CLIENT: GREv1, call 1066, seq 10, length 30: IPCP, Conf-Request (0x01), id 1, length 18 IP CLIENT > SERVER: GREv1, call 30208, seq 10, ack 10, length 40: LCP, Prot-Reject (0x08), id 6, length 24 IP CLIENT.1066 > SERVER.1723: Flags [P.], seq 373:397, ack 189, win 65347, length 24: pptp CTRL_MSGTYPE=SLI PEER_CALL_ID(30208) SEND_ACCM(0xffffffff) RECV_ACCM(0xffffffff) IP SERVER.1723 > CLIENT.1066: Flags [.], ack 397, win 7504, length 0 IP CLIENT > SERVER: GREv1, call 30208, seq 11, length 32: LCP, Term-Request (0x05), id 7, length 18 IP SERVER > CLIENT: GREv1, call 1066, seq 11, ack 11, length 24: LCP, Term-Ack (0x06), id 7, length 6 IP CLIENT.1066 > SERVER.1723: Flags [P.], seq 397:413, ack 189, win 65347, length 16: pptp CTRL_MSGTYPE=CCRQ CALL_ID(1066) IP SERVER.1723 > CLIENT.1066: Flags [.], ack 413, win 7504, length 0 IP SERVER.1723 > CLIENT.1066: Flags [F.], seq 189, ack 413, win 7504, length 0 IP CLIENT.1066 > SERVER.1723: Flags [F.], seq 413, ack 190, win 65347, length 0 IP SERVER.1723 > CLIENT.1066: Flags [.], ack 414, win 7504, length 0 ^C 43 packets captured 43 packets received by filter 0 packets dropped by kernel PPTPd log: Plugin /usr/lib/pptpd/pptpd-logwtmp.so loaded. pptpd-logwtmp: $Version$ pppd options in effect: debug # (from /etc/ppp/pptpd-options) logfile /var/log/ppp/pptpd.log # (from /etc/ppp/pptpd-options) dump # (from /etc/ppp/pptpd-options) plugin /usr/lib/pptpd/pptpd-logwtmp.so # (from command line) require-mschap-v2 # (from /etc/ppp/pptpd-options) refuse-pap # (from /etc/ppp/pptpd-options) refuse-chap # (from /etc/ppp/pptpd-options) refuse-mschap # (from /etc/ppp/pptpd-options) name alpha # (from /etc/ppp/pptpd-options) pptpd-original-ip <pptp-client IP> # (from command line) 115200 # (from command line) lock # (from /etc/ppp/pptpd-options) crtscts # (from /etc/ppp/options) local # (from command line) asyncmap 0 # (from /etc/ppp/options) lcp-echo-failure 4 # (from /etc/ppp/options) lcp-echo-interval 30 # (from /etc/ppp/options) hide-password # (from /etc/ppp/options) ipparam <pptp-client IP> # (from command line) nodefaultroute # (from /etc/ppp/pptpd-options) proxyarp # (from /etc/ppp/pptpd-options) 192.168.1.1:192.168.1.20 # (from command line) nobsdcomp # (from /etc/ppp/pptpd-options) require-mppe-128 # (from /etc/ppp/pptpd-options) noipx # (from /etc/ppp/options) using channel 237 Using interface ppp0 Connect: ppp0 <--> /dev/pts/2 sent [LCP ConfReq id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0x21ceebb0> <pcomp> <accomp>] rcvd [LCP ConfReq id=0x0 <mru 1400> <magic 0x35fb31ce> <pcomp> <accomp> <callback CBCP>] sent [LCP ConfRej id=0x0 <callback CBCP>] rcvd [LCP ConfAck id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0x21ceebb0> <pcomp> <accomp>] rcvd [LCP ConfReq id=0x1 <mru 1400> <magic 0x35fb31ce> <pcomp> <accomp>] sent [LCP ConfAck id=0x1 <mru 1400> <magic 0x35fb31ce> <pcomp> <accomp>] sent [LCP EchoReq id=0x0 magic=0x21ceebb0] sent [CHAP Challenge id=0x7c <723................................>, name = "pptpd"] rcvd [LCP Ident id=0x2 magic=0x35fb31ce "MSRASV5.20"] rcvd [LCP Ident id=0x3 magic=0x35fb31ce "MSRAS-0-<hostname pptp-client>"] rcvd [LCP EchoRep id=0x0 magic=0x35fb31ce] rcvd [CHAP Response id=0x7c <d9768c00ecb52521878d...>, name = "pptp-client"] sent [CHAP Success id=0x7c "S=DDFA... M=Access granted"] sent [CCP ConfReq id=0x1 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfReq id=0x4 <mppe +H +M +S +L -D +C>] sent [CCP ConfNak id=0x4 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfAck id=0x1 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfReq id=0x5 <mppe +H -M +S -L -D -C>] sent [CCP ConfAck id=0x5 <mppe +H -M +S -L -D -C>] MPPE 128-bit stateless compression enabled sent [iPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 192.168.1.1>] rcvd [LCP ProtRej id=0x6 80 21 01 01 00 10 02 06 00 2d 0f 01 03 06 c0 a8 07 01] Protocol-Reject for 'Internet Protocol Control Protocol' (0x8021) received rcvd [LCP TermReq id=0x7 "5\377777777731\37777777716\000<\37777777715t\000\000\000\000"] LCP terminated by peer (5M-{1M-N^@<M-Mt^@^@^@^@) sent [LCP TermAck id=0x7] Hangup (SIGHUP) Modem hangup Connection terminated. Connect time 0.1 minutes. Sent 46 bytes, received 30 bytes. ^C Спасибо за внимание Update 1. Посмотрел лог PPTPD при подключении PPTP VPN client и DOD RemoteAccess # Включаем PPTP-Client созданный мастером новых подключений Plugin /usr/lib/pptpd/pptpd-logwtmp.so loaded. pptpd-logwtmp: $Version$ pppd options in effect: debug # (from /etc/ppp/pptpd-options) logfile /var/log/ppp/pptpd.log # (from /etc/ppp/pptpd-options) dump # (from /etc/ppp/pptpd-options) plugin /usr/lib/pptpd/pptpd-logwtmp.so # (from command line) require-mschap-v2 # (from /etc/ppp/pptpd-options) refuse-pap # (from /etc/ppp/pptpd-options) refuse-chap # (from /etc/ppp/pptpd-options) refuse-mschap # (from /etc/ppp/pptpd-options) name pptpd # (from /etc/ppp/pptpd-options) pptpd-original-ip CLIENT # (from command line) 115200 # (from command line) lock # (from /etc/ppp/pptpd-options) crtscts # (from /etc/ppp/options) local # (from command line) asyncmap 0 # (from /etc/ppp/options) lcp-echo-failure 4 # (from /etc/ppp/options) lcp-echo-interval 30 # (from /etc/ppp/options) hide-password # (from /etc/ppp/options) ipparam CLIENT # (from command line) nodefaultroute # (from /etc/ppp/pptpd-options) proxyarp # (from /etc/ppp/pptpd-options) 192.168.1.1:192.168.1.20 # (from command line) nobsdcomp # (from /etc/ppp/pptpd-options) require-mppe-128 # (from /etc/ppp/pptpd-options) noipx # (from /etc/ppp/options) using channel 245 Using interface ppp0 Connect: ppp0 <--> /dev/pts/1 sent [LCP ConfReq id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0x966ccc75> <pcomp> <accomp>] rcvd [LCP ConfReq id=0x0 <mru 1400> <magic 0x77b21469> <pcomp> <accomp> <callback CBCP>] sent [LCP ConfRej id=0x0 <callback CBCP>] rcvd [LCP ConfReq id=0x1 <mru 1400> <magic 0x77b21469> <pcomp> <accomp>] sent [LCP ConfAck id=0x1 <mru 1400> <magic 0x77b21469> <pcomp> <accomp>] sent [LCP ConfReq id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0x966ccc75> <pcomp> <accomp>] rcvd [LCP ConfAck id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0x966ccc75> <pcomp> <accomp>] sent [LCP EchoReq id=0x0 magic=0x966ccc75] sent [CHAP Challenge id=0x6 <3fc...>, name = "pptpd"] rcvd [LCP Ident id=0x2 magic=0x77b21469 "MSRASV5.20"] rcvd [LCP Ident id=0x3 magic=0x77b21469 "MSRAS-0-<CLIENT HOSTNAME>"] rcvd [LCP EchoRep id=0x0 magic=0x77b21469] rcvd [CHAP Response id=0x6 <b919...>, name = "<CLIENT AUTH NAME>"] sent [CHAP Success id=0x6 "S=4C74... M=Access granted"] sent [CCP ConfReq id=0x1 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfReq id=0x4 <mppe +H +M +S +L -D -C>] sent [CCP ConfNak id=0x4 <mppe +H -M +S -L -D -C>] rcvd [iPCP ConfReq id=0x5 <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-wins 0.0.0.0> <ms-dns2 0.0.0.0> <ms-wins 0.0.0.0>] sent [iPCP TermAck id=0x5] rcvd [CCP ConfAck id=0x1 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfReq id=0x6 <mppe +H -M +S -L -D -C>] sent [CCP ConfAck id=0x6 <mppe +H -M +S -L -D -C>] MPPE 128-bit stateless compression enabled sent [iPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 192.168.1.1>] rcvd [iPCP ConfRej id=0x1 <compress VJ 0f 01>] sent [iPCP ConfReq id=0x2 <addr 192.168.1.1>] rcvd [iPCP ConfAck id=0x2 <addr 192.168.1.1>] rcvd [iPCP ConfReq id=0x7 <addr 0.0.0.0> <ms-dns1 0.0.0.0> <ms-wins 0.0.0.0> <ms-dns2 0.0.0.0> <ms-wins 0.0.0.0>] sent [iPCP ConfRej id=0x7 <ms-dns1 0.0.0.0> <ms-wins 0.0.0.0> <ms-dns2 0.0.0.0> <ms-wins 0.0.0.0>] rcvd [iPCP ConfReq id=0x8 <addr 0.0.0.0>] sent [iPCP ConfNak id=0x8 <addr 192.168.1.21>] rcvd [iPCP ConfReq id=0x9 <addr 192.168.1.21>] sent [iPCP ConfAck id=0x9 <addr 192.168.1.21>] found interface lan for proxy arp local IP address 192.168.1.1 remote IP address 192.168.1.21 pptpd-logwtmp.so ip-up ppp0 <CLIENT AUTH NAME> CLIENT Script /etc/ppp/ip-up started (pid 9684) Script /etc/ppp/ip-up finished (pid 9684), status = 0x0 # Разрываем соединение rcvd [LCP TermReq id=0xa "w\37777777662\024i\000<\37777777715t\000\000\000\000"] LCP terminated by peer (wM-2^Ti^@<M-Mt^@^@^@^@) pptpd-logwtmp.so ip-down ppp0 Connect time 0.3 minutes. Sent 272 bytes, received 656 bytes. Script /etc/ppp/ip-down started (pid 9797) sent [LCP TermAck id=0xa] Script /etc/ppp/ip-down finished (pid 9797), status = 0x0 Hangup (SIGHUP) Modem hangup Connection terminated. ^C # # Включаем интерфейс в оснастке "Маршрутизация м удаленный доступ" # Plugin /usr/lib/pptpd/pptpd-logwtmp.so loaded. pptpd-logwtmp: $Version$ pppd options in effect: debug # (from /etc/ppp/pptpd-options) logfile /var/log/ppp/pptpd.log # (from /etc/ppp/pptpd-options) dump # (from /etc/ppp/pptpd-options) plugin /usr/lib/pptpd/pptpd-logwtmp.so # (from command line) require-mschap-v2 # (from /etc/ppp/pptpd-options) refuse-pap # (from /etc/ppp/pptpd-options) refuse-chap # (from /etc/ppp/pptpd-options) refuse-mschap # (from /etc/ppp/pptpd-options) name pptpd # (from /etc/ppp/pptpd-options) pptpd-original-ip CLIENT # (from command line) 115200 # (from command line) lock # (from /etc/ppp/pptpd-options) crtscts # (from /etc/ppp/options) local # (from command line) asyncmap 0 # (from /etc/ppp/options) lcp-echo-failure 4 # (from /etc/ppp/options) lcp-echo-interval 30 # (from /etc/ppp/options) hide-password # (from /etc/ppp/options) ipparam CLIENT # (from command line) nodefaultroute # (from /etc/ppp/pptpd-options) proxyarp # (from /etc/ppp/pptpd-options) 192.168.1.1:192.168.1.20 # (from command line) nobsdcomp # (from /etc/ppp/pptpd-options) require-mppe-128 # (from /etc/ppp/pptpd-options) noipx # (from /etc/ppp/options) using channel 246 Using interface ppp0 Connect: ppp0 <--> /dev/pts/1 sent [LCP ConfReq id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0xaa8f6334> <pcomp> <accomp>] rcvd [LCP ConfReq id=0x0 <mru 1400> <magic 0x67fc42d2> <pcomp> <accomp> <callback CBCP>] sent [LCP ConfRej id=0x0 <callback CBCP>] rcvd [LCP ConfAck id=0x1 <asyncmap 0x0> <auth chap MS-v2> <magic 0xaa8f6334> <pcomp> <accomp>] rcvd [LCP ConfReq id=0x1 <mru 1400> <magic 0x67fc42d2> <pcomp> <accomp>] sent [LCP ConfAck id=0x1 <mru 1400> <magic 0x67fc42d2> <pcomp> <accomp>] sent [LCP EchoReq id=0x0 magic=0xaa8f6334] sent [CHAP Challenge id=0x47 <af66...>, name = "pptpd"] rcvd [LCP Ident id=0x2 magic=0x67fc42d2 "MSRASV5.20"] rcvd [LCP Ident id=0x3 magic=0x67fc42d2 "MSRAS-0-<CLIENT HOSTNAME>"] rcvd [LCP EchoRep id=0x0 magic=0x67fc42d2] rcvd [CHAP Response id=0x47 <9c7...>, name = "<CLIENT AUTH NAME>"] sent [CHAP Success id=0x47 "S=4FF... M=Access granted"] sent [CCP ConfReq id=0x1 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfReq id=0x4 <mppe +H +M +S +L -D +C>] sent [CCP ConfNak id=0x4 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfAck id=0x1 <mppe +H -M +S -L -D -C>] rcvd [CCP ConfReq id=0x5 <mppe +H -M +S -L -D -C>] sent [CCP ConfAck id=0x5 <mppe +H -M +S -L -D -C>] MPPE 128-bit stateless compression enabled sent [iPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 192.168.1.1>] rcvd [LCP ProtRej id=0x6 80 21 01 01 00 10 02 06 00 2d 0f 01 03 06 c0 a8 07 01] Protocol-Reject for 'Internet Protocol Control Protocol' (0x8021) received rcvd [LCP TermReq id=0x7 "g\37777777774B\37777777722\000<\37777777715t\000\000\000\000"] LCP terminated by peer (gM-|BM-R^@<M-Mt^@^@^@^@) sent [LCP TermAck id=0x7] Hangup (SIGHUP) Modem hangup Connection terminated. Connect time 0.1 minutes. Sent 46 bytes, received 30 bytes. Из явного: # PPTP-Client MPPE 128-bit stateless compression enabled sent [iPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 192.168.1.1>] rcvd [iPCP ConfRej id=0x1 <compress VJ 0f 01>] # DOD RemoteAccess MPPE 128-bit stateless compression enabled sent [iPCP ConfReq id=0x1 <compress VJ 0f 01> <addr 192.168.1.1>] rcvd [LCP ProtRej id=0x6 80 21 01 01 00 10 02 06 00 2d 0f 01 03 06 c0 a8 07 01] Protocol-Reject for 'Internet Protocol Control Protocol' (0x8021) received rcvd [LCP TermReq id=0x7 "g\37777777774B\37777777722\000<\37777777715t\000\000\000\000"] LCP terminated by peer (gM-|BM-R^@<M-Mt^@^@^@^@) IPCP и LCP - разные протоколы контроля соединения, работают на разных уровнях (L3 и L2 соответственно), DOD дропает IPCP пакеты, не понятно ... =( Edited April 25, 2013 by a-zazell Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
Shiva Posted April 25, 2013 Логи сервера смотрите, тспдамп-то зачем... Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
a-zazell Posted April 25, 2013 Логи сервера смотрите, тспдамп-то зачем... Лог вкладывал + добавил Update Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
Shiva Posted April 25, 2013 Тупой вопрос - а винду ребутили? Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
a-zazell Posted April 26, 2013 Тупой вопрос - а винду ребутили? Да, конечно. Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
a-zazell Posted April 26, 2013 C l2tp ситуация такая же .. Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
