Вопрос по рефлектограммам

Добрый день.

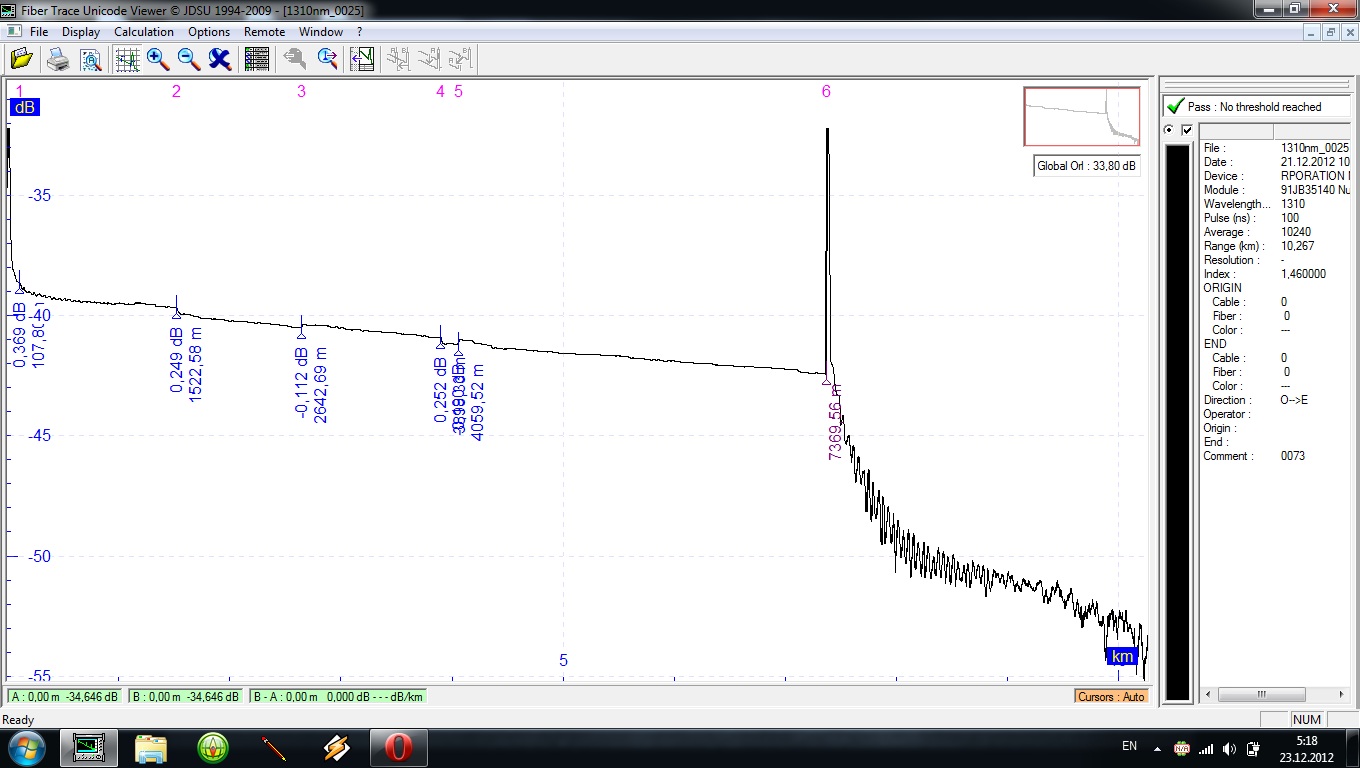

Сняты рефлектограммы одного и того же волокна на разных длинах волны.

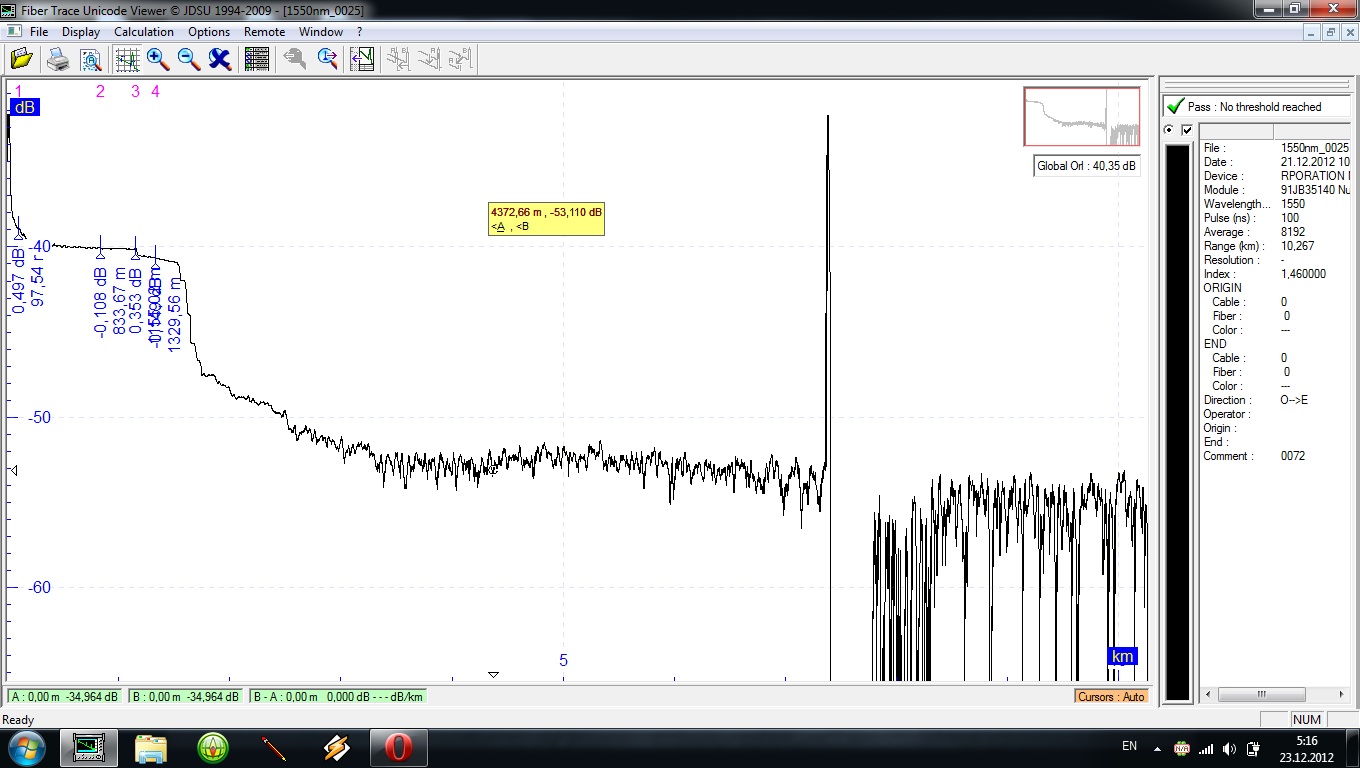

на 1310 выглядит более-менее нормально, а на 1550 жуткие потери ~7db. В чем может быть причина?

post-81219-066367300 1356225585_thumb.jpg

post-81219-083130800 1356225594_thumb.jpg

Edited by Jack_18RUS

Share this post


Link to post
Share on other sites

1522метра сварка? осмелюсь предположить что волокно перегнуто в кассете, или гильза усажена криво

ввод действительно грязный

Share this post


Link to post
Share on other sites

Добрый день.

Сняты рефлектограммы одного и того же волокна на разных длинах волны.

на 1310 выглядит более-менее нормально, а на 1550 жуткие потери ~7db. В чем может быть причина?

post-81219-066367300 1356225585_thumb.jpg

post-81219-083130800 1356225594_thumb.jpg



Это классический перегиб волокна.
