Panasonic TDE600 + Addpack AP1100F over H.323 обрывается вызов

Приветствую!

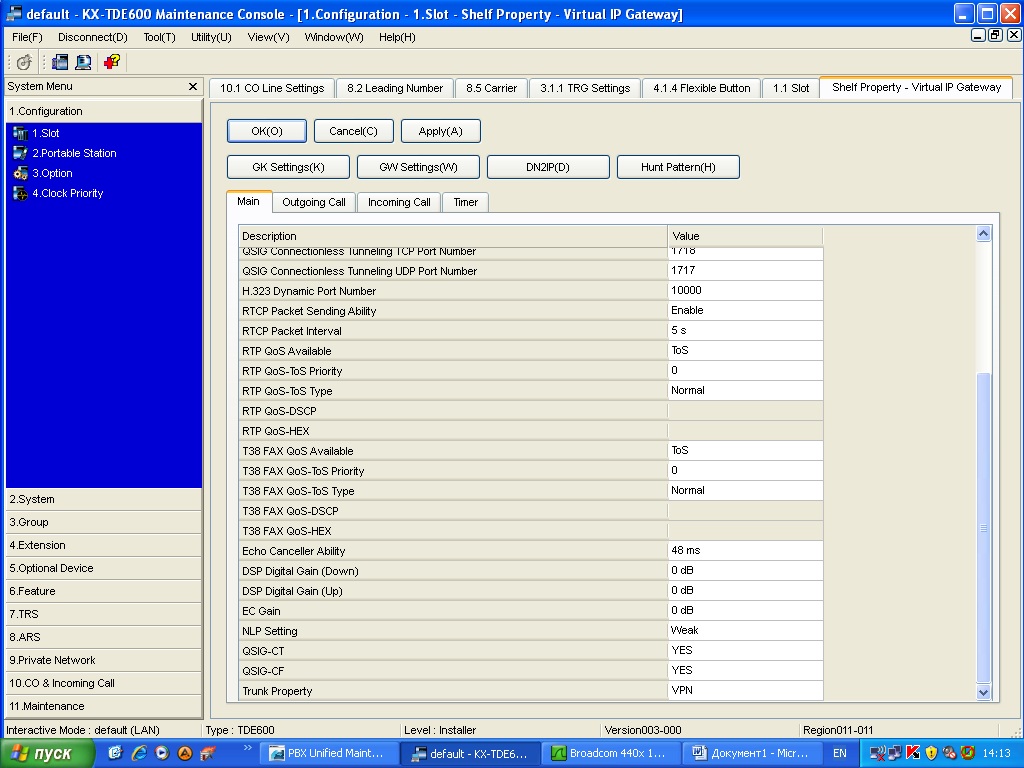

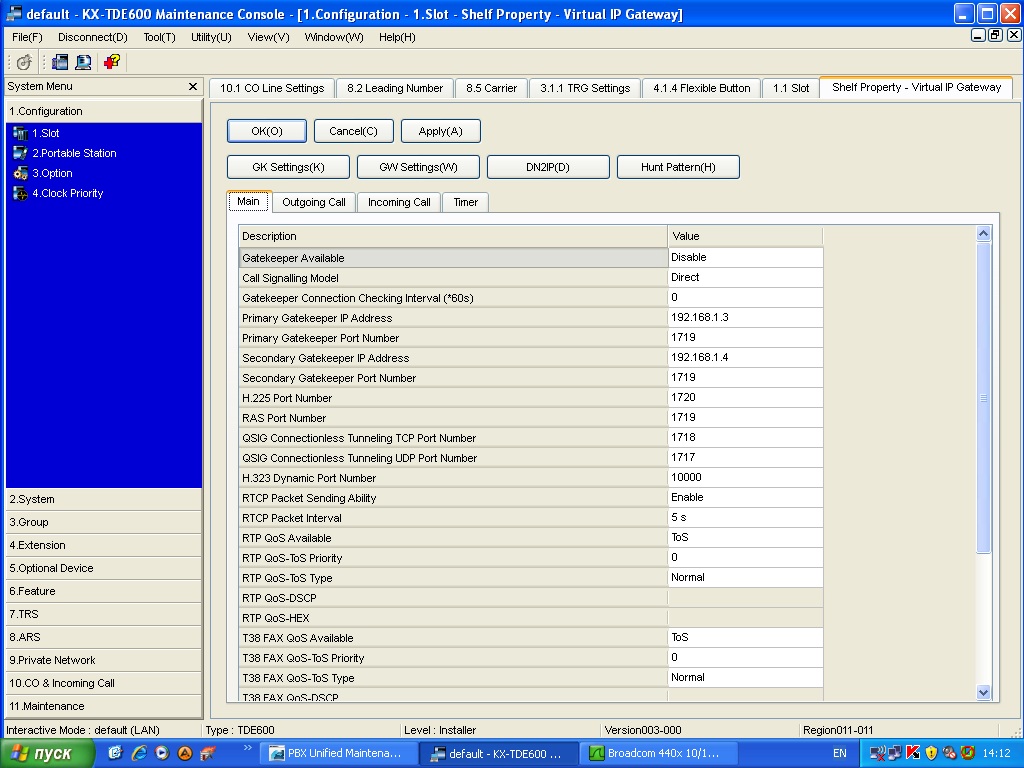

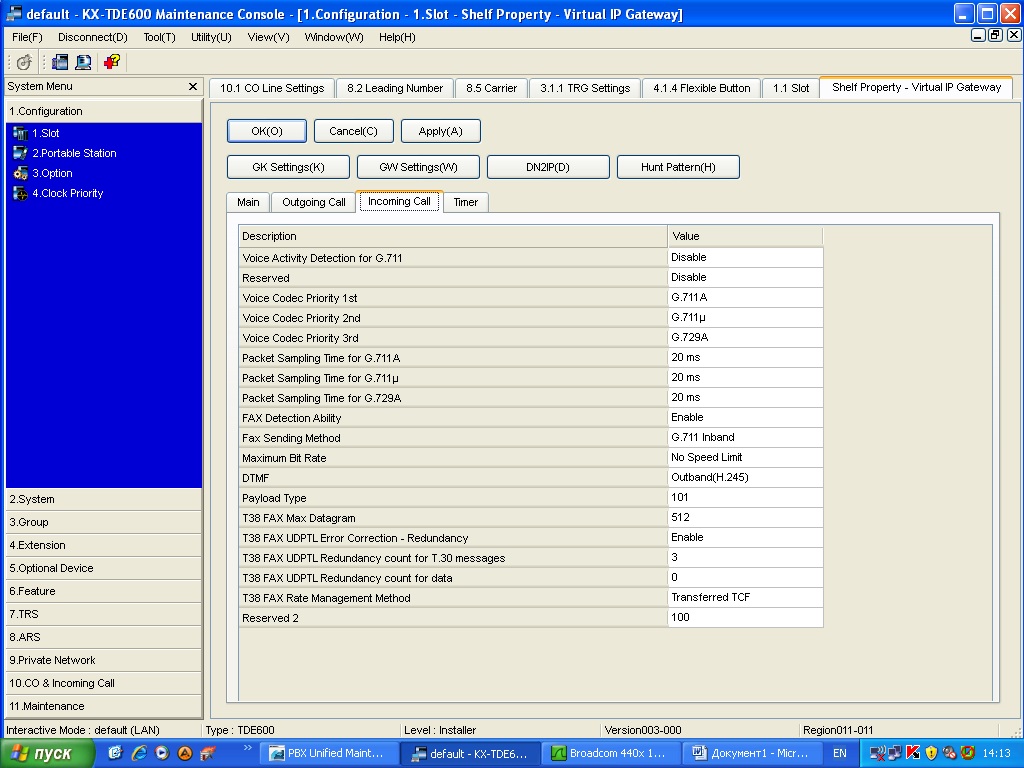

Стоит задача соединить addpac ap1100 (FXO) со станцией Panasonic TDE600 по H.323. Схема такая: на FXO порт адпака приходит вызов и он перебрасывается по 323 на станцию. Схема легко настроилась и работала через SIP, а вот с 323 появилась проблема. Заключается в следующем: звонок перебрасывается и телефонный аппарат, подключенный к станции, ведёт себя так: сначала короткий сигнал вызова, пауза, потом длинный (обычный), пауза, потом звонок сбрасывается и сразу же начинается по новой - короткий, пауза, длинный, сброс. При этом если снять трубку в момент наличия вызова, то сессия открывается нормально, голос проходит, а если в момент пауз - то тишина. Далее прикладываю лог и конфиг с аддпака и скрины некоторых параметров на TDE. Буду признателен за любые подсказки.

Конфиг аддпака:

version 8.30U
!
hostname AP1100F
!
!
no bridge spanning-tree
!
dhcp-list 1 type server
dhcp-list 1 address server  10.1.1.2 10.1.1.126 255.255.255.128
!
!
ip-share enable
ip-share interface net-side ether0.0
ip-share interface local-side ether1.0
!
interface ether0.0
ip address 93.92.197.22 255.255.248.0
!
interface ether1.0
no ip address
!
snmp name AP1100F
snmp enable-trap dn-register 300 forcely-block
!
no arp reset
!
!
!
!
!
! VoIP configuration.
!
!
! Voice service voip configuration.
!
voice service voip
fax protocol t38 redundancy 0
fax rate 9600
h323 call start fast
h323 call tunnel enable
!
!
! Voice port configuration.
!
! FXO
voice-port 0/0
connection plar 1001
no caller-id enable
!
!
! FXO
voice-port 0/1
no caller-id enable
!
!
! FXO
voice-port 0/2
no caller-id enable
!
!
! FXO
voice-port 0/3
no caller-id enable
!
!
! FXO
voice-port 1/0
no caller-id enable
!
!
! FXO
voice-port 1/1
no caller-id enable
!
!
! FXO
voice-port 1/2
no caller-id enable
!
!
! FXO
voice-port 1/3
no caller-id enable
!
!
!
!
! Pots peer configuration.
!
dial-peer voice 1 pots
port 0/0
!
!
!
! Voip peer configuration.
!
dial-peer voice 0 voip
destination-pattern T
session target 93.92.197.20
voice-class codec 0
no vad
dtmf-relay h245-alphanumeric
!
!
!
!
!
!
gatekeeper
!
!
! Gateway configuration.
!
gateway
h323-id voip.93.92.197.22
no ignore-msg-from-other-gk
!
!
! Codec classes configuration.
!
voice class codec 0
codec preference 1 g711alaw
codec preference 2 g711ulaw
codec preference 3 g729
!
!
!
! SIP UA configuration.
!
sip-ua
!
!
! MGCP configuration.
!
mgcp
no codec
vad
!
!
! Tones

post-80983-028701500 1343046341_thumb.jpg

post-80983-022095700 1343046348_thumb.jpg

post-80983-019270600 1343046353_thumb.jpg

log.txt
