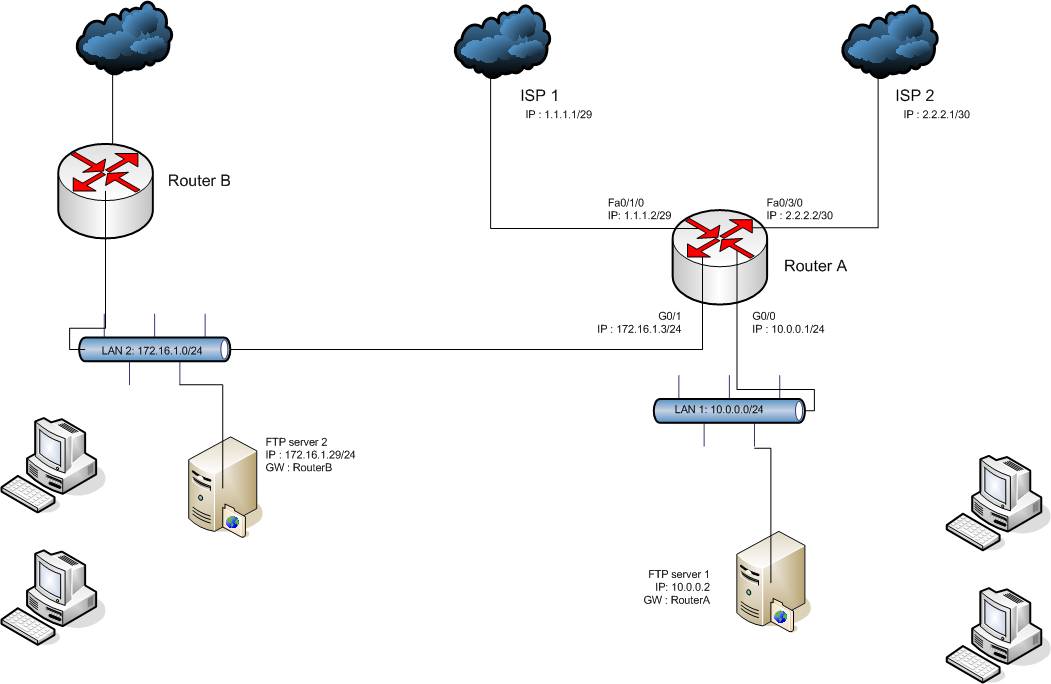

zugunder Posted March 4, 2008 Posted March 4, 2008 Господа гуру, подскажите как правильно сделать трансляцию чтоб хост 172.16.1.29 был доступен извне как 1.1.1.4, с учетом того что в сети 172.16.1.x есть свой дефолт гейт с аплинком на другого провайдера. схемка сетки в аттаче. Вот текущий конфиг: --------------------- ! version 12.4 service timestamps debug datetime msec service timestamps log datetime msec no service password-encryption ! hostname c2851 ! boot-start-marker boot-end-marker ! enable secret 5 xxxDELETEDxxx enable password xxxDELETEDxxx ! aaa new-model ! ! aaa authentication login default local aaa authentication ppp default local group radius aaa authorization exec default local aaa authorization network default local group radius if-authenticated ! ! aaa session-id common ! ! ip cef ! ! no ip domain lookup ip domain name FOOBAR.COM ip inspect name INSPEKTOR tcp ip inspect name INSPEKTOR udp ip inspect name INSPEKTOR icmp ip inspect name INSPEKTOR pptp ip inspect name INSPEKTOR smtp ip inspect name INSPEKTOR ftp ip inspect name INSPEKTOR cuseeme ip inspect name INSPEKTOR dns ip inspect name INSPEKTOR https ip inspect name INSPEKTOR http ip auth-proxy max-nodata-conns 3 ip admission max-nodata-conns 3 ip dhcp-server 10.0.0.2 ! multilink bundle-name authenticated ! vpdn enable ! vpdn-group 1 ! Default PPTP VPDN group accept-dialin protocol pptp virtual-template 1 l2tp tunnel receive-window 1024 ip pmtu ip mtu adjust ! ! voice-card 0 no dspfarm ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! username xxxDELETEDxxx privilege 15 password 0 xxxDELETEDxxx archive log config hidekeys ! ! ! ! ip ssh time-out 60 ip ssh authentication-retries 2 ip ssh version 2 ! track 1 rtr 1 reachability delay down 10 up 30 ! ! ! ! interface GigabitEthernet0/0 description LAN1 ip address 10.0.0.1 255.255.255.0 ip nat inside ip virtual-reassembly ip policy route-map GEN-POLICY duplex auto speed auto no mop enabled ! interface GigabitEthernet0/1 description TO_LAN2 ip address 172.16.1.3 255.255.255.224 ip nat outside ip virtual-reassembly duplex auto speed auto ! interface FastEthernet0/1/0 description UPLINK_ISP1 ip address 1.1.1.2 255.255.255.248 ip nat outside ip inspect INSPEKTOR out ip virtual-reassembly duplex auto speed auto ! interface FastEthernet0/3/0 description UPLINK_ISP2 ip address 2.2.2.2 255.255.255.252 ip access-group fw_in in ip nat outside ip inspect INSPEKTOR out ip virtual-reassembly duplex auto speed auto ! interface Virtual-Template1 ip unnumbered GigabitEthernet0/0 ip nat inside ip virtual-reassembly ip tcp adjust-mss 1400 autodetect encapsulation ppp peer default ip address dhcp no keepalive compress mppc ppp encrypt mppe auto ppp authentication ms-chap-v2 callin ppp timeout idle 600 ! ip forward-protocol nd ip route 0.0.0.0 0.0.0.0 1.1.1.1 track 1 ip route 0.0.0.0 0.0.0.0 2.2.2.1 50 ip route 192.168.193.0 255.255.255.0 10.0.0.254 ip route 192.168.200.0 255.255.255.0 10.0.0.254 ip route 192.168.212.0 255.255.255.0 172.16.1.2 ! ! no ip http server no ip http secure-server ip nat inside source route-map ISP1-NAT interface FastEthernet0/1/0 overload ip nat inside source route-map NAT_TO_LAN2 interface GigabitEthernet0/1 overload ip nat inside source route-map ISP2-NAT interface FastEthernet0/3/0 overload ip nat inside source static tcp 10.0.0.2 20 2.2.2.2 20 extendable ip nat inside source static tcp 10.0.0.2 21 2.2.2.2 21 extendable ip nat inside source static tcp 10.0.0.5 25 2.2.2.2 25 extendable ip nat inside source static tcp 10.0.0.7 443 2.2.2.2 443 extendable ip nat inside source static tcp 10.0.0.2 20 1.1.1.3 20 extendable ip nat inside source static tcp 10.0.0.2 21 1.1.1.3 21 extendable ip nat inside source static tcp 10.0.0.5 25 1.1.1.3 25 extendable ip nat inside source static tcp 10.0.0.7 443 1.1.1.3 443 extendable ip nat inside source static tcp 172.16.1.29 21 1.1.1.4 21 extendable ! ip access-list extended fw_in permit gre any any permit tcp any any established deny ip 10.0.0.0 0.255.255.255 any deny ip 172.16.0.0 0.15.255.255 any deny ip 192.168.0.0 0.0.255.255 any deny ip 127.0.0.0 0.255.255.255 any permit tcp any host 2.2.2.2 eq 22 permit tcp any host 1.1.1.2 eq 22 permit tcp any host 2.2.2.2 eq 1723 permit tcp any host 1.1.1.2 eq 1723 permit tcp any host 2.2.2.2 eq smtp permit tcp any host 2.2.2.2 eq 443 permit tcp any host 2.2.2.2 eq ftp permit tcp any host 2.2.2.2 eq ftp-data permit tcp any host 1.1.1.3 eq smtp permit tcp any host 1.1.1.3 eq 443 permit tcp any host 1.1.1.3 eq ftp permit tcp any host 1.1.1.3 eq ftp-data permit tcp any host 1.1.1.4 eq ftp permit tcp any host 1.1.1.4 eq ftp-data deny ip any any ! ip sla 1 icmp-echo 192.58.128.30 source-interface FastEthernet0/1/0 timeout 1000 threshold 3 frequency 10 ip sla schedule 1 life forever start-time now access-list 1 permit 10.0.0.0 0.0.0.255 access-list 1 permit 172.16.1.0 0.0.0.255 access-list 2 permit 172.16.1.29 access-list 102 permit tcp any host some.outside.box.address eq 22 access-list 104 permit ip 10.0.0.0 0.0.255.255 192.168.0.0 0.0.255.255 access-list 104 permit ip 10.0.0.0 0.0.255.255 172.16.0.0 0.0.255.255 access-list 105 permit icmp any host 192.58.128.30 echo access-list 106 permit ip any 172.16.1.0 0.0.0.255 access-list 107 permit tcp any host 1.1.1.4 eq ftp ! ! ! route-map NAT_TO_LAN2 permit 10 match ip address 106 match interface GigabitEthernet0/1 ! route-map GEN-POLICY permit 5 match ip address 102 set ip next-hop 2.2.2.1 ! route-map GEN-POLICY permit 10 match ip address 105 set ip next-hop 1.1.1.1 ! route-map ISP2-NAT permit 10 match ip address 1 match interface FastEthernet0/3/0 ! route-map ISP1-NAT deny 5 match ip address 102 match interface FastEthernet0/1/0 ! route-map ISP1-NAT deny 6 match ip address 103 match interface FastEthernet0/1/0 ! route-map ISP1-NAT deny 7 match ip address 104 match interface FastEthernet0/1/0 ! route-map ISP1-NAT permit 10 match ip address 1 match interface FastEthernet0/1/0 ! ! ! radius-server configure-nas radius-server host 10.0.0.5 auth-port 1645 acct-port 1646 radius-server key xxxDELETEDxxx ! control-plane ! ! ! ! ! ! ! ! ! ! line con 0 line aux 0 line vty 0 4 password xxxDELETEDxxx transport input ssh ! scheduler allocate 20000 1000 ! event manager applet ISP_SWITCHED event track 1 action 1.0 cli command "enable" action 2.0 cli command "clear ip nat trans forced" ! end Вставить ник Quote
zugunder Posted March 5, 2008 Author Posted March 5, 2008 Эт я читал ужо :) Нужно сделать две трансляции одновременно, 1 inside source и 1 outside source Вопрос как сделать overload на один адрес при nat outside source? :) Вставить ник Quote
