Ошибки CRC на VLAN интерфейсах коммутатора SNR-S4650X-48FQ

arh

Posted October 14 · Report post

Привет.

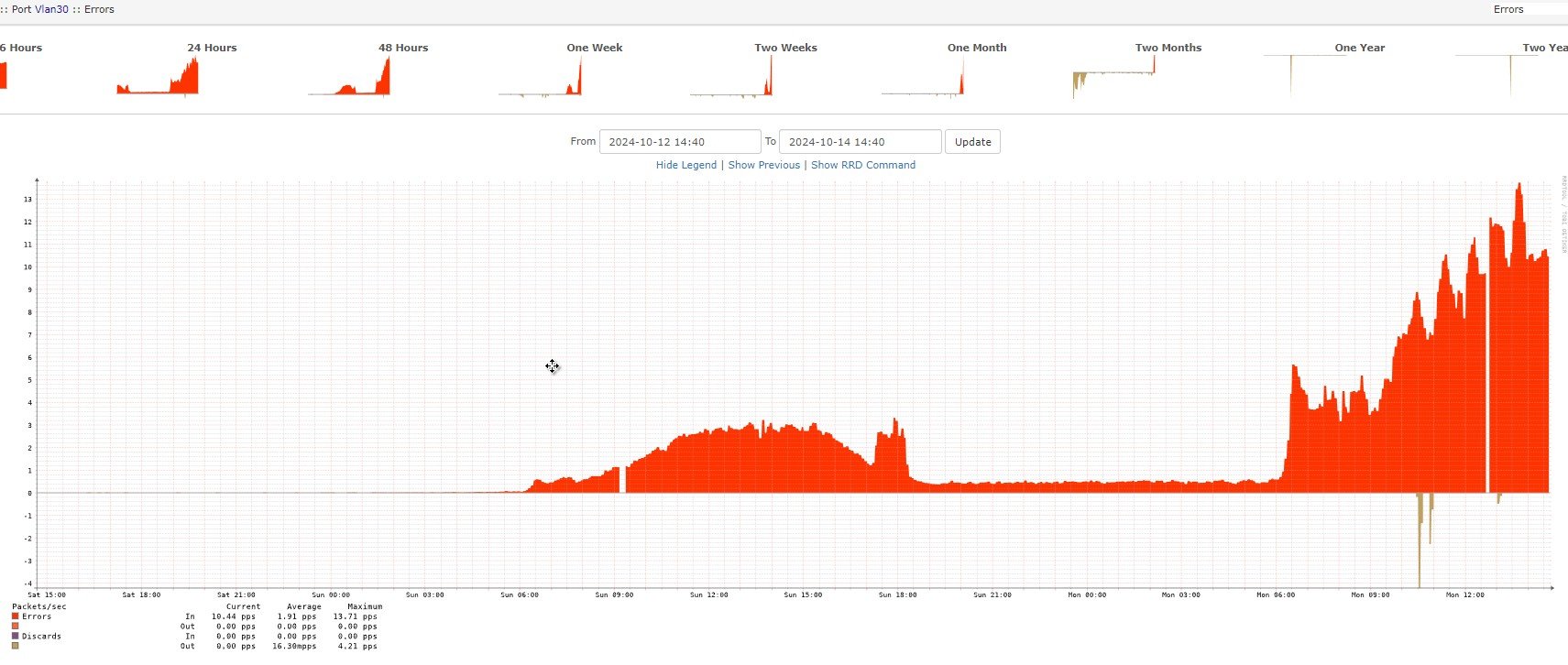

С недавнего времени наблюдаю ошибки CRC на VLAN интерфейсах коммутатора SNR-S4650X-48FQ

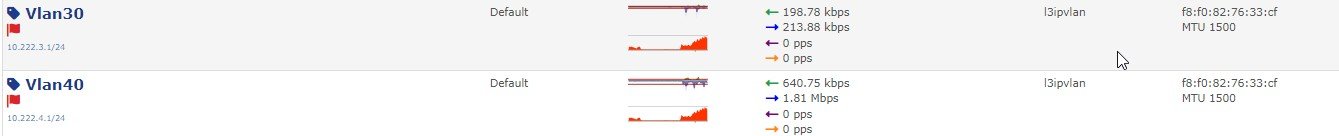

На физических интерфейсах ошибок нет, только на VLAN, счетчики ошибок одинаковые для всех VLAN

Подскажите в чем может быть причина

Инфо о коммутаторе

sw-core#sh slot

--------------------member :1--------------------
Inserted : YES
Module type : Switch
Work mode : ACTIVE MASTER
Work state : RUNNING
Software package version : V705R204C003B021
Bootrom version : ONIE 2018.02.00.02
CPLD version : 11.7.7
Hardware version : 3.0.1
Manufacture date : 3922/13/16
Temperature : 26C/78F
Uptime : 0 weeks, 1 days, 5 hours, 22 minutes

--------------------member :2--------------------
Inserted : YES
Module type : Switch
Work mode : STANDBY MASTER
Work state : RUNNING
Software package version : V705R204C003B021
Bootrom version : ONIE 2018.02.00.02
CPLD version : 11.7.7
Hardware version : 3.0.1
Manufacture date : 3922/13/16
Temperature : 25C/77F
Uptime : 0 weeks, 1 days, 5 hours, 22 minutes

Вывод для Vlan 30

sw-core#sh int vlan 30
Vlan30 is up(0), line protocol is up, dev index is 11030
Device flag 0x1003(UP BROADCAST MULTICAST)
Time since last status change:0w-1d-5h-30m-36s (106236 seconds)
IPv4 address is:
10.222.3.1 255.255.255.0 (Primary)
VRF Bind: Not Bind
Hardware is EtherSVI, address is f8-f0-82-76-33-cf
MTU is 1500 bytes , BW is 0 Kbit
Encapsulation ARPA, loopback not set
5 minute input rate 31502 bits/sec, 14 packets/sec
5 minute output rate 84424 bits/sec, 61 packets/sec
The last 5 second input rate 2649 bits/sec, 3 packets/sec
The last 5 second output rate 65263 bits/sec, 53 packets/sec
Input packets statistics:
Input queue 0/1200, 0 drops
825652 packets input, 403581726 bytes, 0 no buffer
324172 input errors, 323105 CRC, 364 oversize, 0 undersize
665 jabber, 32 fragments
Output packets statistics:
4556728 packets output, 1358111400 bytes, 70667 underruns
0 output errors, 0 collisions

Вывод для Vlan 40
sw-core#sh int vlan 40
Vlan40 is up(0), line protocol is up, dev index is 11040
Device flag 0x1003(UP BROADCAST MULTICAST)
Time since last status change:0w-1d-5h-30m-40s (106240 seconds)
IPv4 address is:
10.222.4.1 255.255.255.0 (Primary)
VRF Bind: Not Bind
Hardware is EtherSVI, address is f8-f0-82-76-33-cf
MTU is 1500 bytes , BW is 0 Kbit
Encapsulation ARPA, loopback not set
5 minute input rate 679301 bits/sec, 257 packets/sec
5 minute output rate 2139791 bits/sec, 399 packets/sec
The last 5 second input rate 107975 bits/sec, 70 packets/sec
The last 5 second output rate 696117 bits/sec, 120 packets/sec
Input packets statistics:
Input queue 0/1200, 0 drops
7560322 packets input, 48427905 bytes, 0 no buffer
324172 input errors, 323105 CRC, 364 oversize, 0 undersize
665 jabber, 32 fragments
Output packets statistics:
15260483 packets output, 2466267994 bytes, 70667 underruns
0 output errors, 0 collisions
