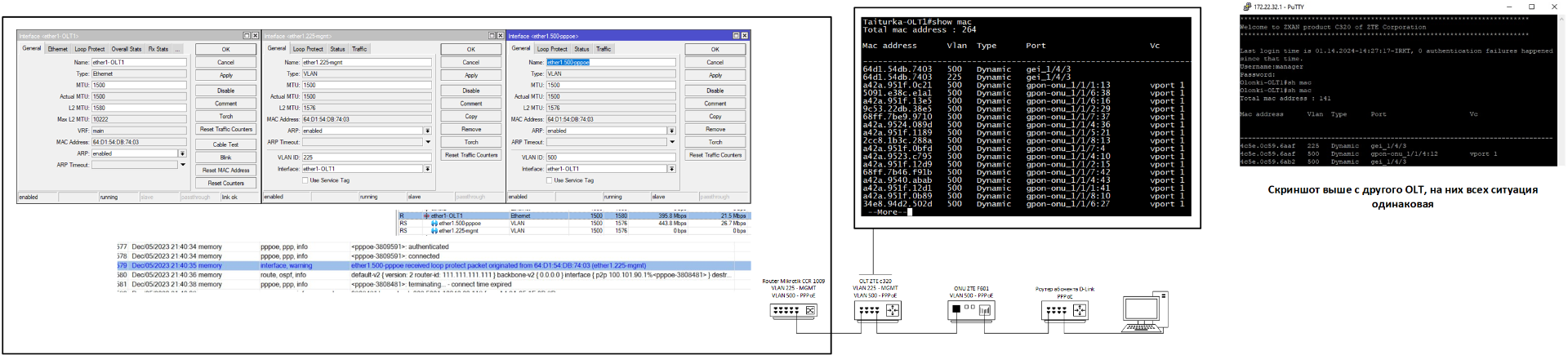

Evgen_ Posted January 29, 2024 Posted January 29, 2024 (edited) Доброго здравия товарищи профессионалы и знатоки ZXAN product C320 of ZTE Corporation Столкнулся с такой проблемой, закупили ZXAN C320 для замены ELTEX LTP 4X, и появилась проблема Есть Микротик в роли маршрутизатора, на нем 225 vlan MGMT 500 vlan PPPoE От него OLT ZXAN C320 На ZXAN C320 225 vlan MGMT 500 vlan PPPoE подается ONU ZTE-F601 eth_0/1 mode tag vlan 500 Проблема в том, что Микрот периодически ловит петлю, mac vlan 225 MGMT появляется в vlan 500 PPPoE И микрот гасит vlan 500 на котором все абоненты И mac MGMT появляется на ONU абонента В логах при этом о данной ONU нет информации Скрин с ZTE мак MGMT на ONU абонента Небольшая схема подключения с скринами проблемы Текстовый файл краткой конфигурации Прошу помощи в разборе проблемы и ее устранении, на форумах ничего не нашел timestamp_write: 13:48:44 01/29/2024 config-version 2.1 ! crtv disable ! load-balance enable ! operator-mode NORMAL ! system-forwarding-mode normal-mode ! ! ! set-pnp enable add-rack rackno 1 racktype C320Rack add-shelf rackno 1 shelfno 1 shelftype C320_SHELF add-card rackno 1 shelfno 1 slotno 1 GTGO add-card rackno 1 shelfno 1 slotno 3 PRAM add-subcard rackno 1 shelfno 1 slotno 4 subcardno 1 UCDC/1 ! ip tcp finwait-time 600 ip tcp queuemax 5 ip tcp synwait-time 30 ip tcp window-size 2144 ! urpf log off ! fan card-critical-protect disable ! ! ! ! mac aging-time 300 mac monitor-period 10 mac usage-threshold 70 ! eth-switch max-frame-length 1600 port diaglog status-info disable ! sdisk disable ! auto-update backup disable auto-update activate disable ! ! ! ! ! gpon profile tcont DBA_1000MB type 4 maximum 1024000 profile traffic 100M sir 1000000 pir 1000000 ! ! gpon ! ! epon ! ! pon onu-type ELTEX-NTU1 gpon description ELTEX-NTU1 onu-type-if ELTEX-NTU1 eth_0/1 uncfg-onu-display-info model sn pw onu-profile gpon line INETDefault fec upstream tcont 1 name InetD profile DBA_1000MB gemport 1 name InetD tcont 1 ! pon onu-profile gpon line LP_ONU-1G fec upstream ! pon onu-profile gpon remote INETV500 service INTERNET gemport 1 cos 0 vlan 500 loop-detect ethuni eth_0/1 enable vlan port eth_0/1 mode tag vlan 500 ! pon onu-profile gpon remote INETV500trunk service INTERNET gemport 1 cos 0 vlan 500 service MGMT gemport 2 cos 0 vlan 225 loop-detect ethuni eth_0/1 enable vlan port eth_0/1 mode trunk vlan port eth_0/1 vlan 225,500 ! pon ! ! onu-pnp ! no vlan-reserve 4091 out-voip no vlan-reserve 4092 in-voip no vlan-reserve 4094 gpon ! vlan database vlan 1,225,500 ! vlan 225 name MGMT ! vlan 500 name PPPoE ! ! ! his-performance sample enable his-performance alarm enable his-performance auto-upload disable ! ! clock ! ! ! clock ! ! ! ptp ! ! ip dhcp snooping control-port enable port-identification access-node-id-type inband-mac port-identification rackno 1 frameno 1 ! igmp enable mld disable mib-compatibility iftable v1 ! ip-source-guard disable ipv6 nd snooping disable ! loopback-detection enable loopback-detection port-control enable loopback-detection auto-recheck interval 60 ! security port-protect enable ! ! ! virtual-mac flexible-syntax-profile MT add Ctrl-Byte 0 width 6 index 6 exit virtual-mac access-node-id 0 ! epm mode passthrough ! ! ! interface mng1 ip address 6.6.6.6 255.255.255.0 config-filename startrun.dat negotiation auto tag-mode untag ! interface vlan 225 ip address 172.22.32.1 255.255.255.0 ! interface null1 ! interface gpon-olt_1/1/1 no shutdown linktrap enable onu 1 type ZTE-F601 sn ZTEGC6EF57D3 loopback-detection enable loopback-detection active-detect vlan 500 ! interface gpon-onu_1/1/1:1 service-port 1 vport 1 user-vlan 500 vlan 500 ! interface gei_1/4/1 no shutdown hybrid-attribute fiber negotiation auto flowcontrol disable linktrap enable switchport mode trunk switchport vlan 1,225,500 tag port-protect disable uplink-isolate disable ! interface gei_1/4/2 shutdown hybrid-attribute fiber negotiation auto flowcontrol disable linktrap enable switchport mode trunk switchport vlan 1 tag port-protect disable uplink-isolate disable ! interface gei_1/4/3 no shutdown hybrid-attribute copper negotiation auto flowcontrol disable linktrap enable switchport mode trunk switchport vlan 1,225,500 tag port-protect disable uplink-isolate disable ! ! mpls ldp dynamic-capability ! ! ! ! ! ! ! ip route 0.0.0.0 0.0.0.0 172.22.32.254 ! lldp enable lldp enable interface gei_1/4/1 ! ipoa inatmarp-interval 10 ipoa gateway-arp-interval 10 ! mpnat trans-table aging-time 60 mpnat onu-telnet idle-time 3 mpnat onu-ftp aging-time 5 mpnat onu-snmp aging-time 30 mpnat onu-ftp-data aging-time 5 mpnat onu-mng-port auto-alloc disable mpnat modem-telnet idle-time 3 ! pon ! ! pon-onu-mng gpon-onu_1/1/1:1 ! ! pon ! ! mac vpn ec1d.7f0b.73c8 ! ! ! auto-write disable ! inband-management enable ! username user-suspend mode none ! username high-level-security disable username inactivity-day 120 username pwd-expire-day 90 ! version V4.8.35 ! hostname OLT1 ! enable secret level 15 5 ! service password-encryption ! ! username enable password 7 username enable password 7 username enable enable username login-range name enable login-begin 00:00:00 login-end 23:59:59 username expire-date name enable datetime 12-31-2099 23:59:59 username password-changed name enable is-changed false username manager password 7 == privilege 15 first-login t rue username manager password 7 == max-sessions 16 username manager enable username login-range name manager login-begin 00:00:00 login-end 23:59:59 username expire-date name manager datetime 12-31-2099 23:59:59 username password-changed name manager is-changed false ! ! ! user-authentication-type local user-authorization-type local ! help message full ! clock timezone IRKT 8 0 ! banner incoming @ ************************************************************************* Welcome to ZXAN product C320 of ZTE Corporation ************************************************************************* @ ! message-of-day @ @ ! ! service timestamps log datetime localtime service timestamps debug datetime localtime ! ! ! ! snmp-server location No.889 BiBo Rd.PuDong District, Shanghai, China snmp-server contact +86-21-68895000 snmp-server packetsize 8192 snmp-server engine-id mode mac snmp-server group GroupPriv15 v3 priv read AllView write AllView snmp-server group GroupPriv10 v3 priv read AllView write ViewPriv10 snmp-server group GroupPriv5 v3 priv read AllView write ViewPriv5 snmp-server group GroupPriv0 v3 priv read AllView snmp-server community public view AllView rw snmp-server community view AllView ro snmp-server view AllView 1.2 included snmp-server view AllView 1.3 included snmp-server view ViewPriv5 1.2 included snmp-server view ViewPriv5 1.3 included snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.10.1 excluded snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.10.10 excluded snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.20.1 excluded snmp-server view ViewPriv5 1.3.6.1.4.1.3902.1082.20.10 excluded snmp-server view ViewPriv10 1.2 included snmp-server view ViewPriv10 1.3 included snmp-server view ViewPriv10 1.3.6.1.4.1.3902.1082.20.10 excluded ! ! no ftp-server enable listen 21 ftp-server top-directory /flash/ ! ntp server 172.24.2.254 priority 1 ntp server 172.22.202.254 priority 2 ntp enable ntp client ! logging alarmlog enable logging exc-event auto-write enable logging level notification logging cmdlog enable logging snmplog disable logging igmplog disable syslog facility local0 syslog severity 6 syslog hostname-field hostname line console idle-timeout 15 line console absolute-timeout 1440 line telnet idle-timeout 15 line telnet absolute-timeout 1440 line telnet users 16 line cli detail-info-show disable no hotkey ctrl_g no hotkey ctrl_l no hotkey ctrl_o no hotkey ctrl_r no hotkey ctrl_s no hotkey ctrl_t ! ssh server enable ssh server authentication mode local ssh server authentication type pap no ssh server only ssh server version 2 ! ! radius attribute vendor-specific vendor-id 3902 ! ! ! radius server-port-check on ! ! tacacs disable tacacs-server timeout 5 tacacs-server deadtime 5 tacacs-server packet 1024 ! ! alarm enable alarm confirm alarm trap-confirm retry 3 timeout 20 nms-hello-trap disable alarm report-speed 0 alarm anti-jitter 0 ! end Edited February 1, 2024 by Evgen_ Вставить ник Quote
seregaelcin Posted January 29, 2024 Posted January 29, 2024 Петля значит где-то за какой-то онт. Вот так будет в логах show logging alarmlog An alarm 38146 level warning occurred at 11:22:01 Tue Jul 30 2019 plus4 cleared at 11:22:08 Tue Jul 30 2019 plus4 %s Loopdetect alarm msg when shelf 1, slot 1, port 1, onu 1, vport 2 is loopback and shut down Можно еще накинуть (config)#security mac-move-report enable (config)#security mac-anti-spoofing disable А потом посмотреть что пишет в security mac-move-report Не уверен особо на счет loop-detect ethuni eth_0/1 enable Сразу не прочитал до конца - выясняйте почему на 1/1/4:12 петля, что тут думать то. Положите административно vport 1 на этой онт просто. Абон собрал кольцо у себя, либо это онт гребет. Вставить ник Quote
Evgen_ Posted January 31, 2024 Author Posted January 31, 2024 На тестовом стенде пробовали петлить, в итоге петля за пределы роутера не выходила, ONU с одним портом, прикол в том, что на ONU нет vlan 225, и как от него во vlan 500 попадает мак с 225го не ясно, абоненты при этом ничего не делают в плане петель, подключение стандартное, терминал -> роутер -> устройства абонента Спасибо за команды, проверим обязательно Вставить ник Quote
