Juniper MX240 странное в логах сегодня ночью.

smart85
 Share

Recommended Posts

smart85

smart85

Posted
Posted

Здравствуйте!

Есть MX240 с JUNOS Base OS Software Suite [11.2R2.4] и контролплейн прикрыт:

на lo0

unit 0 {
    family inet {
        filter {
            input-list [ accept-ospf accept-bgp accept-common-services discard-all-to-locals-v4 ];
        }
    }
}


Ночью началось:

Mar 19 02:15:03  MX240 pfed: ipc_pipe_write wrote only 36 out of 0 bytes
Mar 19 02:19:13  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:23:54  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:24:14  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 02:24:14  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 02:29:14  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:29:35  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 68 bytes, actually sent 8 bytes
Mar 19 02:29:35  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 60 bytes
Mar 19 02:33:55  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:34:15  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:35:15  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 02:35:15  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 02:44:16  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:44:26  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 02:44:26  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 02:48:56  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 02:53:57  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:03:58  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:04:18  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:09:18  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:09:38  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:09:38  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 03:13:59  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:18:59  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:24:20  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:24:40  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:24:40  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 03:29:00  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:29:20  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:29:20  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 03:34:01  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:34:11  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:34:11  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 03:39:21  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:39:41  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:39:41  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 03:44:02  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:45:42  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:45:42  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 03:54:03  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:54:23  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 03:54:33  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 03:54:33  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 04:04:44  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:05:04  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:05:24  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:05:44  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 04:05:44  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 04:14:35  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 04:14:35  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 04:19:36  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 04:19:36  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 04:24:06  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:25:36  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 80 bytes, actually sent 8 bytes
Mar 19 04:25:36  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 72 bytes
Mar 19 04:34:07  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:35:07  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:42:55  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 60 bytes, actually sent 16 bytes
Mar 19 04:42:55  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 44 bytes
Mar 19 04:44:58  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:49:19  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:53:39  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 04:57:59  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 05:00:03  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 1820 bytes, actually sent 828 bytes
Mar 19 05:00:03  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 992 bytes
Mar 19 05:01:03  MX240 mgd[92391]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 05:06:40  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 05:13:38  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 60 bytes, actually sent 36 bytes
Mar 19 05:13:38  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 24 bytes
Mar 19 05:16:21  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 05:20:03  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 1820 bytes, actually sent 828 bytes
Mar 19 05:20:03  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 992 bytes
Mar 19 05:25:02  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 05:27:08  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_FRAG: Attempted to send 60 bytes, actually sent 44 bytes
Mar 19 05:27:08  MX240 snmpd[1404]: LIBJSNMP_SA_PARTIAL_SEND_REM: Queuing message remainder, 16 bytes
Mar 19 05:29:23  MX240 mib2d[1403]: LIBJSNMP_NS_LOG_WARNING: WARNING: AgentX master agent failed to respond to ping.  Attempting to re-register.
Mar 19 05:31:03  MX240 mgd[92554]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 06:31:04  MX240 mgd[92876]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 08:01:04  MX240 mgd[93354]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 09:01:04  MX240 mgd[93673]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 10:31:04  MX240 mgd[94151]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 11:01:04  MX240 mgd[94311]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 11:31:04  MX240 mgd[94471]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 12:31:04  MX240 mgd[94794]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 13:01:04  MX240 mgd[94954]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 13:31:04  MX240 mgd[95114]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated
Mar 19 14:01:05  MX240 mgd[95274]: UI_RECONN_READ_FAILED: Invalid response from peer 'mib-process': 421 Connection unexpectedly terminated

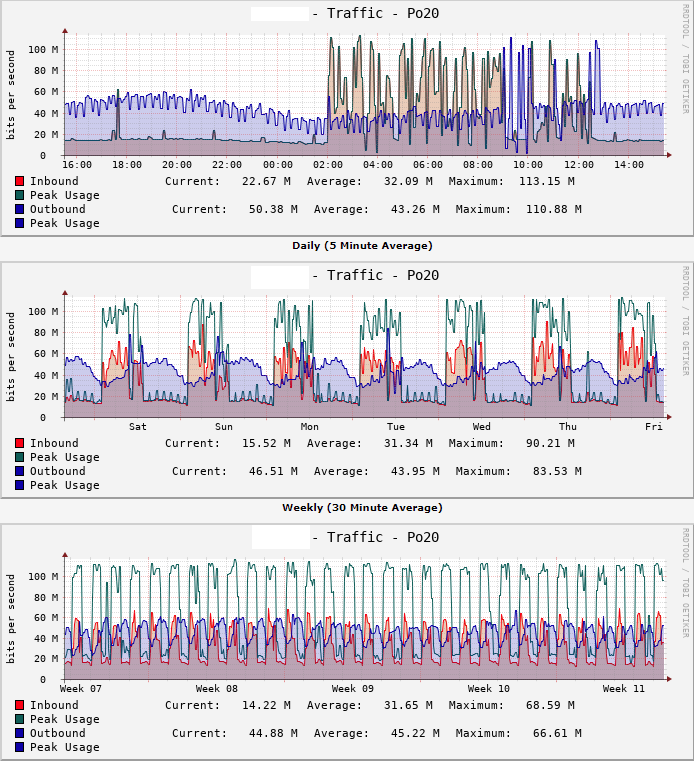

какти с того момента графики не рисует, а одном из аплинков перед началом всей петрушки - всплеск ИСХОДЯЩЕГО трафика до 220М.



Что бы это все значило?











smart85

smart85

Posted
  • Author
Posted
10 минут назад, VolanD666 сказал:

А зачем у вас CP в мир то смотрит?

Так исторически сложилось, нужно будет подумать в выходные над этим моментом. Я настроил фильтры, проверил и спал спокойно, до сегодня.

snvoronkov

snvoronkov

Posted
Posted

Может, зашейпить echo-request из внешнего мира? Жестко зашейпить.

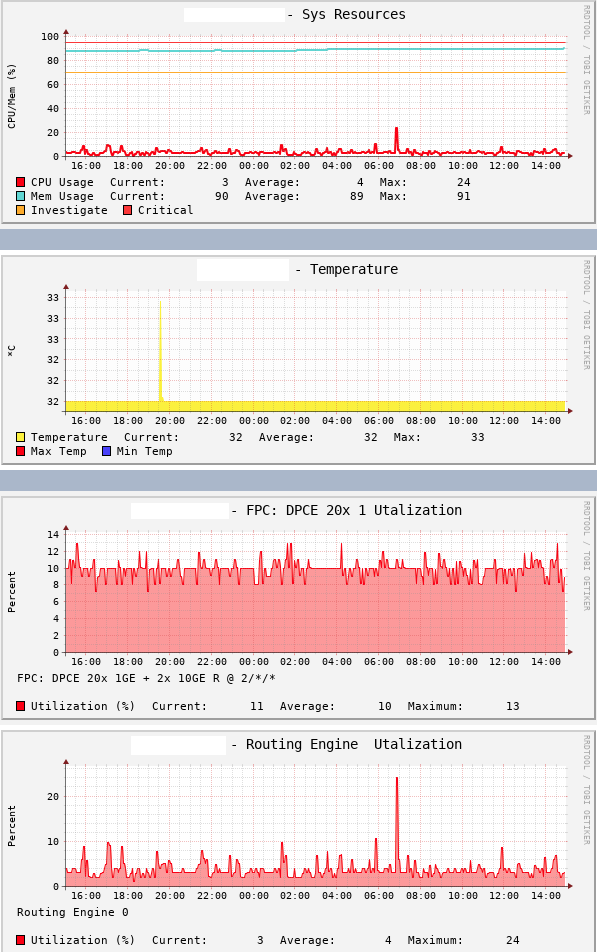

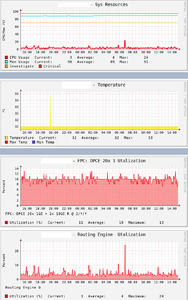

И, похоже, что еще и PMTU играются. Интересная пляска по нагрузке процессора атакуемого...

smart85

smart85

Posted
  • Author
Posted
5 минут назад, snvoronkov сказал:

Может, зашейпить echo-request из внешнего мира? Жестко зашейпить.


И, похоже, что еще и PMTU играются. Интересная пляска по нагрузке процессора атакуемого...

так давно уже

term accept-icmp {
    from {
        destination-prefix-list {
            LOCALS-v4;
        }
        icmp-type [ echo-reply echo-request time-exceeded unreachable source-quench router-advertisement parameter-problem ];
    }
    then {
        policer management-1m;
        count accept-icmp;
        accept;
    }
}



smart85

smart85

Posted
  • Author
Posted
13 минут назад, snvoronkov сказал:

Может, зашейпить echo-request из внешнего мира? Жестко зашейпить.


И, похоже, что еще и PMTU играются. Интересная пляска по нагрузке процессора атакуемого...

И, кстати, интересный момент, что не рисует только графики по интерфейсам, а вот по остальному есть и там ничего необычного






7 минут назад, VolanD666 сказал:

Простите, не совсем помню как там у Juniper по интерфейсам, но вы точно уверены что трафик идет на lo0 ?

Да, документация об этом гласит, да и проверял специально.

smart85

smart85

Posted
  • Author
Posted

Провел анализ графиков, всплеск трафика тут не при делах, это штатное и регулярное явление, это аплинк на с3750




snvoronkov

snvoronkov

Posted
Posted

Я тут, наверное, сольюсь. Таки 240-й штука заметно более сложная, чем 80-й. Может есть в нем какие штатные грабельцы с интерфесными картами/процессорами/шиной, только мне сие неведомо. :-(

orlik

orlik

Posted
Posted

Попробуйте pfed перезапустить , это безболезнено и на трафике не скажется.  А вообще обновились бы, стыдно должно быть на таком софте сидеть. Хотябы до последнего 12.3 или 13.3
