Cisco 6500 потеря пакетов в линейном модуле или слоте?

Reply to this topic

_J_

_J_
Posted · Report post

Всем привет.

Есть коммутатор WS-C6509-E с одним движком VS-S720-10G.



Mod Ports Card Type                              Model              Serial No.
--- ----- -------------------------------------- ------------------ -----------
  3   48  CEF720 48 port 1000mb SFP              WS-X6748-SFP       SAL1048936F
  4    8  CEF720 8 port 10GE with DFC            WS-X6708-10GE      SAL17257D8J
  5    5  Supervisor Engine 720 10GE (Active)    VS-S720-10G        SAL13442UP3
  7   48  CEF720 48 port 10/100/1000mb Ethernet  WS-X6748-GE-TX     SAL1029VG8K
  8   48  CEF720 48 port 10/100/1000mb Ethernet  WS-X6748-GE-TX     SAL12458ZYL

Mod MAC addresses                       Hw    Fw           Sw           Status
--- ---------------------------------- ------ ------------ ------------ -------
  3  0019.5500.bda4 to 0019.5500.bdd3   1.8   12.2(14r)S5  12.2(33)SXI6 Ok
  4  e4d3.f1a3.e818 to e4d3.f1a3.e81f   3.6   12.2(18r)S1  12.2(33)SXI6 Ok
  5  0021.a094.b538 to 0021.a094.b53f   3.1   8.5(3)       12.2(33)SXI6 Ok
  7  0018.18c6.c940 to 0018.18c6.c96f   2.4   12.2(14r)S5  12.2(33)SXI6 Ok
  8  0021.a096.d3a0 to 0021.a096.d3cf   3.0   12.2(18r)S1  12.2(33)SXI6 Ok

Mod  Sub-Module                  Model              Serial       Hw     Status
---- --------------------------- ------------------ ----------- ------- -------
  3  Centralized Forwarding Card WS-F6700-CFC       SAD104402S8  3.0    Ok
  4  Distributed Forwarding Card WS-F6700-DFC3CXL   SAL17257R8W  1.8    Ok
  5  Policy Feature Card 3       VS-F6K-PFC3CXL     SAL13431WZG  1.2    Ok
  5  MSFC3 Daughterboard         VS-F6K-MSFC3       SAL13442JNA  2.0    Ok
  7  Centralized Forwarding Card WS-F6700-CFC       SAL1223T0R5  4.0    Ok
  8  Distributed Forwarding Card WS-F6700-DFC3BXL   SAL1124R668  5.3    Ok



В него установлена линейная плата WS-X6748-GE-TX (48 медных гиговых порта) с DFC

Mod Ports Card Type                              Model              Serial No.
--- ----- -------------------------------------- ------------------ -----------
  8   48  CEF720 48 port 10/100/1000mb Ethernet  WS-X6748-GE-TX     SAL12458ZYL

Mod MAC addresses                       Hw    Fw           Sw           Status
--- ---------------------------------- ------ ------------ ------------ -------
  8  0021.a096.d3a0 to 0021.a096.d3cf   3.0   12.2(18r)S1  12.2(33)SXI6 Ok

Mod  Sub-Module                  Model              Serial       Hw     Status
---- --------------------------- ------------------ ----------- ------- -------
  8  Distributed Forwarding Card WS-F6700-DFC3BXL   SAL1124R668  5.3    Ok

Mod  Online Diag Status
---- -------------------
  8  Pass



И в этом восьмом модуле наблюдаются потери до других модулей при суммарном трафике через модуль более 20Мбит/с. При переносе модуля в девятый слот картина не меняется, но вот в седьмом всё отлично.

Получается во фрейме глючные слоты, в данном случае 8 и 9? Или чтото-гдето можно посмотреть/крутануть?

Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post

Есть, проверял.

Устанавливал плату как с cfc, так и с dfc.

Ситуация повторяется. Дело не в модуле явно.

Также заметил, что наблюдаются потери даже в самом модуле, при пропуске трафика с первого на второй порт.

Работала железка давно и вот просто так, без каких-либо механических воздействий, начала дропать трафик в слотах.

Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post
9 часов назад, zhenya` сказал:

может попробовать diagnostic bootup level complete?

и hw-module module 8 reset



ну и show counters interface GigabitEthernet для какого-нить проблемного порта.

Там немного другая команда у меня - diagnostic start module 8 test complete

Скрытый текст




Sep  5 14:22:33.718 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestFibDevices{ID=13} has completed successfully
Sep  5 14:22:33.718 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestIPv4FibShortcut{ID=14} ...
Sep  5 14:22:34.026 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:22:41.527 MSK: %SYS-3-CPUHOG: Task is running for (2045)msecs, more than (2000)msecs (0/0),process = L3 Manager.(s72033_rp-adventerprisek9_wan-8-dso-b.so+0x277FE0) ([30:-9]6+0x3CF7BC) ([30:-9]11+0x4D4B04) ([31:-8]-+0x4D475C) ([40:0]+0x4D71D0) ([30:-9]3+0x544DF4) ([40:0]+0x544C50) ([30:-9]14+0x2700E8) ([41:0]+0x2700C0) ([41:0]+0x2700E8) ([41:0]+0x2700C0)
Sep  5 14:22:43.879 MSK: %SYS-3-CPUHOG: Task is running for (4020)msecs, more than (2000)msecs (0/0),process = L3 Manager.(s72033_rp-adventerprisek9_wan-1-dso-b.so+0x4D717C) ([30:-9]3+0x544DF4) ([40:0]+0x544C50) ([30:-9]14+0x2700E8) ([41:0]+0x2700C0) ([30:-9]3+0x544DF4) ([40:0]+0x544C50) ([30:-9]14+0x2700E8) ([41:0]+0x2700C0) ([41:0]+0x2700E8) ([41:0]+0x2700C0)
Sep  5 14:22:45.879 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:22:45.922 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:22:46.798 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestIPv4FibShortcut{ID=14} has completed successfully
Sep  5 14:22:46.798 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestIPv6FibShortcut{ID=15} ...
Sep  5 14:22:47.055 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:22:47.021 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:22:50.675 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:22:50.662 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:22:54.725 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestIPv6FibShortcut{ID=15} has completed successfully
Sep  5 14:22:54.725 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestNATFibShortcut{ID=17} ...
Sep  5 14:22:54.795 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:22:54.757 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:22:59.039 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:22:59.022 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:00.123 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:00.067 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestNATFibShortcut{ID=17} has completed successfully
Sep  5 14:23:00.067 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestMPLSFibShortcut{ID=18} ...
Sep  5 14:23:00.115 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:03.987 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:03.956 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:05.019 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:04.891 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestMPLSFibShortcut{ID=18} has completed successfully
Sep  5 14:23:04.891 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestL3Capture{ID=19} ...
Sep  5 14:23:04.999 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:09.675 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:09.643 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:10.419 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestL3Capture{ID=19} has completed successfully
Sep  5 14:23:10.419 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestL3VlanMet{ID=20} ...
Sep  5 14:23:11.071 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:11.020 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:14.135 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:14.104 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:15.099 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/25, changed state to administratively down
Sep  5 14:23:15.052 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/25, changed state to administratively down
Sep  5 14:23:17.739 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/25, changed state to down
Sep  5 14:23:17.733 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/25, changed state to down
Sep  5 14:23:18.389 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestL3VlanMet{ID=20} has completed successfully
Sep  5 14:23:18.389 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestIngressSpan{ID=21} ...
Sep  5 14:23:18.495 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:18.437 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:22.011 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:22.012 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:23.059 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/25, changed state to administratively down
Sep  5 14:23:23.004 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/25, changed state to administratively down
Sep  5 14:23:25.999 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/25, changed state to down
Sep  5 14:23:26.006 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/25, changed state to down
Sep  5 14:23:27.371 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:26.698 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestIngressSpan{ID=21} has completed successfully
Sep  5 14:23:26.698 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestEgressSpan{ID=22} ...
Sep  5 14:23:27.349 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestEgressSpan{ID=22} has completed successfully
Sep  5 14:23:27.349 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestAclPermit{ID=23} ...
Sep  5 14:23:27.377 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:29.951 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:29.959 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:30.623 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:30.603 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestAclPermit{ID=23} has completed successfully
Sep  5 14:23:30.603 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestAclDeny{ID=24} ...
Sep  5 14:23:30.631 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:42.628 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:42.854 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:44.668 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:44.647 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestAclDeny{ID=24} has completed successfully
Sep  5 14:23:44.647 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestQos{ID=25} ...
Sep  5 14:23:44.683 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:49.404 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:49.407 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:50.052 MSK: %LINK-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:50.031 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestQos{ID=25} has completed successfully
Sep  5 14:23:50.031 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestNetflowShortcut{ID=26} ...
Sep  5 14:23:50.063 MSK: %LINK-SP-5-CHANGED: Interface GigabitEthernet8/1, changed state to administratively down
Sep  5 14:23:52.584 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:52.576 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/1, changed state to down
Sep  5 14:23:53.732 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestNetflowShortcut{ID=26} has completed successfully
Sep  5 14:23:53.732 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestFirmwareDiagStatus{ID=30} ...
Sep  5 14:23:53.744 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestFirmwareDiagStatus{ID=30} has completed successfully
Sep  5 14:23:53.744 MSK: %DIAG-SP-6-TEST_RUNNING: Module 8: Running TestOBFL{ID=33} ...
Sep  5 14:23:53.748 MSK: %DIAG-SP-6-TEST_OK: Module 8: TestOBFL{ID=33} has completed successfully

Сброс

Скрытый текст




hw-module module 8 reset
Proceed with reload of module?[confirm]
% reset issued for module 8
CoreSwitch#
Sep  5 14:33:58.697 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/47, changed state to down
Sep  5 14:33:58.717 MSK: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet8/47, changed state to down
Sep  5 14:33:58.745 MSK: %LINK-3-UPDOWN: Interface GigabitEthernet8/48, changed state to down
Sep  5 14:33:58.773 MSK: %LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet8/48, changed state to down
Sep  5 14:33:58.831 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/47, changed state to down
Sep  5 14:33:58.831 MSK: %LINK-SP-3-UPDOWN: Interface GigabitEthernet8/48, changed state to down
Sep  5 14:33:58.847 MSK: %LINEPROTO-SP-5-UPDOWN: Line protocol on Interface GigabitEthernet8/47, changed state to down
Sep  5 14:33:58.847 MSK: %LINEPROTO-SP-5-UPDOWN: Line protocol on Interface GigabitEthernet8/48, changed state to down
Sep  5 14:33:59.562 MSK: %C6KPWR-SP-4-DISABLED: power to module in slot 8 set off (User Request)
Sep  5 11:33:59.566: SP: scp_dnld_oir_status(8): status = 0
Sep  5 11:33:59.566: SP:     scp_dnld_module 8 : 0 : 0: during state online, got event 2(disabled)
Sep  5 11:33:59.566: SP: @@@ scp_dnld_module 8 : 0 : 0: online -> disabled
Sep  5 11:33:59.566: SP:  Slot 8 changed status to OFFLINE
Sep  5 11:33:59.566: SP: disable_action(8/0):
Sep  5 11:33:59.566: SP: Stop timer
Sep  5 11:33:59.566: SP: stop_download_process() slot/proc 8/0, download_pid: -1 my_pid: 404 image_fd: -1
Sep  5 11:33:59.566: SP: disable_action: invoking oir_ios_offline for 8/0
Sep  5 11:33:59.598: SP:     scp_dnld_module 8 : 1 : 0: during state online, got event 2(disabled)
Sep  5 11:33:59.598: SP: @@@ scp_dnld_module 8 : 1 : 0: online -> disabled
Sep  5 11:33:59.598: SP:  Slot 8 changed status to OFFLINE
Sep  5 11:33:59.598: SP: disable_action(8/1):
Sep  5 11:33:59.598: SP: Stop timer
Sep  5 11:33:59.598: SP: stop_download_process() slot/proc 8/1, download_pid: -1 my_pid: 404 image_fd: -1
Sep  5 11:34:14.610: SP: scp_dnld_oir_status(8): status = 1
Sep  5 11:34:14.610: SP:     sm_debug_init : debug already initialized
Sep  5 11:34:14.610: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_enabled, got event 1(enabled)
Sep  5 11:34:14.610: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_enabled -> enabled
Sep  5 11:34:14.610: SP: Start REGN timer for 8 with 240 sec
Sep  5 11:34:30.138: SP: make_ios_dnld_instance: 8/1
Sep  5 11:34:30.138: SP:     sm_debug_init : debug already initialized
Sep  5 11:34:30.138: SP:     scp_dnld_module 8 : 1 : 0: during state wait_til_enabled, got event 1(enabled)
Sep  5 11:34:30.138: SP: @@@ scp_dnld_module 8 : 1 : 0: wait_til_enabled -> enabled
Sep  5 11:34:30.138: SP: Start REGN timer for 8 with 240 sec
Sep  5 11:34:30.138: SP: Card 8 sent image download request
Sep  5 11:34:30.138: SP: (scp_start_download) 8/1
Sep  5 11:34:30.138: SP: (scp_start_download) 8/1: Started D/L Process, pid 149
Sep  5 11:34:30.798: SP: scp_adjust_timeouts_for_disk_file: slot/proc 8/1
Sep  5 11:34:30.798: SP: get_card_image: slot/proc 8/1: UBIN patch image on flash opened (microcode:/C2LC)
Sep  5 11:34:30.798: SP: Downloading image to card at slot 8
Sep  5 11:34:30.798: SP: Image type for slot 8: IOS
Sep  5 11:34:40.101: SP: Download to slot 8 Done!

Sep  5 11:34:40.101: SP:     scp_dnld_module 8 : 1 : 0: during state enabled, got event 10(online)
Sep  5 11:34:40.101: SP: @@@ scp_dnld_module 8 : 1 : 0: enabled -> online
Sep  5 11:34:40.101: SP: Stop timer
Sep  5 11:34:40.101: SP:  Slot 8 changed status to ONLINE
Sep  5 11:34:40.101: SP: scp_download_process_teardown() mypid 149, slot/proc 8/1, image_fd -1
Sep  5 11:35:38.655: SP: scp_dnld_ipc_rcv_findmaster: setting scp_rcv_ipc_findmaster[8] == TRUE
Sep  5 11:35:39.551: SP: scp_icc_slave_up: Stop timer for 8/0
Sep  5 11:35:39.551: SP: scp_icc_slave_up: IOS-RUNNING for 8/0
Sep  5 11:36:02.732: SP:     scp_dnld_module 8 : 0 : 0: during state enabled, got event 5(registered)
Sep  5 11:36:02.732: SP: @@@ scp_dnld_module 8 : 0 : 0: enabled -> wait_til_boot_ready
Sep  5 11:36:02.732: SP: Stop timer
Sep  5 11:36:02.732: SP: Start BOOT_RDY timer for 8 with 30000 msec
Sep  5 11:36:02.848: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_boot_ready, got event 6(boot_ready)
Sep  5 11:36:02.848: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_boot_ready -> wait_til_downloaded
Sep  5 11:36:02.848: SP: Stop timer
Sep  5 11:36:02.848: SP: Start DNLD timer for 8 with 120 sec
Sep  5 11:36:02.848: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_downloaded, got event 4(dnld_completed)
Sep  5 11:36:02.848: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_downloaded -> wait_til_ready
Sep  5 11:36:02.848: SP: Stop timer
Sep  5 11:36:02.848: SP: Start EXEC_CODE timer for 8 with 90 sec
Sep  5 11:36:02.852: SP: Received Run-ready from slot 8
Sep  5 11:36:02.852: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_ready, got event 8(ready)
Sep  5 11:36:02.852: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_ready -> wait_til_running
Sep  5 11:36:02.852: SP: Stop timer
Sep  5 11:36:02.852: SP: Start RUN_RDY timer for 8 with 90 sec
Sep  5 11:36:02.852: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_running, got event 8(ready)
Sep  5 11:36:02.852: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_running -> ready_missed
Sep  5 11:36:02.852: SP: Stop timer
Sep  5 11:36:02.852: SP:     scp_dnld_module 8 : 0 : 0: idle during state ready_missed
Sep  5 11:36:02.852: SP: @@@ scp_dnld_module 8 : 0 : 0: ready_missed -> wait_til_running
Sep  5 11:36:02.852: SP: Start RUN_RDY timer for 8 with 90 sec
Sep  5 11:36:02.856: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_running, got event 9(running)
Sep  5 11:36:02.856: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_running -> wait_til_online
Sep  5 11:36:02.856: SP: Stop timer
Sep  5 11:36:02.856: SP: Start ONLINE timer for 8
Sep  5 11:36:02.856: SP: start_timer_online_action: timer controlled by lcc_configure() and online-timer
Sep  5 11:36:02.856: SP: start_timer_online_action():SCP-ONLINE set online_timer to: 660 sec.
Sep  5 11:36:02.856: SP: is_module_under_rapid_boot: slot: 8, status: 0
Sep  5 11:36:03.765: SP: scp_dnld_ios_online 8 : 0:
*Jan  1 00:00:12.540: DaughterBoard (Distributed Forwarding Card 3)

Firmware compiled 24-Jan-11 15:48 by integ Build [100]
Sep  5 11:36:03.747: %SYS-DFC8-5-RESTART: System restarted --
Cisco IOS Software, c6lc2 Software (c6lc2-SP-VM), Version 12.2(33)SXI6, RELEASE SOFTWARE (fc4)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2011 by Cisco Systems, Inc.
Compiled Mon 28-Mar-11 18:09 by prod_rel_team
Sep  5 11:36:03.755: DFC8: Currently running ROMMON from S (Gold) region
Sep  5 11:36:22.488: SP: is_module_under_rapid_boot: slot: 8, status: 0
Sep  5 14:36:22.488 MSK: %DIAG-SP-6-RUN_MINIMUM: Module 8: Running Minimal Diagnostics...
Sep  5 11:36:22.488: SP: Stopping scp_online_timer for slot: 8
Sep  5 11:36:23.181: SP: Restarting scp_online_timer for slot: 8. (360sec)
Sep  5 14:38:14.443 MSK: %DIAG-SP-6-DIAG_OK: Module 8: Passed Online Diagnostics
Sep  5 11:38:14.523: SP: is_module_under_rapid_boot: slot: 8, status: 0
Sep  5 11:38:14.523: SP: is_module_under_rapid_boot: slot: 8, status: 0
Sep  5 11:38:14.523: SP: scp_online_active_process(8): diag_action 0, result 1
Sep  5 11:38:14.523: SP:     scp_dnld_module 8 : 0 : 0: during state wait_til_online, got event 10(online)
Sep  5 11:38:14.523: SP: @@@ scp_dnld_module 8 : 0 : 0: wait_til_online -> online
Sep  5 11:38:14.523: SP: Stop timer
Sep  5 11:38:14.523: SP:  Slot 8 changed status to ONLINE
Sep  5 11:38:14.535: SP: stop_scp_online_timer():No timer running for slot:8, proc: 0

На интерфейсе всё хорошо по счетчикам

Скрытый текст




GigabitEthernet8/47 is up, line protocol is up (connected)
  Hardware is C6k 1000Mb 802.3, address is 0021.a096.d3ce (bia 0021.a096.d3ce)
  MTU 1500 bytes, BW 1000000 Kbit, DLY 10 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  Full-duplex, 1000Mb/s, media type is 10/100/1000BaseT
  input flow-control is off, output flow-control is off
  Clock mode is auto
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 00:00:25, output 00:00:09, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/2000/0/0 (size/max/drops/flushes); Total output drops: 0
  Queueing strategy: fifo
  Output queue: 0/40 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 844000 bits/sec, 69 packets/sec
     421658 packets input, 291328018 bytes, 0 no buffer
     Received 74829 broadcasts (64485 multicasts)
     0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 watchdog, 0 multicast, 0 pause input
     0 input packets with dribble condition detected
     10485271 packets output, 3620349940 bytes, 0 underruns
     0 output errors, 0 collisions, 12 interface resets
     0 babbles, 0 late collision, 0 deferred
     0 lost carrier, 0 no carrier, 0 PAUSE output
     0 output buffer failures, 0 output buffers swapped out



Только одно странно - по нулям в статистике

 5 minute input rate 0 bits/sec, 0 packets/sec

хотя счетчики пакетов бегут

Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post
30 минут назад, zhenya` сказал:

Чем вы дропы измеряете то?

В порт Gi8/47 подключен микротик с запущенным bandwidth test server. Как только начинаем генерировать трафик на/из него, связь рвется ну и пинги пропадают На графиках порядка 20Мбит/с загрузка теста.

Тот же микротик перевтыкаем в плату на седьмом слоте - сразу разгоняется до гигабита и ни единого потерянного пинга.

36 минут назад, zhenya` сказал:

первая команда в conf t

А это как посмотреть?

Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post

Да, в 48-м всё также

Скрытый текст




  Hardware is C6k 1000Mb 802.3, address is 0021.a096.d3cf (bia 0021.a096.d3cf)
  MTU 1500 bytes, BW 1000000 Kbit, DLY 10 usec,
     reliability 255/255, txload 1/255, rxload 1/255
  Encapsulation ARPA, loopback not set
  Keepalive set (10 sec)
  Full-duplex, 1000Mb/s, media type is 10/100/1000BaseT
  input flow-control is off, output flow-control is off
  Clock mode is auto
  ARP type: ARPA, ARP Timeout 04:00:00
  Last input 00:00:24, output 00:00:26, output hang never
  Last clearing of "show interface" counters never
  Input queue: 0/2000/0/0 (size/max/drops/flushes); Total output drops: 0
  Queueing strategy: fifo
  Output queue: 0/40 (size/max)
  5 minute input rate 0 bits/sec, 0 packets/sec
  5 minute output rate 5000 bits/sec, 3 packets/sec
     23971 packets input, 2858583 bytes, 0 no buffer
     Received 23315 broadcasts (15120 multicasts)
     0 runts, 0 giants, 0 throttles
     0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored
     0 watchdog, 0 multicast, 0 pause input
     0 input packets with dribble condition detected

Причем если гонять трафик с 47 на 48 (в одном влане, т.е. трафик не покидает слота) получаем всё те-же 20Мбит/с и далее потери.



Вывод show counters

Скрытый текст




sh counters interface gigabitEthernet 8/47
64 bit counters:
 0.                      rxHCTotalPkts = 28242
 1.                      txHCTotalPkts = 160221
 2.                    rxHCUnicastPkts = 25187
 3.                    txHCUnicastPkts = 68685
 4.                  rxHCMulticastPkts = 2712
 5.                  txHCMulticastPkts = 16458
 6.                  rxHCBroadcastPkts = 334
 7.                  txHCBroadcastPkts = 75087
 8.                         rxHCOctets = 6090788
 9.                         txHCOctets = 75867517
10.                 rxTxHCPkts64Octets = 24716
11.            rxTxHCPkts65to127Octets = 52246
12.           rxTxHCPkts128to255Octets = 9543
13.           rxTxHCPkts256to511Octets = 69927
14.          rxTxHCpkts512to1023Octets = 277
15.         rxTxHCpkts1024to1518Octets = 31763
16.                    txHCTrunkFrames = 9
17.                    rxHCTrunkFrames = 9
18.                     rxHCDropEvents = 0

32 bit counters:
 0.                   rxCRCAlignErrors = 0
 1.                   rxUndersizedPkts = 0
 2.                    rxOversizedPkts = 0
 3.                     rxFragmentPkts = 0
 4.                          rxJabbers = 0
 5.                       txCollisions = 0
 6.                         ifInErrors = 0
 7.                        ifOutErrors = 0
 8.                       ifInDiscards = 0
 9.                  ifInUnknownProtos = 0
10.                      ifOutDiscards = 0
11.            txDelayExceededDiscards = 0
12.                              txCRC = 0
13.                         linkChange = 1
14.                   wrongEncapFrames = 0
All Port Counters
 1.                          InPackets = 28242
 2.                           InOctets = 6090788
 3.                        InUcastPkts = 25187
 4.                        InMcastPkts = 2712
 5.                        InBcastPkts = 334
 6.                         OutPackets = 160200
 7.                          OutOctets = 75862515
 8.                       OutUcastPkts = 68685
 9.                       OutMcastPkts = 16453
10.                       OutBcastPkts = 75071
11.                           AlignErr = 0
12.                             FCSErr = 0
13.                            XmitErr = 0
14.                             RcvErr = 0
15.                          UnderSize = 0
16.                          SingleCol = 0
17.                           MultiCol = 0
18.                            LateCol = 0
19.                       ExcessiveCol = 0
20.                       CarrierSense = 0
21.                              Runts = 0
22.                             Giants = 0
23.                         InDiscards = 0
24.                        OutDiscards = 0
25.                           InErrors = 0
26.                          OutErrors = 0
27.                    InUnknownProtos = 0
28.                              txCRC = 0
29.                      TrunkFramesTx = 9
30.                      TrunkFramesRx = 9
31.                         WrongEncap = 0
32.     Broadcast_suppression_discards = 0
33.     Multicast_suppression_discards = 0
34.       Unicast_suppression_discards = 0
35.                 rxTxHCPkts64Octets = 24711
36.            rxTxHCPkts65to127Octets = 52243
37.           rxTxHCPkts128to255Octets = 9542
38.           rxTxHCPkts256to511Octets = 69915
39.          rxTxHCpkts512to1023Octets = 277
40.         rxTxHCpkts1024to1518Octets = 31763
41.                         DropEvents = 0
42.                     CRCAlignErrors = 0
43.                     UndersizedPkts = 0
44.                      OversizedPkts = 0
45.                       FragmentPkts = 0
46.                            Jabbers = 0
47.                         Collisions = 0
48.              DelayExceededDiscards = 0
49.                        bpduOutlost = 0
50.                        qos0Outlost = 0
51.                        qos1Outlost = 0
52.                        qos2Outlost = 0
53.                        qos3Outlost = 0
54.                        qos4Outlost = 0
55.                        qos5Outlost = 0
56.                        qos6Outlost = 0
57.                        qos7Outlost = 0
58.                        qos8Outlost = 0
59.                        qos9Outlost = 0
60.                       qos10Outlost = 0
61.                       qos11Outlost = 0
62.                       qos12Outlost = 0
63.                       qos13Outlost = 0
64.                       qos14Outlost = 0
65.                       qos15Outlost = 0
66.                       qos16Outlost = 0
67.                       qos17Outlost = 0
68.                       qos18Outlost = 0
69.                       qos19Outlost = 0
70.                       qos20Outlost = 0
71.                       qos21Outlost = 0
72.                       qos22Outlost = 0
73.                       qos23Outlost = 0
74.                       qos24Outlost = 0
75.                       qos25Outlost = 0
76.                       qos26Outlost = 0
77.                       qos27Outlost = 0
78.                       qos28Outlost = 0
79.                       qos29Outlost = 0
80.                       qos30Outlost = 0
81.                       qos31Outlost = 0
82.                    bpduCbicOutlost = 0
83.                    qos0CbicOutlost = 0
84.                    qos1CbicOutlost = 0
85.                    qos2CbicOutlost = 0
86.                    qos3CbicOutlost = 0
87.                         bpduInlost = 0
88.                         qos0Inlost = 0
89.                         qos1Inlost = 0
90.                         qos2Inlost = 0
91.                         qos3Inlost = 0
92.                         qos4Inlost = 0
93.                         qos5Inlost = 0
94.                         qos6Inlost = 0
95.                         qos7Inlost = 0
96.                         qos8Inlost = 0
97.                         qos9Inlost = 0
98.                        qos10Inlost = 0
99.                        qos11Inlost = 0
100.                        qos12Inlost = 0
101.                        qos13Inlost = 0
102.                        qos14Inlost = 0
103.                        qos15Inlost = 0
104.                        qos16Inlost = 0
105.                        qos17Inlost = 0
106.                        qos18Inlost = 0
107.                        qos19Inlost = 0
108.                        qos20Inlost = 0
109.                        qos21Inlost = 0
110.                        qos22Inlost = 0
111.                        qos23Inlost = 0
112.                        qos24Inlost = 0
113.                        qos25Inlost = 0
114.                        qos26Inlost = 0
115.                        qos27Inlost = 0
116.                        qos28Inlost = 0
117.                        qos29Inlost = 0
118.                        qos30Inlost = 0
119.                        qos31Inlost = 0
120.                         pqueInlost = 0
121.                           Overruns = 0
122.                           maxIndex = 0

CoreSwitch>sh counters interface gigabitEthernet 8/48
64 bit counters:
 0.                      rxHCTotalPkts = 357
 1.                      txHCTotalPkts = 4836
 2.                    rxHCUnicastPkts = 0
 3.                    txHCUnicastPkts = 11
 4.                  rxHCMulticastPkts = 36
 5.                  txHCMulticastPkts = 899
 6.                  rxHCBroadcastPkts = 303
 7.                  txHCBroadcastPkts = 3944
 8.                         rxHCOctets = 31284
 9.                         txHCOctets = 1217945
10.                 rxTxHCPkts64Octets = 625
11.            rxTxHCPkts65to127Octets = 1470
12.           rxTxHCPkts128to255Octets = 81
13.           rxTxHCPkts256to511Octets = 3034
14.          rxTxHCpkts512to1023Octets = 1
15.         rxTxHCpkts1024to1518Octets = 0
16.                    txHCTrunkFrames = 18
17.                    rxHCTrunkFrames = 18
18.                     rxHCDropEvents = 0

32 bit counters:
 0.                   rxCRCAlignErrors = 0
 1.                   rxUndersizedPkts = 0
 2.                    rxOversizedPkts = 0
 3.                     rxFragmentPkts = 0
 4.                          rxJabbers = 0
 5.                       txCollisions = 0
 6.                         ifInErrors = 0
 7.                        ifOutErrors = 0
 8.                       ifInDiscards = 0
 9.                  ifInUnknownProtos = 0
10.                      ifOutDiscards = 0
11.            txDelayExceededDiscards = 0
12.                              txCRC = 0
13.                         linkChange = 573
14.                   wrongEncapFrames = 0
All Port Counters
 1.                          InPackets = 357
 2.                           InOctets = 31284
 3.                        InUcastPkts = 0
 4.                        InMcastPkts = 36
 5.                        InBcastPkts = 303
 6.                         OutPackets = 4825
 7.                          OutOctets = 1214867
 8.                       OutUcastPkts = 11
 9.                       OutMcastPkts = 897
10.                       OutBcastPkts = 3935
11.                           AlignErr = 0
12.                             FCSErr = 0
13.                            XmitErr = 0
14.                             RcvErr = 0
15.                          UnderSize = 0
16.                          SingleCol = 0
17.                           MultiCol = 0
18.                            LateCol = 0
19.                       ExcessiveCol = 0
20.                       CarrierSense = 0
21.                              Runts = 0
22.                             Giants = 0
23.                         InDiscards = 0
24.                        OutDiscards = 0
25.                           InErrors = 0
26.                          OutErrors = 0
27.                    InUnknownProtos = 0
28.                              txCRC = 0
29.                      TrunkFramesTx = 18
30.                      TrunkFramesRx = 18
31.                         WrongEncap = 0
32.     Broadcast_suppression_discards = 0
33.     Multicast_suppression_discards = 0
34.       Unicast_suppression_discards = 0
35.                 rxTxHCPkts64Octets = 624
36.            rxTxHCPkts65to127Octets = 1468
37.           rxTxHCPkts128to255Octets = 81
38.           rxTxHCPkts256to511Octets = 3026
39.          rxTxHCpkts512to1023Octets = 1
40.         rxTxHCpkts1024to1518Octets = 0
41.                         DropEvents = 0
42.                     CRCAlignErrors = 0
43.                     UndersizedPkts = 0
44.                      OversizedPkts = 0
45.                       FragmentPkts = 0
46.                            Jabbers = 0
47.                         Collisions = 0
48.              DelayExceededDiscards = 0
49.                        bpduOutlost = 0
50.                        qos0Outlost = 0
51.                        qos1Outlost = 0
52.                        qos2Outlost = 0
53.                        qos3Outlost = 0
54.                        qos4Outlost = 0
55.                        qos5Outlost = 0
56.                        qos6Outlost = 0
57.                        qos7Outlost = 0
58.                        qos8Outlost = 0
59.                        qos9Outlost = 0
60.                       qos10Outlost = 0
61.                       qos11Outlost = 0
62.                       qos12Outlost = 0
63.                       qos13Outlost = 0
64.                       qos14Outlost = 0
65.                       qos15Outlost = 0
66.                       qos16Outlost = 0
67.                       qos17Outlost = 0
68.                       qos18Outlost = 0
69.                       qos19Outlost = 0
70.                       qos20Outlost = 0
71.                       qos21Outlost = 0
72.                       qos22Outlost = 0
73.                       qos23Outlost = 0
74.                       qos24Outlost = 0
75.                       qos25Outlost = 0
76.                       qos26Outlost = 0
77.                       qos27Outlost = 0
78.                       qos28Outlost = 0
79.                       qos29Outlost = 0
80.                       qos30Outlost = 0
81.                       qos31Outlost = 0
82.                    bpduCbicOutlost = 0
83.                    qos0CbicOutlost = 0
84.                    qos1CbicOutlost = 0
85.                    qos2CbicOutlost = 0
86.                    qos3CbicOutlost = 0
87.                         bpduInlost = 0
88.                         qos0Inlost = 0
89.                         qos1Inlost = 0
90.                         qos2Inlost = 0
91.                         qos3Inlost = 0
92.                         qos4Inlost = 0
93.                         qos5Inlost = 0
94.                         qos6Inlost = 0
95.                         qos7Inlost = 0
96.                         qos8Inlost = 0
97.                         qos9Inlost = 0
98.                        qos10Inlost = 0
99.                        qos11Inlost = 0
100.                        qos12Inlost = 0
101.                        qos13Inlost = 0
102.                        qos14Inlost = 0
103.                        qos15Inlost = 0
104.                        qos16Inlost = 0
105.                        qos17Inlost = 0
106.                        qos18Inlost = 0
107.                        qos19Inlost = 0
108.                        qos20Inlost = 0
109.                        qos21Inlost = 0
110.                        qos22Inlost = 0
111.                        qos23Inlost = 0
112.                        qos24Inlost = 0
113.                        qos25Inlost = 0
114.                        qos26Inlost = 0
115.                        qos27Inlost = 0
116.                        qos28Inlost = 0
117.                        qos29Inlost = 0
118.                        qos30Inlost = 0
119.                        qos31Inlost = 0
120.                         pqueInlost = 0
121.                           Overruns = 0
122.                           maxIndex = 0



Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post

Тут вот ещё что происходит...



Начинаю гонять трафик с порта на порт в одном влане и одном модуле по L2 между двумя микротиками через bandwidth test.

Трафик не поднимается более 20-ти Мбит/с и через полминуты ловим подвисание консоли на секунд на 5, как по прямомму подключению, так и ssh.

В логи сыпет

Sep 21 19:18:53.438 MSK: %SYS-3-CPUHOG: Task is running for (2000)msecs, more than (2000)msecs (0/0),process = L3 Manager.(libc.so+0x40AD4) ([0:-3]s72033_rp-adventerprisek9_wan-1-dso-b+0x155920) ([30:-9]3+0x1751D4) ([30:-9]11+0x4D4B1C) ([31:-8]-+0x4D475C) ([40:0]+0x4D71D0) ([30:-9]3+0x544DF4) ([40:0]+0x544C50) ([30:-9]14+0x2700E8) ([41:0]+0x2700C0) ([41:0]+0x2700C0)
Sep 21 19:18:55.802 MSK: %SYS-3-CPUHOG: Task is running for (4025)msecs, more than (2000)msecs (0/0),process = L3 Manager.(s72033_rp-adventerprisek9_wan-11-dso-b.so+0x4D7284) ([31:-8]-+0x4D40D8) ([40:0]+0x4D71D0) ([30:-9]3+0x544DF4) ([40:0]+0x544C50) ([30:-9]14+0x2700E8) ([41:0]+0x2700C0) ([30:-9]3+0x544C50) ([30:-9]14+0x2700E8) ([41:0]+0x2700C0) ([41:0]+0x2700C0)

И далее отвал соседей по ospf

Sep 21 19:19:22.275 MSK: %OSPF-5-ADJCHG: Process 1, Nbr 1.2.3.4 on Vlan1207 from FULL to DOWN, Neighbor Down: Dead timer expired
Sep 21 19:19:22.527 MSK: %OSPF-5-ADJCHG: Process 1, Nbr 1.2.3.189 on Vlan1207 from FULL to DOWN, Neighbor Down: Dead timer expired
Sep 21 19:19:24.083 MSK: %OSPF-5-ADJCHG: Process 1, Nbr 1.2.3.107 on Vlan1208 from FULL to DOWN, Neighbor Down: Dead timer expired
Sep 21 19:19:27.139 MSK: %OSPF-5-ADJCHG: Process 1, Nbr 1.2.3.177 on Vlan1208 from FULL to DOWN, Neighbor Down: Dead timer expired
Sep 21 19:19:26.831 MSK: %OSPF-5-ADJCHG: Process 1, Nbr 1.2.3.181 on Vlan1208 from FULL to DOWN, Neighbor Down: Dead timer expired

Видно что колбасит процесс L3 Manager, но я же прогружаю l2.



Не подскажете где можно посмотреть?

Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post
9 минут назад, zhenya` сказал:

DFC имхо плохо. смените модули 7 и 8 и посмотрите на реакцию на модуль с CFC

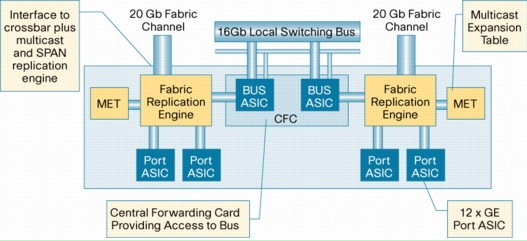

С CFC тоже самое.

Может стоит обновить/поменять ios?

Сейчас установлен

Cisco IOS Software, s72033_rp Software (s72033_rp-ADVENTERPRISEK9_WAN-VM), Version 12.2(33)SXI6, RELEASE SOFTWARE (fc4)
Technical Support: http://www.cisco.com/techsupport
Copyright (c) 1986-2011 by Cisco Systems, Inc.
Compiled Mon 28-Mar-11 17:27 by prod_rel_team

ROM: System Bootstrap, Version 12.2(17r)SX5, RELEASE SOFTWARE (fc1)



Share this post

Link to post
Share on other sites

tros10

tros10
Posted · Report post

Если там DFC и потери в рамках одного модуля, то смотреть надо не в сторону софта ИМХО.  Трафик не должен выходить за рамки асика если используются соседние порты и свитчится локально, без вовлечения фабрики.

Поищите картинку с архитектурой 6748, что бы понять какие порты каким асикам принадлежат. Насколько я помню, там 4 асика, по 12 портов на каждый.

Есть еще вариант, что карта с DFC убитая, а карты с CFC утыкаются в глючный PFC.



Share this post

Link to post
Share on other sites

_J_

_J_
Posted · Report post
20 часов назад, tros10 сказал:

Поищите картинку с архитектурой 6748, что бы понять какие порты каким асикам принадлежат. Насколько я помню, там 4 асика, по 12 портов на каждый.

Вот оно

----------


----------



Видно что порты 46 и 48 находятся на одном asic и получается должны ходить напрямую, даже не задействуя CFC/DFC?

Share this post

Link to post
Share on other sites

UglyAdmin

UglyAdmin
Posted · Report post
51 минуту назад, _J_ сказал:

Видно что порты 46 и 48 находятся на одном asic и получается должны ходить напрямую, даже не задействуя CFC/DFC?

ASIC'и там глупые и свитчевать внутри себя не умеют.

Это делает DFC или PFC (в случае CFC).

Share this post

Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

×
Followers 0
Go to topic listing Активное оборудование Ethernet, IP, MPLS, SDN/NFV...
