Настройка SNR VG 6008 с mp-114

Lexxk27

Lexxk27
Posted

Есть необходимость настроить связь через MP114 и SNR VG 6008.

Кто побывал их подружить?

Я могу позвонить с телефона, подключенного к SNR, в внешний мир. Но из внешнего мира не могу дозвониться до абонента. Mp принимает звонок, но не могу понять, как настроить её правильно, что бы она перенаправляла вызов на snr. Познания в телефонии небольшие.

Share this post

Link to post
Share on other sites

Sergey Taskin

Sergey Taskin
Posted

День добрый

Эти две железки включены у вас последовательно?

Уточните схему включения.



Share this post

Link to post
Share on other sites

Lexxk27

Lexxk27
Posted (edited)

Телефонная линия воткнута в 1 порт FXO на mp-114.  Далее mp и snr(WAN порт) соединены через простой хаб. И к snr подключен телефон в 1 порт FXS.



ip

mp: 10.1.10.11

SNR: 10.1.10.9





Edited by Lexxk27

Share this post

Link to post
Share on other sites

Sergey Taskin

Sergey Taskin
Posted

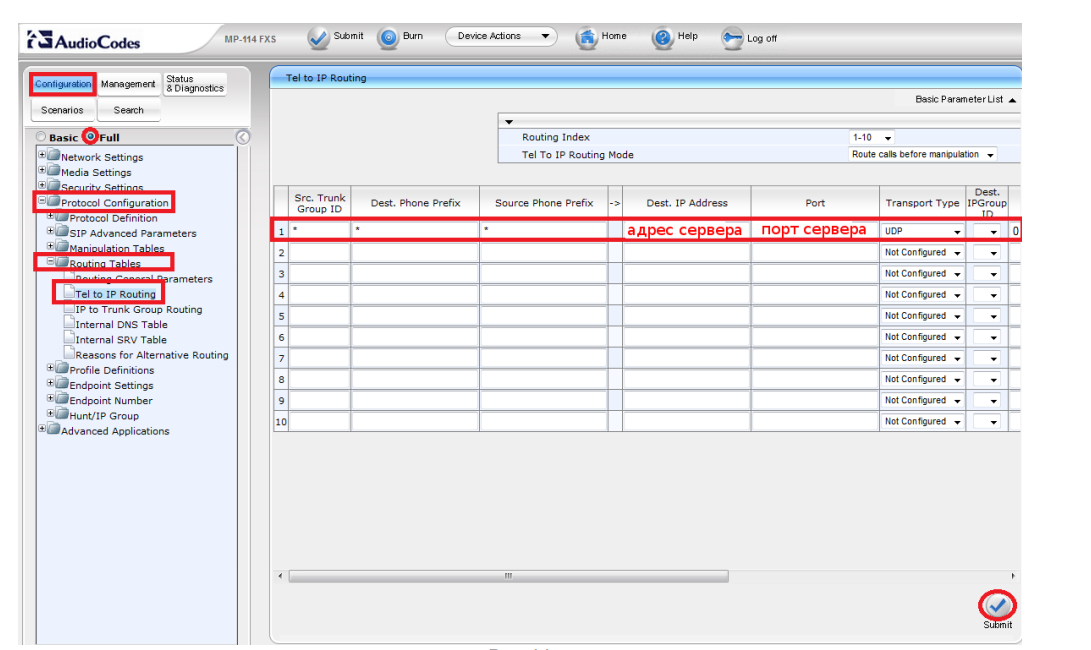

Тут у вас должен быть прописан адрес SNRa 10.2.10.9 порт 5060




Share this post

Link to post
Share on other sites

Lexxk27

Lexxk27
Posted

Так и было выставлено.

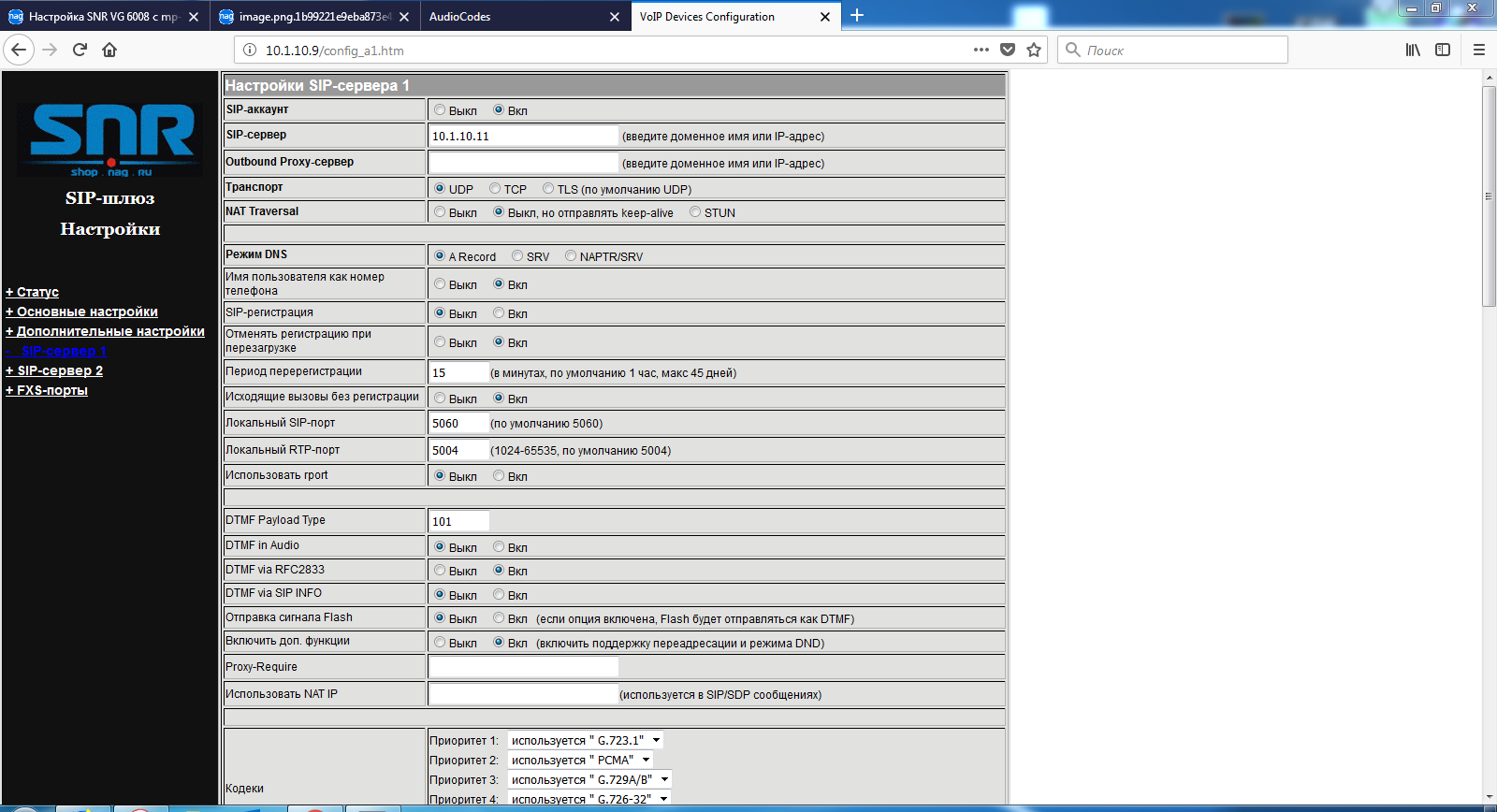

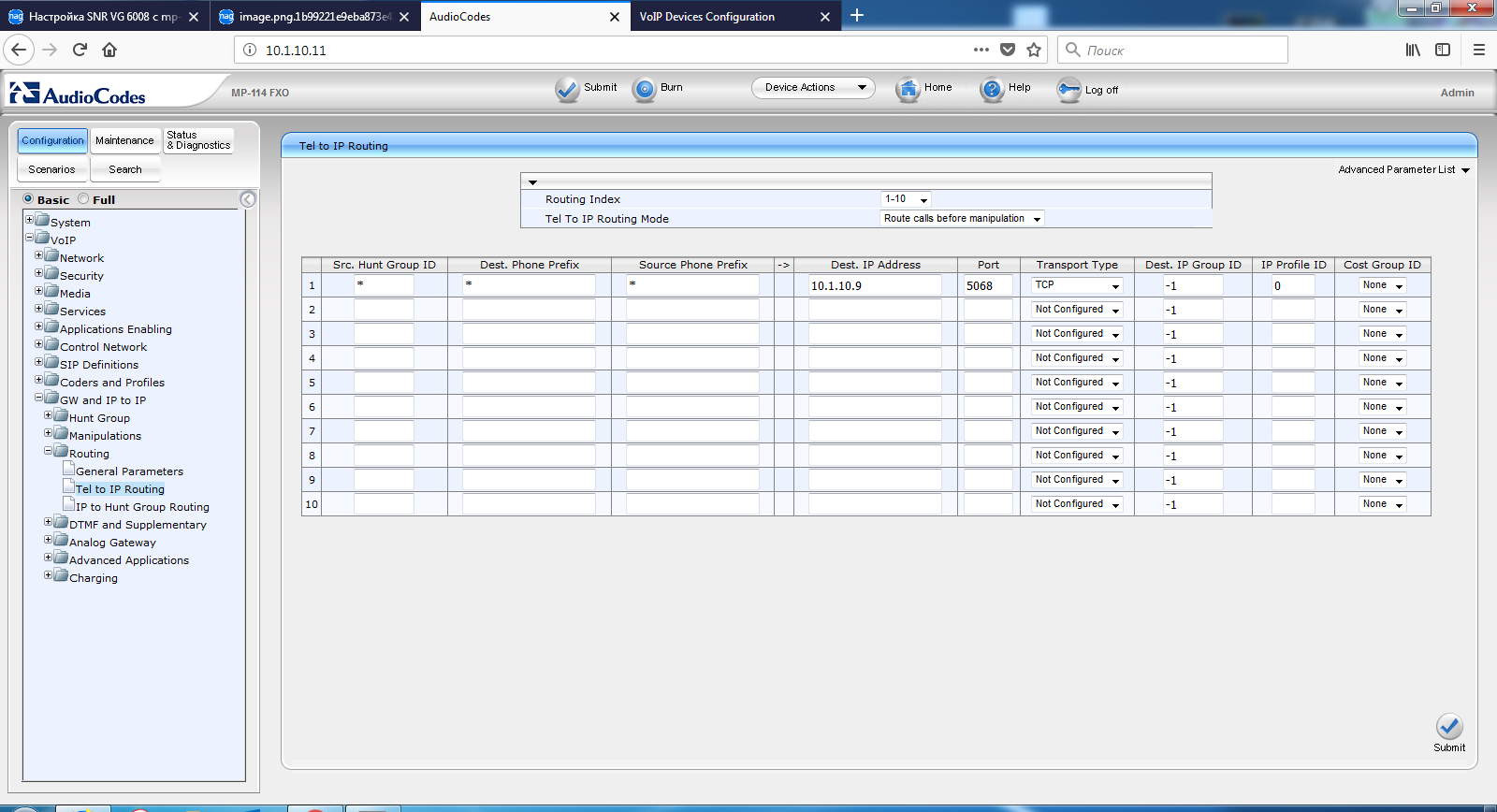

Прикладываю скрин как настроено.



Share this post

Link to post
Share on other sites

Sergey Taskin

Sergey Taskin
Posted

Нужно понять где умирает входящий вызов. Отправляет ли его в каком либо виде МР на SNR или вызов умирает на самом МР. Ну и дальше "пытать" виновника.

Поглядите на МР наверняка есть средства, которые позволят понять вообще, приходил ли на него вызов от оператора, в каком виде. Куда он уходит

Status & Diagnostic наверное там надо искать

Share this post

Link to post
Share on other sites

Lexxk27

Lexxk27
Posted

Вот логи MP когда на неё приходит вызов с линии.

Log is Activated


1d:3h:46m:54s (   lgr_psbrdex)(607       )  recv <-- ANALOG_IF_RING_START Ch:0 type(0)

1d:3h:46m:54s (      lgr_flow)(608       )  #0:RING_START_EV

1d:3h:46m:54s (      lgr_flow)(609       )  |       #0:RING_START_EV

1d:3h:46m:55s (   lgr_psbrdex)(610       )  recv <-- EV_ANALOG_IF_RING_END Ch:0 type(0)

1d:3h:46m:55s (      lgr_flow)(611       )  #0:RING_END_EV

1d:3h:46m:55s (      lgr_flow)(612       )  |       #0:RING_END_EV

1d:3h:46m:55s (   lgr_psbrdif)(613       )  ActivateDigitMap for channel : 0, MaxDialStringLength = 3, MaxEndDialTimer = 4000,
MaxLongInterDigitTimer = 8000, MaxStartTimer = 16000, DigitMap = [0-9*#ABCD][0-9ABCD].T, DPIndex = -1, DPPriority = 0

1d:3h:46m:55s (      lgr_flow)(614       )  #-100: StartDigitMapDetection with params:
 <Pattern=[0-9*#ABCD][0-9ABCD].T>
<MaxStartTimer=16000>
<SendEachDigit=1>
<UseEndDialKey=0>
<MaxLongInterDigitTimer=8000>
<MaxEndDialTimer=4000>
<MaxDialStringLength=3>
<MaxShortInterDigitTimer=2000>
<MinInterDigitLen=-2>
<MinDigitLen=-2>
<EndDialWithHashMark=0>

1d:3h:46m:55s (lgr_digitmap_mngr)(615       )  #0:Activate DigitMapMngr pattern:[0-9*#ABCD][0-9ABCD].T, Max Length is: 3, DPIndex: -1, DPPriority: 0

1d:3h:46m:55s (   lgr_psbrdif)(616       )  UpdateChannelParams, Channel 0

1d:3h:46m:55s (   lgr_psbrdif)(617       )  #0:ConfigFaxModemChannelParams NSEMode=0, CNGDetMode=0, FAXTranType=0, VxxTranType=0, VoiceVol= 0, DTMFVol=-11, InGain=0, RTPRedDepth=0, ECE=1,ECEType=0 SCE=0, ECNlpMode=0, DJBufMinDelay=10, DJBufOptFac=10, Result=1)

1d:3h:46m:55s (   lgr_psbrdif)(618       )  Turn ringer ON for channel 0

1d:3h:46m:55s (      lgr_flow)(619       )  |       #0:FXO Seize Line

1d:3h:46m:55s (   lgr_psbrdex)(620       )  PCIIFChangeChannelParams failed  ECCNG ECNlpMode

1d:3h:46m:55s (   lgr_psbrdif)(621       )  Changed ECNlpMOde to: 1

1d:3h:46m:55s (   lgr_psbrdif)(622       )  #0:PSOSBoardInterface::PlayTone - Called Tone=DIAL_TONE Direction=PLAY_TONE_2_TEL

1d:3h:47m:11s (   lgr_psbrdex)(623       )  recv <-- EV_DIALED_STRING Ch:0 Str: MapNum:-2 CM:PM Match:0 EI:

1d:3h:47m:11s (      lgr_flow)(624       )  #0:DIALED_STRING_EV

1d:3h:47m:11s (      lgr_flow)(625       )  |       #0:DIALED_STRING_EV

1d:3h:47m:11s (lgr_digitmap_mngr)(626       )  DigitMapMngr::HandleDialStringEv Match = 0, MatchNum = -2 STR =

1d:3h:47m:11s (   lgr_psbrdex)(627       )  InsertBoardEvent- event RELEASE_BECAUSE_NO_DIAL_TIMER_EXPIRED_EV inserted channel 0

1d:3h:47m:11s (      lgr_flow)(628       )  #0:RELEASE_BECAUSE_NO_DIAL_TIMER_EXPIRED_EV

1d:3h:47m:11s (      lgr_flow)(629       )  |       #0:RELEASE_BECAUSE_NO_DIAL_TIMER_EXPIRED_EV

1d:3h:47m:11s (   lgr_psbrdif)(630       )  #0:cpDigitMapHndlr_Stop - Stoped (0)

1d:3h:47m:11s (   lgr_psbrdif)(631       )  #0:CloseChannel: ChannelNum=0

1d:3h:47m:11s (   lgr_psbrdif)(632       )  Open channel: IsVoiceOn: 1, IsT38On: 0, IsVbdOn: 0, IsVideoOn: 0

1d:3h:47m:11s (   lgr_psbrdif)(633       )  #0:OpenChannel:on Trunk -1 BChannel:0 CID=0 with VoiceCoder: g723130 VbdCoder: InvalidCoder255 DetectorSide: 0 FaxModemDet NO_FAX_MODEM_DETECTED

1d:3h:47m:11s (   lgr_psbrdif)(634       )  #0:OpenChannel VoiceVolume= 0, DTMFVolume = -11, InputGain = 0, RTPRedundancyDepth = 0 FlashHookPeriod = 700 AgcCmd = 0x13180000

1d:3h:47m:11s (   lgr_psbrdif)(635       )  RFC2833RTPPayloadType: Rx=101 Tx=101

1d:3h:47m:11s (   lgr_psbrdif)(636       )  OpenChannel, CoderType = 16, Interval = 0, M = 1

1d:3h:47m:11s (   lgr_psbrdif)(637       )  #0:FAXTransportType = 0

1d:3h:47m:11s (   lgr_psbrdif)(638       )  ConfigureVbdAndT38:FAXTransportType 0 T38Version:0

1d:3h:47m:11s (   lgr_psbrdif)(639       )  #0:ConfigFaxModemChannelParams NSEMode=0, CNGDetMode=0, FAXTranType=0, VxxTranType=0, VoiceVol= 0, DTMFVol=-11, InGain=0, RTPRedDepth=0, ECE=1,ECEType=0 SCE=0, ECNlpMode=0, DJBufMinDelay=10, DJBufOptFac=10, Result=1)

1d:3h:47m:11s (   lgr_psbrdif)(640       )  Detectors: Amd:On=0,Direction=0, Ans:On=0,Direction=0 En:On=0,Direction=0 Board IBScmd:0xa1

1d:3h:47m:11s (   lgr_psbrdif)(641       )  #0:Channel will be open WITH DSP

1d:3h:47m:11s (   lgr_psbrdif)(642       )  Turn ringer OFF for channel 0

1d:3h:47m:11s (      lgr_flow)(643       )  |       #0:FXO Release Line

1d:3h:47m:11s (   lgr_psbrdif)(644       )  #0:PSOSBoardInterface::StopPlayTone- Called

1d:3h:47m:11s (      lgr_flow)(645       )  #0:LOCAL_END_PLAYING_CALL_PROGRESS_TONE_EV

1d:3h:47m:11s (      lgr_flow)(646       )  |       #0:LOCAL_END_PLAYING_CALL_PROGRESS_TONE_EV

1d:3h:47m:12s (   lgr_psbrdex)(647       )  InsertBoardEvent- event GUARD_TIME_TIMER_EXPIRED_EV inserted channel 0

1d:3h:47m:12s (      lgr_flow)(648       )  #0:GUARD_TIME_TIMER_EXPIRED_EV

1d:3h:47m:12s (      lgr_flow)(649       )  |       #0:GUARD_TIME_TIMER_EXPIRED_EV

1d:3h:47m:12s (   lgr_psbrdif)(650       )  #0:cpDigitMapHndlr_Stop - Stoped (0)

1d:3h:47m:12s (   lgr_psbrdif)(651       )  #0:CloseChannel: ChannelNum=0

1d:3h:47m:12s (   lgr_psbrdif)(652       )  Open channel: IsVoiceOn: 1, IsT38On: 0, IsVbdOn: 0, IsVideoOn: 0

1d:3h:47m:12s (   lgr_psbrdif)(653       )  #0:OpenChannel:on Trunk -1 BChannel:0 CID=0 with VoiceCoder: g723130 VbdCoder: InvalidCoder255 DetectorSide: 0 FaxModemDet NO_FAX_MODEM_DETECTED

1d:3h:47m:12s (   lgr_psbrdif)(654       )  #0:OpenChannel VoiceVolume= 0, DTMFVolume = -11, InputGain = 0, RTPRedundancyDepth = 0 FlashHookPeriod = 700 AgcCmd = 0x13180000

1d:3h:47m:12s (   lgr_psbrdif)(655       )  RFC2833RTPPayloadType: Rx=101 Tx=101

1d:3h:47m:12s (   lgr_psbrdif)(656       )  OpenChannel, CoderType = 16, Interval = 0, M = 1

1d:3h:47m:12s (   lgr_psbrdif)(657       )  #0:FAXTransportType = 0

1d:3h:47m:12s (   lgr_psbrdif)(658       )  ConfigureVbdAndT38:FAXTransportType 0 T38Version:0

1d:3h:47m:12s (   lgr_psbrdif)(659       )  #0:ConfigFaxModemChannelParams NSEMode=0, CNGDetMode=0, FAXTranType=0, VxxTranType=0, VoiceVol= 0, DTMFVol=-11, InGain=0, RTPRedDepth=0, ECE=1,ECEType=0 SCE=0, ECNlpMode=0, DJBufMinDelay=10, DJBufOptFac=10, Result=1)

1d:3h:47m:12s (   lgr_psbrdif)(660       )  Detectors: Amd:On=0,Direction=0, Ans:On=0,Direction=0 En:On=0,Direction=0 Board IBScmd:0xa1

1d:3h:47m:12s (   lgr_psbrdif)(661       )  #0:Channel will be open WITH DSP



Share this post

Link to post
Share on other sites

Lexxk27

Lexxk27
Posted

а вот что пишет если выбрать протокол TCP для связи

Log is Activated


1d:4h:42m:32s (   lgr_psbrdex)(1200      )  recv <-- ANALOG_IF_RING_START Ch:0 type(0)

1d:4h:42m:32s (      lgr_flow)(1201      )  #0:RING_START_EV

1d:4h:42m:32s (      lgr_flow)(1202      )  |       #0:RING_START_EV

1d:4h:42m:33s (   lgr_psbrdex)(1203      )  recv <-- EV_ANALOG_IF_RING_END Ch:0 type(0)

1d:4h:42m:33s (      lgr_flow)(1204      )  #0:RING_END_EV

1d:4h:42m:33s (      lgr_flow)(1205      )  |       #0:RING_END_EV

1d:4h:42m:33s (   lgr_psbrdif)(1206      )  ActivateDigitMap for channel : 0, MaxDialStringLength = 3, MaxEndDialTimer = 4000,
MaxLongInterDigitTimer = 8000, MaxStartTimer = 16000, DigitMap = [0-9*#ABCD][0-9ABCD].T, DPIndex = -1, DPPriority = 0

1d:4h:42m:33s (      lgr_flow)(1207      )  #-100: StartDigitMapDetection with params:
 <Pattern=[0-9*#ABCD][0-9ABCD].T>
<MaxStartTimer=16000>
<SendEachDigit=1>
<UseEndDialKey=0>
<MaxLongInterDigitTimer=8000>
<MaxEndDialTimer=4000>
<MaxDialStringLength=3>
<MaxShortInterDigitTimer=2000>
<MinInterDigitLen=-2>
<MinDigitLen=-2>
<EndDialWithHashMark=0>

1d:4h:42m:33s (lgr_digitmap_mngr)(1208      )  #0:Activate DigitMapMngr pattern:[0-9*#ABCD][0-9ABCD].T, Max Length is: 3, DPIndex: -1, DPPriority: 0

1d:4h:42m:33s (   lgr_psbrdif)(1209      )  UpdateChannelParams, Channel 0

1d:4h:42m:33s (   lgr_psbrdif)(1210      )  #0:ConfigFaxModemChannelParams NSEMode=0, CNGDetMode=0, FAXTranType=0, VxxTranType=0, VoiceVol= 0, DTMFVol=-11, InGain=0, RTPRedDepth=0, ECE=1,ECEType=0 SCE=0, ECNlpMode=0, DJBufMinDelay=10, DJBufOptFac=10, Result=1)

1d:4h:42m:33s (   lgr_psbrdif)(1211      )  Turn ringer ON for channel 0

1d:4h:42m:33s (      lgr_flow)(1212      )  |       #0:FXO Seize Line

1d:4h:42m:33s (   lgr_psbrdex)(1213      )  PCIIFChangeChannelParams failed  ECCNG ECNlpMode

1d:4h:42m:33s (   lgr_psbrdif)(1214      )  Changed ECNlpMOde to: 1

1d:4h:42m:33s (   lgr_psbrdif)(1215      )  #0:PSOSBoardInterface::PlayTone - Called Tone=DIAL_TONE Direction=PLAY_TONE_2_TEL

1d:4h:42m:49s (   lgr_psbrdex)(1216      )  recv <-- EV_DIALED_STRING Ch:0 Str: MapNum:-2 CM:PM Match:0 EI:

1d:4h:42m:49s (      lgr_flow)(1217      )  #0:DIALED_STRING_EV

1d:4h:42m:49s (      lgr_flow)(1218      )  |       #0:DIALED_STRING_EV

1d:4h:42m:49s (lgr_digitmap_mngr)(1219      )  DigitMapMngr::HandleDialStringEv Match = 0, MatchNum = -2 STR =

1d:4h:42m:49s (   lgr_psbrdex)(1220      )  InsertBoardEvent- event RELEASE_BECAUSE_NO_DIAL_TIMER_EXPIRED_EV inserted channel 0

1d:4h:42m:49s (      lgr_flow)(1221      )  #0:RELEASE_BECAUSE_NO_DIAL_TIMER_EXPIRED_EV

1d:4h:42m:49s (      lgr_flow)(1222      )  |       #0:RELEASE_BECAUSE_NO_DIAL_TIMER_EXPIRED_EV

1d:4h:42m:49s (   lgr_psbrdif)(1223      )  #0:cpDigitMapHndlr_Stop - Stoped (0)

1d:4h:42m:49s (   lgr_psbrdif)(1224      )  #0:CloseChannel: ChannelNum=0

1d:4h:42m:49s (   lgr_psbrdif)(1225      )  Open channel: IsVoiceOn: 1, IsT38On: 0, IsVbdOn: 0, IsVideoOn: 0

1d:4h:42m:49s (   lgr_psbrdif)(1226      )  #0:OpenChannel:on Trunk -1 BChannel:0 CID=0 with VoiceCoder: g723130 VbdCoder: InvalidCoder255 DetectorSide: 0 FaxModemDet NO_FAX_MODEM_DETECTED

1d:4h:42m:49s (   lgr_psbrdif)(1227      )  #0:OpenChannel VoiceVolume= 0, DTMFVolume = -11, InputGain = 0, RTPRedundancyDepth = 0 FlashHookPeriod = 700 AgcCmd = 0x13180000

1d:4h:42m:49s (   lgr_psbrdif)(1228      )  RFC2833RTPPayloadType: Rx=101 Tx=101

1d:4h:42m:49s (   lgr_psbrdif)(1229      )  OpenChannel, CoderType = 16, Interval = 0, M = 1

1d:4h:42m:49s (   lgr_psbrdif)(1230      )  #0:FAXTransportType = 0

1d:4h:42m:49s (   lgr_psbrdif)(1231      )  ConfigureVbdAndT38:FAXTransportType 0 T38Version:0

1d:4h:42m:49s (   lgr_psbrdif)(1232      )  #0:ConfigFaxModemChannelParams NSEMode=0, CNGDetMode=0, FAXTranType=0, VxxTranType=0, VoiceVol= 0, DTMFVol=-11, InGain=0, RTPRedDepth=0, ECE=1,ECEType=0 SCE=0, ECNlpMode=0, DJBufMinDelay=10, DJBufOptFac=10, Result=1)

1d:4h:42m:49s (   lgr_psbrdif)(1233      )  Detectors: Amd:On=0,Direction=0, Ans:On=0,Direction=0 En:On=0,Direction=0 Board IBScmd:0xa1

1d:4h:42m:49s (   lgr_psbrdif)(1234      )  #0:Channel will be open WITH DSP

1d:4h:42m:49s (   lgr_psbrdif)(1235      )  Turn ringer OFF for channel 0

1d:4h:42m:49s (      lgr_flow)(1236      )  |       #0:FXO Release Line

1d:4h:42m:49s (   lgr_psbrdif)(1237      )  #0:PSOSBoardInterface::StopPlayTone- Called

1d:4h:42m:49s (      lgr_flow)(1238      )  #0:LOCAL_END_PLAYING_CALL_PROGRESS_TONE_EV

1d:4h:42m:49s (      lgr_flow)(1239      )  |       #0:LOCAL_END_PLAYING_CALL_PROGRESS_TONE_EV

1d:4h:42m:50s (   lgr_psbrdex)(1240      )  InsertBoardEvent- event GUARD_TIME_TIMER_EXPIRED_EV inserted channel 0

1d:4h:42m:50s (      lgr_flow)(1241      )  #0:GUARD_TIME_TIMER_EXPIRED_EV

1d:4h:42m:50s (      lgr_flow)(1242      )  |       #0:GUARD_TIME_TIMER_EXPIRED_EV

1d:4h:42m:50s (   lgr_psbrdif)(1243      )  #0:cpDigitMapHndlr_Stop - Stoped (0)

1d:4h:42m:50s (   lgr_psbrdif)(1244      )  #0:CloseChannel: ChannelNum=0

1d:4h:42m:50s (   lgr_psbrdif)(1245      )  Open channel: IsVoiceOn: 1, IsT38On: 0, IsVbdOn: 0, IsVideoOn: 0

1d:4h:42m:50s (   lgr_psbrdif)(1246      )  #0:OpenChannel:on Trunk -1 BChannel:0 CID=0 with VoiceCoder: g723130 VbdCoder: InvalidCoder255 DetectorSide: 0 FaxModemDet NO_FAX_MODEM_DETECTED

1d:4h:42m:50s (   lgr_psbrdif)(1247      )  #0:OpenChannel VoiceVolume= 0, DTMFVolume = -11, InputGain = 0, RTPRedundancyDepth = 0 FlashHookPeriod = 700 AgcCmd = 0x13180000

1d:4h:42m:50s (   lgr_psbrdif)(1248      )  RFC2833RTPPayloadType: Rx=101 Tx=101

1d:4h:42m:50s (   lgr_psbrdif)(1249      )  OpenChannel, CoderType = 16, Interval = 0, M = 1

1d:4h:42m:50s (   lgr_psbrdif)(1250      )  #0:FAXTransportType = 0

1d:4h:42m:50s (   lgr_psbrdif)(1251      )  ConfigureVbdAndT38:FAXTransportType 0 T38Version:0

1d:4h:42m:50s (   lgr_psbrdif)(1252      )  #0:ConfigFaxModemChannelParams NSEMode=0, CNGDetMode=0, FAXTranType=0, VxxTranType=0, VoiceVol= 0, DTMFVol=-11, InGain=0, RTPRedDepth=0, ECE=1,ECEType=0 SCE=0, ECNlpMode=0, DJBufMinDelay=10, DJBufOptFac=10, Result=1)

1d:4h:42m:50s (   lgr_psbrdif)(1253      )  Detectors: Amd:On=0,Direction=0, Ans:On=0,Direction=0 En:On=0,Direction=0 Board IBScmd:0xa1

1d:4h:42m:50s (   lgr_psbrdif)(1254      )  #0:Channel will be open WITH DSP

1d:4h:43m:0s (     sip_stack)(1255      )  TcpTransportObject#17::DispatchQueueEvent(EVENT_RECEIVER_CONNECTION_INTERNAL_CLOSE) - Closing connection

1d:4h:43m:0s (     sip_stack)(1256      )  TcpTransportObject#17::HandleConnectionClose - Closing connection

1d:4h:43m:0s (     sip_stack)(1257      )  TcpTransportObject#17::CloseConnection - Closing connection

1d:4h:43m:0s (     sip_stack)(1258      )  Socket buffer released - #17

1d:4h:43m:0s (     sip_stack)(1259      )  SIPTCPMngr::ReleaseTransportObj - #17

1d:4h:43m:1s [Src=10.1.10.9 PType=9] (      lgr_flow)(1260      )  ListeningTcpTransportObject#0- CTcpSocket::HandleSocketEvent socket connected

1d:4h:43m:1s (      lgr_flow)(1261      )  ListeningTcpTransportObject#0- CTcpServerSocket::IsSocketPending socket is pending for accept

1d:4h:43m:1s (     sip_stack)(1262      )  new TransportObject created - #16

1d:4h:43m:1s (     sip_stack)(1263      )  New Socket buffer allocated - #16



Share this post

Link to post
Share on other sites

Sergey Taskin

Sergey Taskin
Posted

Ок, вроде отправляет МР что-то, а на SNRе в логах что в этот момент?

Share this post

Link to post
Share on other sites

Lexxk27

Lexxk27
Posted

Я не знаю где логи у SNR, не смог найти.

Share this post

Link to post
Share on other sites

Lexxk27

Lexxk27
Posted (edited)

Настроил логи. SNR ка даже не пишет не чего. Вроде как он до неё не достучался. В mp что то недонастроенно



Всем спасибо. разобрался.

Проблема была в настройки mp, нужно указывать номер какой указан в настройке порта SNR

Edited by Lexxk27

Share this post

Link to post
Share on other sites

Create an account or sign in to comment

You need to be a member in order to leave a comment

Create an account

Sign up for a new account in our community. It's easy!

Register a new account

Sign in

Already have an account? Sign in here.

Sign In Now
Followers 0
Go to topic listing Телефония: классическая, IP-телефония (VoIP), NGN сети
