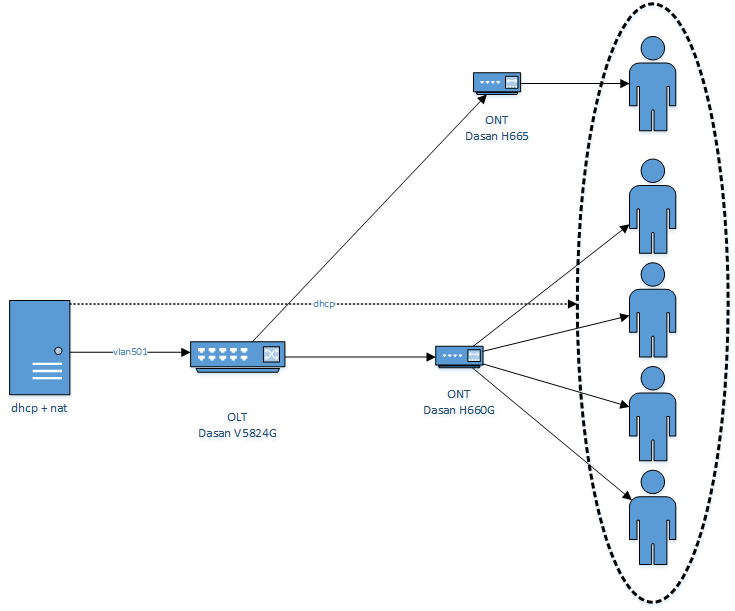

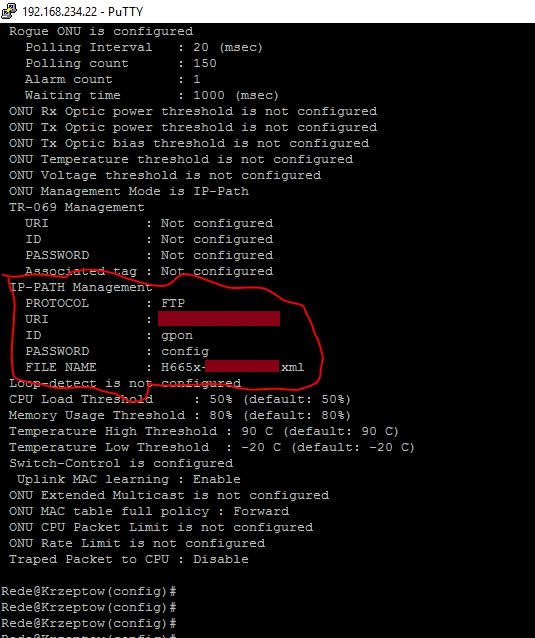

metaltuman Posted March 10, 2017 (edited) · Report post Доброго времени суток. Ищу человека, который хорошо знаком со спецификой настройки GPON оборудования Dasan. Стоит задача конфигурации GPON OLT Dasan V5824G, абонентских терминалов Dasan H665 и Dasan H660G. На данный момент OLT настроен предыдущим обладателем, к нему подключено 30 клиентов. Проблема в том, что поставщик ONT изменил ревизию или софт устройств H665 и теперь OLT не в состоянии коректно настроить новые ONT. Попробовал разобраться - дошел до момента, где когфиг для ONT OLT или ONT берет с FTP сервера. Мне показалось что это не очень хорошая, и наверное не очень надежная конфигурация. От связки в целом нужно достаточно немного: 1. Автоматическая настройка подключенных ONT 2. Все ONT должны работать в bridge 3. По возможность фильтр dhcp трафика со стороны клиентов 4. Изоляция трафика между клиентами 5. Сохранить работу ТВ. На данный момент в одном vlan`е с интернетом, прилетает IPTV от стороннего поставщика. Мы настраиваем 4 порт роутера (TP-Link) в бридж с WAN, STB получает свой адрес и все работает. В конфиге существуют правила для работы multicast. Конфиг, указанный в файле на ftp прикладываю <Motive.Development.Common.H660.Configuration_H660> <MediaConfiguration> <VideoStatus apply="true"> <AGCSetting>0.0</AGCSetting> </VideoStatus> </MediaConfiguration> <AdvacnedConfiguration> <RegisterID>00000001</RegisterID> <WANConnectionsConfigurations apply="true"> <DictionaryEntry> <Key ClassID="1" IsNewClass="true" ClassName="java.lang.Integer">0</Key> <Value ClassID="2" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.AdvacnedConfiguration.WANConnectionsConfigrations"> <ISP>3</ISP> <DEFAULTROUTE>No</DEFAULTROUTE> <Active>Yes</Active> <IPVERSION>IPv4</IPVERSION> <dot1q>Yes</dot1q> <VLANID>501</VLANID> <DOT1PREMARK>Remark</DOT1PREMARK> <DOT1P>0</DOT1P> <TPID>8100</TPID> <Start_VID>0</Start_VID> <End_VID>0</End_VID> <ignore_wantag>No</ignore_wantag> <allow_untag>No</allow_untag> <IPADDR>0.0.0.0</IPADDR> <NETMASK>0.0.0.0</NETMASK> <GATEWAY>0.0.0.0</GATEWAY> <PRIMARYDNS>0.0.0.0</PRIMARYDNS> <SECONDARYDNS>0.0.0.0</SECONDARYDNS> <NATENABLE>Disabled</NATENABLE> <MulticastVLan>-1</MulticastVLan> <IPADDR6>0000:0000:0000:0000</IPADDR6> <PREFIX6/> <DEFGATEWAY6>0000:0000:0000:0000</DEFGATEWAY6> <DNSIPv61st>0000:0000:0000:0000</DNSIPv61st> <DNSIPv62nd>0000:0000:0000:0000</DNSIPv62nd> <USERNAME/> <PASSWORD/> <PPPoE_Passthrough>No</PPPoE_Passthrough> <CONNECTION>Connect_Keep_Alive</CONNECTION> <CLOSEIFIDLE>0</CLOSEIFIDLE> <MSS>0</MSS> <ECHO_INTERVAL>60</ECHO_INTERVAL> <ECHO_FAILURE>3</ECHO_FAILURE> <IGMPproxy>No</IGMPproxy> <IGMPproxyQL>No</IGMPproxyQL> <MLDproxy>No</MLDproxy> <PPPv6Mode>1</PPPv6Mode> <PPPv6PD>No</PPPv6PD> <MTU>1492</MTU> <Opt60active>0</Opt60active> <Opt60>ONU_HGW_ANY</Opt60> <Opt61active>1</Opt61active> <Opt61type>255</Opt61type> <Opt61type0id/> <Opt61type1id/> <Opt61type255iaid/> <Opt61type255duidtype>03</Opt61type255duidtype> <Opt125active>0</Opt125active> <Opt125eno/> <Opt125oui/> <Opt125class/> <Opt125model/> <Opt125serialnum/> <DhcpManualDnsActive>0</DhcpManualDnsActive> <DHCPPRIMARYDNS/> <DHCPSECONDARYDNS/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="2"> <ISP>3</ISP> <DEFAULTROUTE>No</DEFAULTROUTE> <Active>No</Active> <IPVERSION>IPv4/IPv6</IPVERSION> <dot1q>No</dot1q> <VLANID>0</VLANID> <DOT1PREMARK>Remark</DOT1PREMARK> <DOT1P>0</DOT1P> <TPID>8100</TPID> <Start_VID>0</Start_VID> <End_VID>0</End_VID> <ignore_wantag>No</ignore_wantag> <allow_untag>No</allow_untag> <IPADDR>0.0.0.0</IPADDR> <NETMASK>0.0.0.0</NETMASK> <GATEWAY>0.0.0.0</GATEWAY> <PRIMARYDNS>0.0.0.0</PRIMARYDNS> <SECONDARYDNS>0.0.0.0</SECONDARYDNS> <NATENABLE>Disabled</NATENABLE> <MulticastVLan>-1</MulticastVLan> <IPADDR6>0000:0000:0000:0000</IPADDR6> <PREFIX6/> <DEFGATEWAY6>0000:0000:0000:0000</DEFGATEWAY6> <DNSIPv61st>0000:0000:0000:0000</DNSIPv61st> <DNSIPv62nd>0000:0000:0000:0000</DNSIPv62nd> <USERNAME/> <PASSWORD/> <PPPoE_Passthrough>No</PPPoE_Passthrough> <CONNECTION>Connect_Keep_Alive</CONNECTION> <CLOSEIFIDLE>0</CLOSEIFIDLE> <MSS>0</MSS> <ECHO_INTERVAL>60</ECHO_INTERVAL> <ECHO_FAILURE>3</ECHO_FAILURE> <IGMPproxy>No</IGMPproxy> <IGMPproxyQL>No</IGMPproxyQL> <MLDproxy>No</MLDproxy> <PPPv6Mode>1</PPPv6Mode> <PPPv6PD>No</PPPv6PD> <MTU>1492</MTU> <Opt60active>0</Opt60active> <Opt60>ONU_HGW_ANY</Opt60> <Opt61active>1</Opt61active> <Opt61type>255</Opt61type> <Opt61type0id/> <Opt61type1id/> <Opt61type255iaid/> <Opt61type255duidtype>03</Opt61type255duidtype> <Opt125active>0</Opt125active> <Opt125eno/> <Opt125oui/> <Opt125class/> <Opt125model/> <Opt125serialnum/> <DhcpManualDnsActive>0</DhcpManualDnsActive> <DHCPPRIMARYDNS/> <DHCPSECONDARYDNS/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="2"> <ISP>3</ISP> <DEFAULTROUTE>No</DEFAULTROUTE> <Active>No</Active> <IPVERSION>IPv4/IPv6</IPVERSION> <dot1q>No</dot1q> <VLANID>0</VLANID> <DOT1PREMARK>Remark</DOT1PREMARK> <DOT1P>0</DOT1P> <TPID>8100</TPID> <Start_VID>0</Start_VID> <End_VID>0</End_VID> <ignore_wantag>No</ignore_wantag> <allow_untag>No</allow_untag> <IPADDR>0.0.0.0</IPADDR> <NETMASK>0.0.0.0</NETMASK> <GATEWAY>0.0.0.0</GATEWAY> <PRIMARYDNS>0.0.0.0</PRIMARYDNS> <SECONDARYDNS>0.0.0.0</SECONDARYDNS> <NATENABLE>Disabled</NATENABLE> <MulticastVLan>-1</MulticastVLan> <IPADDR6>0000:0000:0000:0000</IPADDR6> <PREFIX6/> <DEFGATEWAY6>0000:0000:0000:0000</DEFGATEWAY6> <DNSIPv61st>0000:0000:0000:0000</DNSIPv61st> <DNSIPv62nd>0000:0000:0000:0000</DNSIPv62nd> <USERNAME/> <PASSWORD/> <PPPoE_Passthrough>No</PPPoE_Passthrough> <CONNECTION>Connect_Keep_Alive</CONNECTION> <CLOSEIFIDLE>0</CLOSEIFIDLE> <MSS>0</MSS> <ECHO_INTERVAL>60</ECHO_INTERVAL> <ECHO_FAILURE>3</ECHO_FAILURE> <IGMPproxy>No</IGMPproxy> <IGMPproxyQL>No</IGMPproxyQL> <MLDproxy>No</MLDproxy> <PPPv6Mode>1</PPPv6Mode> <PPPv6PD>No</PPPv6PD> <MTU>1492</MTU> <Opt60active>0</Opt60active> <Opt60>ONU_HGW_ANY</Opt60> <Opt61active>1</Opt61active> <Opt61type>255</Opt61type> <Opt61type0id/> <Opt61type1id/> <Opt61type255iaid/> <Opt61type255duidtype>03</Opt61type255duidtype> <Opt125active>0</Opt125active> <Opt125eno/> <Opt125oui/> <Opt125class/> <Opt125model/> <Opt125serialnum/> <DhcpManualDnsActive>0</DhcpManualDnsActive> <DHCPPRIMARYDNS/> <DHCPSECONDARYDNS/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="2"> <ISP>3</ISP> <DEFAULTROUTE>No</DEFAULTROUTE> <Active>No</Active> <IPVERSION>IPv4/IPv6</IPVERSION> <dot1q>No</dot1q> <VLANID>0</VLANID> <DOT1PREMARK>Remark</DOT1PREMARK> <DOT1P>0</DOT1P> <TPID>8100</TPID> <Start_VID>0</Start_VID> <End_VID>0</End_VID> <ignore_wantag>No</ignore_wantag> <allow_untag>No</allow_untag> <IPADDR>0.0.0.0</IPADDR> <NETMASK>0.0.0.0</NETMASK> <GATEWAY>0.0.0.0</GATEWAY> <PRIMARYDNS>0.0.0.0</PRIMARYDNS> <SECONDARYDNS>0.0.0.0</SECONDARYDNS> <NATENABLE>Disabled</NATENABLE> <MulticastVLan>-1</MulticastVLan> <IPADDR6>0000:0000:0000:0000</IPADDR6> <PREFIX6/> <DEFGATEWAY6>0000:0000:0000:0000</DEFGATEWAY6> <DNSIPv61st>0000:0000:0000:0000</DNSIPv61st> <DNSIPv62nd>0000:0000:0000:0000</DNSIPv62nd> <USERNAME/> <PASSWORD/> <PPPoE_Passthrough>No</PPPoE_Passthrough> <CONNECTION>Connect_Keep_Alive</CONNECTION> <CLOSEIFIDLE>0</CLOSEIFIDLE> <MSS>0</MSS> <ECHO_INTERVAL>60</ECHO_INTERVAL> <ECHO_FAILURE>3</ECHO_FAILURE> <IGMPproxy>No</IGMPproxy> <IGMPproxyQL>No</IGMPproxyQL> <MLDproxy>No</MLDproxy> <PPPv6Mode>1</PPPv6Mode> <PPPv6PD>No</PPPv6PD> <MTU>1492</MTU> <Opt60active>0</Opt60active> <Opt60>ONU_HGW_ANY</Opt60> <Opt61active>1</Opt61active> <Opt61type>255</Opt61type> <Opt61type0id/> <Opt61type1id/> <Opt61type255iaid/> <Opt61type255duidtype>03</Opt61type255duidtype> <Opt125active>0</Opt125active> <Opt125eno/> <Opt125oui/> <Opt125class/> <Opt125model/> <Opt125serialnum/> <DhcpManualDnsActive>0</DhcpManualDnsActive> <DHCPPRIMARYDNS/> <DHCPSECONDARYDNS/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="2"> <ISP>3</ISP> <DEFAULTROUTE>No</DEFAULTROUTE> <Active>No</Active> <IPVERSION>IPv4/IPv6</IPVERSION> <dot1q>No</dot1q> <VLANID>0</VLANID> <DOT1PREMARK>Remark</DOT1PREMARK> <DOT1P>0</DOT1P> <TPID>8100</TPID> <Start_VID>0</Start_VID> <End_VID>0</End_VID> <ignore_wantag>No</ignore_wantag> <allow_untag>No</allow_untag> <IPADDR>0.0.0.0</IPADDR> <NETMASK>0.0.0.0</NETMASK> <GATEWAY>0.0.0.0</GATEWAY> <PRIMARYDNS>0.0.0.0</PRIMARYDNS> <SECONDARYDNS>0.0.0.0</SECONDARYDNS> <NATENABLE>Disabled</NATENABLE> <MulticastVLan>-1</MulticastVLan> <IPADDR6>0000:0000:0000:0000</IPADDR6> <PREFIX6/> <DEFGATEWAY6>0000:0000:0000:0000</DEFGATEWAY6> <DNSIPv61st>0000:0000:0000:0000</DNSIPv61st> <DNSIPv62nd>0000:0000:0000:0000</DNSIPv62nd> <USERNAME/> <PASSWORD/> <PPPoE_Passthrough>No</PPPoE_Passthrough> <CONNECTION>Connect_Keep_Alive</CONNECTION> <CLOSEIFIDLE>0</CLOSEIFIDLE> <MSS>0</MSS> <ECHO_INTERVAL>60</ECHO_INTERVAL> <ECHO_FAILURE>3</ECHO_FAILURE> <IGMPproxy>No</IGMPproxy> <IGMPproxyQL>No</IGMPproxyQL> <MLDproxy>No</MLDproxy> <PPPv6Mode>1</PPPv6Mode> <PPPv6PD>No</PPPv6PD> <MTU>1492</MTU> <Opt60active>0</Opt60active> <Opt60>ONU_HGW_ANY</Opt60> <Opt61active>1</Opt61active> <Opt61type>255</Opt61type> <Opt61type0id/> <Opt61type1id/> <Opt61type255iaid/> <Opt61type255duidtype>03</Opt61type255duidtype> <Opt125active>0</Opt125active> <Opt125eno/> <Opt125oui/> <Opt125class/> <Opt125model/> <Opt125serialnum/> <DhcpManualDnsActive>0</DhcpManualDnsActive> <DHCPPRIMARYDNS/> <DHCPSECONDARYDNS/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="2"> <ISP>3</ISP> <DEFAULTROUTE>No</DEFAULTROUTE> <Active>No</Active> <IPVERSION>IPv4/IPv6</IPVERSION> <dot1q>No</dot1q> <VLANID>0</VLANID> <DOT1PREMARK>Remark</DOT1PREMARK> <DOT1P>0</DOT1P> <TPID>8100</TPID> <Start_VID>0</Start_VID> <End_VID>0</End_VID> <ignore_wantag>No</ignore_wantag> <allow_untag>No</allow_untag> <IPADDR>0.0.0.0</IPADDR> <NETMASK>0.0.0.0</NETMASK> <GATEWAY>0.0.0.0</GATEWAY> <PRIMARYDNS>0.0.0.0</PRIMARYDNS> <SECONDARYDNS>0.0.0.0</SECONDARYDNS> <NATENABLE>Disabled</NATENABLE> <MulticastVLan>-1</MulticastVLan> <IPADDR6>0000:0000:0000:0000</IPADDR6> <PREFIX6/> <DEFGATEWAY6>0000:0000:0000:0000</DEFGATEWAY6> <DNSIPv61st>0000:0000:0000:0000</DNSIPv61st> <DNSIPv62nd>0000:0000:0000:0000</DNSIPv62nd> <USERNAME/> <PASSWORD/> <PPPoE_Passthrough>No</PPPoE_Passthrough> <CONNECTION>Connect_Keep_Alive</CONNECTION> <CLOSEIFIDLE>0</CLOSEIFIDLE> <MSS>0</MSS> <ECHO_INTERVAL>60</ECHO_INTERVAL> <ECHO_FAILURE>3</ECHO_FAILURE> <IGMPproxy>No</IGMPproxy> <IGMPproxyQL>No</IGMPproxyQL> <MLDproxy>No</MLDproxy> <PPPv6Mode>1</PPPv6Mode> <PPPv6PD>No</PPPv6PD> <MTU>1492</MTU> <Opt60active>0</Opt60active> <Opt60>ONU_HGW_ANY</Opt60> <Opt61active>1</Opt61active> <Opt61type>255</Opt61type> <Opt61type0id/> <Opt61type1id/> <Opt61type255iaid/> <Opt61type255duidtype>03</Opt61type255duidtype> <Opt125active>0</Opt125active> <Opt125eno/> <Opt125oui/> <Opt125class/> <Opt125model/> <Opt125serialnum/> <DhcpManualDnsActive>0</DhcpManualDnsActive> <DHCPPRIMARYDNS/> <DHCPSECONDARYDNS/> </Value> </DictionaryEntry> </WANConnectionsConfigurations> <LANConectionsConfiguration apply="true"> <IPAddress>192.168.55.1</IPAddress> <SubnetMask>255.255.255.0</SubnetMask> <SecondIPAddressEnable>0</SecondIPAddressEnable> <SecondIPAddress>192.168.56.1</SecondIPAddress> <SecondSubnetMask>255.255.255.0</SecondSubnetMask> <IGMPSnoopingEnable>Yes</IGMPSnoopingEnable> <EthernetPort> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="3" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.LANConectionsConfiguration.EthernetPort"> <Mode>Auto/Auto</Mode> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="3"> <Mode>Auto/Auto</Mode> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="3"> <Mode>Auto/Auto</Mode> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="3"> <Mode>Auto/Auto</Mode> </Value> </DictionaryEntry> </EthernetPort> <PortBridge>No</PortBridge> <DHCPEnable>1</DHCPEnable> <DHCPRelayServer>0.0.0.0</DHCPRelayServer> <DHCPEnableMainPool1Start>192.168.55.101</DHCPEnableMainPool1Start> <DHCPEnableMainPool1End>192.168.55.252</DHCPEnableMainPool1End> <DHCPEnableMainPool2Start>192.168.56.101</DHCPEnableMainPool2Start> <DHCPEnableMainPool2End>192.168.56.252</DHCPEnableMainPool2End> <DHCPLeaseTime>3600</DHCPLeaseTime> <DHCPOption> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="4" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.LANConectionsConfiguration.DHCPOption"> <Active>Yes</Active> <Option_Type>01</Option_Type> <Action_Type>03</Action_Type> <Option60_enable>No</Option60_enable> <Option60_VCI/> <Match_Type>01</Match_Type> <Option61_enable>No</Option61_enable> <Option61_type>0</Option61_type> <Option61_type0/> <Option61_type1/> <Option61_IAID/> <Option61_DUID_type>01</Option61_DUID_type> <Option61_IANA/> <Option61_DUID/> <Option125_enable>No</Option125_enable> <Option125_enter/> <Option125_manu/> <Option125_product/> <Option125_model/> <Option125_serial/> <ETH1>1</ETH1> <ETH2>1</ETH2> <ETH3>1</ETH3> <ETH4>1</ETH4> <WLAN1>0</WLAN1> <WLAN2>0</WLAN2> <WLAN3>0</WLAN3> <WLAN4>0</WLAN4> <vid/> <start>192.168.55.110</start> <end>192.168.55.114</end> <wan>0</wan> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="4"> <Active>No</Active> <Option_Type>01</Option_Type> <Action_Type>01</Action_Type> <Option60_enable>No</Option60_enable> <Option60_VCI/> <Match_Type>01</Match_Type> <Option61_enable>No</Option61_enable> <Option61_type>0</Option61_type> <Option61_type0/> <Option61_type1/> <Option61_IAID/> <Option61_DUID_type>01</Option61_DUID_type> <Option61_IANA/> <Option61_DUID/> <Option125_enable>No</Option125_enable> <Option125_enter/> <Option125_manu/> <Option125_product/> <Option125_model/> <Option125_serial/> <ETH1>0</ETH1> <ETH2>0</ETH2> <ETH3>0</ETH3> <ETH4>0</ETH4> <WLAN1>0</WLAN1> <WLAN2>0</WLAN2> <WLAN3>0</WLAN3> <WLAN4>0</WLAN4> <vid/> <start>192.168.55.120</start> <end>192.168.55.124</end> <wan>0</wan> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="4"> <Active>No</Active> <Option_Type>01</Option_Type> <Action_Type>01</Action_Type> <Option60_enable>No</Option60_enable> <Option60_VCI/> <Match_Type>01</Match_Type> <Option61_enable>No</Option61_enable> <Option61_type>0</Option61_type> <Option61_type0/> <Option61_type1/> <Option61_IAID/> <Option61_DUID_type>01</Option61_DUID_type> <Option61_IANA/> <Option61_DUID/> <Option125_enable>No</Option125_enable> <Option125_enter/> <Option125_manu/> <Option125_product/> <Option125_model/> <Option125_serial/> <ETH1>0</ETH1> <ETH2>0</ETH2> <ETH3>0</ETH3> <ETH4>0</ETH4> <WLAN1>0</WLAN1> <WLAN2>0</WLAN2> <WLAN3>0</WLAN3> <WLAN4>0</WLAN4> <vid/> <start>192.168.55.130</start> <end>192.168.55.134</end> <wan>0</wan> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="4"> <Active>No</Active> <Option_Type>01</Option_Type> <Action_Type>01</Action_Type> <Option60_enable>No</Option60_enable> <Option60_VCI/> <Match_Type>01</Match_Type> <Option61_enable>No</Option61_enable> <Option61_type>0</Option61_type> <Option61_type0/> <Option61_type1/> <Option61_IAID/> <Option61_DUID_type>01</Option61_DUID_type> <Option61_IANA/> <Option61_DUID/> <Option125_enable>No</Option125_enable> <Option125_enter/> <Option125_manu/> <Option125_product/> <Option125_model/> <Option125_serial/> <ETH1>0</ETH1> <ETH2>0</ETH2> <ETH3>0</ETH3> <ETH4>0</ETH4> <WLAN1>0</WLAN1> <WLAN2>0</WLAN2> <WLAN3>0</WLAN3> <WLAN4>0</WLAN4> <vid/> <start>192.168.55.140</start> <end>192.168.55.144</end> <wan>0</wan> </Value> </DictionaryEntry> </DHCPOption> <DNSProxy>0</DNSProxy> <PrimaryDNS>8.8.8.8</PrimaryDNS> <SecondaryDNS>8.8.4.4</SecondaryDNS> <DefaultDNSInterface></DefaultDNSInterface> <StaticIPAddress> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="5" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.LANConectionsConfiguration.StaticIPAddress"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="5"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="5"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="5"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="5"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="5"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="5"> <IP>0.0.0.0</IP> <MAC>00:00:00:00:00:00</MAC> </Value> </DictionaryEntry> </StaticIPAddress> <IPv6GlobalAddress>0000:0000:0000:0000</IPv6GlobalAddress> <IPv6GlobalAddressPrefix/> <RADVDEnable>0</RADVDEnable> <RADVDMode>0</RADVDMode> <RADVDManagedAddr>Off</RADVDManagedAddr> <RADVDOtherConfig>Off</RADVDOtherConfig> <RADVDManualPrefix>0000:0000:0000:0000</RADVDManualPrefix> <RADVDManualLength/> <RADVDManualPreferredLifetime/> <RADVDManualValidLifetime/> <DHCPV6Enable>0</DHCPV6Enable> <DHCPV6Mode>0</DHCPV6Mode> <DHCPV6AUTOPrefix>0000:0000:0000:0000</DHCPV6AUTOPrefix> <DHCPV6AUTOLength/> <DHCPV6AUTOPreferredLifetime>3600</DHCPV6AUTOPreferredLifetime> <DHCPV6AUTOValidLifetime/> <DHCPV6AUTOPrimaryDNS>0000:0000:0000:0000</DHCPV6AUTOPrimaryDNS> <DHCPV6AUTOSecondaryDNS>0000:0000:0000:0000</DHCPV6AUTOSecondaryDNS> <LANVLANIDEnable>No</LANVLANIDEnable> <LANVLANIDMin/> <LANVLANIDMax/> <UpMcast> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="6" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.LANConectionsConfiguration.UpMcast"> <Enable>0</Enable> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="6"> <Enable>0</Enable> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="6"> <Enable>0</Enable> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="6"> <Enable>0</Enable> </Value> </DictionaryEntry> </UpMcast> </LANConectionsConfiguration> <DynamicDNSConfiguration apply="false"> <Active>No</Active> <Interface>0</Interface> <Service_Mode>Manually</Service_Mode> <Service_Provider1>www.dyn.com</Service_Provider1> <Service_Provider2/> <MYHOST/> <USERNAME/> <PASSWORD/> <WILDCARD>No</WILDCARD> </DynamicDNSConfiguration> <RouteConfiguration apply="false"> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="7" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.AdvacnedConfiguration.RouteConfiguration"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">16</Key> <Value ClassID="7"> <DST_IP>0.0.0.0</DST_IP> <Sub_mask>255.255.255.255</Sub_mask> <Gateway>0.0.0.0</Gateway> <metric/> <Device>WAN0</Device> <Active>No</Active> </Value> </DictionaryEntry> </RouteConfiguration> <RoutePolicyConfiguration apply="false"> <RouteIP> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="8" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.AdvacnedConfiguration.RouteIP"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">16</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">17</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">18</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">19</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">20</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">21</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">22</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">23</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">24</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">25</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">26</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">27</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">28</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">29</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">30</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">31</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">32</Key> <Value ClassID="8"> <Active>0</Active> <srcMac>00:00:00:00:00:00</srcMac> <SourceIP>0.0.0.0</SourceIP> <SourceMask>0.0.0.0</SourceMask> <DestIP>0.0.0.0</DestIP> <DestMask>0.0.0.0</DestMask> <Ethertype></Ethertype> <Protocol></Protocol> <startSrcPort/> <endSrcPort/> <startDstPort/> <endDstPort/> <PolicyPVC>WAN0</PolicyPVC> </Value> </DictionaryEntry> </RouteIP> <RouteURL> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="9" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.AdvacnedConfiguration.RouteURL"> <Active>0</Active> <DomainName/> <WanConnection>WAN0</WanConnection> <Netmask>0.0.0.0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="9"> <Active>0</Active> <DomainName/> <WanConnection>WAN0</WanConnection> <Netmask>0.0.0.0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="9"> <Active>0</Active> <DomainName/> <WanConnection>WAN0</WanConnection> <Netmask>0.0.0.0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="9"> <Active>0</Active> <DomainName/> <WanConnection>WAN0</WanConnection> <Netmask>0.0.0.0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="9"> <Active>0</Active> <DomainName/> <WanConnection>WAN0</WanConnection> <Netmask>0.0.0.0</Netmask> </Value> </DictionaryEntry> </RouteURL> </RoutePolicyConfiguration> <RatelimitConfiguration apply="false"> <Active>0</Active> <RateLimitGroup> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="10" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.AdvacnedConfiguration.RateLimitGroup"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="10"> <UpPir>0</UpPir> <UpCir>0</UpCir> <DownPir>0</DownPir> <DownCir>0</DownCir> </Value> </DictionaryEntry> </RateLimitGroup> </RatelimitConfiguration> </AdvacnedConfiguration> <FirewallConfiguration> <NATConfiguration apply="false"> <ALGSwitchFTPEnable>off</ALGSwitchFTPEnable> <ALGSwitchSIPEnable>off</ALGSwitchSIPEnable> <ALGSwitchH323Enable>off</ALGSwitchH323Enable> <ALGSwitchRTSPEnable>off</ALGSwitchRTSPEnable> <ALGSwitchPPTPEnable>off</ALGSwitchPPTPEnable> <PortTriggering> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="11" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.FirewallConfiguration.PortTriggering"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="11"> <PortTriggeringApplicationName></PortTriggeringApplicationName> <ApplicationName/> <TriggeringPortStart/> <TriggeringPortEnd/> <TriggeringPortProtocol>TCP/UDP</TriggeringPortProtocol> <OpeningPortStart/> <OpeningPortEnd/> <OpeningPortProtocol>TCP/UDP</OpeningPortProtocol> </Value> </DictionaryEntry> </PortTriggering> <NATConfigs> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="12" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.FirewallConfiguration.NATConfigs"> <DMZEnable>No</DMZEnable> <DMZIPAddress>0.0.0.0</DMZIPAddress> <NATLoopbackActive>No</NATLoopbackActive> <NATLoopbackSIPAddMask/> <NATLoopbackDIPAddress/> <NATLoopbackDstPortMin/> <NATLoopbackDstPortMAX/> <NATLoopbackTranslatedDIPAddress/> <NATLoobackProtocol>TCP/UDP</NATLoobackProtocol> <NATDstPortMin/> <NATDstPortMAX/> <PortFowarding> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="13" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.FirewallConfiguration.PortFowarding"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> </PortFowarding> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="12"> <DMZEnable>No</DMZEnable> <DMZIPAddress>0.0.0.0</DMZIPAddress> <NATLoopbackActive>No</NATLoopbackActive> <NATLoopbackSIPAddMask/> <NATLoopbackDIPAddress/> <NATLoopbackDstPortMin/> <NATLoopbackDstPortMAX/> <NATLoopbackTranslatedDIPAddress/> <NATLoobackProtocol>TCP/UDP</NATLoobackProtocol> <NATDstPortMin/> <NATDstPortMAX/> <PortFowarding> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> </PortFowarding> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="12"> <DMZEnable>No</DMZEnable> <DMZIPAddress>0.0.0.0</DMZIPAddress> <NATLoopbackActive>No</NATLoopbackActive> <NATLoopbackSIPAddMask/> <NATLoopbackDIPAddress/> <NATLoopbackDstPortMin/> <NATLoopbackDstPortMAX/> <NATLoopbackTranslatedDIPAddress/> <NATLoobackProtocol>TCP/UDP</NATLoobackProtocol> <NATDstPortMin/> <NATDstPortMAX/> <PortFowarding> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> </PortFowarding> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="12"> <DMZEnable>No</DMZEnable> <DMZIPAddress>0.0.0.0</DMZIPAddress> <NATLoopbackActive>No</NATLoopbackActive> <NATLoopbackSIPAddMask/> <NATLoopbackDIPAddress/> <NATLoopbackDstPortMin/> <NATLoopbackDstPortMAX/> <NATLoopbackTranslatedDIPAddress/> <NATLoobackProtocol>TCP/UDP</NATLoobackProtocol> <NATDstPortMin/> <NATDstPortMAX/> <PortFowarding> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> </PortFowarding> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="12"> <DMZEnable>No</DMZEnable> <DMZIPAddress>0.0.0.0</DMZIPAddress> <NATLoopbackActive>No</NATLoopbackActive> <NATLoopbackSIPAddMask/> <NATLoopbackDIPAddress/> <NATLoopbackDstPortMin/> <NATLoopbackDstPortMAX/> <NATLoopbackTranslatedDIPAddress/> <NATLoobackProtocol>TCP/UDP</NATLoobackProtocol> <NATDstPortMin/> <NATDstPortMAX/> <PortFowarding> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> </PortFowarding> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="12"> <DMZEnable>No</DMZEnable> <DMZIPAddress>0.0.0.0</DMZIPAddress> <NATLoopbackActive>No</NATLoopbackActive> <NATLoopbackSIPAddMask/> <NATLoopbackDIPAddress/> <NATLoopbackDstPortMin/> <NATLoopbackDstPortMAX/> <NATLoopbackTranslatedDIPAddress/> <NATLoobackProtocol>TCP/UDP</NATLoobackProtocol> <NATDstPortMin/> <NATDstPortMAX/> <PortFowarding> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="13"> <PROTOCOL>TCP</PROTOCOL> <STARTPORT/> <ENDPORT/> <LOCALIP/> <LOCAL_SPORT/> <LOCAL_EPORT/> </Value> </DictionaryEntry> </PortFowarding> </Value> </DictionaryEntry> </NATConfigs> </NATConfiguration> <PortMappingConfiguration apply="false"> <Enable>0</Enable> <PortMappingGroup> <DictionaryEntry> <Key ClassID="1">0</Key> <Value ClassID="14" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.FirewallConfiguration.PortMappingGroup"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="14"> <WAN_P0>0</WAN_P0> <WAN_P1>0</WAN_P1> <WAN_P2>0</WAN_P2> <WAN_P3>0</WAN_P3> <Ethernet_P1>0</Ethernet_P1> <Ethernet_P2>0</Ethernet_P2> <Ethernet_P3>0</Ethernet_P3> <Ethernet_P4>0</Ethernet_P4> <WLan_P1>0</WLan_P1> <WLan_P2>0</WLan_P2> <WLan_P3>0</WLan_P3> <WLan_P4>0</WLan_P4> </Value> </DictionaryEntry> </PortMappingGroup> </PortMappingConfiguration> <UPNPConfiguration apply="false"> <Enable>No</Enable> <AutoConfiguredEnable>No</AutoConfiguredEnable> </UPNPConfiguration> <L2FilterConfiguration apply="false"> <Enable>No</Enable> <RuleType>Black</RuleType> <L2Fileter> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="15" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.FirewallConfiguration.L2Fileter"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">16</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">17</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">18</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">19</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">20</Key> <Value ClassID="15"> <ipfilter_id>No</ipfilter_id> <SrcMacAddr>00:00:00:00:00:00</SrcMacAddr> <DesMacAddr>00:00:00:00:00:00</DesMacAddr> </Value> </DictionaryEntry> </L2Fileter> </L2FilterConfiguration> <L3FilterConfiguration apply="false"> <Enable>No</Enable> <RuleType>Black</RuleType> <L3FilterConfigs> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="16" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.FirewallConfiguration.L3Fileter"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">16</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">17</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">18</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">19</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">20</Key> <Value ClassID="16"> <SrcIPAddr>0.0.0.0</SrcIPAddr> <SrcIPMask>255.255.255.255</SrcIPMask> <SrcPort/> <DesIPAddr>0.0.0.0</DesIPAddr> <DesIPMask>255.255.255.255</DesIPMask> <DesPort/> <Protocol></Protocol> <Active>No</Active> </Value> </DictionaryEntry> </L3FilterConfigs> </L3FilterConfiguration> </FirewallConfiguration> <WifiConfiguration> <APOn apply="false">1</APOn> <Country apply="false">KOREA REPUBLIC</Country> <CountryRegion apply="true">1</CountryRegion> <AutoChannelSelect apply="false">1</AutoChannelSelect> <Channel apply="false">1,6,11</Channel> <ManualChannel apply="false">0</ManualChannel> <BeaconPeriod apply="false">100</BeaconPeriod> <RTSThreshold apply="false">2347</RTSThreshold> <FragThreshold apply="false">1024</FragThreshold> <DtimPeriod apply="false">1</DtimPeriod> <WirelessMode apply="false">9</WirelessMode> <BGProtection apply="false">0</BGProtection> <TxPower apply="false">100</TxPower> <HT_BW apply="false">0</HT_BW> <HT_EXTCHA apply="false">1</HT_EXTCHA> <GI apply="false">0</GI> <IgmpSnEnable apply="false">1</IgmpSnEnable> <SSIDConfiguration apply="false"> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="17" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.WifiConfiguration.SSIDConfiguration"> <EnableSSID>1</EnableSSID> <SSID>GONT_WIFI_XXXX</SSID> <HideSSID>0</HideSSID> <MaxStaNum>0</MaxStaNum> <HT_MCS>33</HT_MCS> <WPSConfMode>7</WPSConfMode> <WPSMode>1</WPSMode> <AuthMode>WPAPSKWPA2PSK</AuthMode> <EncrypType>AES</EncrypType> <WPAPSK/> <RekeyInterval>10</RekeyInterval> <WEPAuthType>Both</WEPAuthType> <Key1Str/> <Key2Str/> <Key3Str/> <Key4Str/> <NoForwardingBTNBSSID>0</NoForwardingBTNBSSID> <UpstreamRateLimit>0</UpstreamRateLimit> <DownstreamRateLimit>0</DownstreamRateLimit> <WMM>1</WMM> <APSDCapable>0</APSDCapable> <RADIUS_Server/> <RADIUS_Port>1812</RADIUS_Port> <RADIUS_Key/> <BAK_RADIUS_Server/> <BAK_RADIUS_Port/> <BAK_RADIUS_Key/> <session_timeout_interval>0</session_timeout_interval> <MACFilterActive>0</MACFilterActive> <MACFilterAction>1</MACFilterAction> <WLan_MAC0/> <WLan_MAC1/> <WLan_MAC2/> <WLan_MAC3/> <WLan_MAC4/> <WLan_MAC5/> <WLan_MAC6/> <WLan_MAC7/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="17"> <EnableSSID>0</EnableSSID> <SSID>GONT_WIFI_XXXX</SSID> <HideSSID>0</HideSSID> <MaxStaNum>0</MaxStaNum> <HT_MCS>33</HT_MCS> <WPSConfMode>7</WPSConfMode> <WPSMode>1</WPSMode> <AuthMode>WPAPSKWPA2PSK</AuthMode> <EncrypType>AES</EncrypType> <WPAPSK/> <RekeyInterval>10</RekeyInterval> <WEPAuthType>Both</WEPAuthType> <Key1Str/> <Key2Str/> <Key3Str/> <Key4Str/> <NoForwardingBTNBSSID>0</NoForwardingBTNBSSID> <UpstreamRateLimit>0</UpstreamRateLimit> <DownstreamRateLimit>0</DownstreamRateLimit> <WMM>1</WMM> <APSDCapable>0</APSDCapable> <RADIUS_Server/> <RADIUS_Port>1812</RADIUS_Port> <RADIUS_Key/> <BAK_RADIUS_Server/> <BAK_RADIUS_Port/> <BAK_RADIUS_Key/> <session_timeout_interval>0</session_timeout_interval> <MACFilterActive>0</MACFilterActive> <MACFilterAction>1</MACFilterAction> <WLan_MAC0/> <WLan_MAC1/> <WLan_MAC2/> <WLan_MAC3/> <WLan_MAC4/> <WLan_MAC5/> <WLan_MAC6/> <WLan_MAC7/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="17"> <EnableSSID>0</EnableSSID> <SSID>GONT_WIFI_XXXX</SSID> <HideSSID>0</HideSSID> <MaxStaNum>0</MaxStaNum> <HT_MCS>33</HT_MCS> <WPSConfMode>7</WPSConfMode> <WPSMode>1</WPSMode> <AuthMode>WPAPSKWPA2PSK</AuthMode> <EncrypType>AES</EncrypType> <WPAPSK/> <RekeyInterval>10</RekeyInterval> <WEPAuthType>Both</WEPAuthType> <Key1Str/> <Key2Str/> <Key3Str/> <Key4Str/> <NoForwardingBTNBSSID>0</NoForwardingBTNBSSID> <UpstreamRateLimit>0</UpstreamRateLimit> <DownstreamRateLimit>0</DownstreamRateLimit> <WMM>1</WMM> <APSDCapable>0</APSDCapable> <RADIUS_Server/> <RADIUS_Port>1812</RADIUS_Port> <RADIUS_Key/> <BAK_RADIUS_Server/> <BAK_RADIUS_Port/> <BAK_RADIUS_Key/> <session_timeout_interval>0</session_timeout_interval> <MACFilterActive>0</MACFilterActive> <MACFilterAction>1</MACFilterAction> <WLan_MAC0/> <WLan_MAC1/> <WLan_MAC2/> <WLan_MAC3/> <WLan_MAC4/> <WLan_MAC5/> <WLan_MAC6/> <WLan_MAC7/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="17"> <EnableSSID>0</EnableSSID> <SSID>GONT_WIFI_XXXX</SSID> <HideSSID>0</HideSSID> <MaxStaNum>0</MaxStaNum> <HT_MCS>33</HT_MCS> <WPSConfMode>7</WPSConfMode> <WPSMode>1</WPSMode> <AuthMode>WPAPSKWPA2PSK</AuthMode> <EncrypType>AES</EncrypType> <WPAPSK/> <RekeyInterval>10</RekeyInterval> <WEPAuthType>Both</WEPAuthType> <Key1Str/> <Key2Str/> <Key3Str/> <Key4Str/> <NoForwardingBTNBSSID>0</NoForwardingBTNBSSID> <UpstreamRateLimit>0</UpstreamRateLimit> <DownstreamRateLimit>0</DownstreamRateLimit> <WMM>1</WMM> <APSDCapable>0</APSDCapable> <RADIUS_Server/> <RADIUS_Port>1812</RADIUS_Port> <RADIUS_Key/> <BAK_RADIUS_Server/> <BAK_RADIUS_Port/> <BAK_RADIUS_Key/> <session_timeout_interval>0</session_timeout_interval> <MACFilterActive>0</MACFilterActive> <MACFilterAction>1</MACFilterAction> <WLan_MAC0/> <WLan_MAC1/> <WLan_MAC2/> <WLan_MAC3/> <WLan_MAC4/> <WLan_MAC5/> <WLan_MAC6/> <WLan_MAC7/> </Value> </DictionaryEntry> </SSIDConfiguration> <WLanSchedulingConfiguration apply="false"> <Active>No</Active> <WLanSchedulingConfigs> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="18" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.WifiConfiguration.WLanSchedulingConfigs"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="18"> <OnOff>1</OnOff> <Day>0</Day> <StartHour>0</StartHour> <StartMin>0</StartMin> <EndHour>0</EndHour> <EndMin>0</EndMin> <Active>No</Active> </Value> </DictionaryEntry> </WLanSchedulingConfigs> </WLanSchedulingConfiguration> <WDSConfiguration apply="false"> <WdsEnable>0</WdsEnable> <WdsEncrypType>TKIP</WdsEncrypType> <WdsKey>12345678</WdsKey> <Wds_MAC0/> <Wds_MAC1/> <Wds_MAC2/> <Wds_MAC3/> </WDSConfiguration> <WMMConfiguration apply="false"> <AccessPoint> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="19" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.WifiConfiguration.AccessPoint"> <APAifsn>4</APAifsn> <APCwmin>3</APCwmin> <APCwmax>4</APCwmax> <APTxop>0</APTxop> <APACM>0</APACM> <AckPolicy>0</AckPolicy> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="19"> <APAifsn>7</APAifsn> <APCwmin>4</APCwmin> <APCwmax>10</APCwmax> <APTxop>0</APTxop> <APACM>0</APACM> <AckPolicy>0</AckPolicy> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="19"> <APAifsn>1</APAifsn> <APCwmin>3</APCwmin> <APCwmax>4</APCwmax> <APTxop>94</APTxop> <APACM>0</APACM> <AckPolicy>0</AckPolicy> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="19"> <APAifsn>1</APAifsn> <APCwmin>2</APCwmin> <APCwmax>3</APCwmax> <APTxop>47</APTxop> <APACM>0</APACM> <AckPolicy>0</AckPolicy> </Value> </DictionaryEntry> </AccessPoint> <Station> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="20" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.WifiConfiguration.Station"> <BSSAifsn>3</BSSAifsn> <BSSCwmin>4</BSSCwmin> <BSSCwmax>10</BSSCwmax> <BSSTxop>0</BSSTxop> <BSSACM>0</BSSACM> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="20"> <BSSAifsn>7</BSSAifsn> <BSSCwmin>4</BSSCwmin> <BSSCwmax>10</BSSCwmax> <BSSTxop>0</BSSTxop> <BSSACM>0</BSSACM> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="20"> <BSSAifsn>2</BSSAifsn> <BSSCwmin>3</BSSCwmin> <BSSCwmax>4</BSSCwmax> <BSSTxop>94</BSSTxop> <BSSACM>0</BSSACM> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="20"> <BSSAifsn>2</BSSAifsn> <BSSCwmin>2</BSSCwmin> <BSSCwmax>3</BSSCwmax> <BSSTxop>47</BSSTxop> <BSSACM>0</BSSACM> </Value> </DictionaryEntry> </Station> </WMMConfiguration> </WifiConfiguration> <MaintenanceConfiguration> <AdministrationConfiguration apply="true"> <AdminPassword>Labirynth1</AdminPassword> <AdminWANAllowHGU>Yes</AdminWANAllowHGU> <AdminLANAllowHGU>No</AdminLANAllowHGU> <UserPassword>1234</UserPassword> <UserWANAllowHGU>No</UserWANAllowHGU> <UserLANAllowHGU>Yes</UserLANAllowHGU> <SessionTimeOut>300</SessionTimeOut> </AdministrationConfiguration> <NTPConfiguration apply="true"> <ENABLE>Yes</ENABLE> <TYPE>0</TYPE> <TZ>GMT+01:00</TZ> <DAYLIGHT>Disable</DAYLIGHT> <SERVER>188.121.31.200</SERVER> <SERVER2/> <SERVER3/> <Year>1999</Year> <Month>12</Month> <Date>31</Date> <Hour>0</Hour> <Min>0</Min> <Sec>0</Sec> <RefreshTime>0</RefreshTime> </NTPConfiguration> <Autoprovision apply="true"> <IntervalTime>11</IntervalTime> <RetryCount>3</RetryCount> </Autoprovision> <WebPort apply="true">8088</WebPort> </MaintenanceConfiguration> <UtilitiesConfiguration> <SNMPConfiguration apply="true"> <Active>Yes</Active> <rocommunity>moico@iusa</rocommunity> <rwcommunity>moico@iusa</rwcommunity> </SNMPConfiguration> <ACLConfiguration apply="true"> <Enable>No</Enable> <ACLIndexList> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="21" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.UtilitiesConfiguration.ACLIndexList"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">16</Key> <Value ClassID="21"> <IPAddress>0.0.0.0</IPAddress> <Netmask>0</Netmask> </Value> </DictionaryEntry> </ACLIndexList> <TelnetAccess>Both</TelnetAccess> <SSHAccess>Both</SSHAccess> <TFTPAccess>LAN</TFTPAccess> <WEBAccess>Both</WEBAccess> <SNMPAccess>LAN</SNMPAccess> <FTPAccess>LAN</FTPAccess> <ICMPAccess>Both</ICMPAccess> </ACLConfiguration> </UtilitiesConfiguration> <VoIPConfiguration> <voip_wan_binding apply="true">0</voip_wan_binding> <voip_pvc apply="true">0</voip_pvc> <pots_uni_rx_gain apply="false">0</pots_uni_rx_gain> <pots_uni_tx_gain apply="false">0</pots_uni_tx_gain> <sip_information_config apply="true"> <sip_agent_proxy_server_address>127.0.0.1</sip_agent_proxy_server_address> <sip_agent_proxy_server_port>5060</sip_agent_proxy_server_port> <sip_agent_outbound_proxy_address_enable>0</sip_agent_outbound_proxy_address_enable> <sip_agent_outbound_proxy_address>127.0.0.1</sip_agent_outbound_proxy_address> <sip_agent_outbound_proxy_port>5060</sip_agent_outbound_proxy_port> <sip_agent_sip_registrar>127.0.0.1</sip_agent_sip_registrar> <sip_agent_sip_registrar_port>5060</sip_agent_sip_registrar_port> <sip_agent_tcp_udp_port_id>5060</sip_agent_tcp_udp_port_id> <rtp_local_port_min>60000</rtp_local_port_min> <sip_agent_sip_reg_exp_time>3600</sip_agent_sip_reg_exp_time> <sip_agent_sip_retry_time>60</sip_agent_sip_retry_time> <sip_agent_primary_sip_dns>8.8.8.8</sip_agent_primary_sip_dns> <sip_agent_secondary_sip_dns>8.8.4.4</sip_agent_secondary_sip_dns> <sip_agent_softswitch>MSSW</sip_agent_softswitch> <sip_agent_region>USA</sip_agent_region> <sip_timer_t1>500</sip_timer_t1> <sip_timer_t2>4000</sip_timer_t2> <sip_timer_td>32000</sip_timer_td> <sip_user_data_configs> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="22" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.VoIPConfiguration.sip_user_data_configs"> <user_data_userpart_aor>0000</user_data_userpart_aor> <user_data_displayname>0000</user_data_displayname> <user_data_use_encryption>0</user_data_use_encryption> <user_data_auth_security_username/> <user_data_auth_security_password/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="22"> <user_data_userpart_aor>0000</user_data_userpart_aor> <user_data_displayname>0000</user_data_displayname> <user_data_use_encryption>0</user_data_use_encryption> <user_data_auth_security_username/> <user_data_auth_security_password/> </Value> </DictionaryEntry> </sip_user_data_configs> </sip_information_config> <media_information_config apply="true"> <media_fax_mode>T30</media_fax_mode> <media_voice_service_echo_cancel>1</media_voice_service_echo_cancel> <media_codec_silence_suppersion>0</media_codec_silence_suppersion> <media_oob_dtmf>0</media_oob_dtmf> <media_jb_mode>1</media_jb_mode> <media_jb_fixed>0</media_jb_fixed> <media_jb_adapt>100</media_jb_adapt> <media_g711a_codec_period>20</media_g711a_codec_period> <media_g711u_codec_period>20</media_g711u_codec_period> <media_g722_codec_period>20</media_g722_codec_period> <media_g726_32codec_period>20</media_g726_32codec_period> <media_g729_codec_period>20</media_g729_codec_period> <media_g723_codec_period>30</media_g723_codec_period> <media_call_waiting_support>1</media_call_waiting_support> <media_codec_list> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="23" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.VoIPConfiguration.media_codec_item"> <media_codec_selection>G.711 A-law</media_codec_selection> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="23"> <media_codec_selection>G.711 U-law</media_codec_selection> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="23"> <media_codec_selection>G.726 - 32</media_codec_selection> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="23"> <media_codec_selection>G.729</media_codec_selection> </Value> </DictionaryEntry> </media_codec_list> </media_information_config> <dial_plan_information_config apply="true"> <sip_end_sharp_token>1</sip_end_sharp_token> <dial_plan_critical_dial_timeout>4000</dial_plan_critical_dial_timeout> <dial_plan_partial_dial_timeout>16000</dial_plan_partial_dial_timeout> <dial_plan_item_list> <DictionaryEntry> <Key ClassID="1">1</Key> <Value ClassID="24" IsNewClass="true" ClassName="Motive.Development.BaseData.H660.VoIPConfiguration.dial_plan_item"> <token_string>X.T</token_string> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">2</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">3</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">4</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">5</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">6</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">7</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">8</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">9</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">10</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">11</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">12</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">13</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">14</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">15</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">16</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">17</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">18</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">19</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> <DictionaryEntry> <Key ClassID="1">20</Key> <Value ClassID="24"> <token_string/> </Value> </DictionaryEntry> </dial_plan_item_list> </dial_plan_information_config> </VoIPConfiguration> <m_ConfigType>H660</m_ConfigType> <m_Version>1.0.48.50</m_Version> <modified_time>2017-03-10 15:16:36</modified_time> </Motive.Development.Common.H660.Configuration_H660> Благодарю. Edited March 10, 2017 by metaltuman Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
olivertwin Posted June 13, 2019 · Report post metaltuman, могли бы объяснить как это работает? Ранее использовали H640g. Закупили один терминал H665 на пробу, но стандартный вариант настройки через omci не работает, траффик дальше pon порта не идет. Как в bridge, так и в NAT. Возможно требуется настраивать с помощью ftp сервера? Вы разобрались с настройкой? Есть какие-то различия в настройке traffic-profile? Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
Andrei Posted September 1, 2023 · Report post Есть OLT Dasan 8240: SysInfo(System Information) Model Name : V8240_SFU Main Memory Size : 1024 MB Flash Memory Size : 8 MB(SPANSION 29GL064N), 32 MB(SPANSION 29GL256N), 32 MB(SPANSION 29GL256N) H/W Revision : DS-A5-340-A1 H/W Address : 00:d0:cb:84:ea:47 RTC Information : DS174X Serial Number : MCNRRQF129A0039 S/W Compatibility : 3, 7 Package Version : RP610p1-005 NOS Version : 6.10p1 B/L Version : 6.26 PLD Version : 0x11 Может у кого-то есть софт по-свежее? Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
gger Posted December 7, 2023 (edited) · Report post Я много раз искал примеры настройки для ОЛТ DASAN, но нигде не находил. Специально зарегистрировался здесь, чтобы написать то, что проверил опытным путем. Надеюсь кому-нибудь пригодится. 1. Автоматическая регистрация ону (онт) на olt dasan gpon-olt 1 olt auto-to-manual enable discover-serial-number start 10 olt service-profile model-name FD511G-X 100 всем онушкам, у которых модель FD511G-X (это сидата, она чудесно работает с дасаном) присваивается профиль 100. если на какие-то онушки нужны отличные профиля, то руками их присваиваете. перезагрузка ону или олт не сбивает эти настройки. 2. более гибкая работа с вланами extended-vlan-tagging-operation 300 create downstream-mode enable untagged-frame 1 treat inner vid 300 cos 0 tpid 0x8100 single-tagged-frame 1 filter inner vid 200 cos any tpid 0x8100 treat inner vid copy-inner cos copy-inner tpid copy-inner single-tagged-frame 2 filter inner vid 100 cos any tpid 0x8100 treat inner vid copy-inner cos copy-inner tpid copy-inner apply traffic-profile ONT#300 create tcont 1 gemport 1/1-1/4 dba-profile inet mapper 1 gemport count 4 bridge 1 ani mapper 1 uni eth 1 extended-vlan-tagging-operation 300 apply вот такая конструкция нетегированный трафф обернет в 300й влан, а вланы 100 и 200 пропустит без изменений. все остальные вланы, !!!не указанные!!! будут отброшены. я пробовал в фильтр воткнуть "vid any", чтобы пропустить все теггированные вланы - не работает. для пропуска всех вланов используем по старинке traffic-profile ONT#TRUNK create tcont 1 gemport 1/1-1/4 dba-profile inet mapper 1 gemport count 4 bridge 1 ani mapper 1 uni eth 1 vlan-operation us-oper keep vlan-operation ds-oper keep apply если в extended-vlan-tagging-operation ничего не указывать, то тогда проходят все вланы. как только вводите настройки для untagged-frame 1 сразу дропает весь трафф с вланами. пробовал баловаться с single-tagged вводил два правила противоречащих друг другу - один и тот же влан сначала пропускал, а другим правилом дропал. тут важна очередность правил - работает по разному. 3. Если кто-то использует сторонние ОНТ, то есть интересный момент. серийник должен содержать первые четыре БУКВЫ. если там содержаться цифры, то после перезагрузки олт эти онушки нужно будет прописывать заново/применять профиль (с учетом пункта №1 не пробовал) коммандой onu fix all . Мы таким онушкам заходили через веб и меняли серийники. Потом перешли на сидату с их HWTC и проблемы не стало. 4. На сидате прошивки 1.2.5 и 1.2.6 резали аплоад. Делали даунгрейд до 1.2.4 Сегодня пришла партия, где даунгрейд прошел, но постоянно горит ЛОСС. пришлось обновляться до актуальных версий. 1.3.8 - работает нормально. (1.2.8 тоже) 5. антиспуффинг на порту олт блочит мак (или ону, не знаю) устройства за онушкой, если этот мак светанулся на другой онушке этого же сфп порта. чтобы сбросить защиту не достаточно в олт обнулить спуфинг, нужно обязательно перезагрузить ОНУ, на которой этот мак первый раз появился!!! только после этого этот мак зафиксируется за другой ОНУ. 6. если нужна связность между ону среди одного сфп порта, то (bridge)# port port-bridge enable 1 и указывем номера портов, где нужен такой функционал. в примере 1й гпон порт. 7. если необходимо заблокировать трафф между 1-4 сфп портами (bridge)# port protected 1-4 8. dhcp snooping service dhcp ip dhcp snooping ip dhcp snooping vlan 1,101-103 ip dhcp snooping trust 5-18 ! ipv6 dhcp snooping ipv6 dhcp snooping vlan 1,101-103 ipv6 dhcp snooping trust 5-18 ! олт просматривает вланы 1, 101-103 и блокирует дхцп сервера с портов, отличных от 5-18 (т.е. с 1 по 4 гпон порты; у меня на руках 4х портовая олт) если влан не указать, то снупинг в этом влане работать не будет. 9. вывод информации в консоль syslog output notice console Edited December 8, 2023 by gger Вставить ник Quote Ответить с цитированием Share this post Link to post Share on other sites More sharing options...
