Ищу спецов в ремонте D-Link коммутаторов Советчики ау

Господа , кто занимается ремонтом длинк свитчей отпишите в личку , есть вопрос по 1210-08р

Share this post


Link to post
Share on other sites

Как внушить ему что он не умеет проверять DC-DC POE преобразователи , что бы не ступарился , т.к они выгорели и повредили под собой печатку , восстановление не возможно.



Думал из него сделать просто свитч без POE.

Share this post


Link to post
Share on other sites

Не вижу смысла в этом , там сложно что то сделать ... ладно , буду искать...

Share this post


Link to post
Share on other sites

Разбирать протокол обмена по шинам, эмулировать на каком-нибудь МК. А дц-дц на 48В можно собрать на коленке и подать на вход этих BCM

Share this post


Link to post
Share on other sites

или посмотреть, как именно софт определяет платформу и внушить софту, что это свичка без буквы Р в названии.

Share this post


Link to post
Share on other sites

Вот это и надо мне. А так как я в софте 0 может кто решит помоч. Через консоль есть Cfe меню .

Share this post


Link to post
Share on other sites

Попробовать прошить во флешку дамп от 1210-08 без P, как вариант



Может резистором каким-то опционным. Но без свича без P его не найти....

Share this post


Link to post
Share on other sites

Попробовать прошить во флешку дамп от 1210-08 без P, как вариант



Может резистором каким-то опционным. Но без свича без P его не найти....

шить нечем к сожалению , только спи могу....

вот может и так , есть какие резюки на проце которые отвечают за эту опцию , или же это только программно .

Share this post


Link to post
Share on other sites

CFE-NTSW-5.1.2 for BCM953001R (32bit,SP,BE,MIPS)

Build Date: ▒T 1▒▒ 4 17:06:32 CST 2012 (parislee@Hades)

Copyright © 2000-2008 Broadcom Corporation.



Initializing Arena.

Initializing Devices.

CPU type 0x19749: 400MHz

Total memory: 0x4000000 bytes (64MB)



Total memory used by CFE: 0x83E89000 - 0x83FFF660 (1533536)

Initialized Data: 0x83EFA0AC - 0x83EFC640 (9620)

BSS Area: 0x83EFC640 - 0x83EFD660 (4128)

Local Heap: 0x83EFD660 - 0x83FFD660 (1048576)

Stack Area: 0x83FFD660 - 0x83FFF660 (8192)

Text (code) segment: 0x83E89000 - 0x83EF94CF (459983)

Boot area (physical): 0x03E48000 - 0x03E88000

Relocation Factor: I:E4289000 - D:E4289000



PP_init for CAMEO DES-1210-08P(instead of EEPROM)



Hit any key enter boot loader, or operation code will start in 3 seconds.



Verifying Checksum ...

BOOT:...OK

OS:...OK

FS:...OK

OS/FS Version:...OK

Loader:elf Filesys:raw Dev:flash0.os File:vmlinux.gz Options:(null)

Loading: 0x80001000/4367764 0x8042b594/212460 Entry at 0x80406000

Starting program at 0x80406000



Linux version 2.6.21.7 (george_huang@Centos-5-NewServer) (gcc version 4.0.0 (DENX ELDK 4.1 4.0.0)) #1 PREEMPT Fri Sep 7 16:30:13 CST 2012

CPU revision is: 00019749

Determined physical RAM map:

memory: 03e88e00 @ 00000000 (usable)

Built 1 zonelists. Total pages: 15883

Kernel command line: init=/sbin/init console=ttyS0,9600 root=/dev/mtdblock3 rootfstype=squashfs ip=10.90.90.90:10.0.0.0:0.0.0.0:255.0.0.0:::off ethaddr=90-94-e4-59-ce-9a csb=0x02240D73 cso=0x0F961D36 csf=0x3BC465D9

Primary instruction cache 32kB, physically tagged, 4-way, linesize 32 bytes.

Primary data cache 32kB, 4-way, linesize 32 bytes.

Synthesized TLB refill handler (20 instructions).

Synthesized TLB load handler fastpath (32 instructions).

Synthesized TLB store handler fastpath (32 instructions).

Synthesized TLB modify handler fastpath (31 instructions).

PID hash table entries: 256 (order: 8, 1024 bytes)

CPU: BCM5300 rev 1 at 400 MHz

Using 200.000 MHz high precision timer.

Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)

Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)

Memory: 58920k/64032k available (2990k kernel code, 5048k reserved, 1122k data, 152k init, 0k highmem)

Mount-cache hash table entries: 512

NET: Registered protocol family 16

PCI: Initializing host for 0

PCI: Initializing host for 1

registering PCI controller with io_map_base unset

registering PCI controller with io_map_base unset

SCSI subsystem initialized

NET: Registered protocol family 2

Time: MIPS clocksource has been installed.

IP route cache hash table entries: 1024 (order: 0, 4096 bytes)

TCP established hash table entries: 2048 (order: 2, 16384 bytes)

TCP bind hash table entries: 2048 (order: 1, 8192 bytes)

TCP: Hash tables configured (established 2048 bind 2048)

TCP reno registered

squashfs: version 3.4 (2008/08/26) Phillip Lougher

JFFS2 version 2.2. (NAND) (SUMMARY) © 2001-2006 Red Hat, Inc.

JFFS2: default compression mode: priority

io scheduler noop registered

io scheduler anticipatory registered

io scheduler deadline registered

io scheduler cfq registered (default)

PCI: Fixing up bridge

PCI: Fixing up bridge

PCI: Fixing up bridge

PCI: Fixing up bridge

Serial: 8250/16550 driver $Revision: 1.1.1.1 $ 2 ports, IRQ sharing disabled

serial8250: ttyS0 at MMIO 0x0 (irq = 8) is a 16550A

serial8250: ttyS1 at MMIO 0x0 (irq = 8) is a 16550A

RAMDISK driver initialized: 16 RAM disks of 4096K size 1024 blocksize

netconsole: not configured, aborting

Physically mapped flash: Found 1 x16 devices at 0x0 in 16-bit bank

Amd/Fujitsu Extended Query Table at 0x0040

Physically mapped flash: CFI does not contain boot bank location. Assuming top.

number of CFI chips: 1

cfi_cmdset_0002: Disabling erase-suspend-program due to code brokenness.

Flash device: 0x1000000 at 0x20000000

No valid flash partition table found - using default mapping

Creating 5 MTD partitions on "Physically mapped flash":

0x00000000-0x00080000 : "boot"

0x00080000-0x00100000 : "nvram"

0x00100000-0x00300000 : "os"

0x00300000-0x00e00000 : "rootfs"

0x00e00000-0x01000000 : "userfs"

md: linear personality registered for level -1

md: raid0 personality registered for level 0

md: raid1 personality registered for level 1

md: raid10 personality registered for level 10

md: multipath personality registered for level -4

md: faulty personality registered for level -5

device-mapper: ioctl: 4.11.0-ioctl (2006-10-12) initialised: dm-devel@redhat.com

TCP cubic registered

NET: Registered protocol family 1

NET: Registered protocol family 17

IP-Config: No network devices available.

md: Autodetecting RAID arrays.

md: autorun ...

md: ... autorun DONE.

VFS: Mounted root (squashfs filesystem) readonly.

Freeing unused kernel memory: 152k freed

Algorithmics/MIPS FPU Emulator v1.5



---------------- Segmentation Fault Debugger - Stack Trace ---------------



Enable

/lib/libCameoMIPSBacktrace.so



--------------------------------------------------------------------------------

linux_kernel_bde: module license 'Proprietary' taints kernel.

linux-kernel-bde (626): found robo device with 0:0143:bf15:0000:00

Broadcom Command Monitor: Copyright © 1998-2008 Broadcom Corporation

Release: sdk-xgs-robo-5.7.0 built 20120907 (Fri Sep 7 16:36:46 2012)

From george_huang@Centos-5-NewServer:/home/george_huang/ws3/ws3-des1210-08p/sdk/sdk-xgs-robo-5.7.0

Platform: KEYSTONE

OS: Unix (Posix)

WARNING: bcm common command iss not alphabetized

SPI unit 0: Dev 0xbf10, Rev 0x05, Chip BCM53242_B1, Driver BCM53242_A0

PCI unit 1: Dev 0x4715, Rev 0x01, Chip BCM53000_A0, Driver BCM53000_A0

PCI unit 2: Dev 0x4715, Rev 0x01, Chip BCM53000_A0, Driver BCM53000_A0

SPI device BCM53242_B1 attached as unit 0.

Broadcom BCM53000 10/100/1000 Mbps Ethernet Controller 2002.9.27.0

Broadcom BCM53000 10/100/1000 Mbps Ethernet Controller 2002.9.27.0

Warning: Unit 0 Port ge0: Failed to set initial mode: Feature unavailable

Warning: Unit 0 Port ge1: Failed to set initial mode: Feature unavailable

WATCHDOG TIMER ENABLED!!

[PF_MSG]:NOT TO DO Cameo_AclInit() in CfaNpUpdateMapTable

[PF_MSG]:NOT TO DO Cameo_CfaNpCreateFPGroups() in CfaNpUpdateMapTable

[PF_MSG]:NOT TO DO PnacHwCreatePnacFilters() in CfaNpUpdateMapTable

PoE Module read Error!

PoE Module read Error!

CON1_Read(): Failed... RetryFlag = 1

PoE Module read Error!

CON1_Read(): Failed... RetryFlag = 2

PoE Module read Error!

CON1_Read(): Failed... RetryFlag = 3

PoE Module read Error!

CON1_Read(): Failed... RetryFlag = 4

PoE Module read Error!

CON1_Read(): Failed... RetryFlag = 5



Вот лог через консоль.





вот меню CFE

CFE> help

Available commands:



@ Boot VxWorks

c Change the VxWorks boot string

p Parse and display VxWorks boot string

M Show or set Ethernet MAC address

ptable save Save flash partition table.

ptable clear Clear flash partition table.

ptable del Delete flash partition table.

ptable add Delete flash partition.

ptable show Show flash partition table.

phy set Set the value of a PHY register

phy dump Dump the registers on the PHY

socdiag Enter SOCDIAG mode

et Broadcom Ethernet utility.

ledtest POE LED Diagnostic TEST

poe poe Diagnostic

gpio gpio Diagnostic

i2c i2c bus Diagnostic

reg ROBO Switch Register Get/Set utility.

reset Reset the system.

clock Change CPU/PCI clock (clock <cpu> <pci>)

envdev set environment device

test timer Test the timer

nvram import Import nvram variables from standard environment.

nvram erase Delete all nvram variables.

nvram commit Commit nvram variable bindings.

nvram show Show all nvram variables.

nvram unset Delete an nvram variable.

nvram set Set the value of an nvram variable.

nvram get Get the value of an nvram variable.

set date Set current date

set time Set current time

set console Change the active console device

sleep Wait for some period of time

loop Loop a command

flash Update a flash memory device

memtest Test memory.

f Fill contents of memory.

e Modify contents of memory.

d Dump memory.

u Disassemble instructions.

reserve Mark a region of memory as reserved

bootm Calculate application image from memory.

autoboot Automatic system bootstrap.

batch Load a batch file into memory and execute it

go Start a previously loaded program.

boot Load an executable file into memory and execute it

load Load an executable file into memory without executing it

save Save a region of memory to a remote file via TFTP

ttcp TCP test command.

tcp constest tcp console test.

tcp listen port listener.

tcp connect TCP connection test.

rlogin mini rlogin client.

ping Ping a remote IP host.

arp Display or modify the ARP Table

ifconfig Configure the Ethernet interface

show time Display current time according to RTC

show config Dump CP0 configuration registers

show heap Display information about CFE's heap

show memory Display the system physical memory map.

show devices Display information about the installed devices.

sizeenv Get environment space size information.

clearenv Clear environment variables.

unsetenv Delete an environment variable.

printenv Display the environment variables

setenv Set an environment variable.

help Obtain help for CFE commands



For more information about a command, enter 'help command-name'

---- Command Status = 0 ----

Share this post


Link to post
Share on other sites

вот может и так , есть какие резюки на проце которые отвечают за эту опцию , или же это только программно



Вероятноть резюка - доли процента.

Или какая нибудь 24с02 с МАКом и конфигурацией платформы или в загрузчике/флешке какие нибудь флаги.

Share this post


Link to post
Share on other sites

24cxx только на POE преобразователей .

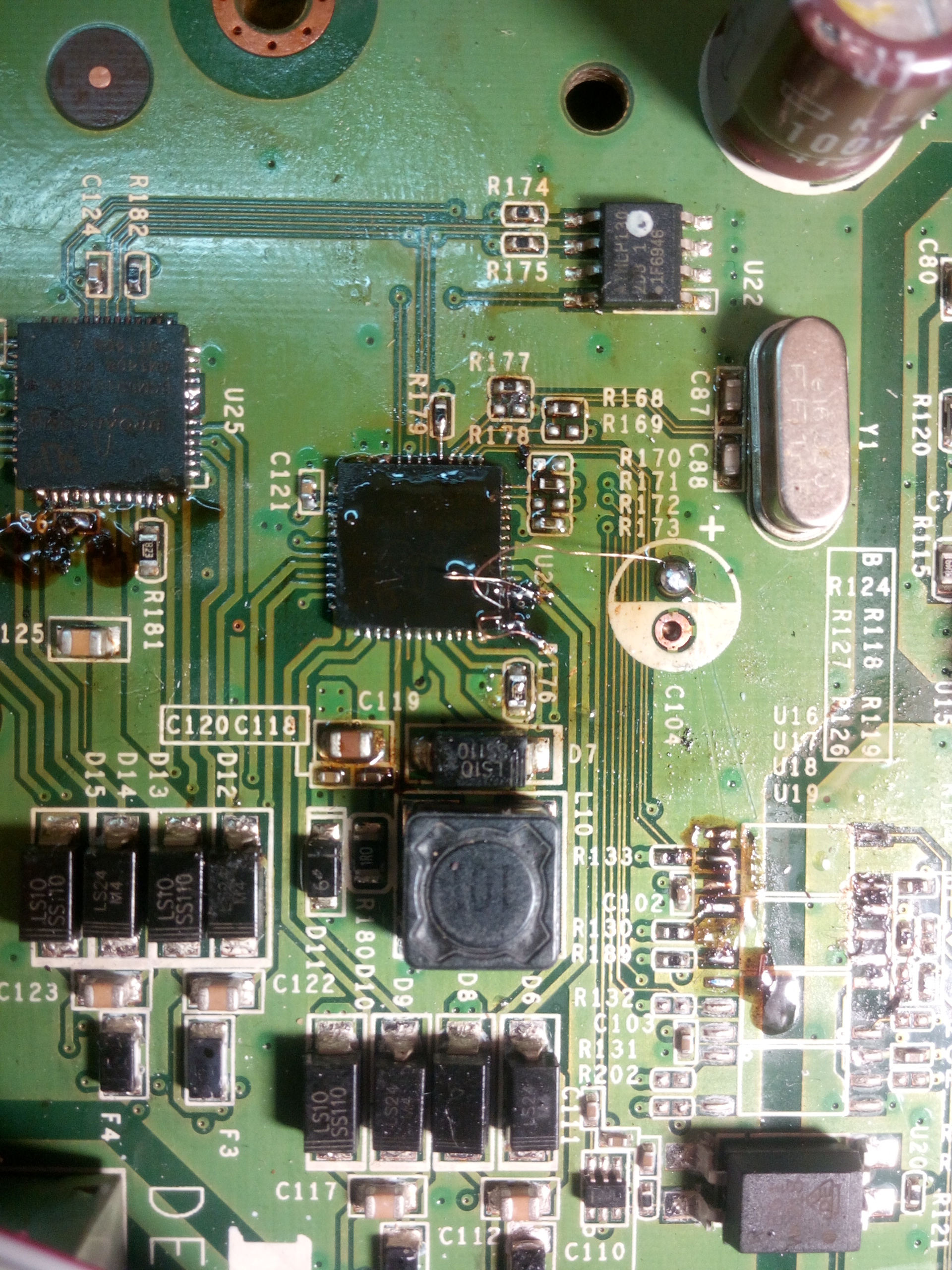

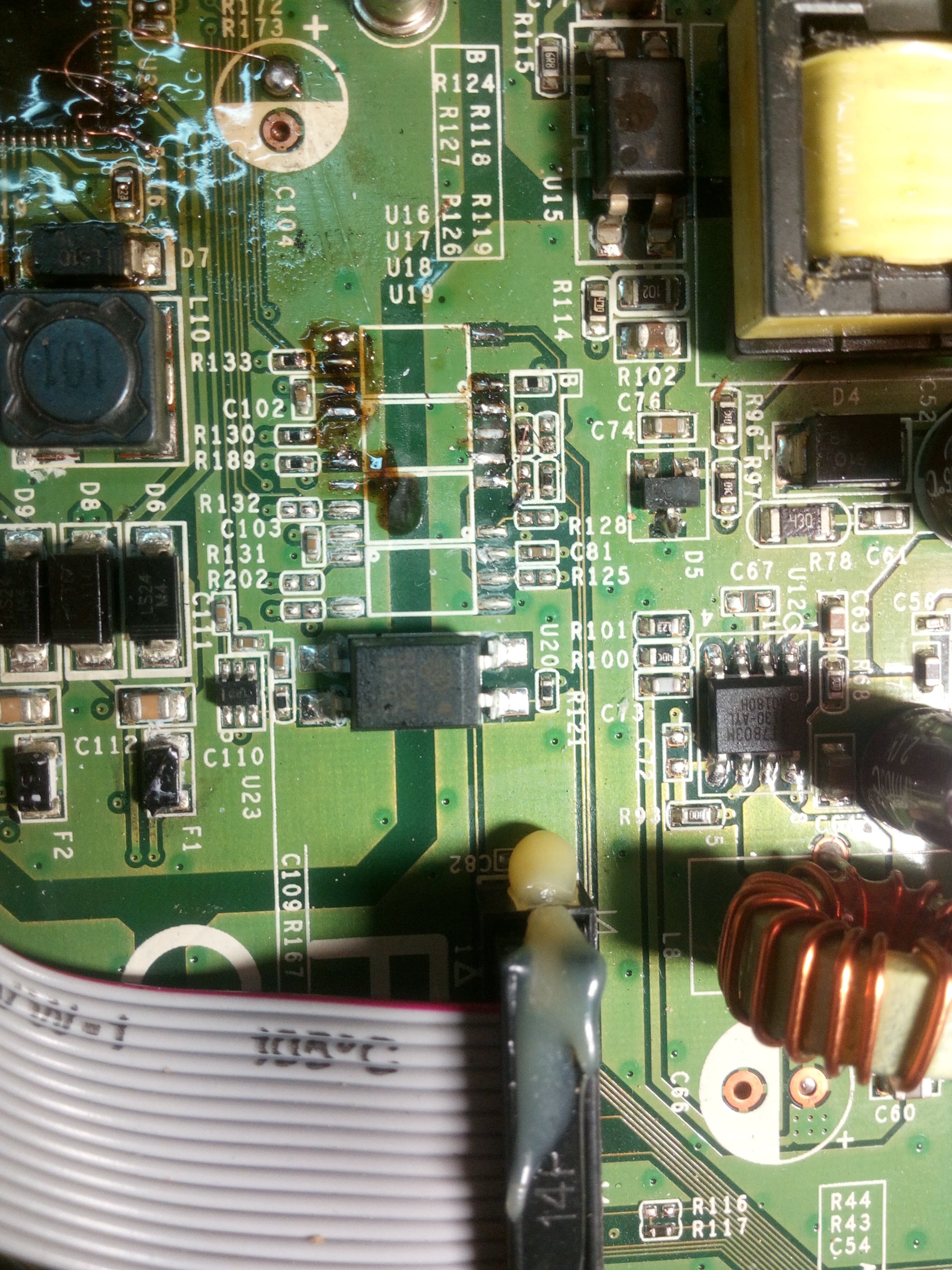

Фото покажу сейчас . Микросхемы запаял , востановил то место где прогорело , но толку нет. Снял оптроны - с проца сигнал улетает на оптрон.



Вот фото. оптопары на время снял.

post-70594-009949900 1477504252_thumb.jpg

post-70594-003089800 1477504289_thumb.jpg

Share this post


Link to post
Share on other sites

CFE> nvram show

baudrate=9600

et0macaddr=90-94-e4-59-ce-9a

Board_Version=1

sdram_config=0x0000

sdram_refresh=0x0000

sdram_init=0x0000

hw_version=A1

sdram_ncdl=0x00000000

Serial_Number=QBF61C7000402

Boot_Version=1.00.005

---- Command Status = 0 ----

CFE> printenv

Variable Name Value

-------------------- --------------------------------------------------

BOOT_CONSOLE uart0

STARTUP boot -elf -z flash0.os:vmlinux.gz

LINUX_CMDLINE init=/sbin/init console=ttyS0,9600 root=/dev/mtdblock3 rootfstype=squashfs

NET_DEVICE eth0

NET_IPADDR 10.90.90.90

NET_NETMASK 255.0.0.0

NET_GATEWAY 0.0.0.0

NET_NAMESERVER 10.0.0.0

vxboot (0,1): u=admin

et0phyaddr 30

ETH0_HWADDR 90-94-e4-59-ce-9a

et0mdcport 0

boardtype bcm953001r

Serial_Number QBF61C7000402

Board_Version 1

hw_version A1

Boot_Version 1.00.005

baudrate 9600

CFE_VERSION 5.1.2

CFE_BOARDNAME BCM953001R

CFE_MEMORYSIZE 64

---- Command Status = 0 ----





и еще 6 порт подпален, диод активности и 100 светятся.

Share this post


Link to post
Share on other sites

Я именно такое не колупал. Для начала, фото платы крупно.



фото могут только по частям , что бы видно элементы

Share this post


Link to post
Share on other sites

впаял оптроны , выпаял ееprom что на dc-dc идет . теперь картина поменялась .

CFE-NTSW-5.1.2 for BCM953001R (32bit,SP,BE,MIPS)

Build Date: ▒T 1▒▒ 4 17:06:32 CST 2012 (parislee@Hades)

Copyright © 2000-2008 Broadcom Corporation.



Initializing Arena.

Initializing Devices.

CPU type 0x19749: 400MHz

Total memory: 0x4000000 bytes (64MB)



Total memory used by CFE: 0x83E89000 - 0x83FFF660 (1533536)

Initialized Data: 0x83EFA0AC - 0x83EFC640 (9620)

BSS Area: 0x83EFC640 - 0x83EFD660 (4128)

Local Heap: 0x83EFD660 - 0x83FFD660 (1048576)

Stack Area: 0x83FFD660 - 0x83FFF660 (8192)

Text (code) segment: 0x83E89000 - 0x83EF94CF (459983)

Boot area (physical): 0x03E48000 - 0x03E88000

Relocation Factor: I:E4289000 - D:E4289000



PP_init for CAMEO DES-1210-08P(instead of EEPROM)



Hit any key enter boot loader, or operation code will start in 3 seconds.







CFE-NTSW-5.1.2 for BCM953001R (32bit,SP,BE,MIPS)

Build Date: ▒T 1▒▒ 4 17:06:32 CST 2012 (parislee@Hades)

Copyright © 2000-2008 Broadcom Corporation.



Initializing Arena.

Initializing Devices.

CPU type 0x19749: 400MHz

Total memory: 0x4000000 bytes (64MB)



Total memory used by CFE: 0x83E89000 - 0x83FFF660 (1533536)

Initialized Data: 0x83EFA0AC - 0x83EFC640 (9620)

BSS Area: 0x83EFC640 - 0x83EFD660 (4128)

Local Heap: 0x83EFD660 - 0x83FFD660 (1048576)

Stack Area: 0x83FFD660 - 0x83FFF660 (8192)

Text (code) segment: 0x83E89000 - 0x83EF94CF (459983)

Boot area (physical): 0x03E48000 - 0x03E88000

Relocation Factor: I:E4289000 - D:E4289000



PP_init for CAMEO DES-1210-08P(instead of EEPROM)



Hit any key enter boot loader, or operation code will start in 3 seconds.



Verifying Checksum ...

BOOT:...OK

OS:...OK

FS:...OK

OS/FS Version:...OK

Loader:elf Filesys:raw Dev:flash0.os File:vmlinux.gz Options:(null)

Loading: 0x80001000/4367764 0x8042b594/212460 Entry at 0x80406000

Starting program at 0x80406000



Linux version 2.6.21.7 (george_huang@Centos-5-NewServer) (gcc version 4.0.0 (DENX ELDK 4.1 4.0.0)) #1 PREEMPT Fri Sep 7 16:30:13 CST 2012

CPU revision is: 00019749

Determined physical RAM map:

memory: 03e88e00 @ 00000000 (usable)

Built 1 zonelists. Total pages: 15883

Kernel command line: init=/sbin/init console=ttyS0,9600 root=/dev/mtdblock3 rootfstype=squashfs ip=10.90.90.90:10.0.0.0:0.0.0.0:255.0.0.0:::off ethaddr=90-94-e4-59-ce-9a csb=0x02240D73 cso=0x0F961D36 csf=0x3BC465D9

Primary instruction cache 32kB, physically tagged, 4-way, linesize 32 bytes.

Primary data cache 32kB, 4-way, linesize 32 bytes.

Synthesized TLB refill handler (20 instructions).

Synthesized TLB load handler fastpath (32 instructions).

Synthesized TLB store handler fastpath (32 instructions).

Synthesized TLB modify handler fastpath (31 instructions).

PID hash table entries: 256 (order: 8, 1024 bytes)

CPU: BCM5300 rev 1 at 400 MHz

Using 200.000 MHz high precision timer.

Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)

Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)

Memory: 58920k/64032k available (2990k kernel code, 5048k reserved, 1122k data, 152k init, 0k highmem)

Mount-cache hash table entries: 512

NET: Registered protocol family 16

PCI: Initializing host for 0

PCI: Initializing host for 1

registering PCI controller with io_map_base unset

registering PCI controller with io_map_base unset

SCSI subsystem initialized

NET: Registered protocol family 2

Time: MIPS clocksource has been installed.

IP route cache hash table entries: 1024 (order: 0, 4096 bytes)

TCP established hash table entries: 2048 (order: 2, 16384 bytes)

TCP bind hash table entries: 2048 (order: 1, 8192 bytes)

TCP: Hash tables configured (established 2048 bind 2048)

TCP reno registered

squashfs: version 3.4 (2008/08/26) Phillip Lougher

JFFS2 version 2.2. (NAND) (SUMMARY) © 2001-2006 Red Hat, Inc.

JFFS2: default compression mode: priority

io scheduler noop registered

io scheduler anticipatory registered

io scheduler deadline registered

io scheduler cfq registered (default)

PCI: Fixing up bridge

PCI: Fixing up bridge

PCI: Fixing up bridge

PCI: Fixing up bridge

Serial: 8250/16550 driver $Revision: 1.1.1.1 $ 2 ports, IRQ sharing disabled

serial8250: ttyS0 at MMIO 0x0 (irq = 8) is a 16550A

serial8250: ttyS1 at MMIO 0x0 (irq = 8) is a 16550A

RAMDISK driver initialized: 16 RAM disks of 4096K size 1024 blocksize

netconsole: not configured, aborting

Physically mapped flash: Found 1 x16 devices at 0x0 in 16-bit bank

Amd/Fujitsu Extended Query Table at 0x0040

Physically mapped flash: CFI does not contain boot bank location. Assuming top.

number of CFI chips: 1

cfi_cmdset_0002: Disabling erase-suspend-program due to code brokenness.

Flash device: 0x1000000 at 0x20000000

No valid flash partition table found - using default mapping

Creating 5 MTD partitions on "Physically mapped flash":

0x00000000-0x00080000 : "boot"

0x00080000-0x00100000 : "nvram"

0x00100000-0x00300000 : "os"

0x00300000-0x00e00000 : "rootfs"

0x00e00000-0x01000000 : "userfs"

md: linear personality registered for level -1

md: raid0 personality registered for level 0

md: raid1 personality registered for level 1

md: raid10 personality registered for level 10

md: multipath personality registered for level -4

md: faulty personality registered for level -5

device-mapper: ioctl: 4.11.0-ioctl (2006-10-12) initialised: dm-devel@redhat.com

TCP cubic registered

NET: Registered protocol family 1

NET: Registered protocol family 17

IP-Config: No network devices available.

md: Autodetecting RAID arrays.

md: autorun ...

md: ... autorun DONE.

VFS: Mounted root (squashfs filesystem) readonly.

Freeing unused kernel memory: 152k freed

Algorithmics/MIPS FPU Emulator v1.5



---------------- Segmentation Fault Debugger - Stack Trace ---------------



Enable

/lib/libCameoMIPSBacktrace.so



--------------------------------------------------------------------------------



[ERROR]: Failed to open NVRAM



Writing /mnt/issnvram.txt with default values



linux_kernel_bde: module license 'Proprietary' taints kernel.

linux-kernel-bde (628): found robo device with 0:0143:bf15:0000:00

Broadcom Command Monitor: Copyright © 1998-2008 Broadcom Corporation

Release: sdk-xgs-robo-5.7.0 built 20120907 (Fri Sep 7 16:36:46 2012)

From george_huang@Centos-5-NewServer:/home/george_huang/ws3/ws3-des1210-08p/sdk/sdk-xgs-robo-5.7.0

Platform: KEYSTONE

OS: Unix (Posix)

WARNING: bcm common command iss not alphabetized

SPI unit 0: Dev 0xbf10, Rev 0x05, Chip BCM53242_B1, Driver BCM53242_A0

PCI unit 1: Dev 0x4715, Rev 0x01, Chip BCM53000_A0, Driver BCM53000_A0

PCI unit 2: Dev 0x4715, Rev 0x01, Chip BCM53000_A0, Driver BCM53000_A0

SPI device BCM53242_B1 attached as unit 0.

Broadcom BCM53000 10/100/1000 Mbps Ethernet Controller 2002.9.27.0

Broadcom BCM53000 10/100/1000 Mbps Ethernet Controller 2002.9.27.0

Warning: Unit 0 Port ge0: Failed to set initial mode: Feature unavailable

Warning: Unit 0 Port ge1: Failed to set initial mode: Feature unavailable

WATCHDOG TIMER ENABLED!!

[PF_MSG]:NOT TO DO Cameo_AclInit() in CfaNpUpdateMapTable

[PF_MSG]:NOT TO DO Cameo_CfaNpCreateFPGroups() in CfaNpUpdateMapTable

[PF_MSG]:NOT TO DO PnacHwCreatePnacFilters() in CfaNpUpdateMapTable

[PF_MSG]:NOT TO DO CfaNpFPRegisterProtocol(7) in CfaNpRegisterProtocol

[PF_MSG]:NOT TO DO CfaNpFPRegisterProtocol(8) in CfaNpRegisterProtocol

[PF_MSG]:NOT TO DO CfaNpFPRegisterProtocol(9) in CfaNpRegisterProtocol

[PF_MSG]:NOT TO DO CfaNpFPRegisterProtocol(6) in CfaNpRegisterProtocol

[PF_MSG]:NOT TO DO CfaNpFPRegisterProtocol(28) in CfaNpRegisterProtocol

[PF_MSG]: FsNpIpInit() called from IP_TSK_Initialize_Protocol

SBPDBG: Bypass bcmx_vlan_port_remove, [FsVlanHwAddVlanEntry]:1306

Please wait a moment....

rm: /mnt/mnt: is a directory

[PF_MSG]:NOT TO DO NpCfaCreateSwitchMacFilter() in CfaNpEnableUnit

[PF_MSG]:NOT TO DO Cameo_NpCfaCreateSwitchMacFP() in CfaNpEnableUnit

[PF_MSG]:NOT TO DO NpCfaCreateSwitchMacFP()in CfaNpEnableUnit



WARN[NP]; need review for SDK570, [FsNpCfaSetDlfStatus]:3867



WARN[NP]; need review for SDK570, [CfaNpEnableUnit]:1393

[PF_MSG]: Need TO DO : GVRP Rule Create in CfaMain

WATCHDOG TIMER DISABLED!!









DES-1210-08P login:





доходит до логина , пару сек и ресет и все по новой.



значит возможно надо править епромку ?

Edited by belokuriha

Share this post


Link to post
Share on other sites

nvram erase Delete all nvram variables



нет все так же.

Share this post


Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.
