VLAN RB260GSP непонятная реализация

Первый раз столкнулся с прокидыванием VLAN на коммутатор RB260GSP, как что не щелкал, добился только, что коммутатор пинговался с 1 и 99 вилана.



На том же коммутаторе SNR, делов на 2 минуты.

создаем VLAN

порт в который воткнут Микротик в Trunk

порт который должен увидеть в access mode



и всё работает :)



Задача:

1. порт SFP trunk, нужно сделать прозрачным 1 и 99 VLAN.

2. порт #3 VLAN99 access

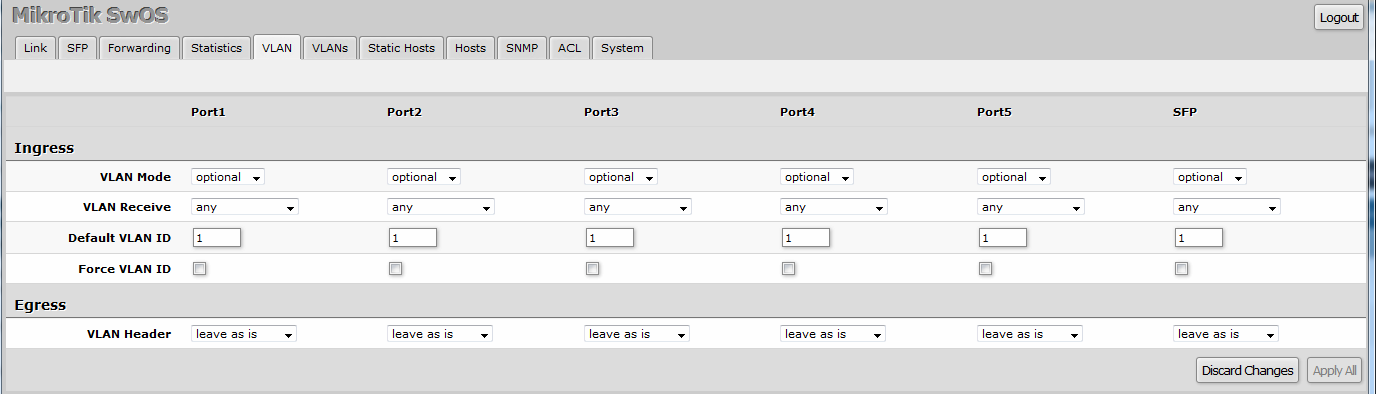

post-44541-068171700 1464586020_thumb.png

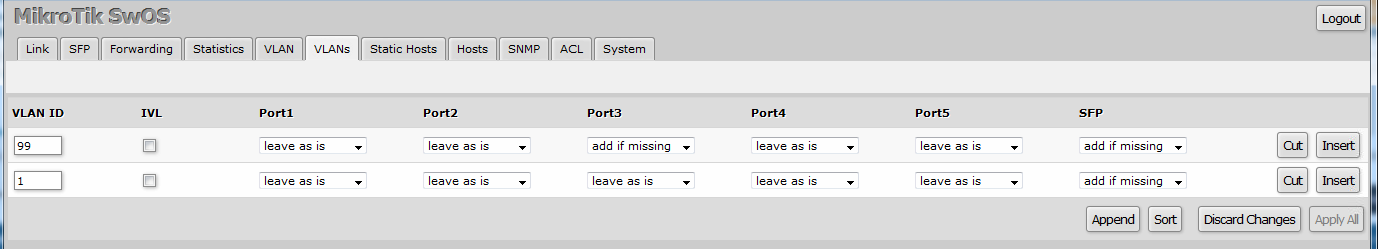

post-44541-043276100 1464586021_thumb.png



Share this post


Link to post
Share on other sites

BAHbKA, default vlan ID для третьего порта поставьте 99, на том же порту во VLANs leave as is для 1 vlan и always strip для 99 vlan. На SFP порту все vlanы leave as is

Share this post


Link to post
Share on other sites

Всем привет!

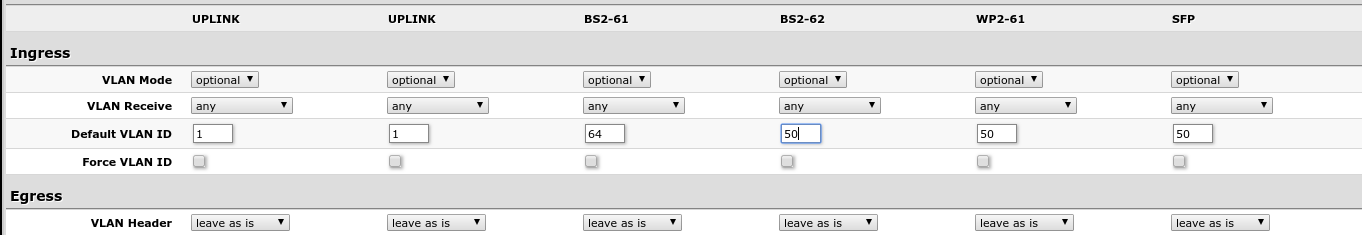

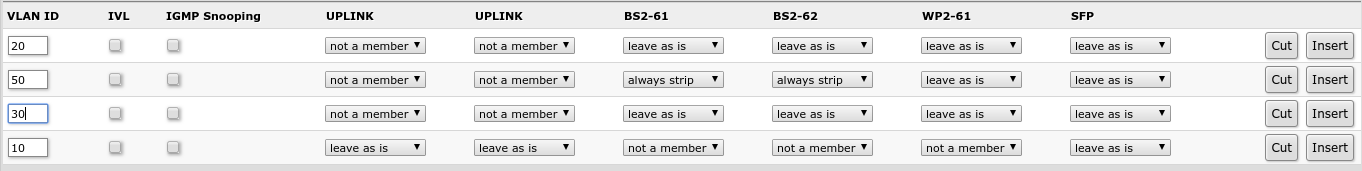

Имеется схожая проблема с untagget-vlan, почему-то на все порты идет 1 нетегированный, а не 50.



SFP: Заходят все тегированные;

1 PORT: только 10 TAG

2 PORT: только 10 TAG

3 PORT: 20 TAG, 30 TAG, 50 untag

4 PORT: 20 TAG, 30 TAG, 50 untag

5 PORT: 20 TAG, 30 TAG, 50 untag



Как на 3 и 4 порт пустить 50 нетегированный?
