Коллеги, нужна Ваша помощь.

Суть вопроса: есть два провайдера, которые дают серые IP (допустим, 172.16.0.0/30 & 10.1.2.0/30), у провайдера 1, есть ресурс который болтается на внешнем ИП, но доступен ИСКЛЮЧИТЕЛЬНО через свою серую сеть. У провайдера 2 есть необходимость подключения к сервису для предоставления мне услуг (если конкретно - SIP, забирать от ISP1 и заворачивать на АТС ISP2).

Собственно, что я сделал:

на интерфейсе ISP1 поставил маскарад, на интерфейсе смотрящего на ISP2 так же повесил маскарад, и сделал проброс портов с моего IP 10.1.2.2 на IP 1.2.3.4. Прописал два дефолтных маршрута на 172.16.0.1 и 10.1.2.1 с маркировками 1_SIP и 2_SIP соответственно, а так же указал маршрут на 1.2.3.4 через 172.16.0.1. На фаерволе в мангле так же указал прероутинг, что всё что идёт на 1.2.3.4 маркируется как 1_SIP.

Казалось бы, идеальная схема, обе сети за натом -> кроме конечного IP никто ничего не знает. На сервере 1.2.3.4 аутентификация по ИП должна работать, но! Про попытке соедениться - ничего не происходит. В логах Микротик послушно пишет, что от серверов из сети 10.0.0.0/24 пакет для порта 5060 получен, и отправлен на 1.2.3.4 (при этом и в фаерволе количество пакетов увеличивается, и всё хорошо), но не поступает ответной реакции, соответственно соединение не устанавливается. Ну и пакеты не возвращаются из сети ISP1.

Что не так, и куда копать? Уже неделю воюю, и не вижу ответа, который скорее всего очевиден.

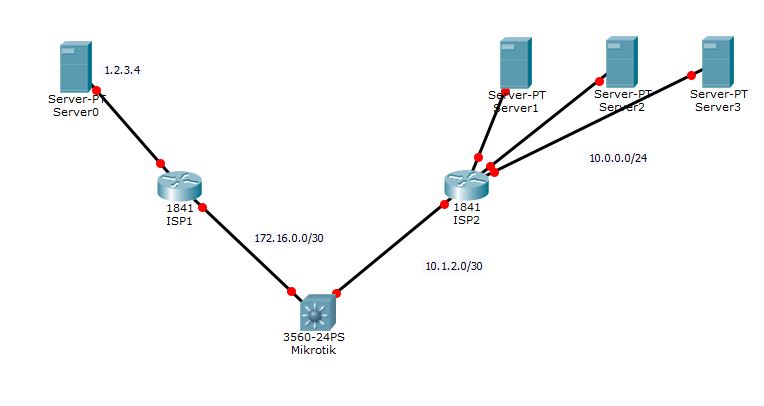

Схема наглядная

Edited May 17, 2016 by dayredo

[DRiVen]

а так же указал маршрут на 1.2.3.4 через 172.16.0.1

А маршрут до 10.0.0.0 через 10.1.2.х?

[dayredo]

А маршрут до 10.0.0.0 через 10.1.2.х?

Да, маршруты прописаны до их сетей.

[DRiVen]

Попробуйте sip alg отключить(ip->firewall->service-port), если не заработает - показывайте конфиг. Манглы, маршруты, нат, фильтр.

[dayredo]

Отключено.

Вот выкладки. Неактуальные (выключенные) удалил что бы глаза не мозолили. IP - заменил на случайные "на случай чего".

Соотношение с прошлой картинкой:

Megafon - ISP1

Unitel - ISP2



Routes





Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme, B - blackhole, U - unreachable, P - prohibit

0 A S ;;; MegafonSIP

dst-address=0.0.0.0/0 gateway=10.60.217.141 gateway-status=10.60.217.141 on MegafonSIP reachable via 07MegafonSIP distance=1 scope=30 target-scope=10 routing-mark=MegafonSIP

1 ADC dst-address=10.60.217.140/30 pref-src=10.60.217.142 gateway=07MegafonSIP gateway-status=07MegafonSIP reachable distance=0 scope=10 routing-mark=MegafonSIP

2 A S dst-address=83.149.6.36/32 gateway=10.60.217.141 gateway-status=10.60.217.141 on MegafonSIP reachable via 07MegafonSIP distance=1 scope=30 target-scope=10 routing-mark=MegafonSIP

3 A S dst-address=0.0.0.0/0 gateway=113.72.0.193 gateway-status=113.72.0.193 reachable via 04MegafonWAN check-gateway=ping distance=1 scope=30 target-scope=10 routing-mark=MegafonWAN

4 A S dst-address=0.0.0.0/0 gateway=85.177.21.245 gateway-status=85.177.21.245 reachable via 01UnitelWAN check-gateway=ping distance=10 scope=30 target-scope=10 routing-mark=office

5 S dst-address=0.0.0.0/0 gateway=113.72.0.193 gateway-status=113.72.0.193 reachable via 04MegafonWAN check-gateway=ping distance=11 scope=30 target-scope=10 routing-mark=office

6 A S dst-address=0.0.0.0/0 gateway=85.177.21.245 gateway-status=85.177.21.245 reachable via 01UnitelWAN check-gateway=ping distance=1 scope=30 target-scope=10 routing-mark=UnitelWAN

7 A S dst-address=0.0.0.0/0 gateway=85.177.22.109 gateway-status=85.177.22.109 reachable via 02UnitelWiFi distance=1 scope=30 target-scope=10 routing-mark=Guest

8 A S dst-address=0.0.0.0/0 gateway=113.72.0.193 gateway-status=113.72.0.193 reachable via 04MegafonWAN check-gateway=ping distance=1 scope=30 target-scope=10 routing-mark=MegafonWAN1

9 A S dst-address=0.0.0.0/0 gateway=10.65.51.25 gateway-status=10.65.51.25 on UnitelSIP reachable via 08UnitelSIP check-gateway=ping distance=1 scope=30 target-scope=10 routing-mark=UnitelSIP

10 A S dst-address=10.1.0.0/16 gateway=10.65.51.25 gateway-status=10.65.51.25 on UnitelSIP reachable via 08UnitelSIP check-gateway=ping distance=1 scope=30 target-scope=10 routing-mark=UnitelSIP

11 A S dst-address=10.65.0.0/16 gateway=10.65.51.25 gateway-status=10.65.51.25 on UnitelSIP reachable via 08UnitelSIP check-gateway=ping distance=1 scope=30 target-scope=10 routing-mark=UnitelSIP

12 ADC dst-address=10.65.51.24/30 pref-src=10.65.51.26 gateway=08UnitelSIP gateway-status=08UnitelSIP reachable distance=0 scope=10 routing-mark=UnitelSIP

13 S dst-address=83.149.6.36/32 gateway=10.60.217.141 gateway-status=10.60.217.141 on UnitelSIP unreachable distance=1 scope=30 target-scope=10 routing-mark=UnitelSIP

14 A S dst-address=0.0.0.0/0 gateway=85.177.21.245 gateway-status=85.177.21.245 reachable via 01UnitelWAN check-gateway=ping distance=1 scope=30 target-scope=10

16 A S dst-address=8.8.4.4/32 gateway=113.72.0.193 gateway-status=113.72.0.193 reachable via 04MegafonWAN distance=1 scope=30 target-scope=10

17 A S dst-address=8.8.8.8/32 gateway=85.177.21.245 gateway-status=85.177.21.245 reachable via 01UnitelWAN distance=1 scope=30 target-scope=10

18 ADC dst-address=10.0.0.0/24 pref-src=10.0.0.1 gateway=bridge_test gateway-status=bridge_test reachable distance=0 scope=10

19 S dst-address=10.1.0.0/16 gateway=10.65.51.25 gateway-status=10.65.51.25 unreachable check-gateway=ping distance=1 scope=30 target-scope=10

20 S dst-address=10.65.0.0/16 gateway=10.65.51.25 gateway-status=10.65.51.25 unreachable check-gateway=ping distance=1 scope=30 target-scope=10

22 S dst-address=83.149.6.36/32 gateway=10.60.217.141 gateway-status=10.60.217.141 unreachable distance=1 scope=30 target-scope=10

23 ADC dst-address=172.16.9.0/24 pref-src=172.16.9.1 gateway=bridge_guest gateway-status=bridge_guest reachable distance=0 scope=10

24 A S dst-address=172.32.254.0/24 gateway=192.168.6.254 gateway-status=192.168.6.254 reachable via bridge_office distance=1 scope=30 target-scope=10

25 ADC dst-address=85.177.21.244/30 pref-src=85.177.21.246 gateway=01UnitelWAN gateway-status=01UnitelWAN reachable distance=0 scope=10

26 ADC dst-address=85.177.22.108/30 pref-src=85.177.22.110 gateway=02UnitelWiFi gateway-status=02UnitelWiFi reachable distance=0 scope=10

28 ADS dst-address=192.168.4.0/22 gateway=192.168.7.13 gateway-status=192.168.7.13 reachable via <l2tp-arxotech> distance=1 scope=30 target-scope=10

29 S dst-address=192.168.4.0/26 gateway=192.168.4.194 gateway-status=192.168.4.194 unreachable check-gateway=ping distance=1 scope=30 target-scope=10

31 S dst-address=192.168.4.64/26 gateway=192.168.4.195 gateway-status=192.168.4.195 unreachable check-gateway=ping distance=1 scope=30 target-scope=10

32 S dst-address=192.168.4.128/26 gateway=192.168.4.196 gateway-status=192.168.4.196 unreachable check-gateway=ping distance=1 scope=30 target-scope=10

33 DC dst-address=192.168.4.192/26 pref-src=192.168.4.193 gateway=03UnitelVPN gateway-status=03UnitelVPN unreachable distance=255 scope=10

34 ADC dst-address=192.168.6.0/24 pref-src=192.168.6.1 gateway=bridge_office gateway-status=bridge_office reachable distance=0 scope=10

35 ADC dst-address=192.168.7.13/32 pref-src=192.168.7.1 gateway=<l2tp-arxotech> gateway-status=<l2tp-arxotech> reachable distance=0 scope=10

36 ADC dst-address=113.72.0.192/29 pref-src=113.72.0.194 gateway=04MegafonWAN gateway-status=04MegafonWAN reachable distance=0 scope=10







NAT





Flags: X - disabled, I - invalid, D - dynamic

0 chain=srcnat action=accept src-address=192.168.6.0/23 dst-address=192.168.2.0/24 log=no log-prefix=""

1 ;;; Masq to Unitel WAN

chain=srcnat action=masquerade out-interface=01UnitelWAN log=no log-prefix=""

2 ;;; Masq to Unitel WiFi

chain=srcnat action=masquerade out-interface=02UnitelWiFi log=no log-prefix=""

3 ;;; Masq to Megafon WAN

chain=srcnat action=masquerade out-interface=04MegafonWAN log=no log-prefix=""

4 chain=srcnat action=masquerade out-interface=07MegafonSIP log=yes log-prefix="MASQ_07MS"

5 chain=srcnat action=masquerade out-interface=08UnitelSIP log=yes log-prefix="MASQ_08US"

6 ;;; POST

chain=dstnat action=netmap to-addresses=192.168.6.4 protocol=tcp dst-address-list=WAN dst-port=25,465,110,995,143,993,443,80 log=no log-prefix=""

7 chain=dstnat action=netmap to-addresses=192.168.6.254 protocol=tcp dst-address-list=WAN dst-port=1194 log=no log-prefix=""

8 chain=dstnat action=netmap to-addresses=192.168.6.254 protocol=udp dst-address-list=WAN dst-port=1194 log=no log-prefix=""

9 chain=dstnat action=netmap to-addresses=10.60.217.142 protocol=udp in-interface=08UnitelSIP dst-port=5060 log=yes log-prefix="SIP_nat"

10 chain=dstnat action=netmap to-addresses=83.149.6.36 protocol=udp dst-address=10.60.217.142 dst-port=5060 log=yes log-prefix="SIP_nat"







Filter





Flags: X - disabled, I - invalid, D - dynamic

0 D ;;; special dummy rule to show fasttrack counters

chain=forward

1 chain=input action=accept protocol=icmp log=no log-prefix=""

2 chain=forward action=accept protocol=icmp log=no log-prefix=""

3 chain=forward action=drop protocol=tcp src-address=192.168.6.60-192.168.6.69 dst-port=80,443 log=no log-prefix=""

4 chain=forward action=accept src-address=192.168.0.0/22 dst-address=192.168.4.0/22 log=no log-prefix=""

5 chain=forward action=accept src-address=192.168.4.0/26 dst-address=192.168.6.0/23 log=no log-prefix=""

6 chain=forward action=accept src-address=192.168.4.0/22 dst-address=192.168.0.0/22 log=no log-prefix=""

7 chain=forward action=accept src-address=192.168.6.0/23 dst-address=192.168.4.0/26 log=no log-prefix=""

8 chain=output action=accept dst-address=180.164.10.60 log=yes log-prefix="MSK_out"

9 chain=input action=accept src-address=180.164.10.60 log=no log-prefix="MSK"

10 chain=forward action=accept src-address=180.164.10.60 log=no log-prefix="MSK"

11 chain=forward action=accept dst-address=180.164.10.60 log=no log-prefix="MSK"

12 chain=input action=accept protocol=ipsec-esp log=no log-prefix=""

13 chain=input action=accept protocol=udp dst-port=500,1701,4500 log=no log-prefix=""

14 chain=forward action=fasttrack-connection connection-state=established,related log=no log-prefix=""

15 chain=forward action=accept connection-state=established,related log=no log-prefix=""

16 chain=input action=fasttrack-connection connection-state=established,related log=no log-prefix=""

17 chain=input action=accept connection-state=established,related log=no log-prefix=""

18 chain=output action=fasttrack-connection log=no log-prefix=""

19 chain=input action=accept connection-state=!invalid in-interface=08UnitelSIP log=yes log-prefix="Unitel_in"

20 chain=forward action=accept connection-state=!invalid in-interface=08UnitelSIP out-interface=07MegafonSIP log=yes log-prefix="Uni_fwd"

21 chain=input action=accept connection-state=!invalid in-interface=07MegafonSIP log=yes log-prefix="Mega_in"

22 chain=forward action=accept connection-state=!invalid in-interface=07MegafonSIP out-interface=08UnitelSIP log=yes log-prefix="Mega_fwd"

23 chain=forward action=accept connection-state=established,related,new in-interface=bridge_guest out-interface=02UnitelWiFi log=no log-prefix=""

24 chain=forward action=accept in-interface=bridge_office out-interface=07MegafonSIP log=no log-prefix=""

25 chain=forward action=accept connection-state=!invalid in-interface=bridge_office out-interface=!02UnitelWiFi log=no log-prefix=""

26 chain=input action=accept connection-state=established,related,new in-interface=bridge_office log=no log-prefix=""

27 chain=forward action=accept in-interface=all-ppp out-interface=!01UnitelWAN log=no log-prefix=""

28 chain=input action=accept in-interface=all-ppp log=no log-prefix=""

29 chain=input action=accept protocol=udp dst-port=67-68 log=no log-prefix=""

30 chain=input action=accept connection-state=!invalid in-interface=03UnitelVPN log=no log-prefix=""

31 chain=forward action=accept connection-state=!invalid in-interface=03UnitelVPN log=no log-prefix=""

32 chain=input action=accept protocol=tcp dst-port=20000 log=no log-prefix=""

33 chain=forward action=accept in-interface=bridge_test out-interface=07MegafonSIP log=no log-prefix=""

34 chain=input action=accept in-interface=bridge_test log=yes log-prefix=""

35 chain=forward action=accept protocol=tcp dst-port=25,465,110,995,143,993,443,80 log=no log-prefix=""

36 chain=input action=drop log=no log-prefix=""

37 chain=forward action=drop log=yes log-prefix="DROP"







mangle





Flags: X - disabled, I - invalid, D - dynamic

0 D chain=forward action=change-mss new-mss=1410 passthrough=yes tcp-flags=syn protocol=tcp out-interface=all-ppp tcp-mss=1411-65535 log=no log-prefix=""

1 D chain=forward action=change-mss new-mss=1360 passthrough=yes tcp-flags=syn protocol=tcp in-interface=all-ppp tcp-mss=1361-65535 log=no log-prefix=""

2 D ;;; special dummy rule to show fasttrack counters

chain=prerouting

3 D ;;; special dummy rule to show fasttrack counters

chain=forward

4 D ;;; special dummy rule to show fasttrack counters

chain=postrouting

5 chain=prerouting action=mark-routing new-routing-mark=MegafonSIP passthrough=no dst-address=83.149.6.36 log=no log-prefix=""

6 chain=output action=mark-routing new-routing-mark=MegafonSIP passthrough=no dst-address=83.149.6.36 log=no log-prefix=""

9 chain=prerouting action=mark-routing new-routing-mark=office passthrough=no src-address=192.168.6.0/24 dst-address-list=!LocalNet log=no log-prefix=""

10 chain=prerouting action=mark-routing new-routing-mark=Guest passthrough=no src-address=172.16.9.0/24 log=no log-prefix=""

11 chain=input action=mark-connection new-connection-mark=UnitelWAN passthrough=no dst-address=85.177.21.246 in-interface=01UnitelWAN log=no log-prefix=""

12 chain=output action=mark-routing new-routing-mark=UnitelWAN passthrough=no connection-mark=UnitelWAN log=no log-prefix=""

13 chain=input action=mark-connection new-connection-mark=MegafonWAN passthrough=no dst-address=113.72.0.196 in-interface=04MegafonWAN log=no log-prefix=""

14 chain=output action=mark-routing new-routing-mark=MegafonWAN passthrough=no connection-mark=MegafonWAN log=no log-prefix=""

15 chain=input action=mark-connection new-connection-mark=MegafonSIP passthrough=no dst-address=10.60.217.142 in-interface=07MegafonSIP log=no log-prefix=""

16 chain=output action=mark-routing new-routing-mark=MegafonSIP passthrough=no connection-mark=MegafonSIP log=no log-prefix=""

17 chain=input action=mark-connection new-connection-mark=UnitelSIP passthrough=no dst-address=10.65.51.26 in-interface=08UnitelSIP log=no log-prefix=""

18 chain=output action=mark-routing new-routing-mark=UnitelSIP passthrough=no connection-mark=UnitelSIP log=no log-prefix=""





[DRiVen]

IP - заменил на случайные "на случай чего"

То есть вывалили принты с динамическими записями, вместо рафинированного, относительно проблемной части, экспорта конфигурации (без вагона маркированых дефолтов в белые сетки и кучи маршрутов в те же публичные адреса, да еще и через интерфейсы, на схеме отсутствующие), "на случай чего" (чего?) заменили "серую" адресацию, и теперь все это предлагается как-то скурить, угадав соответствие нескольких строк конфига со схемой? О_о
