Powertone и Axxon next. Как подключить? Только отлупы какие-то.

Есть камера PWT-444. Пытаюсь добавить её в Axxon next 3.6.2. Поиском её аксон находит. Добавляет как onvif-камеру. Но картинки нету. Пробовал добавлять руками, как onvif, onvif2x, rtsp - болт. Причём, подлый аксон таки взаимодействует с камерой - поворачивает на ней картинку на 90 градусов - так называемый "corridor pattern".

Сниффером можно увидеть какие-то пакеты с отлупами "501 Not Implemented", "405 Method Not Allowed" - так и должно быть?:

Как я понимаю, он пытается договориться по onvif, а получает отлуп. Это несоблюдение стандартов кетайцами из kedacom, или задвиги axxon-а?



POST /onvif/device_service HTTP/1.1
Host: 192.168.0.160
User-Agent: gSOAP/2.8
Content-Type: application/soap+xml; charset=utf-8; action="http://www.onvif.org/ver10/device/wsdl/GetServices"
Content-Length: 3420
Connection: close
SOAPAction: "http://www.onvif.org/ver10/device/wsdl/GetServices"

<?xml version="1.0" encoding="UTF-8"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://www.w3.org/2003/05/soap-envelope" xmlns:SOAP-ENC="http://www.w3.org/2003/05/soap-encoding" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:wsa5="http://www.w3.org/2005/08/addressing" xmlns:xmime="http://www.w3.org/2005/05/xmlmime" xmlns:tt="http://www.onvif.org/ver10/schema" xmlns:xop="http://www.w3.org/2004/08/xop/include" xmlns:wsrfbf="http://docs.oasis-open.org/wsrf/bf-2" xmlns:wstop="http://docs.oasis-open.org/wsn/t-1" xmlns:wsrf="http://docs.oasis-open.org/wsrf/r-2" xmlns:tanl2aeb="http://www.onvif.org/ver20/analytics/wsdl/AnalyticsEngineBinding" xmlns:tanl2re="http://www.onvif.org/ver20/analytics/wsdl/RuleEngineBinding" xmlns:tanl2="http://www.onvif.org/ver20/analytics/wsdl" xmlns:tanlaeb="http://www.onvif.org/ver10/analytics/wsdl/AnalyticsEngineBinding" xmlns:tanl="http://www.onvif.org/ver10/analytics/wsdl" xmlns:tanlre="http://www.onvif.org/ver10/analytics/wsdl/RuleEngineBinding" xmlns:tds="http://www.onvif.org/ver10/device/wsdl" xmlns:tevcppb="http://www.onvif.org/ver10/events/wsdl/CreatePullPointBinding" xmlns:teveb="http://www.onvif.org/ver10/events/wsdl/EventBinding" xmlns:tevncb="http://www.onvif.org/ver10/events/wsdl/NotificationConsumerBinding" xmlns:tevnpb="http://www.onvif.org/ver10/events/wsdl/NotificationProducerBinding" xmlns:tevppb="http://www.onvif.org/ver10/events/wsdl/PullPointBinding" xmlns:tevpps="http://www.onvif.org/ver10/events/wsdl/PullPointSubscriptionBinding" xmlns:tev="http://www.onvif.org/ver10/events/wsdl" xmlns:tevpsmb="http://www.onvif.org/ver10/events/wsdl/PausableSubscriptionManagerBinding" xmlns:wsnt="http://docs.oasis-open.org/wsn/b-2" xmlns:tevsmb="http://www.onvif.org/ver10/events/wsdl/SubscriptionManagerBinding" xmlns:timg="http://www.onvif.org/ver10/imaging/wsdl" xmlns:timg2="http://www.onvif.org/ver20/imaging/wsdl" xmlns:tmd="http://www.onvif.org/ver10/deviceIO/wsdl" xmlns:tptz="http://www.onvif.org/ver10/ptz/wsdl" xmlns:tptz2="http://www.onvif.org/ver20/ptz/wsdl" xmlns:trc="http://www.onvif.org/ver10/recording/wsdl" xmlns:trp="http://www.onvif.org/ver10/replay/wsdl" xmlns:trt="http://www.onvif.org/ver10/media/wsdl" xmlns:tse="http://www.onvif.org/ver10/search/wsdl" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing" xmlns:wsd="http://schemas.xmlsoap.org/ws/2005/04/discovery" xmlns:c14n="http://www.w3.org/2001/10/xml-exc-c14n#" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd" xmlns:xenc="http://www.w3.org/2001/04/xmlenc#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#" xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd" xmlns:dn="http://www.onvif.org/ver10/network/wsdl" xmlns:tns1="http://www.onvif.org/ver10/topics"><SOAP-ENV:Header><wsse:Security SOAP-ENV:mustUnderstand="true"><wsse:UsernameToken><wsse:Username>Admin</wsse:Username><wsse:Password Type="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-username-token-profile-1.0#PasswordDigest">UndjaRVQ/4Cg68WMNh2Obq2no50=</wsse:Password><wsse:Nonce>8OxrVZSyU9gEbCQyT0x0pSvlQmE=</wsse:Nonce><wsu:Created>2015-06-01T05:26:08Z</wsu:Created></wsse:UsernameToken></wsse:Security></SOAP-ENV:Header><SOAP-ENV:Body><tds:GetServices><tds:IncludeCapability>false</tds:IncludeCapability></tds:GetServices></SOAP-ENV:Body></SOAP-ENV:Envelope>
HTTP/1.0 501 Not Implemented
Content-type: text/html
Date: Mon, 01 Jun 2015 05:26:08 GMT
Connection: close

<HTML><HEAD><TITLE>501 Not Implemented</TITLE></HEAD>
<BODY><H1>501 Not Implemented</H1>
The requested method is not recognized
</BODY></HTML>

GET /PSIA/System/Video/description HTTP/1.0
Authorization: Basic YWRtaW46cDBva21qeTZp
Connection: Close
Host: 192.168.0.160:8080

HTTP/1.0 200 OK
Content-type: text/html
Date: Mon, 01 Jun 2015 05:27:01 GMT
Connection: close
Accept-Ranges: bytes
Last-Modified Mon, 01 Jun 2015 05:27:01 GMT
Content-length:116

<HTML>
<head>
<meta http-equiv="refresh" content="0;url=http://192.168.0.160:80/index.html">
</head>
</HTML>
HTTP/1.1 405 Method Not Allowed
Server: gSOAP/2.8
Content-Type: text/xml; charset=utf-8
Content-Length: 3319
Connection: close

<?xml version="1.0" encoding="UTF-8"?>
<SOAP-ENV:Envelope xmlns:SOAP-ENV="http://www.w3.org/2003/05/soap-envelope" xmlns:SOAP-ENC="http://www.w3.org/2003/05/soap-encoding" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns:wsa5="http://www.w3.org/2005/08/addressing" xmlns:c14n="http://www.w3.org/2001/10/xml-exc-c14n#" xmlns:wsu="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd" xmlns:xenc="http://www.w3.org/2001/04/xmlenc#" xmlns:ds="http://www.w3.org/2000/09/xmldsig#" xmlns:wsse="http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd" xmlns:wsa="http://schemas.xmlsoap.org/ws/2004/08/addressing" xmlns:xmime="http://tempuri.org/xmime.xsd" xmlns:xop="http://www.w3.org/2004/08/xop/include" xmlns:wsrf-bf="http://docs.oasis-open.org/wsrf/bf-2" xmlns:tt="http://www.onvif.org/ver10/schema" xmlns:tt-ext="http://www.placeholder.org/ver10/tmp/schema" xmlns:d="http://schemas.xmlsoap.org/ws/2005/04/discovery" xmlns:wstop="http://docs.oasis-open.org/wsn/t-1" xmlns:wsrf-r="http://docs.oasis-open.org/wsrf/r-2" xmlns:ns10="http://www.onvif.org/ver10/events/wsdl/CreatePullPointBinding" xmlns:ns11="http://www.onvif.org/ver10/events/wsdl/PausableSubscriptionManagerBinding" xmlns:ns12="http://www.onvif.org/ver20/analytics/wsdl/RuleEngineBinding" xmlns:ns13="http://www.onvif.org/ver20/analytics/wsdl/AnalyticsEngineBinding" xmlns:tan="http://www.onvif.org/ver20/analytics/wsdl" xmlns:ns2="http://www.onvif.org/ver10/network/wsdl/RemoteDiscoveryBinding" xmlns:ns3="http://www.onvif.org/ver10/network/wsdl/DiscoveryLookupBinding" xmlns:dn="http://www.onvif.org/ver10/network/wsdl" xmlns:ns4="http://www.onvif.org/ver10/events/wsdl/PullPointSubscriptionBinding" xmlns:ns5="http://www.onvif.org/ver10/events/wsdl/EventBinding" xmlns:tev="http://www.onvif.org/ver10/events/wsdl" xmlns:ns6="http://www.onvif.org/ver10/events/wsdl/SubscriptionManagerBinding" xmlns:ns7="http://www.onvif.org/ver10/events/wsdl/NotificationProducerBinding" xmlns:ns8="http://www.onvif.org/ver10/events/wsdl/NotificationConsumerBinding" xmlns:wsnt="http://docs.oasis-open.org/wsn/b-2" xmlns:ns9="http://www.onvif.org/ver10/events/wsdl/PullPointBinding" xmlns:tae="http://www.onvif.org/ver10/actionengine/wsdl" xmlns:tand="http://www.onvif.org/ver10/analyticsdevice/wsdl" xmlns:tdisp="http://www.onvif.org/ver10/display/wsdl" xmlns:tds="http://www.onvif.org/ver10/device/wsdl" xmlns:text="http://www.placeholder.org/ver10/tmp/wsdl" xmlns:timg10="http://www.onvif.org/ver10/imaging/wsdl" xmlns:timg20="http://www.onvif.org/ver20/imaging/wsdl" xmlns:tmd="http://www.onvif.org/ver10/deviceIO/wsdl" xmlns:tptz10="http://www.onvif.org/ver10/ptz/wsdl" xmlns:tptz20="http://www.onvif.org/ver20/ptz/wsdl" xmlns:trc="http://www.onvif.org/ver10/recording/wsdl" xmlns:trecv="http://www.onvif.org/ver10/receiver/wsdl" xmlns:trp="http://www.onvif.org/ver10/replay/wsdl" xmlns:trt="http://www.onvif.org/ver10/media/wsdl" xmlns:tse="http://www.onvif.org/ver10/search/wsdl" xmlns:ter="http://www.onvif.org/ver10/error" xmlns:tns1="http://www.onvif.org/ver10/topics"><SOAP-ENV:Body><SOAP-ENV:Fault><faultcode>SOAP-ENV:Client</faultcode><faultstring>HTTP GET method not implemented</faultstring></SOAP-ENV:Fault></SOAP-ENV:Body></SOAP-ENV:Envelope>

Share this post


Link to post
Share on other sites

порт 8080 используйте

Не хочет народ читать мануалы, нивкакую

Share this post


Link to post
Share on other sites

порт 8080 используйте

Не хочет народ читать мануалы, нивкакую



Использовал. Не помогло. Много всего перепробовал.

Не хочет народ писать мануалы ни в какую .

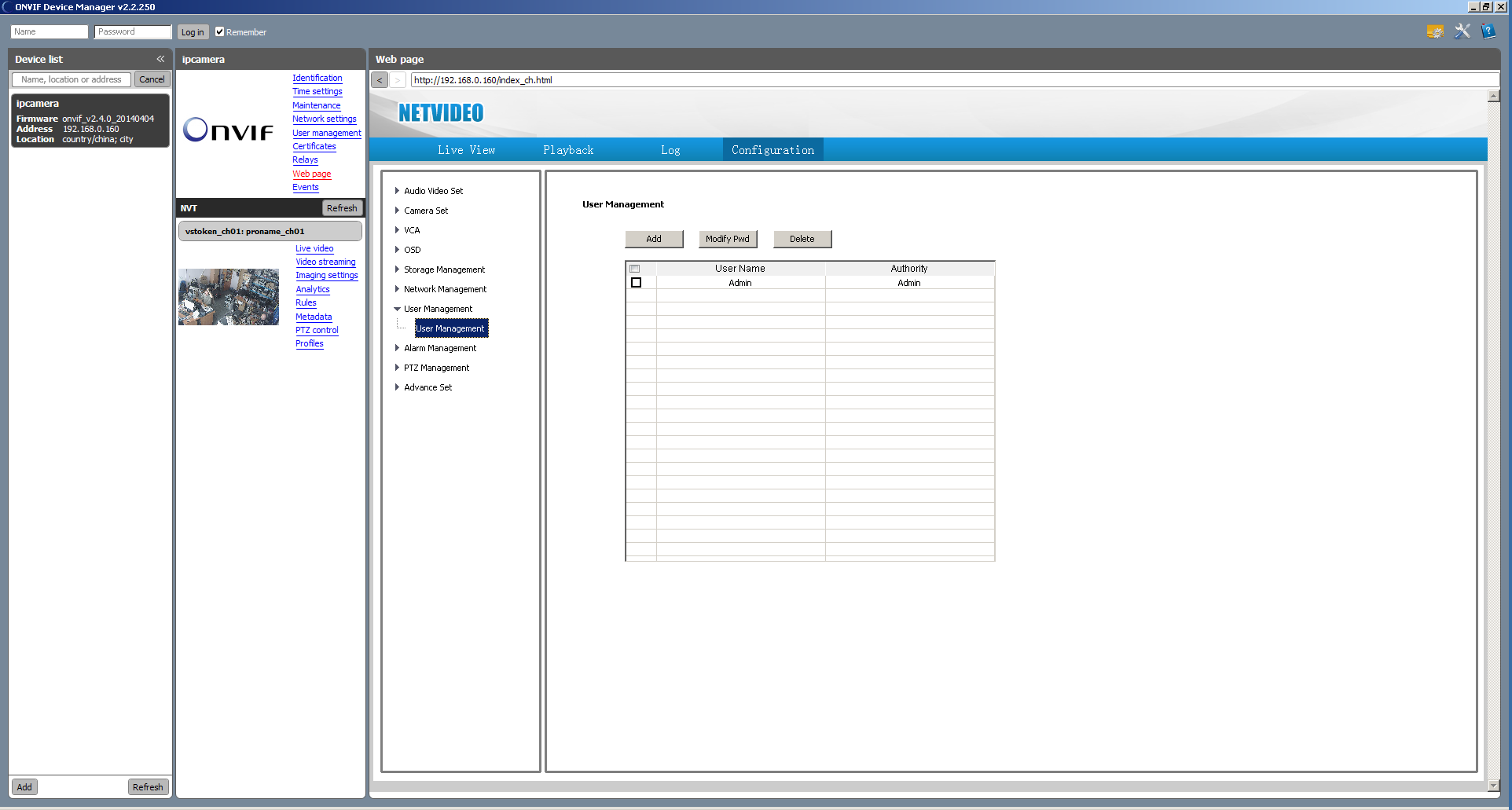

Пользователь Admin в вебинтерфейсе один, на него и менял пароль, первым делом, зайдя на железку.

post-114655-005096700 1433149101_thumb.png

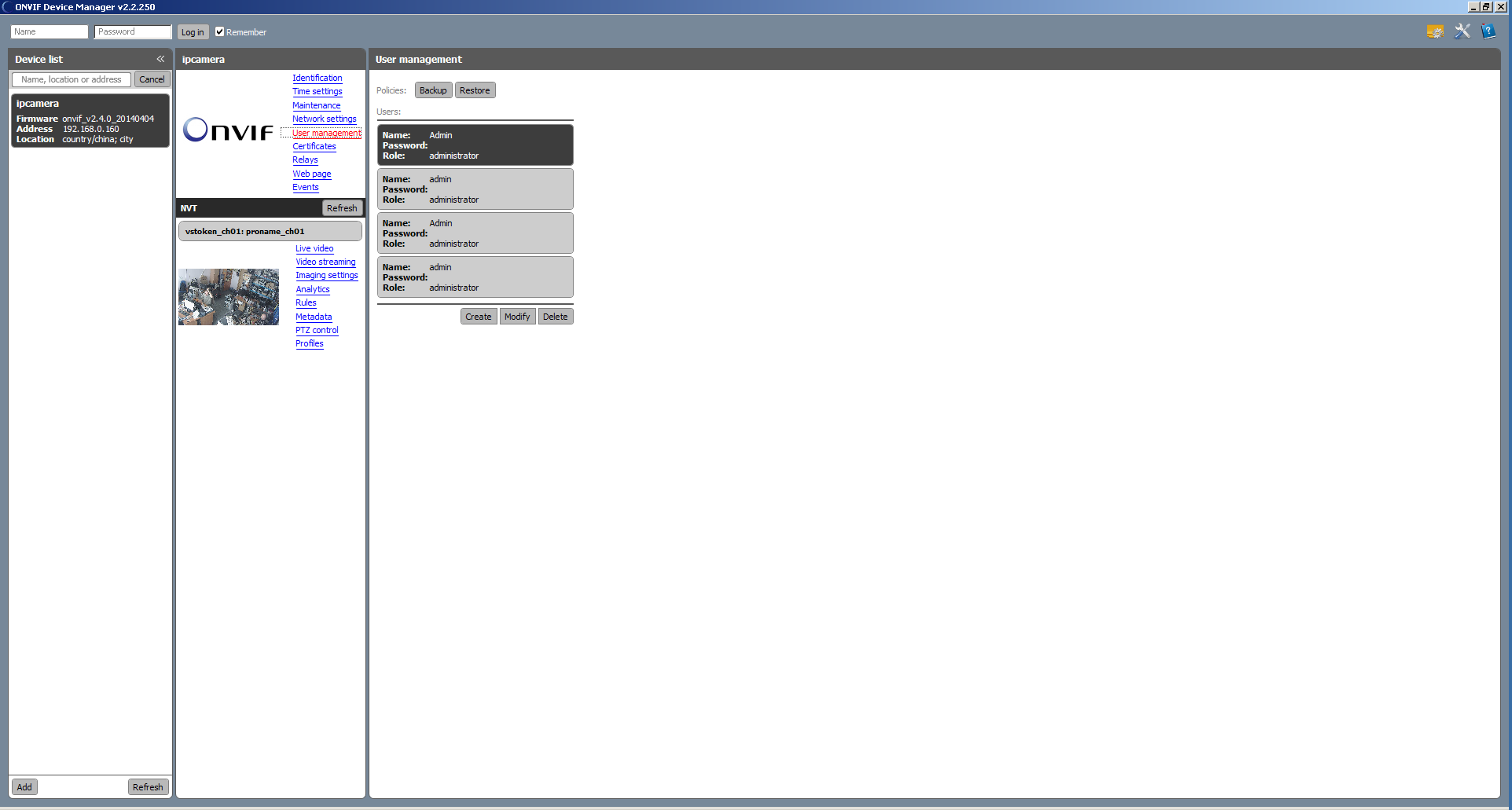

А ONVIF Device Manager зачем-то видит их 4 штуки. И залогиниться ODM смог дефолтовым админом, который Admin/1111.

post-114655-040795200 1433149099_thumb.png



Axxon тоже завёлся с админом и единицами. А с паролем, задаваемым с вебморды, приходили отлупы "401 unauthorized" при использовании того самого порта 8080. После чего и начались танцы с перебором разных портов, протоколов, развлечения со сниффером...

Edited by pukoid

Share this post


Link to post
Share on other sites

не цепляется по онвиву - цепляйте по rtsp.

тут описание https://doc.axxonsoft.com/confluence/pages/viewpage.action?pageId=108298978



если стандартный формат rtsp не подойдет - узнавайте строку у производителя.



P.S. VLC плеером можете проверить корректность rtsp строки http://tantos.pro/manuals/RTSP%20rus-3.pdf

Edited by p9160ff

Share this post


Link to post
Share on other sites

Зацепил по onvif уже. С паролем приколы были.
