  1. Всем доброго дня! Получил устное обращение от РКН по поводу недостаточного количества обращений к отечественным dns-серверам НСДИ. Местное управление, видимо, получило данные о количестве запросов по номеру AS. В ходе разбирательств выяснили, что помимо количества запросов там указан тип AS - или тупиковая или транзитная или пусто. (Я так и не понял, что имеется ввиду. Отсыл это к RFC 1772 - stub/multihomed/transit или какой то их внутренний термин) Вопрос: У меня в поле "тип AS" пусто, просят сделать чтобы было не пусто. Ни на форме на сайте ни в схеме не нашел подобного параметра. Никто не сталкивался?
  2. Добрый день! Случайно грохнул Operating file и backup. Не подскажете, где можно оригинал найти? Сбросить пароль пытался.. rad ipmux-1e
  3. Добрый день! Сори за некропост, но чтобы тем не плодить. Подскажите, через комплект ipmux-11\e1\utp\utp можно честный e1 через пакетную сеть прогнать? Интересует для М200, там не dss1, а свой gscp http://www.m-200.com/base/index.php/GSCP т.е. нужен обычный E1 стандарту ITU-T G.703
  4. Да, падал стык с ними: 2021-04-26 20:30:21 <RMT> bgp_rkn: Error: Hold timer expired 2021-04-26 21:08:47 <RMT> bgp_rkn: Error: Hold timer expired 2021-04-26 21:28:55 <RMT> bgp_rkn: Error: Hold timer expired 2021-04-26 22:15:53 <RMT> bgp_rkn: Error: Hold timer expired 2021-04-26 22:24:11 <RMT> bgp_rkn: Error: Hold timer expired
  5. bird: protocol bgp bgp_rkn { debug all; description "Roskomnadzor"; local as XXXXXX; source address X.X.X.X; neighbor 185.224.228.193 as 65211; import none; #import filter bgp_in_rkn; export filter bgp_out_rkn; } filter bgp_in_rkn { reject; } filter bgp_out_rkn { if net_martian() then reject; accept; } function net_martian() { return net ~ [ 169.254.0.0/16+, 172.16.0.0/12+, 192.168.0.0/16+, 10.0.0.0/8+, 127.0.0.0/8+, 224.0.0.0/4+, 240.0.0.0/4+, 0.0.0.0/32-, 0.0.0.0/0{30,32}, 0.0.0.0/0{0,7} ]; } netflow - ipt-netflow https://github.com/aabc/ipt-netflow snmp - в работе, непонятно как нагрузку ограничивать в случае чего...
  6. Задал вопрос местному РКН по поводу заполнения приложения 1 (bgp, snmp, netflow) - бордер программный, стык еще не настроен, а в инструкции написано "Предоставление Владельцем АС заполненных таблиц является подтверждением выполнения настроек оборудования со стороны Владельца АС." В ответ - можете не заполнять, но напишите письмо ndr@rkn.gov.ru с пояснением, почему заполнить не можете.
  7. А почему? (Я не спорю, я гугловый теоретик пока) Я считал без учета сварки (в тест на коннекторах все) 1*2 - 2шт : 6 соединений * 1db + 2*4db = 14db - сожрет весь бюджет LX20? У них как раз 14. А вроде как еще 3 должны остаться 1*4 - 1шт : 3 соединения * 1db + 1*7,4db = 10,4db и как раз 3db остается от бюджета snr-lx20 14db snr-lx40 16db snr-lx80 24db
  8. А если нужно делить на 2 съемника и ставить сплиттеры 1:4 - то один свободный хвост на каждом сплиттере нужно как-нибудь терминировать или можно просто в воздухе оставить?
  9. Добрый день! На WS-C2960S-48TS-L c2960s-universalk9-mz.152-2.E9.bin настроено зеркалирование трафика. Наблюдаются дропы на выход, нагрузка обычно около 100mbit в пиках около 200mbit Подскажите как правильно очереди подкрутить чтобы избавиться от потерь? monitor session 1 source interface Gi1/0/1 monitor session 1 destination interface Gi1/0/5 , Gi1/0/7 , Gi1/0/9 interface GigabitEthernet1/0/5 description sorm_out_1 hold-queue 4096 out end show interfaces gi1/0/5 GigabitEthernet1/0/5 is up, line protocol is down (monitoring) Hardware is Gigabit Ethernet, address is a0cf.5b7c.ab85 (bia a0cf.5b7c.ab85) Description: chk_out_1 MTU 1500 bytes, BW 1000000 Kbit/sec, DLY 10 usec, reliability 255/255, txload 23/255, rxload 1/255 Encapsulation ARPA, loopback not set Keepalive set (10 sec) Full-duplex, 1000Mb/s, media type is 10/100/1000BaseTX input flow-control is off, output flow-control is unsupported ARP type: ARPA, ARP Timeout 04:00:00 Last input never, output 1w0d, output hang never Last clearing of "show interface" counters 1w0d Input queue: 0/75/0/0 (size/max/drops/flushes); Total output drops: 565721 Queueing strategy: fifo Output queue: 0/4096 (size/max) 5 minute input rate 0 bits/sec, 0 packets/sec 5 minute output rate 91605000 bits/sec, 18714 packets/sec 0 packets input, 0 bytes, 0 no buffer Received 0 broadcasts (0 multicasts) 0 runts, 0 giants, 0 throttles 0 input errors, 0 CRC, 0 frame, 0 overrun, 0 ignored 0 watchdog, 0 multicast, 0 pause input 0 input packets with dribble condition detected 10743475055 packets output, 7295234268178 bytes, 0 underruns 0 output errors, 0 collisions, 0 interface resets 0 unknown protocol drops 0 babbles, 0 late collision, 0 deferred 0 lost carrier, 0 no carrier, 0 pause output 0 output buffer failures, 0 output buffers swapped out show mls qos interface Gi1/0/5 statistics GigabitEthernet1/0/5 (All statistics are in packets) dscp: incoming ------------------------------- 0 - 4 : 0 0 0 0 0 5 - 9 : 0 0 0 0 0 10 - 14 : 0 0 0 0 0 15 - 19 : 0 0 0 0 0 20 - 24 : 0 0 0 0 0 25 - 29 : 0 0 0 0 0 30 - 34 : 0 0 0 0 0 35 - 39 : 0 0 0 0 0 40 - 44 : 0 0 0 0 0 45 - 49 : 0 0 0 0 0 50 - 54 : 0 0 0 0 0 55 - 59 : 0 0 0 0 0 60 - 64 : 0 0 0 0 dscp: outgoing ------------------------------- 0 - 4 : 37116 0 0 0 0 5 - 9 : 0 0 0 0 0 10 - 14 : 27 0 0 0 0 15 - 19 : 0 8 0 0 0 20 - 24 : 0 0 0 0 14 25 - 29 : 0 7 0 0 0 30 - 34 : 0 0 15 0 0 35 - 39 : 0 0 0 0 0 40 - 44 : 3 0 0 0 0 45 - 49 : 0 0 0 2 0 50 - 54 : 0 0 0 0 0 55 - 59 : 0 29 0 0 0 60 - 64 : 0 0 0 0 cos: incoming ------------------------------- 0 - 4 : 0 0 0 0 0 5 - 7 : 0 0 0 cos: outgoing ------------------------------- 0 - 4 : 55830 0 0 0 0 5 - 7 : 0 0 80 output queues enqueued: queue: threshold1 threshold2 threshold3 ----------------------------------------------- queue 0: 0 0 0 queue 1: 24801899 7 6416059 queue 2: 0 0 0 queue 3: 0 0 2577608200 output queues dropped: queue: threshold1 threshold2 threshold3 ----------------------------------------------- queue 0: 0 0 0 queue 1: 1 0 0 queue 2: 0 0 0 queue 3: 0 0 577956 Policer: Inprofile: 0 OutofProfile: 0 show platform port-asic stats drop Gi1/0/5 Interface Gi1/0/5 TxQueue Drop Statistics Queue 0 Weight 0 Frames 0 Weight 1 Frames 0 Weight 2 Frames 0 Queue 1 Weight 0 Frames 1 Weight 1 Frames 0 Weight 2 Frames 0 Queue 2 Weight 0 Frames 0 Weight 1 Frames 0 Weight 2 Frames 0 Queue 3 Weight 0 Frames 0 Weight 1 Frames 0 Weight 2 Frames 577956 show platform port-asic version Port-Asic Version Info: ======================== ASIC-0: Version:5 DeviceType:0x32F ASIC-1: Version:5 DeviceType:0x32F show platform pm if-numbers interface gid gpn lpn port slot unit slun port-type lpn-idb gpn-idb ---------------------------------------------------------------------- Gi1/0/1 1 1 1 0/2 1 1 1 local Yes Yes Gi1/0/2 2 2 2 0/1 1 2 2 local Yes Yes Gi1/0/3 3 3 3 0/4 1 3 3 local Yes Yes Gi1/0/4 4 4 4 0/3 1 4 4 local Yes Yes Gi1/0/5 5 5 5 0/6 1 5 5 local Yes Yes Gi1/0/6 6 6 6 0/5 1 6 6 local Yes Yes Gi1/0/7 7 7 7 0/8 1 7 7 local Yes Yes Gi1/0/8 8 8 8 0/7 1 8 8 local Yes Yes Gi1/0/9 9 9 9 0/10 1 9 9 local Yes Yes Gi1/0/10 10 10 10 0/9 1 10 10 local Yes Yes Gi1/0/11 11 11 11 0/12 1 11 11 local Yes Yes Gi1/0/12 12 12 12 0/11 1 12 12 local Yes Yes Gi1/0/13 13 13 13 0/16 1 13 13 local Yes Yes Gi1/0/14 14 14 14 0/15 1 14 14 local Yes Yes Gi1/0/15 15 15 15 0/18 1 15 15 local Yes Yes Gi1/0/16 16 16 16 0/17 1 16 16 local Yes Yes Gi1/0/17 17 17 17 0/20 1 17 17 local Yes Yes Gi1/0/18 18 18 18 0/19 1 18 18 local Yes Yes Gi1/0/19 19 19 19 0/22 1 19 19 local Yes Yes Gi1/0/20 20 20 20 0/21 1 20 20 local Yes Yes Gi1/0/21 21 21 21 0/24 1 21 21 local Yes Yes Gi1/0/22 22 22 22 0/23 1 22 22 local Yes Yes Gi1/0/23 23 23 23 0/26 1 23 23 local Yes Yes Gi1/0/24 24 24 24 0/25 1 24 24 local Yes Yes Gi1/0/25 25 25 25 1/2 1 25 25 local Yes Yes Gi1/0/26 26 26 26 1/1 1 26 26 local Yes Yes Gi1/0/27 27 27 27 1/4 1 27 27 local Yes Yes Gi1/0/28 28 28 28 1/3 1 28 28 local Yes Yes Gi1/0/29 29 29 29 1/6 1 29 29 local Yes Yes Gi1/0/30 30 30 30 1/5 1 30 30 local Yes Yes Gi1/0/31 31 31 31 1/8 1 31 31 local Yes Yes Gi1/0/32 32 32 32 1/7 1 32 32 local Yes Yes Gi1/0/33 33 33 33 1/10 1 33 33 local Yes Yes Gi1/0/34 34 34 34 1/9 1 34 34 local Yes Yes Gi1/0/35 35 35 35 1/12 1 35 35 local Yes Yes Gi1/0/36 36 36 36 1/11 1 36 36 local Yes Yes Gi1/0/37 37 37 37 1/16 1 37 37 local Yes Yes Gi1/0/38 38 38 38 1/15 1 38 38 local Yes Yes Gi1/0/39 39 39 39 1/18 1 39 39 local Yes Yes Gi1/0/40 40 40 40 1/17 1 40 40 local Yes Yes interface gid gpn lpn port slot unit slun port-type lpn-idb gpn-idb ---------------------------------------------------------------------- Gi1/0/41 41 41 41 1/20 1 41 41 local Yes Yes Gi1/0/42 42 42 42 1/19 1 42 42 local Yes Yes Gi1/0/43 43 43 43 1/22 1 43 43 local Yes Yes Gi1/0/44 44 44 44 1/21 1 44 44 local Yes Yes Gi1/0/45 45 45 45 1/24 1 45 45 local Yes Yes Gi1/0/46 46 46 46 1/23 1 46 46 local Yes Yes Gi1/0/47 47 47 47 1/26 1 47 47 local Yes Yes Gi1/0/48 48 48 48 1/25 1 48 48 local Yes Yes Gi1/0/49 49 49 49 0/13 1 49 49 local Yes Yes Gi1/0/50 50 50 50 1/13 1 50 50 local Yes Yes Gi1/0/51 51 51 51 1/27 1 51 51 local Yes Yes Gi1/0/52 52 52 52 0/27 1 52 52 local Yes Yes St1 840 840 0 16/0 1 0 0 internal Yes Yes show controllers ethernet-controller port-asic statistics =========================================================================== Switch 1, PortASIC 0 Statistics --------------------------------------------------------------------------- 0 TxBufferFull Drop Count 0 TxBufferFrameDesc BadCrc16 0 TxBuffer Bandwidth Drop Cou 0 TxQueue Bandwidth Drop Coun 0 TxQueue Missed Drop Statist 0 RxBuffer Drop DestIndex Cou 0 SneakQueue Drop Count 0 Learning Queue Overflow Fra 0 TxBufferFrameDesc BadCrc16 0 Rx NP Packet Count0 0 RxBuffer Drop DestIndex Cou 0 Rx NP Packet Count1 0 Sup Queue 0 Drop Frames 290542 Sup Queue 8 Drop Frames 0 Sup Queue 1 Drop Frames 0 Sup Queue 9 Drop Frames 0 Sup Queue 2 Drop Frames 0 Sup Queue 10 Drop Frames 25040 Sup Queue 3 Drop Frames 0 Sup Queue 11 Drop Frames 0 Sup Queue 4 Drop Frames 0 Sup Queue 12 Drop Frames 0 Sup Queue 5 Drop Frames 0 Sup Queue 13 Drop Frames 0 Sup Queue 6 Drop Frames 0 Sup Queue 14 Drop Frames 0 Sup Queue 7 Drop Frames 0 Sup Queue 15 Drop Frames =========================================================================== Switch 1, PortASIC 1 Statistics --------------------------------------------------------------------------- 0 TxBufferFull Drop Count 0 TxBufferFrameDesc BadCrc16 0 TxBuffer Bandwidth Drop Cou 0 TxQueue Bandwidth Drop Coun 0 TxQueue Missed Drop Statist 0 RxBuffer Drop DestIndex Cou 0 SneakQueue Drop Count 0 Learning Queue Overflow Fra 0 TxBufferFrameDesc BadCrc16 0 Rx NP Packet Count0 0 RxBuffer Drop DestIndex Cou 0 Rx NP Packet Count1 0 Sup Queue 0 Drop Frames 0 Sup Queue 8 Drop Frames 0 Sup Queue 1 Drop Frames 0 Sup Queue 9 Drop Frames 0 Sup Queue 2 Drop Frames 0 Sup Queue 10 Drop Frames 0 Sup Queue 3 Drop Frames 0 Sup Queue 11 Drop Frames 0 Sup Queue 4 Drop Frames 0 Sup Queue 12 Drop Frames 0 Sup Queue 5 Drop Frames 0 Sup Queue 13 Drop Frames 0 Sup Queue 6 Drop Frames 0 Sup Queue 14 Drop Frames 0 Sup Queue 7 Drop Frames 0 Sup Queue 15 Drop Frames
  10. Сюда https://epp.noc.gov.ru/information/file/1 , но другим браузером получилось, все ок. Файл загрузился.
  11. Кому нибудь удалось зайти? Попрежнему пустая страница..

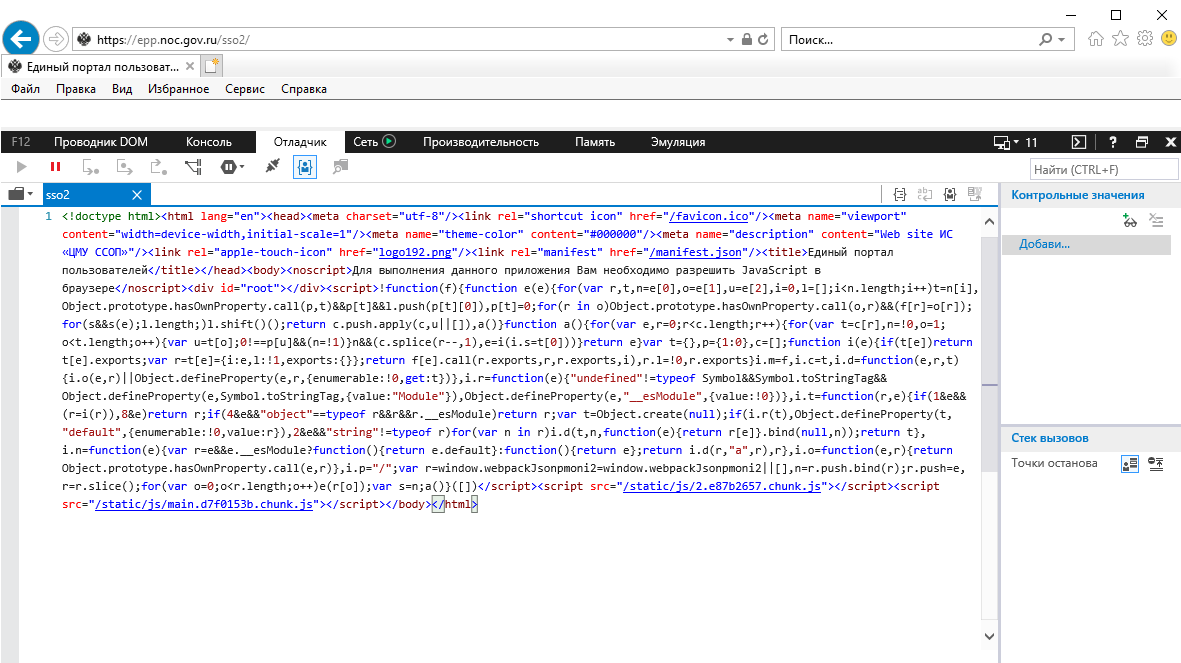

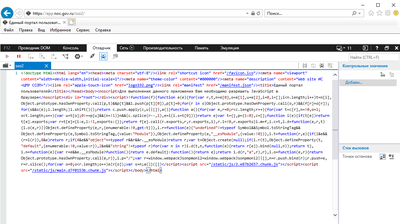

  12. Добрый день! Подскажите, по какой ссылке файл загружать? (№22223-02/66 от 05.10.2020: О внесении сведений в информационную систему) В личном кабинете ( https://service.rkn.gov.ru/monitoring/ssop ) ссылка на управление и мониторинг ( https://epp.noc.gov.ru/sso2/ ) - ругается на просроченный сертификат сервера, если отключить проверку - загружается пустая страница (видимая часть пустая)
  13. В firefox - нажимаете ф12, выбираете "консоль", жмете ОК под формами и появляется xml
  14. А каким образом вы html в xml превратили?
